Description
Servo Overview:

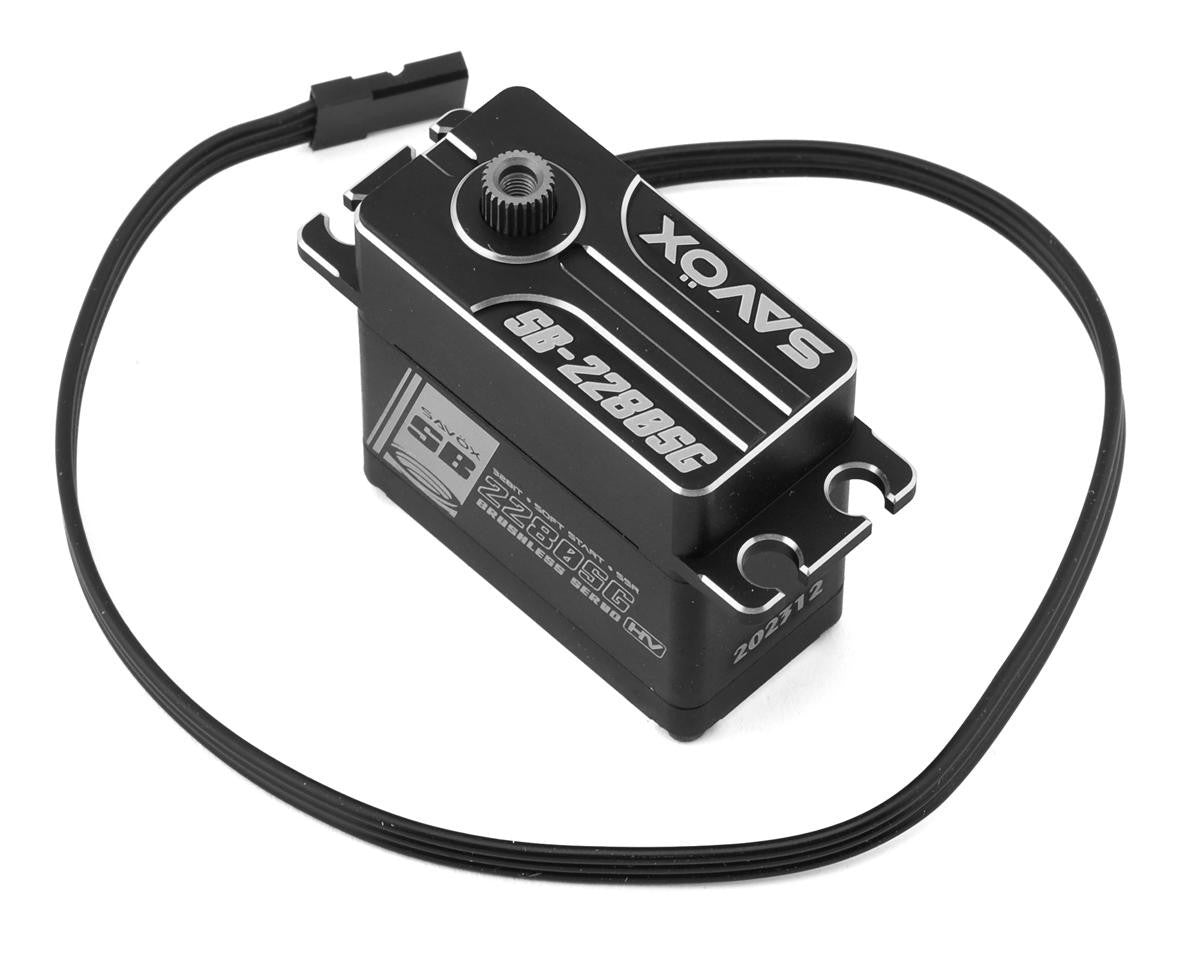

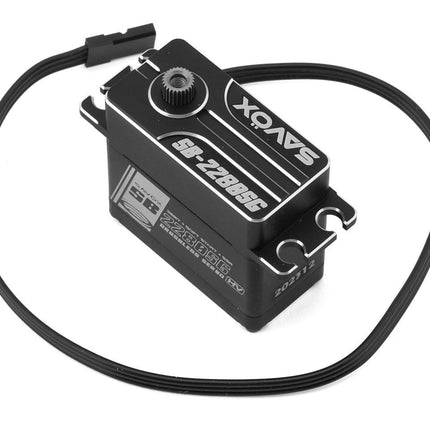

Savox SB-2280SGP Monster Torque Brushless Steel Gear Servo. Features an all-aluminum case that provides excellent heat dissipation, and a high-efficiency brushless motor with all metal gears that ensure supreme durability against the harshest conditions! Designed and specified to suit and feed the demand for a high-torque steering servo with a smooth feel! Get the Savox SB-2280SGP to elevate your steering performance and precision to a higher level!
Features
- Ideal for 1/8 buggies, crawlers, and large-scale aircraft
- Combines leading-edge technology with super high 12-bit (4096) resolution
- High-efficiency brushless motor for smooth operation and efficiency
- Capable of HV operation
- All aluminum case
- All metal gears
Specifications:
- Speed:
-
@6.0V: 0.17 sec/60°
-
@7.4V: 0.14 sec/60°
-
@8.4V: 0.12 sec/60°
- Torque:
-
@6.0V: 555.5oz-in (40kg-cm)
-
@7.4V: 694.4oz-in (50kg-cm)
-
@8.4V: 833.2oz-in (60kg-cm)
-
Motor: Brushless
-
Operating Voltage: 6.0V-8.4V
-
Operating Temperature: 14F to 122F (-10C to +50C)
-
Operating Travel: 100° (1000—2000µsecond)
-
Maximum Travel: Appx 130° (900—2100µsecond)
-
Refresh Rate: 333Hz
-
Dimensions: 40.3x20.2x38.7mm
-
Weight: 83g
-
Operating Spline: 25T

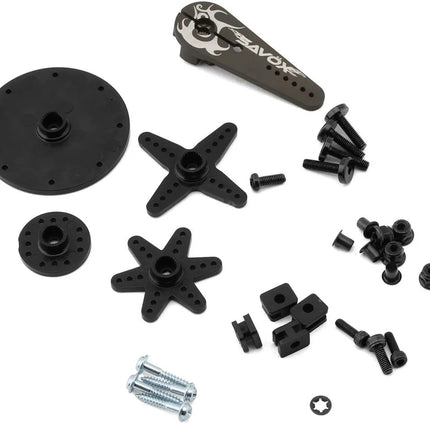

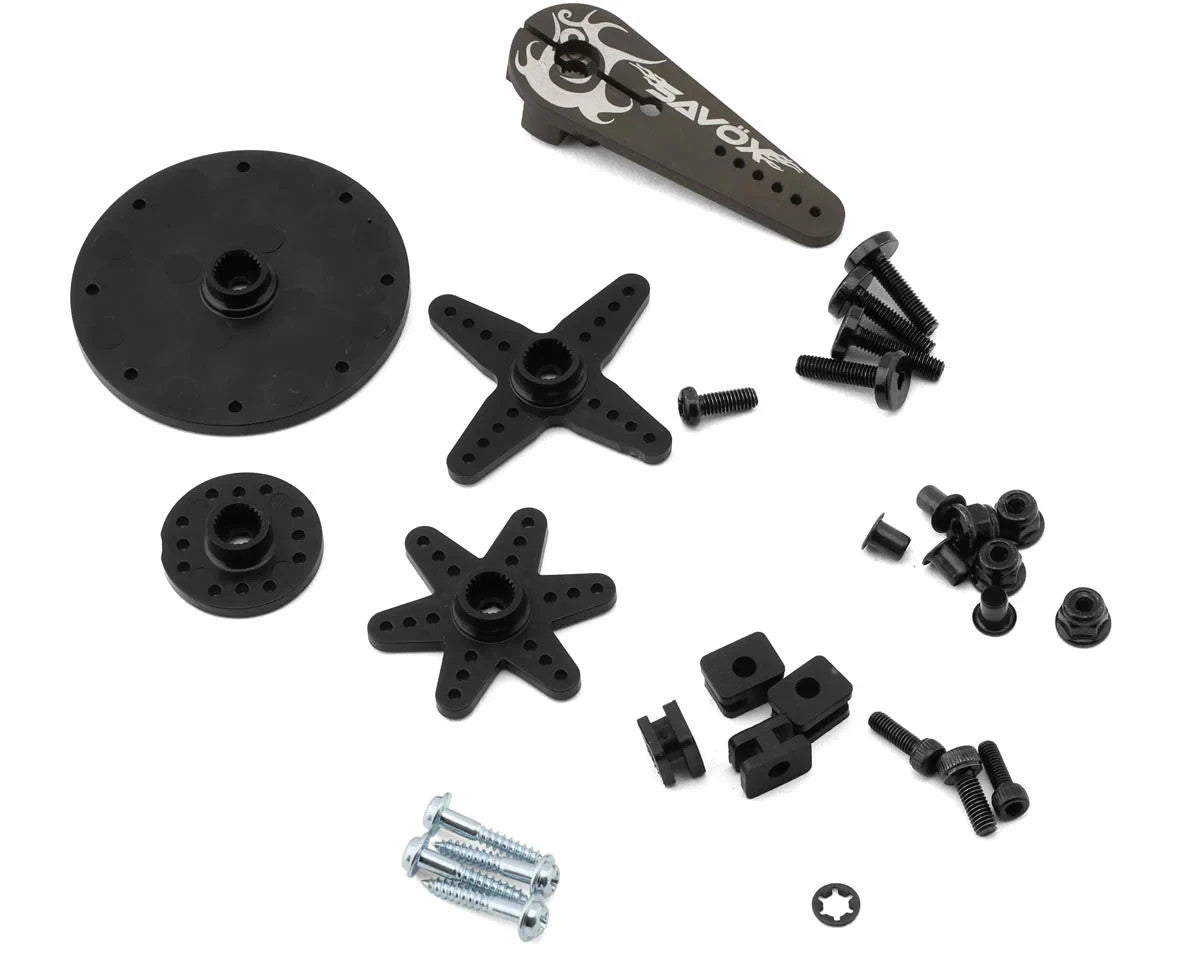

Includes:
- (1) SB-2280SGP Monster Torque Brushless Steel Gear Servo
- (1) Aluminum Servo Horn
- Composite Horns
- Mounting Hardware
