Description

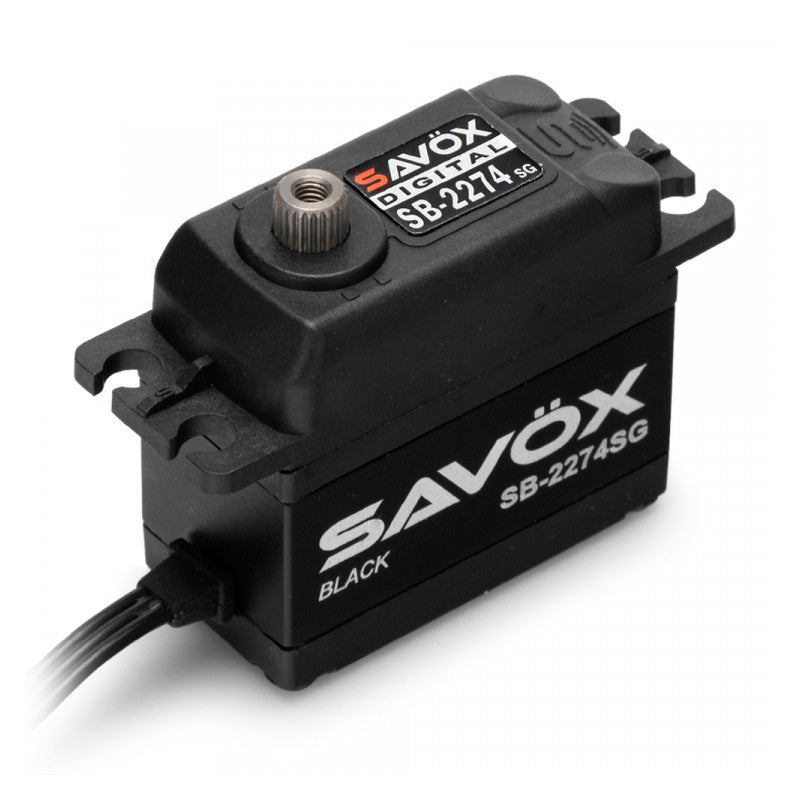

The Savox SB-2274SG SB-2274SG "High Speed" Black Edition Brushless Steel Gear Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. This servo is a great option for 1/10 off road, 1/8 buggies, and large scale aircraft.
Features:
- Unique steel gear train
- Capable of HV operation
- Brushless motor for smooth operation and efficiency
- Ideal for 1/10, 1/8 buggies, and large scale aircraft
Specifications:
-
Torque:
-
@ 6v: 20.0kg/277.7oz-in
-
@ 7.4v: 25.0kg/347.2oz-in
-
Speed:
-
@ 6v: 0.105 sec/60 deg
-
@ 7.4v: 0.08 sec/60 deg
-
Dimensions: 40.3x20.2x38.7mm (LxWxH)
-
Weight: 69.0g
-
Operating Temperature: 14° - 122°F (-10° - 50°C)
-
Running Current (no load): 180mA @6.0V, 220mA @7.4V
-
Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
-
Idle Current: 5mA @6.0V, 5mA @7.4V
-
Wire Length: 300 +/- 5mm
-
Output Gear Spline: 25 Tooth
-
Bearings: 2BB
-
Operating Travel: 100° (1000 ? 2000 µ second)
-
Neutral Position: 1500 µ second
-
Pulse Width Range: 800 ? 2200 µ second
-
Maximum Travel: Appx 130° (900 ? 2100 µ second)
-
Refresh Rate: 333 Hz
-
Motor Type: Brushless
