Description
Servo Overview:

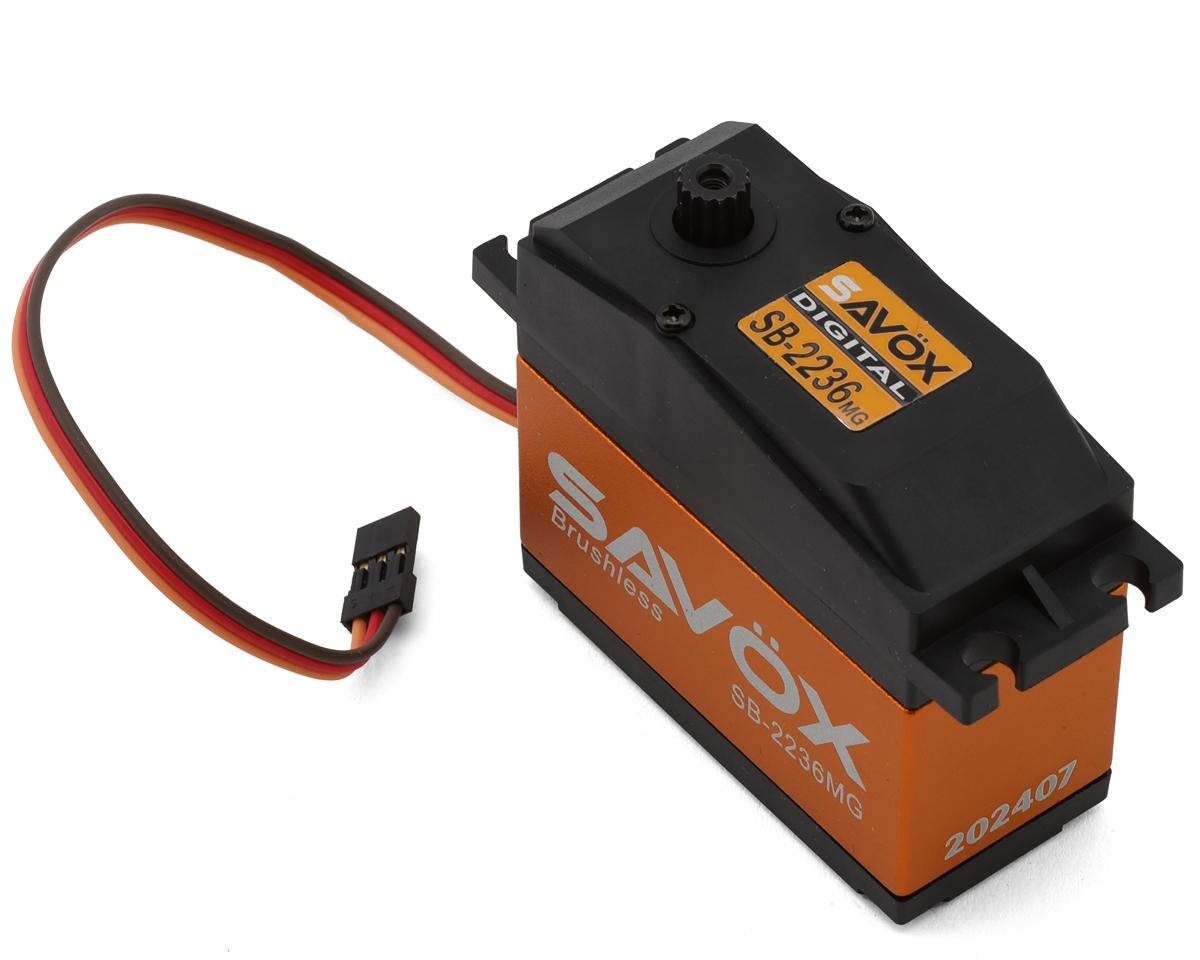

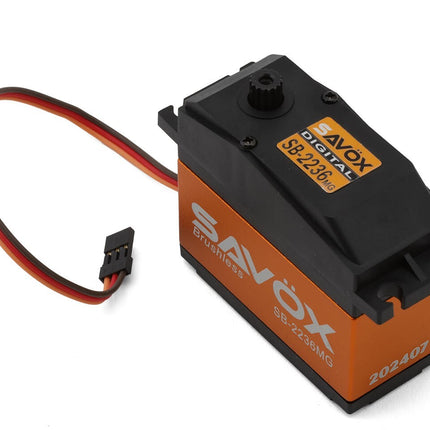

Savox SB-2236MG Brushless Metal Gear Digital 1/5 Scale Servo. This servo is built for the heavy demands of 1/5 scale off-road vehicles and large-scale aircraft, offering exceptional strength and performance. Its robust metal gear train provides enhanced durability, while its brushless motor ensures high efficiency and smooth operation. Capable of handling high voltage, this servo delivers incredibly high torque, making it ideal for large-scale applications that require both power and precision.
Features:
- Ideal for 1/5 scale off-road and large-scale aircraft
- Brushless motor for smooth and efficient operation
- Strong metal gear train for enhanced durability
- Extremely high torque output
- High voltage capable for added power
- Fast response time for precise control
Specifications:
-
Input Voltage: 6-7.4V
-
Speed:
-
@6V: 0.16sec/60°
-
@7.4V: 0.13sec/60°
-
Torque:
-
@6V: 444oz-in
-
@7.4V: 555oz-in
-
Pulse/Frequency: -
-
Motor Type: Brushless
-
Output Shaft: 15T
-
Gear Material: Metal
-
Dimensions: 2.59x1.18x2.26in (65.8x30x57.4mm)
-
Servo Lead Length: 11.81in (300mm)
-
Weight: 7.94oz (225g)
Includes:
- (1) SB-2236MG Brushless Metal Gear Digital 1/5 Scale Servo

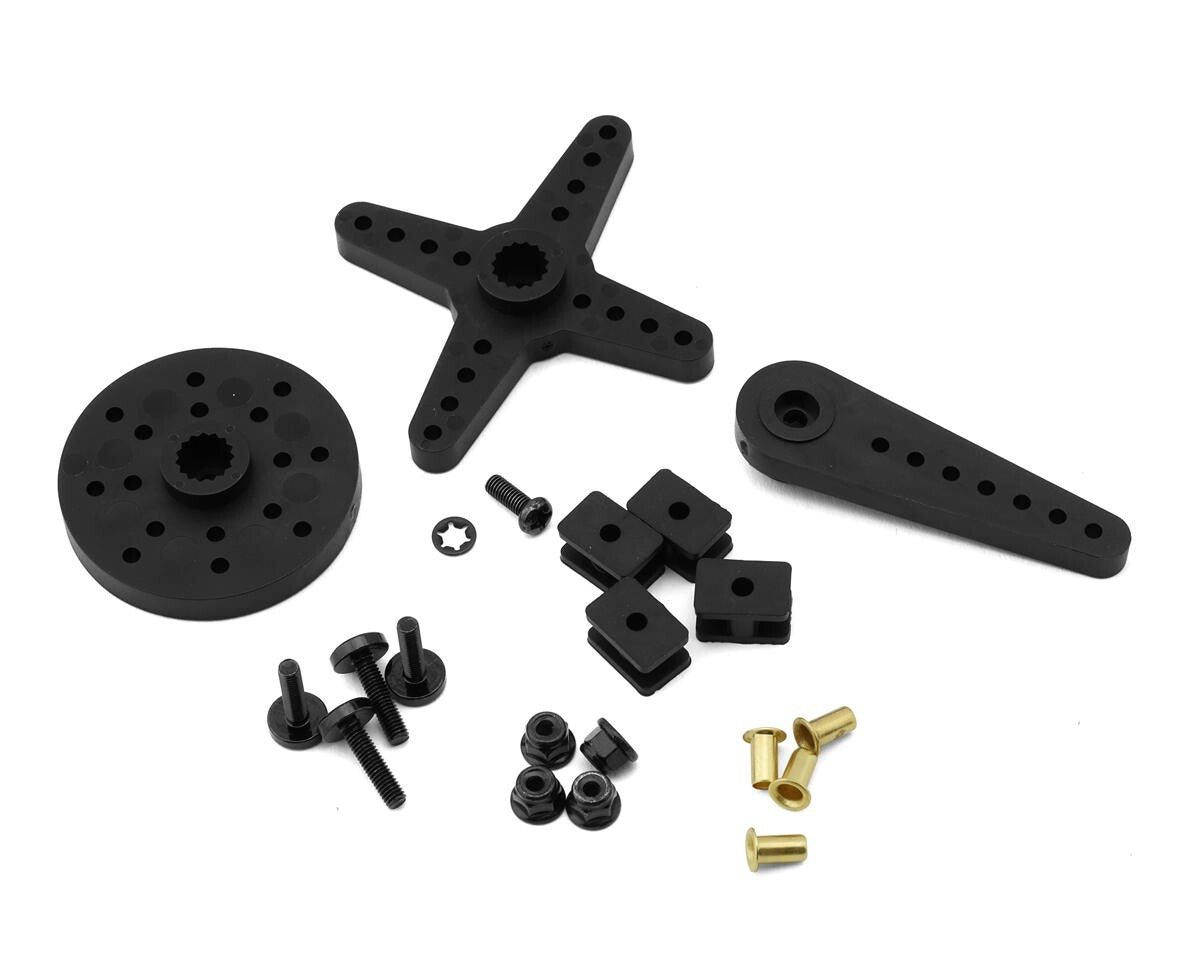

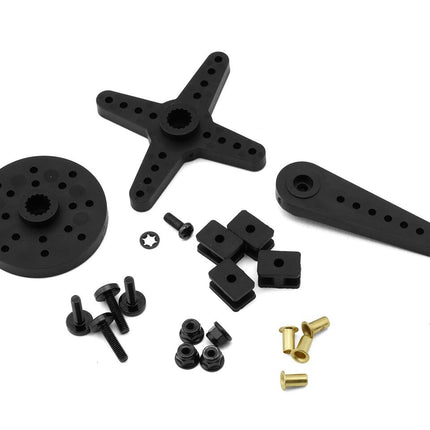

- (3) Composite Servo Horns
- Mounting Hardware
