Description
Servo Overview:

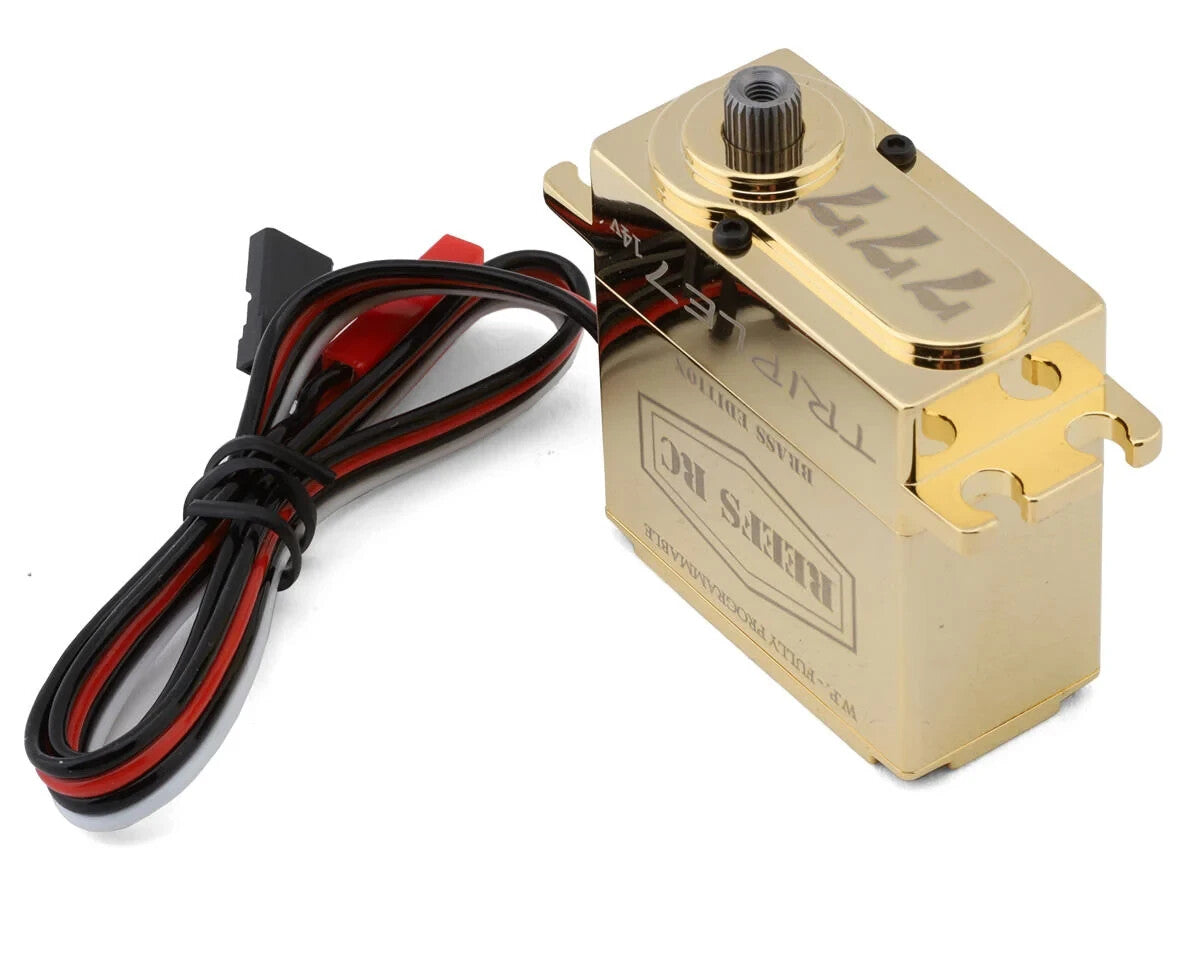

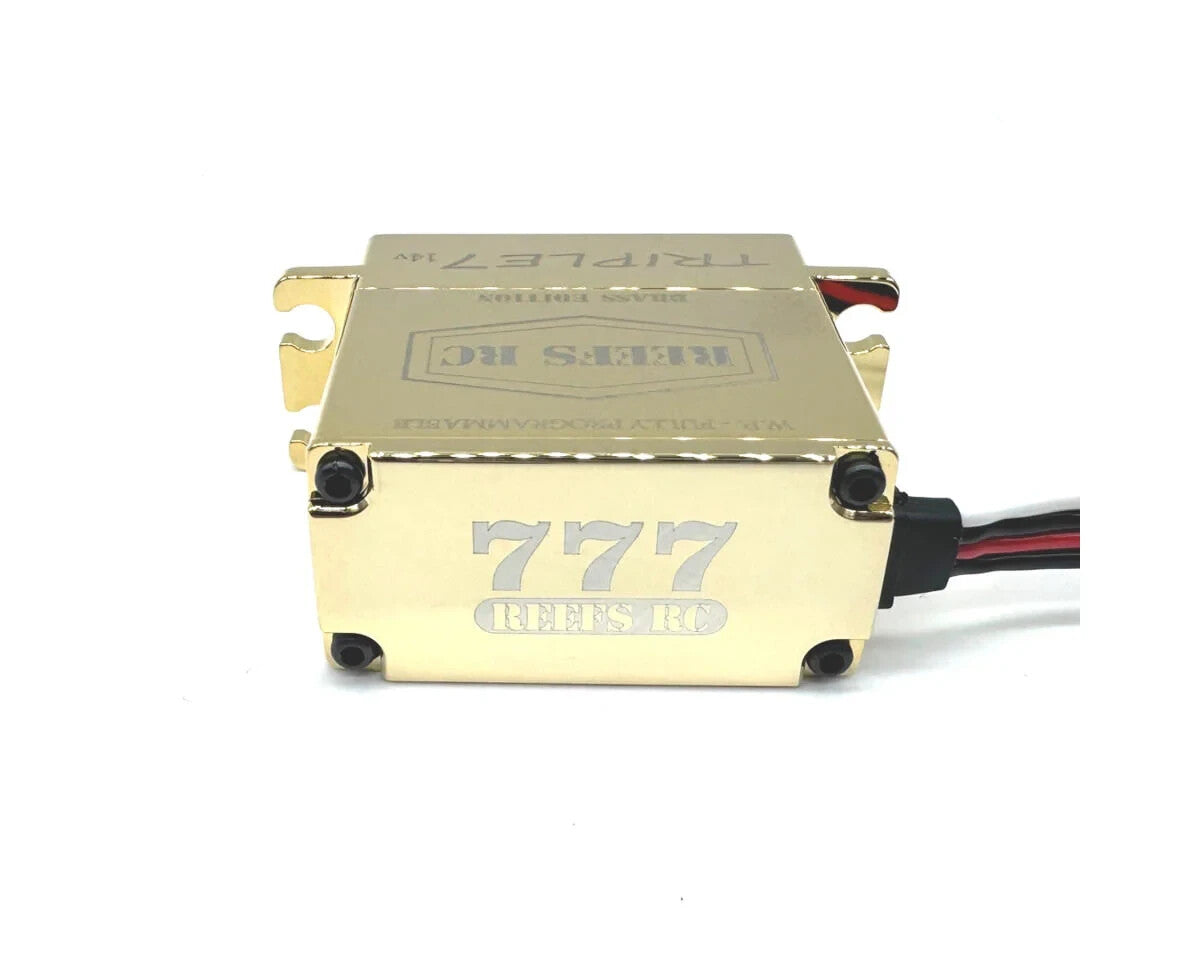

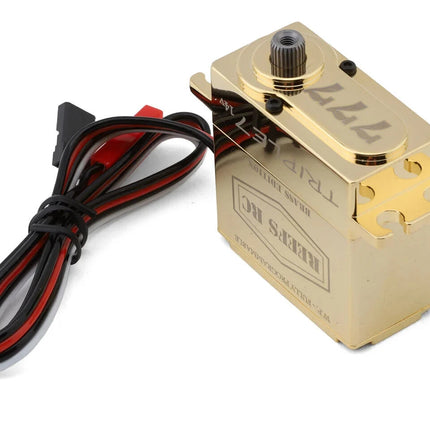

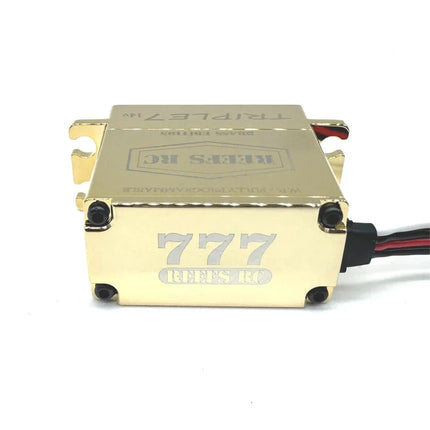

This is the Triple7 14V Programable High Torque Steel Gear Digital Servo from Reefs RC, now available in the Brass Edition for added weight and style. With its impressive high torque and speed, this servo delivers outstanding performance for RC enthusiasts. Featuring a fully submersible IP67 waterproof rating, equipped with steel gears and a magnetic angle sensor, the Triple7 ensures smooth, precise, and robust operation. The addition of the Brass "ULTRA Finish" edition not only adds bling to your build but also provides significant weight where needed.
Features:
- Powerful brushless motor
- "Submarine Waterproof" with 7 point seals
- Magnetic angle sensor
- Pulse Width Modulation control
- CNC Brass Casing with "ULTRA" finish
- Fully Programmable with REEFS Software (REEFS LINK required)
Specifications:
- Speed:
-
@11.1V: 0.10sec/60°
- @12.0V: 0.09sec/60°
- @14.0V: 0.08sec/60°
- Torque:
-
@11.1V: 666oz-in (47.96kg-cm)
-
@12.0V: 700.0oz-in (50.41kg-cm)
-
@14.0V: 777.0oz-in (55.95kg-cm)
- Dimensions: 1.57x0.78x1.63in (40.8x20.2x29.5mm)
- Weight: 5.65oz (160g)
- Operating Voltage: 10-14V
- Spline: 25T
- Waterproof: Yes
Includes:
- (1) Triple7 14V Programable High Torque Steel Gear Digital Servo (High Voltage)(Brass Edition)

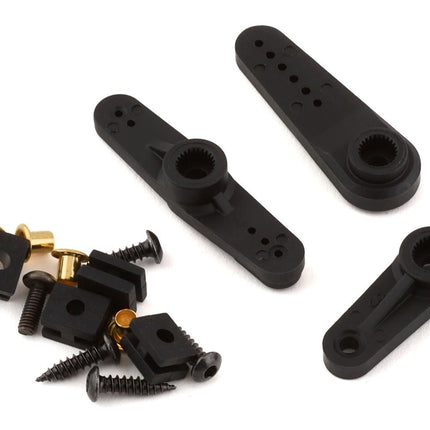

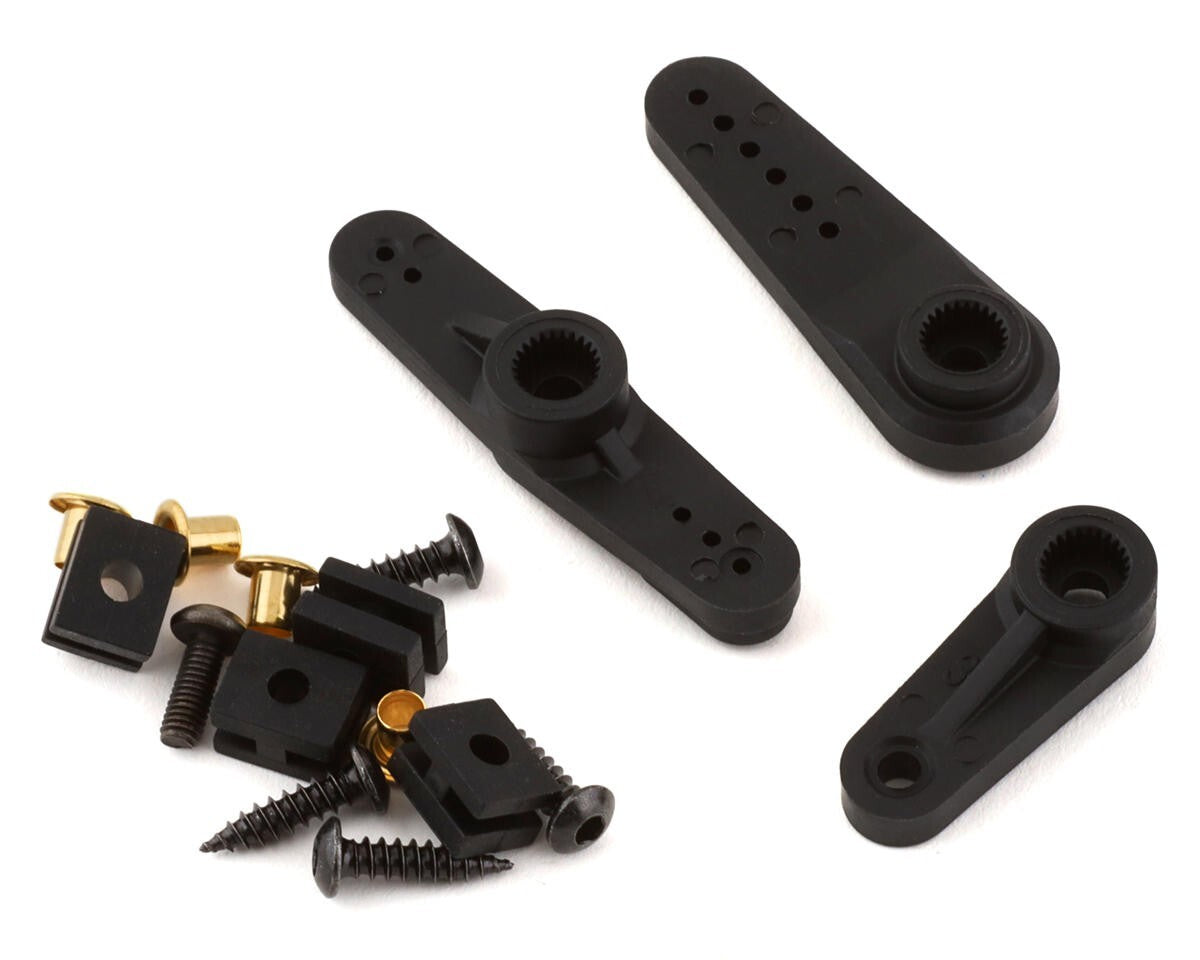

- Assorted Servo Horns and Mounting Hardware
