BEC Overview:

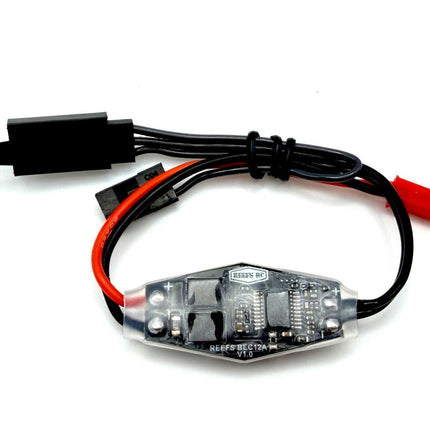

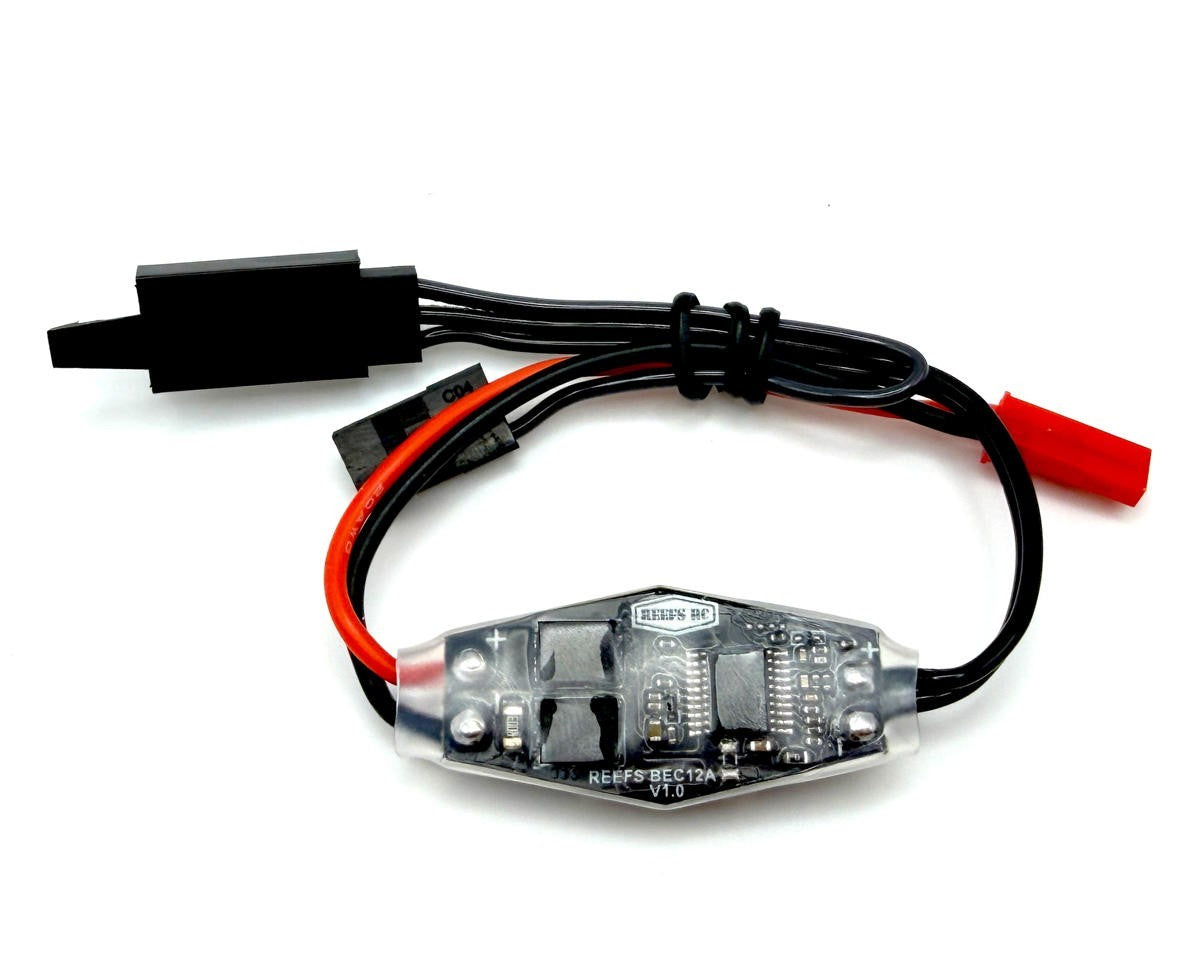

The Reefs RC 8.4V Slim EZ Plug-N-Play BEC provides a simple way to supply consistent 8.4V power to high-performance RC servos. Designed for straightforward installation, this BEC (Battery Eliminator Circuit) connects directly to your receiver, eliminating the need for complex wiring or connector modifications.
About the Slim EZ Plug-N-Play BEC
Reliable Servo Power
Engineered for convenience, the Slim EZ Plug-N-Play BEC removes the guesswork from adding an external power source to your RC setup. Compatible with Reefs RC XT60 and XT90 Dual JST adapters (SEHREEFS121 and SEHREEFS122 - sold separately), it allows your servo to connect directly to the BEC harness for a clean, hassle-free installation. Once connected, the BEC delivers a stable 8.4V output, helping high-voltage servos perform at their full potential with consistent and reliable power.
Features:
- Delivers a regulated 8.4V output
- Compatible with 2-6S LiPo batteries
- Provides plug-and-play installation
- Eliminates complex wiring modifications
- Supplies consistent power to high-voltage servos
- Features a slim, space-saving design
Includes:
- (1) Reefs RC 8.4V Slim EZ Plug-N-Play BEC
Specifications:
| Input |
2-6S LiPo (7.4-22.2V) |
| Output |
8.4V |
| Output Current |
12A (Maximum - 15A) |
| Dimensions (LxWxH) |
- |
*Tech Note: Input voltage must be more than 10V to provide the 8.4V output voltage. If you are using a 2S LiPo, the output voltage will be 7V.
*Tech Note: This version is not waterproof. For a water-resistant version, check out the Reefs RC Standard 8.4V EZ Plug-N-Play BEC (SEHREEFS206).
