Description
Servo Overview:

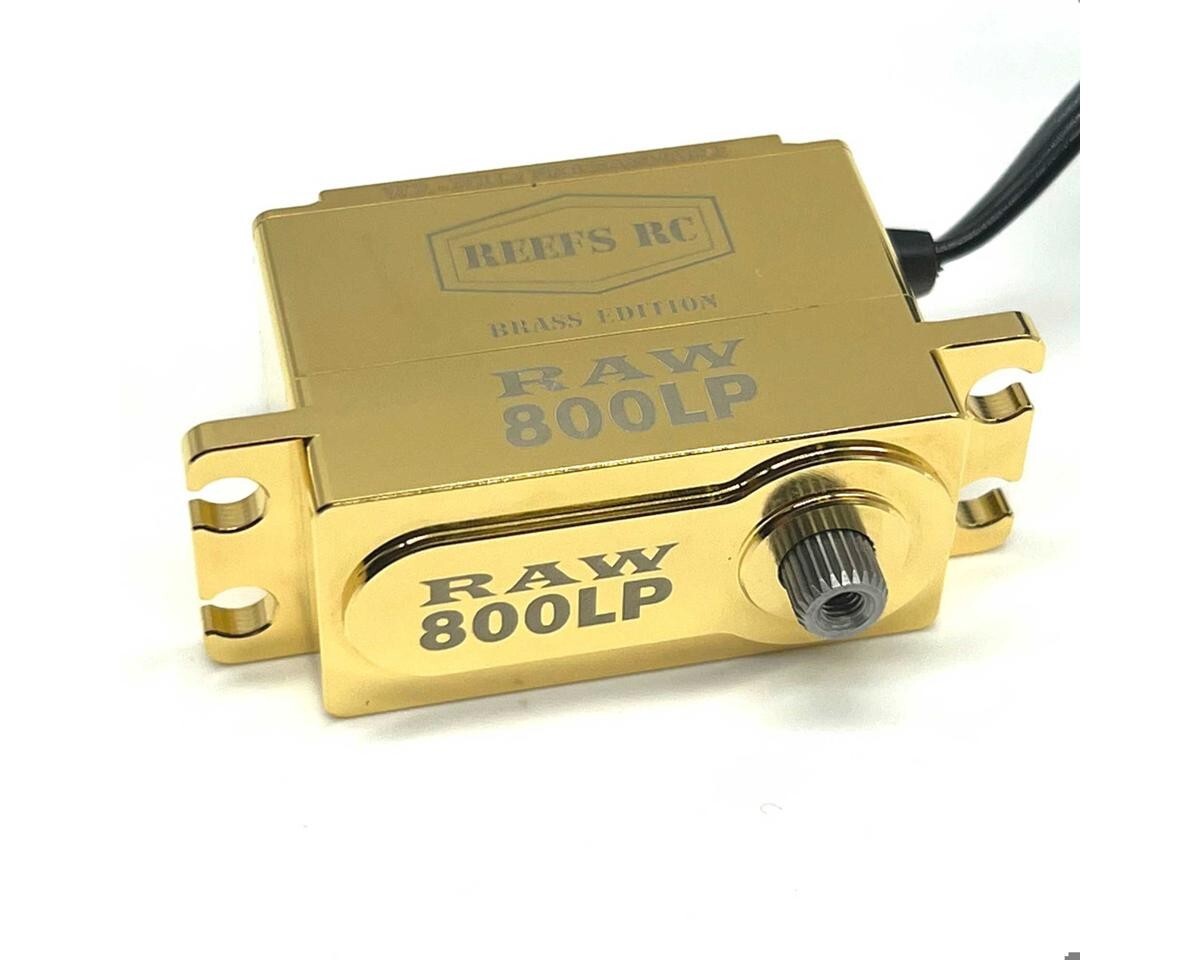

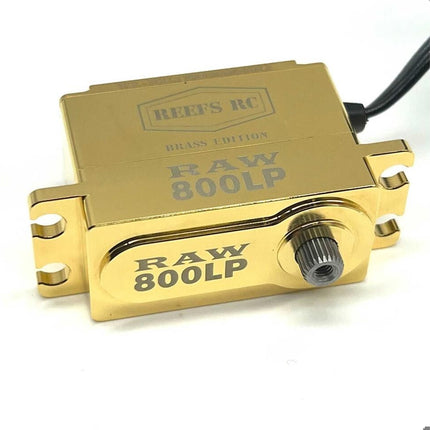

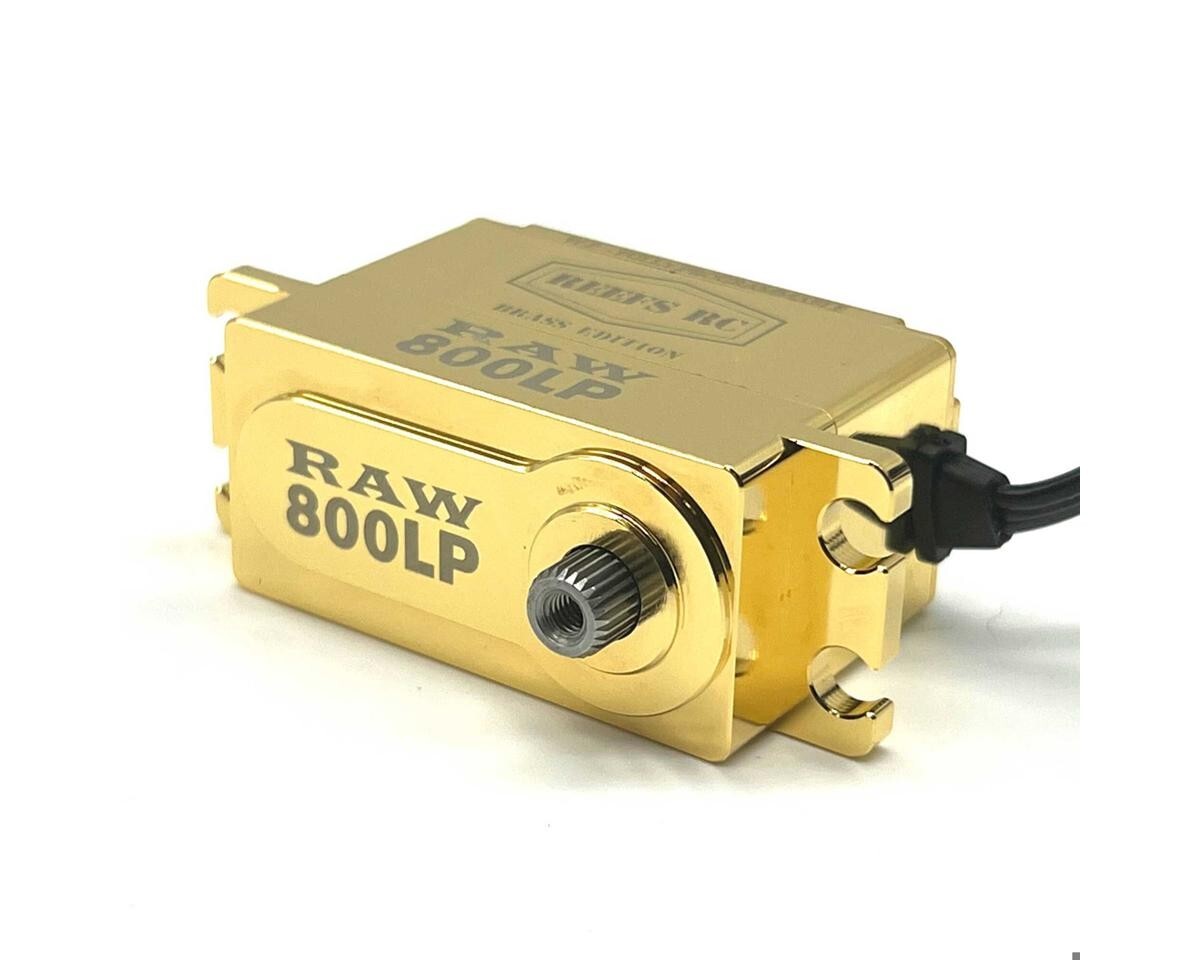

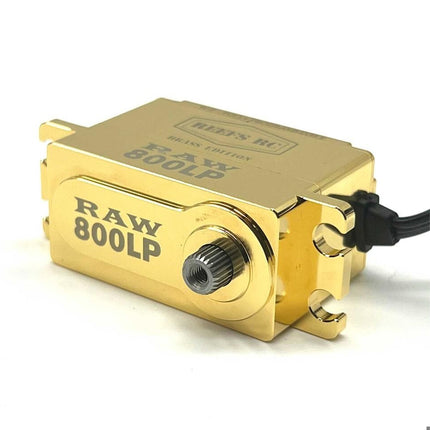

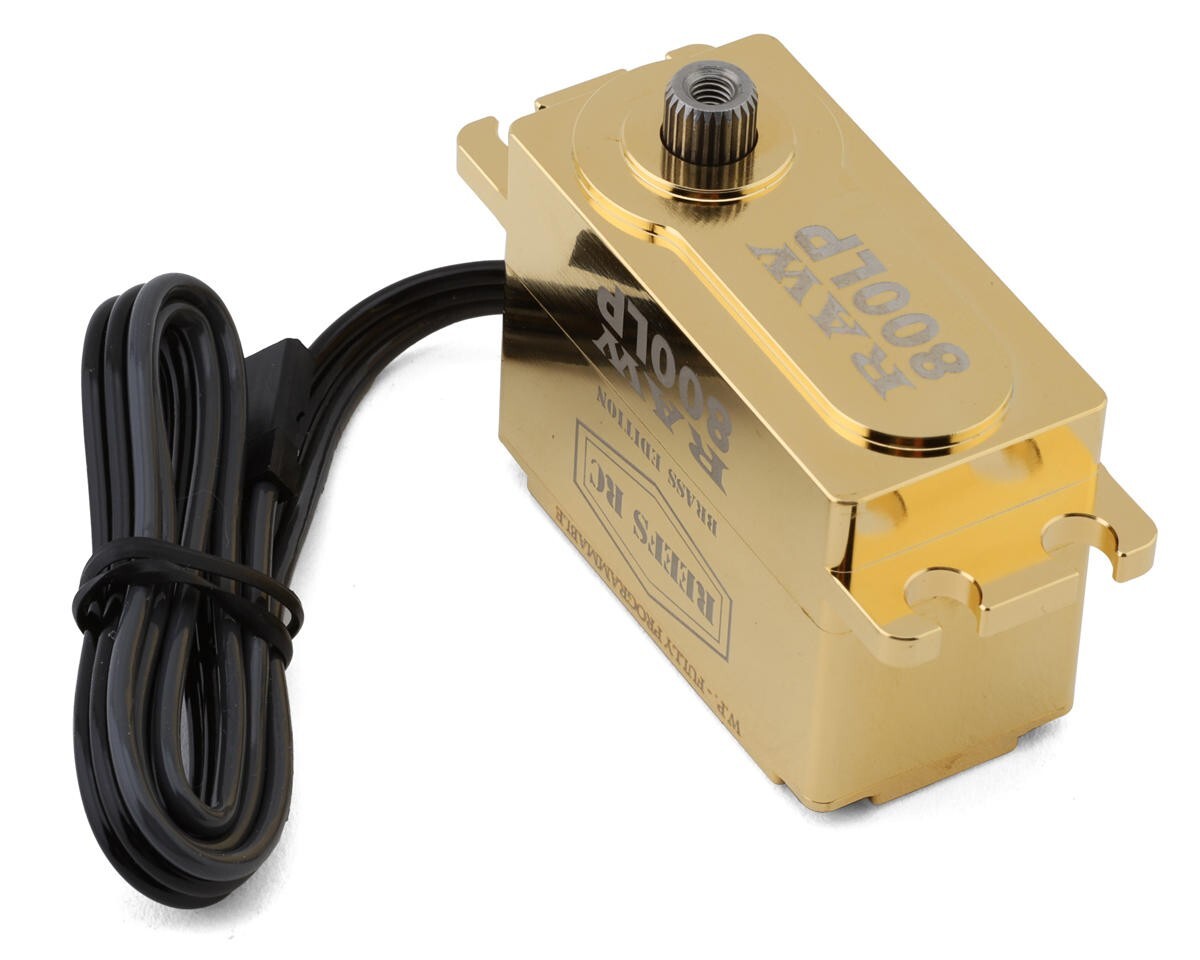

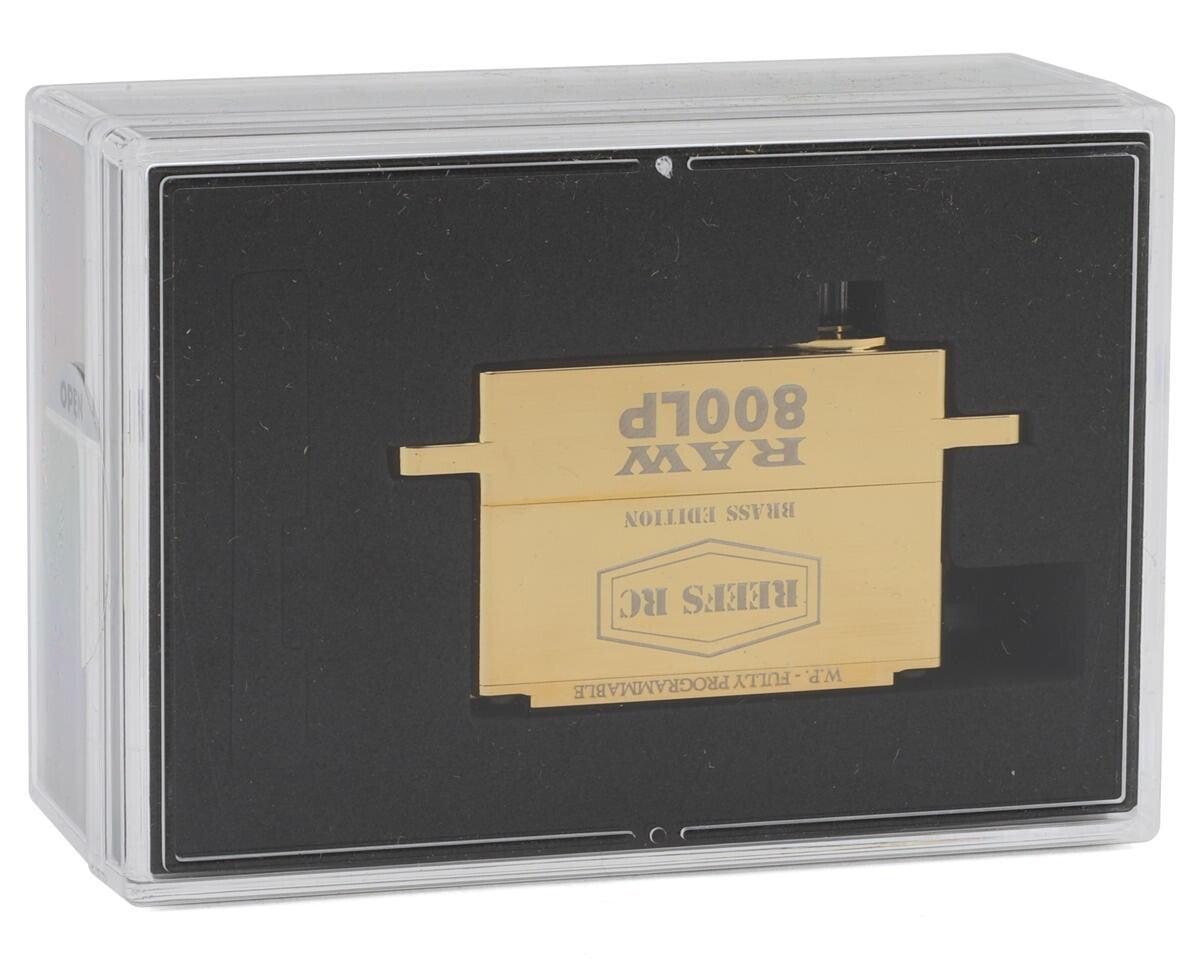

This is the RAW800LP Digital Waterproof Low Profile Brushless Servo from Reefs RC, designed for high-torque, high-speed performance in demanding RC applications. With its fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from crawlers to boats. Additionally the brass outer case construction provides a significant increase in weight, ideal for rock crawler applications.
Features:
- 4-Pole brushless motor
- "Submarine Waterproof" with 7 point seals
- Low profile design
- Magnetic angle sensor
- Internal steel gears
- CNC Brass Casing with "ULTRA" finish
Specifications:
- Speed:
-
@6.0V: 0.12sec/60°
- @7.4V: 0.10sec/60°
- @8.4V: 0.09sec/60°
- Torque:
-
@6.0V: 635oz-in (45.73kg-cm)
-
@7.4V: 715.0oz-in (51.49kg-cm)
-
@8.4V: 800.0oz-in (57.60kg-cm)

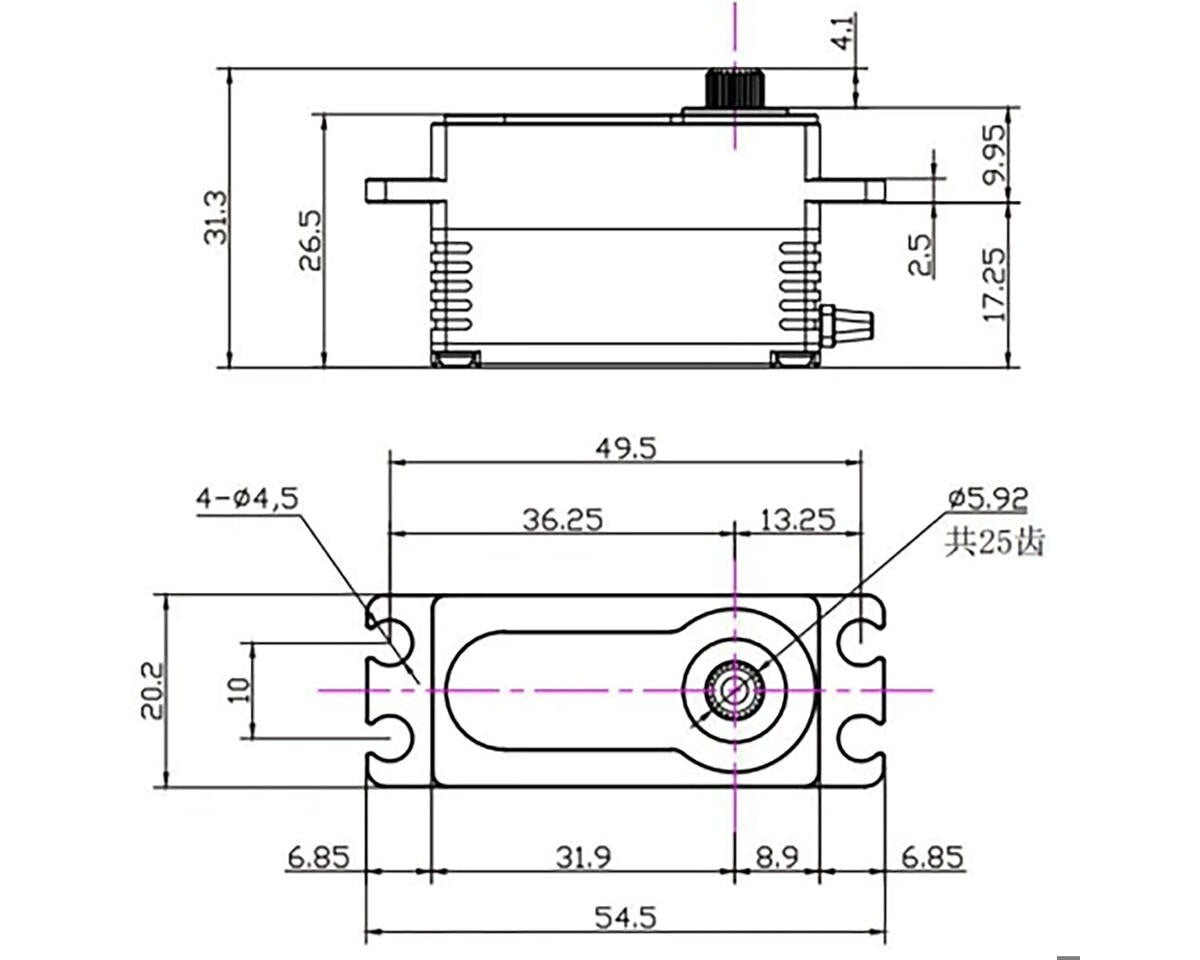

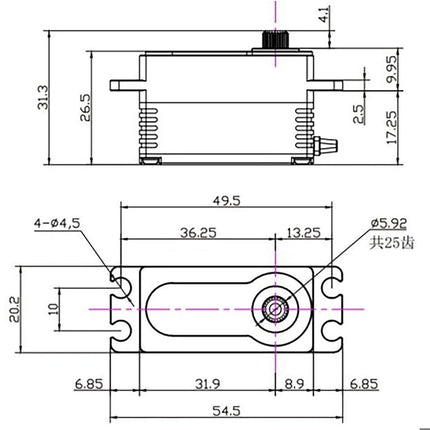

- Dimensions: 1.6x0.79x1.16in (40.8x20.2x29.5mm)
- Weight: 4.23oz (120.1g)
- Operating Voltage: 4.8-8.4V
- Spline: 25T
- Waterproof: Yes
Includes:

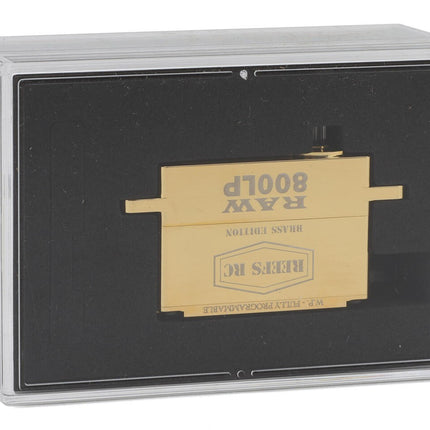

- (1) RAW800LP Digital Waterproof Low Profile Brushless Brass Servo

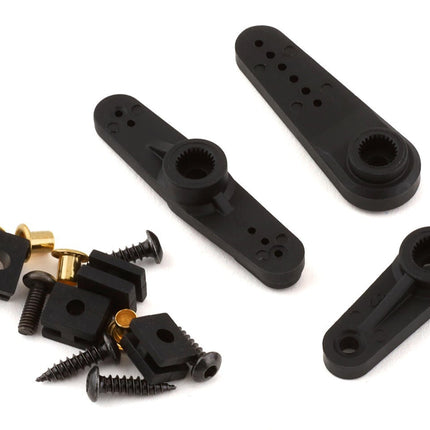

- Assorted Servo Horns and Mounting Hardware
