Description

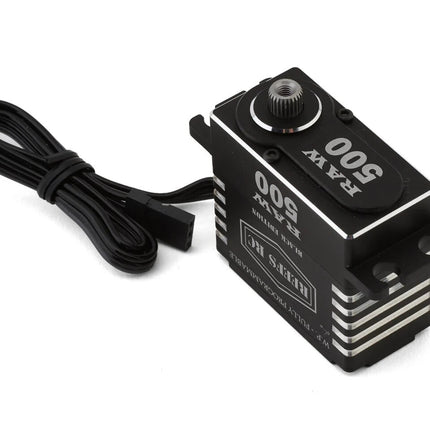

This is the Reefs RC RAW500 High Torque and Speed Digital Brushless Servo from Reefs RC, designed for high-torque, high-speed performance in demanding RC applications. With its high torque output of 565oz-in (40.7kg-cm) at 8.4 Volts, lightning speed operation of 0.08sec/60° at 8.4 Volts, fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from crawlers to boats!
Features:
- Powerful 4-Pole brushless motor
- "Submarine Waterproof" with 7-point seals
- High voltage capable
- Magnetic angle sensor
- Internal steel gears
- CNC Aluminum casing with "ULTRA" finish
- Fully Programmable with REEFS Software
Specifications:
- Speed:
-
@6.0V: 0.11sec/60°
-
@7.4V: 0.09sec/60°
-
@8.4V: 0.08sec/60°
- Torque:
-
@6.0V: 450oz-in (32.4kg-cm)
-
@7.4V: 500oz-in (36kg-cm)
-
@8.4V: 565oz-in (40.7kg-cm)
-
Motor: Brushless
-
Operating Voltage: 5.0V-8.4V
-
Dimensions(LxWxH): 1.57x.79x1.5in (39.87x20.06x38.1mm)
-
Weight: 2.75oz (77.96g)
-
Operating Spline: 25T
Includes:

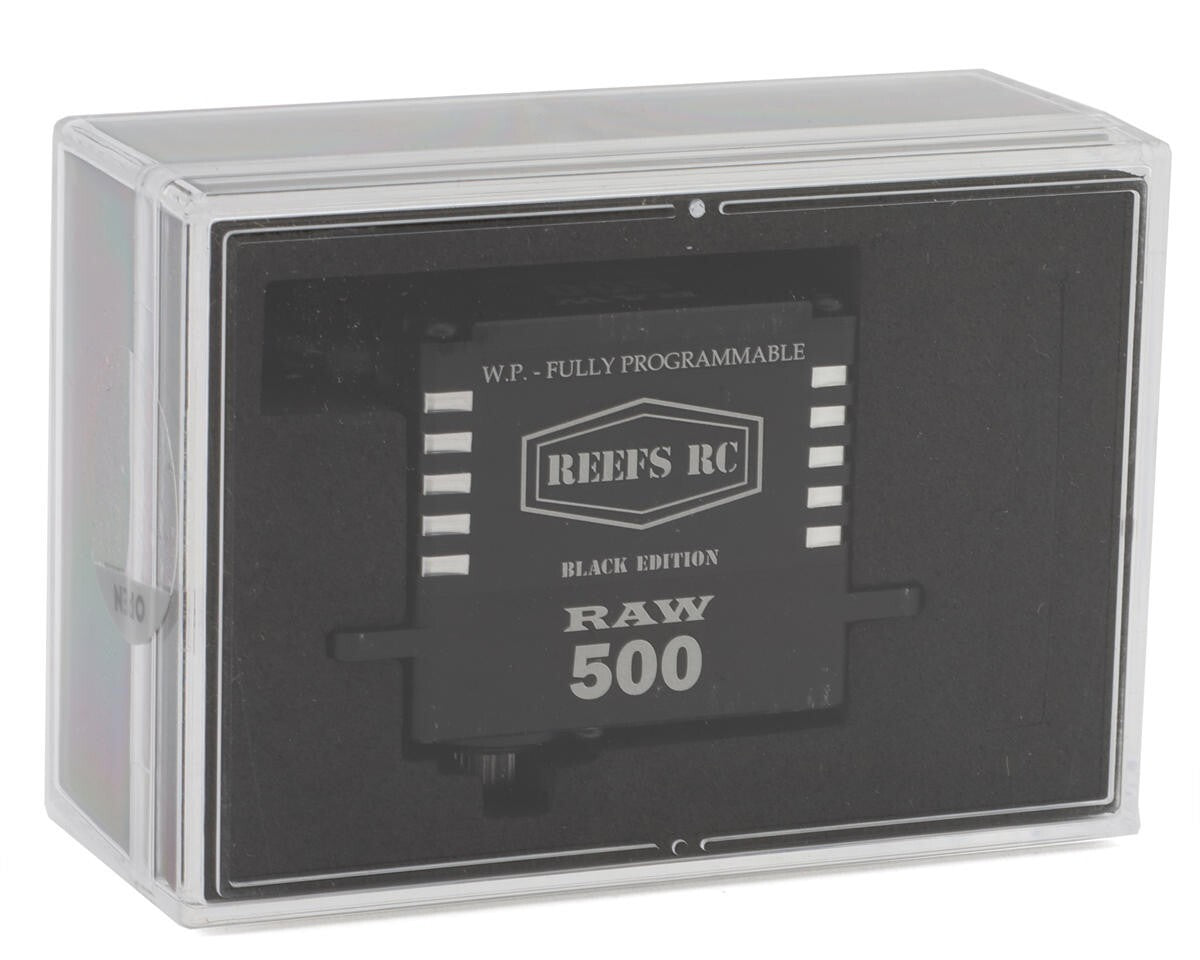

- (1) RAW500 Digital Waterproof Brushless Black Edition Servo

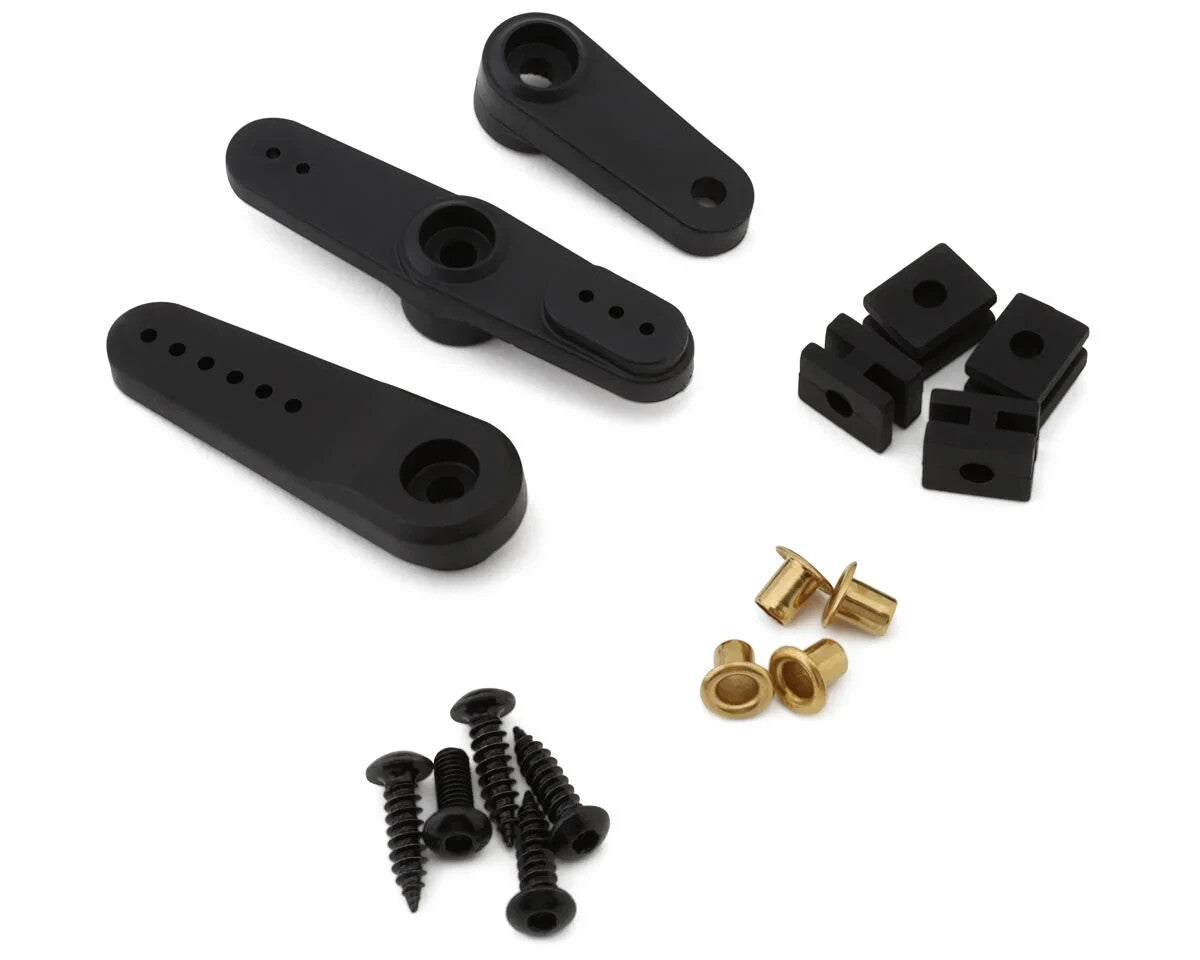

- Assorted Servo Horns and Mounting Hardware
