Description
Brass Servo Overview:

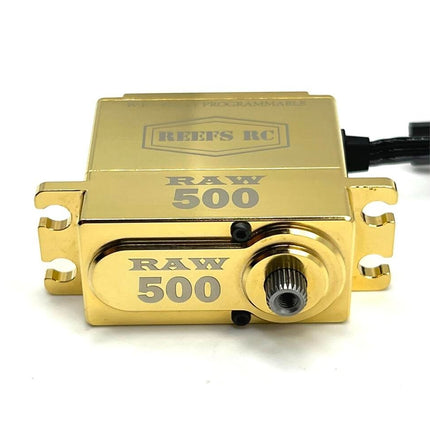

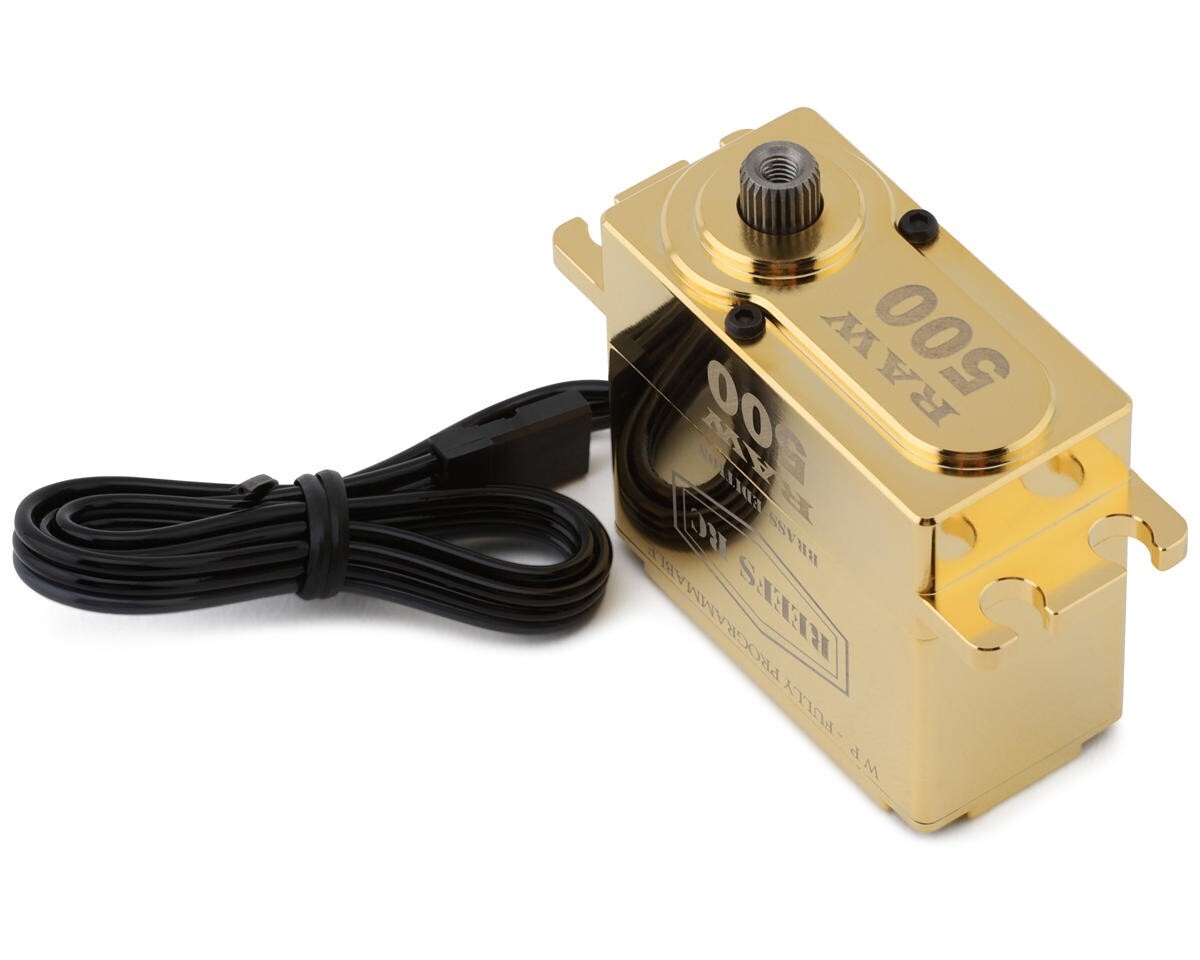

This is the Reefs RC RAW500 High Torque and Speed Digital Brushless Servo from Reefs RC, designed for high-torque, high-speed performance in demanding RC applications. With its fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from crawlers to boats. Additionally, the brass outer case construction provides a significant increase in weight, ideal for rock crawler applications.
Features:
- Powerful 4-Pole brushless motor
- "Submarine Waterproof" with 7-point seals
- High voltage capable
- Magnetic angle sensor
- Internal steel gears
- Heavy CNC brass casing with "ULTRA" finish
- Fully Programmable with REEFS Software
Specifications:
- Speed:
-
@6.0V: 0.11sec/60°
-
@7.4V: 0.09sec/60°
-
@8.4V: 0.08sec/60°
- Torque:
-
@6.0V: 450oz-in (32.4kg-cm)
-
@7.4V: 500oz-in (36kg-cm)
-
@8.4V: 565oz-in (40.7kg-cm)
-
Motor: Brushless
-
Operating Voltage: 5.0V-8.4V
-
Dimensions(LxWxH): 1.57x.79x1.5in (39.87x20.06x38.1mm)
-
Weight: 5.2oz (145.2g)
-
Operating Spline: 25T
Includes:
- (1) RAW500 Digital Waterproof Brushless Brass Servo
- Assorted Servo Horns and Mounting Hardware
