Description

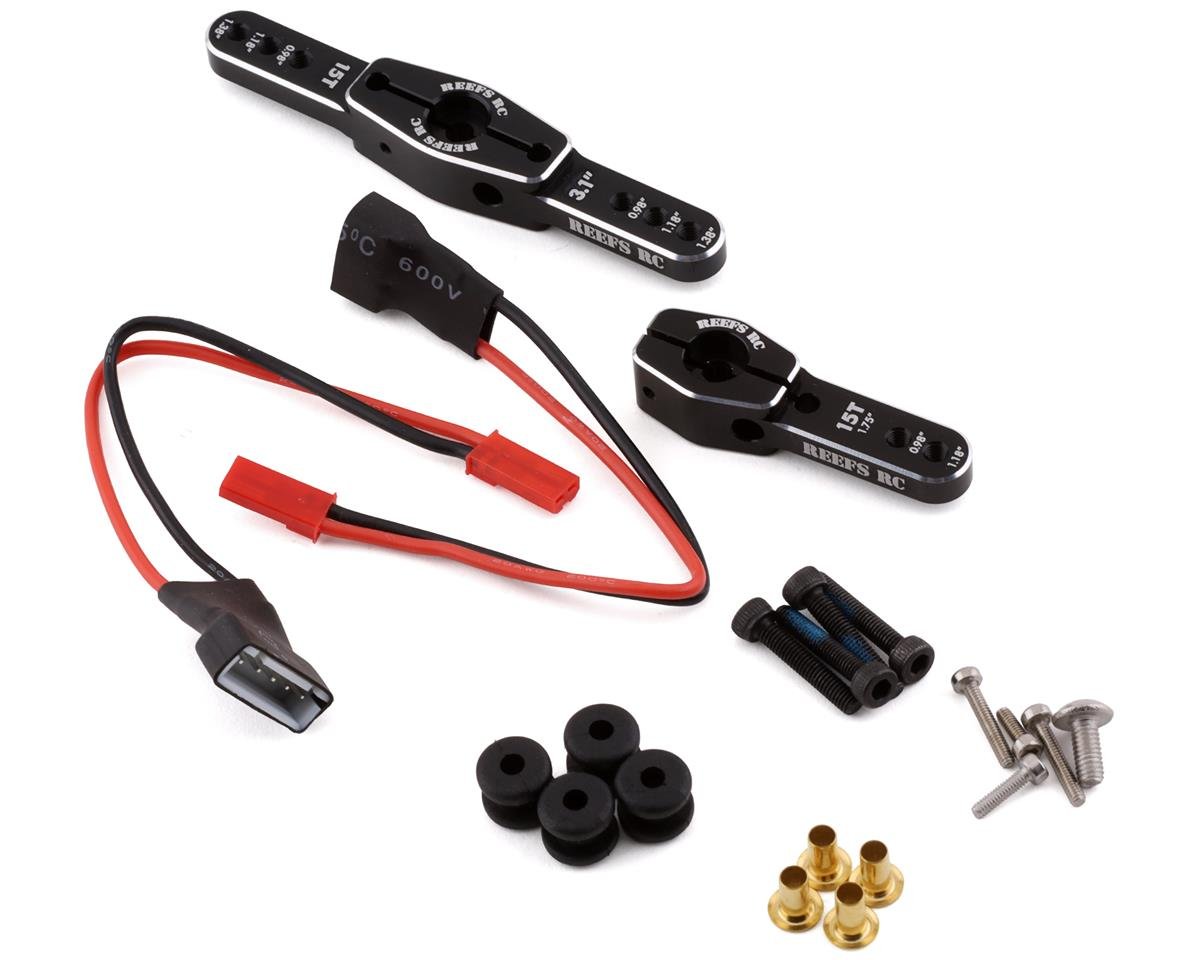

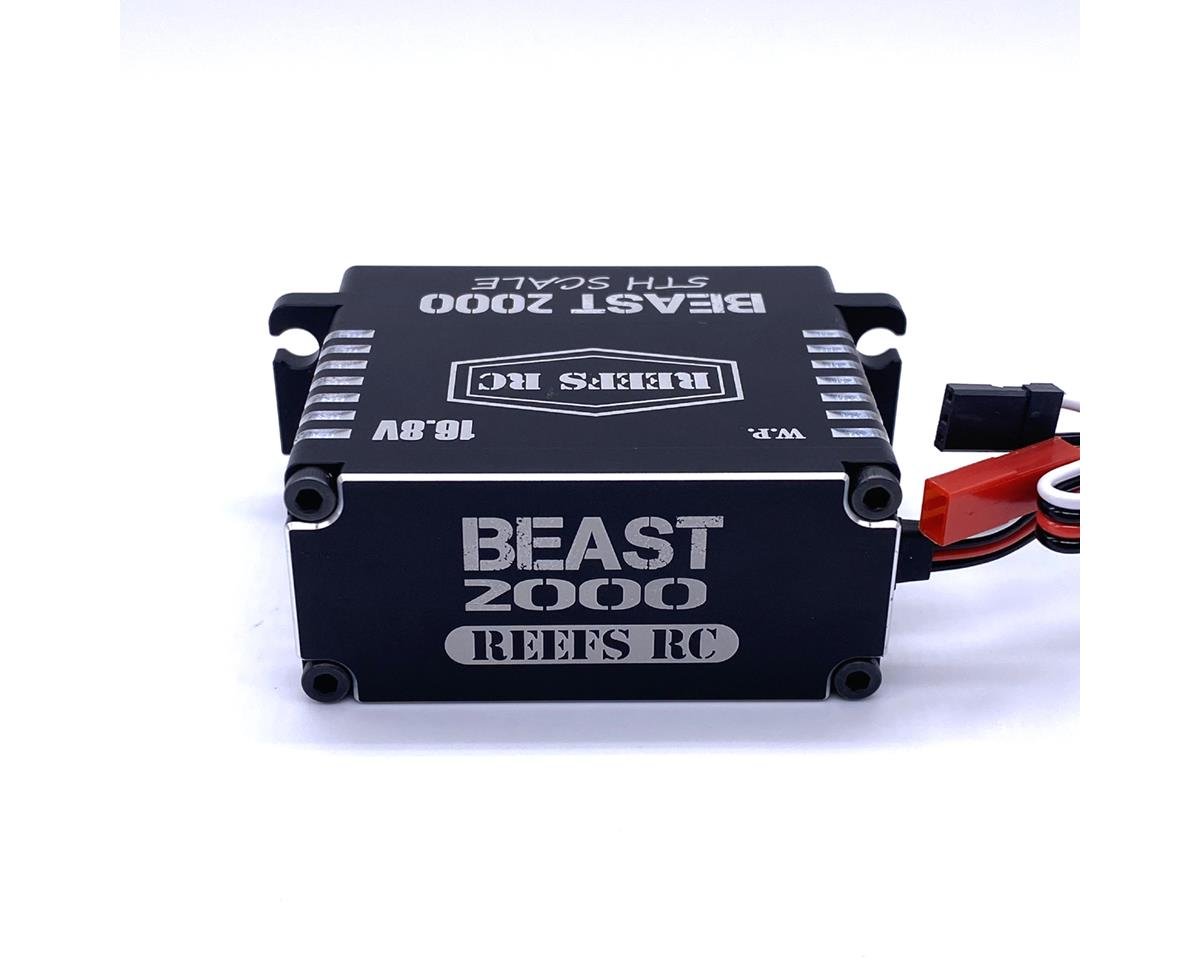

Reefs RC Beast 2000 Waterproof Digital 1/5 Scale Brushless Servo. This monster 1/5 scale servo is capable of up to 2000oz-in. at 16.8V and 0.09/60° sec! To connect this servo there is a standard servo connector with a ground and signal wire and a JST connector for main power and ground. Two power adapters are included to connect the JST connector to the balance lead of either a 3S or 4S battery. Package includes one servo, two power adapters, two servo horns and hardware.
Features:
- High torque and high speed brushless servo
- Magnetic angle sensor
- Waterproof
- 16.8V capable
- Pulse width modulation control
- Includes Reefs single and double servo horn
Specifications:
-
Voltage: 7.4-16.8V
-
Waterproofing: 7 Point Seal
-
Mechanical Angle: No Limit
-
Material: Steel Gears/CNC Aluminum Casing
-
Bearing Type: 5 Ball Bearing
-
Wires: 22AWG
-
Weight: 10oz (285g)
-
Dimension: 2.59x1.18x2.32in (LxWxH)
- Torque:
-
10V: 1000oz-in
-
11.1V: 1250oz-in
-
12V: 1450oz-in
-
16.8V: 2000oz-in
-
Speed:
-
10V: 0.10/60° sec
-
11.1V: 0.11/60° sec
-
12V: 0.10/60° sec
-
14.4V: 0.09/60° sec
-
16V: 0.08/60° sec
-
Spline: 15T
-
Dead Band Width: 2uSec
