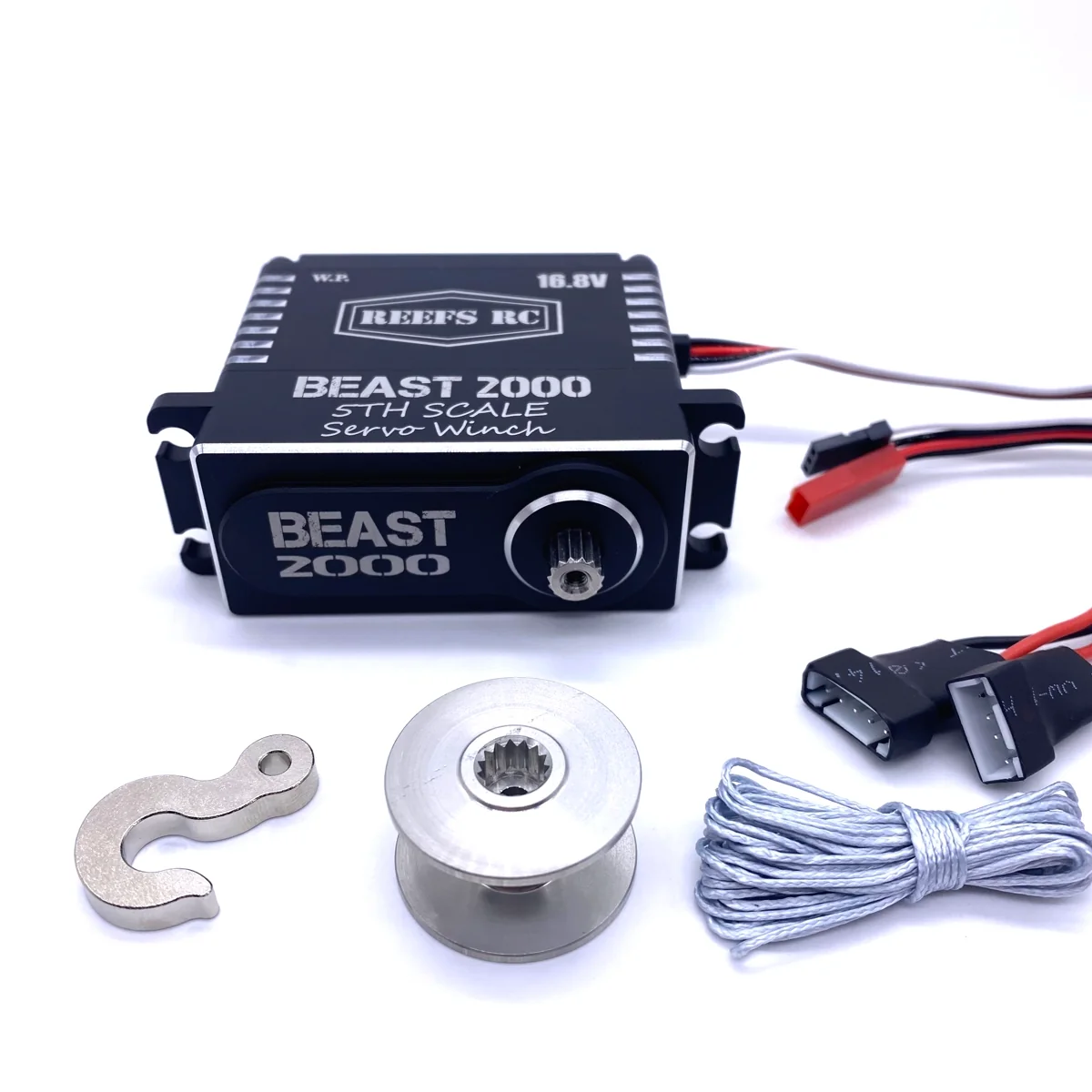

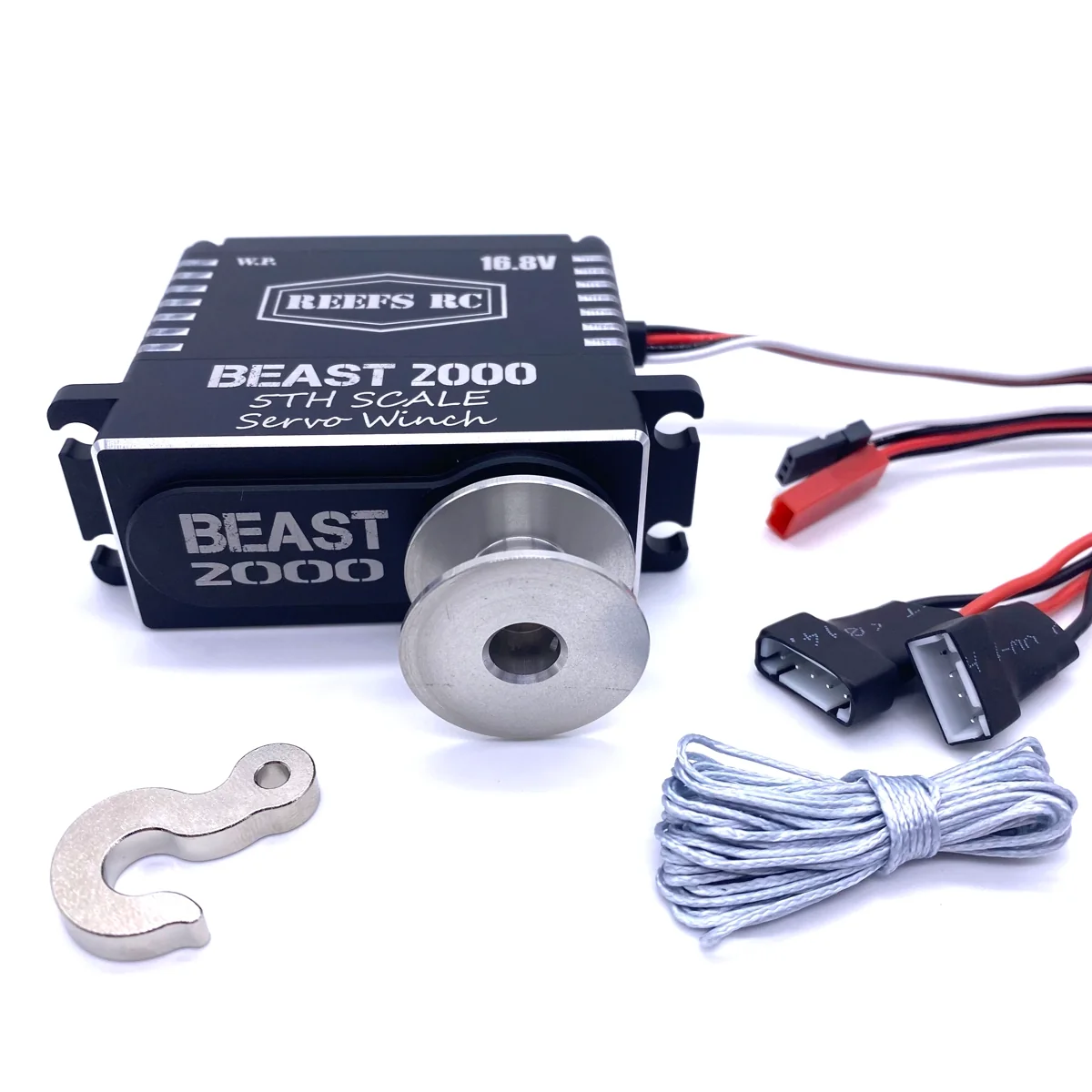

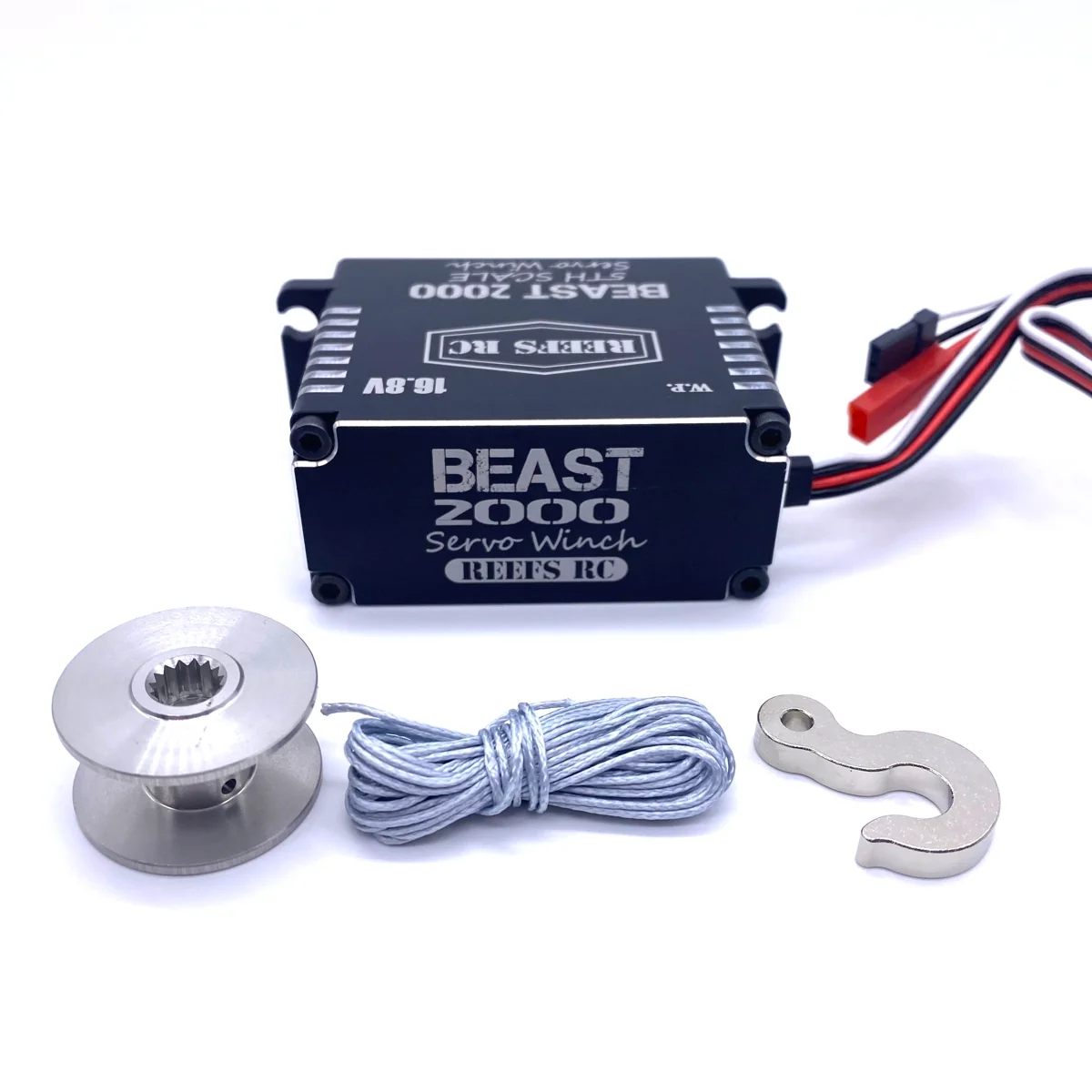

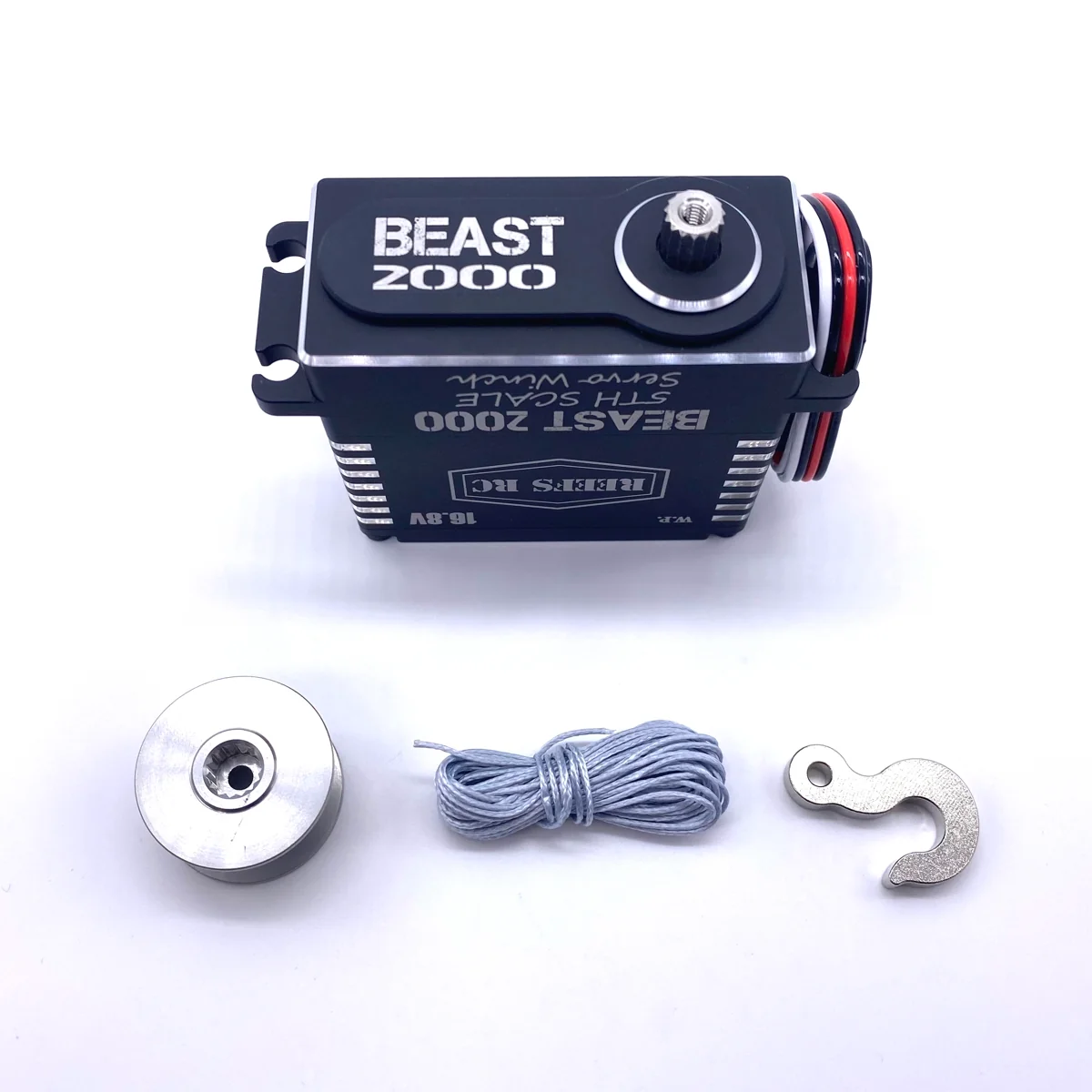

Reefs RC Beast 2000 1/5 Scale Servo Winch REEFS117

    Description

    Specifications:
    • High Torque High Speed Brushless Servo
    • W/: REEFS SPOOL / REEFS 5TH SCALE HOOK / SYN. LINE / 3S & 4S CONNECTOR
    • IP67 Rated WATERPROOF: 7 Point Seals
    • Magnetic Angle Sensor
    • Pulse Width Modulation Control
    • Voltage 7.4V - 16.8V
    • Mechanical Angle: No Limit
    • Internal: Steel Gears / All CNC Aluminum Casing
    • Bearing Type: 5 Ball Bearings /
    • Weight: 10oz / 285g / Wires: 22AWG
    • Dimension: 2.59 x 1.18 x 2.32 (LWH)
    • Torque: 1000oz (72kg)@ 10v/ 1250oz (90kg)@11.1v/ 1450oz (104.4kg)@12v / 2000 (144kg)@ 16.8v
    • Speed: .11sec @10v/.105sec @11.1v/.10sec @12v/ .09sec @ 14.4v / .08sec @ 16v
    • Spline: 15T
    • Dead Band Width: 2uSec

    UnloadCurrent

    950mA@10.0V
     1000mA@11.1V
     1060mA@12.0V
     1200mA@14.4V
     1300mA@16.0V

    LoadingCurrent

    7700mA@10.0V
     8300mA@11.1V
     9200mA@12.0V
     10600mA@14.4V
     11000mA@16.0V

    Item# REEFS117

    Product form

    SKU: REEFS117
    Barcode: 602024523390

    Free pickup in our shop(s)

    3 in stock Ships within 24hr of Purchase

    $449.99
