Description
Servo Overview:

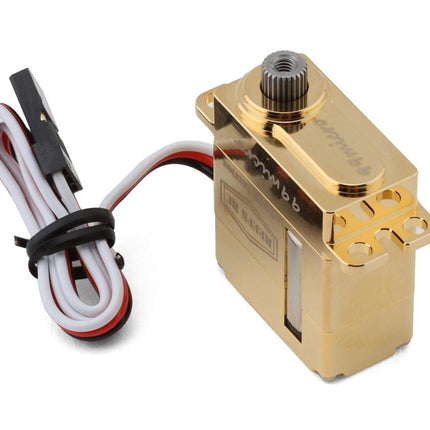

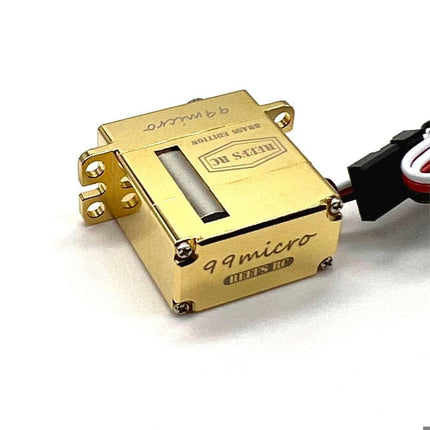

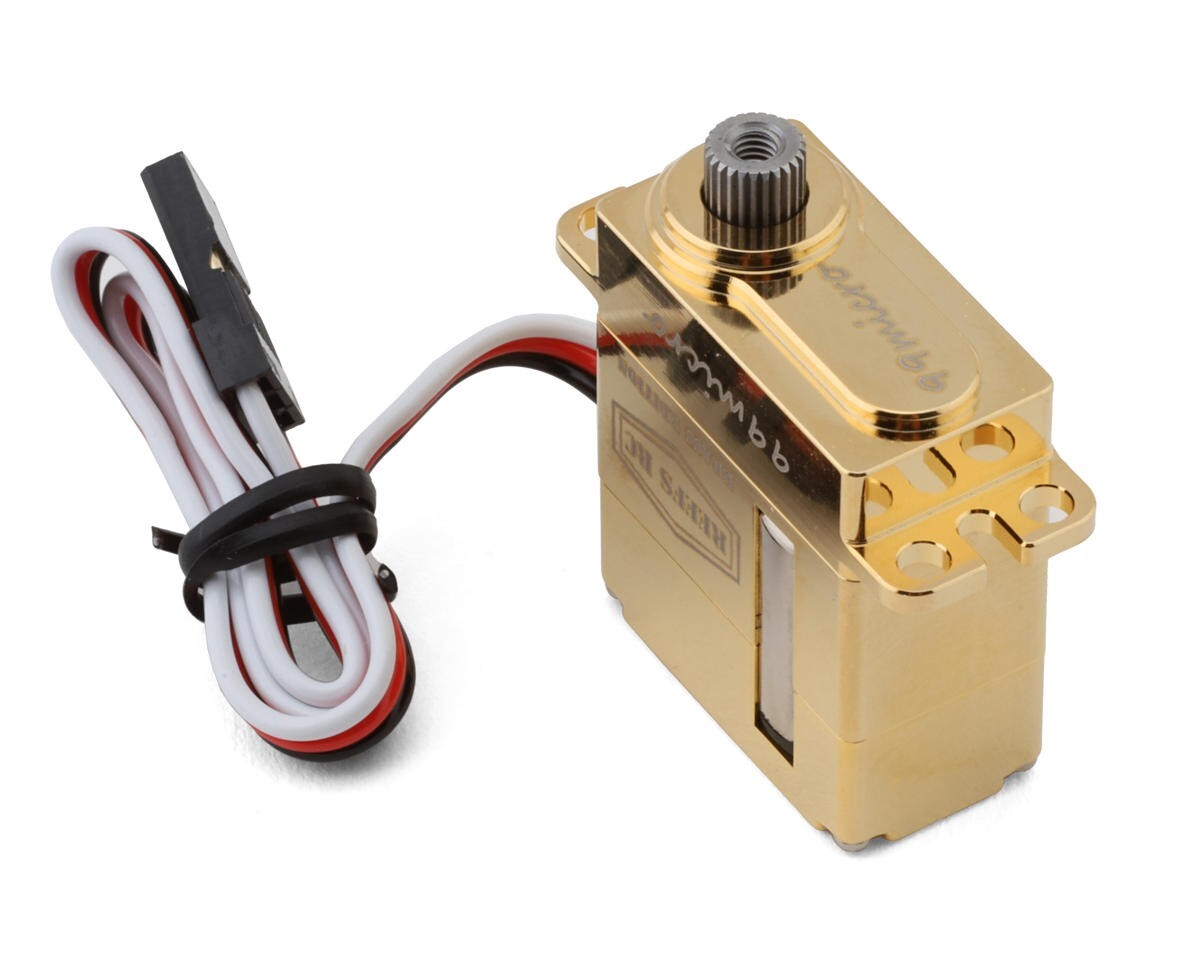

This is the Reefs RC Brass 99micro High Torque Digital Micro High Voltage Servo. Built on the beloved 99micro with an all CNC-machined water-resistant brass casing. Features a CNC-machined heavy brass case that provides excellent heat dissipation and adds 36g of total unsprung weight for axle mounted servo applications, a high-efficiency digital coreless motor with all metal gears that ensure supreme durability against the harshest conditions! Designed and specified to suit and feed the demand for water-resistant, high-torque, brass cased micro servos in the micro crawling scene! Get the 99micro Brass edition to elevate your micro crawler performance and experience the mighty power of this micro servo!
Features
- The ultimate upgrade for micro 1/24 and 1/18 rock crawlers
- Rubber sealed water-resistant design!
- Built on the beloved 99micro with an all CNC-machined brass casing
- Capable of putting out 115oz of torque @ 8.4V
- Capable of High Voltage (HV) operation
- Adds 36g of total unsprung weight for axle-mounted servo applications
- All metal gears
Specifications:
- Speed:
-
@6.0V: 0.11sec/60°
-
@7.4V: 0.09sec/60°
-
@8.4V: 0.08sec/60°
- Torque:
-
@6.0V: 89oz-in (6.40kg-cm)
-
@7.4V: 99oz-in (7.13kg-cm)
-
@8.4V: 115oz-in (8.28kg-cm)
-
Motor: Digital Coreless
-
Operating Voltage: 6.0V-8.4V
-

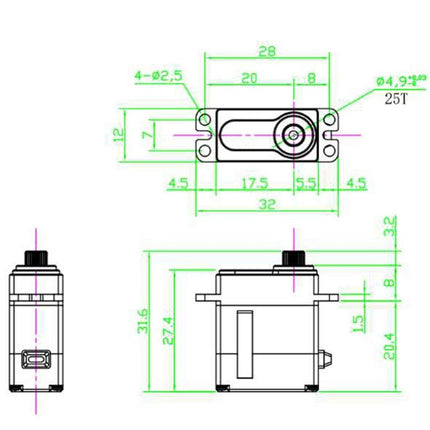

Dimensions(LxWxH): 0.90"x.47"x1.08" (27.4x22.8x11.9mm)
-
Weight: 1.27oz (36g)
-
Operating Spline: 25T
Includes:

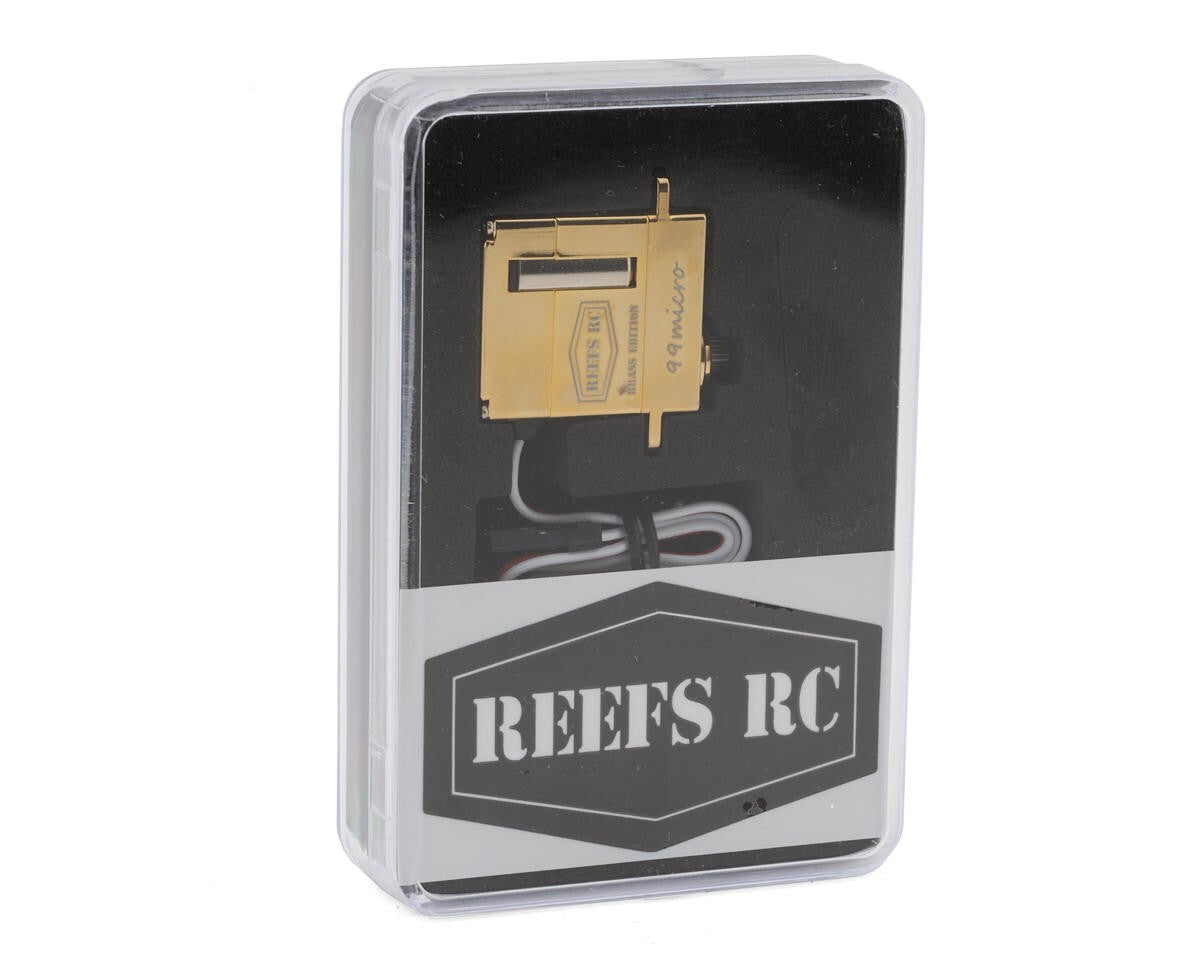

- (1) Brass 99micro High Torque Metal Gear Digital Micro Servo

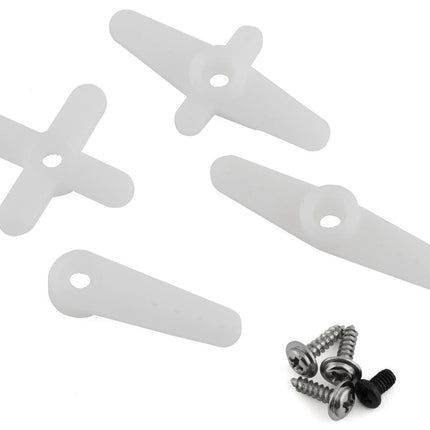

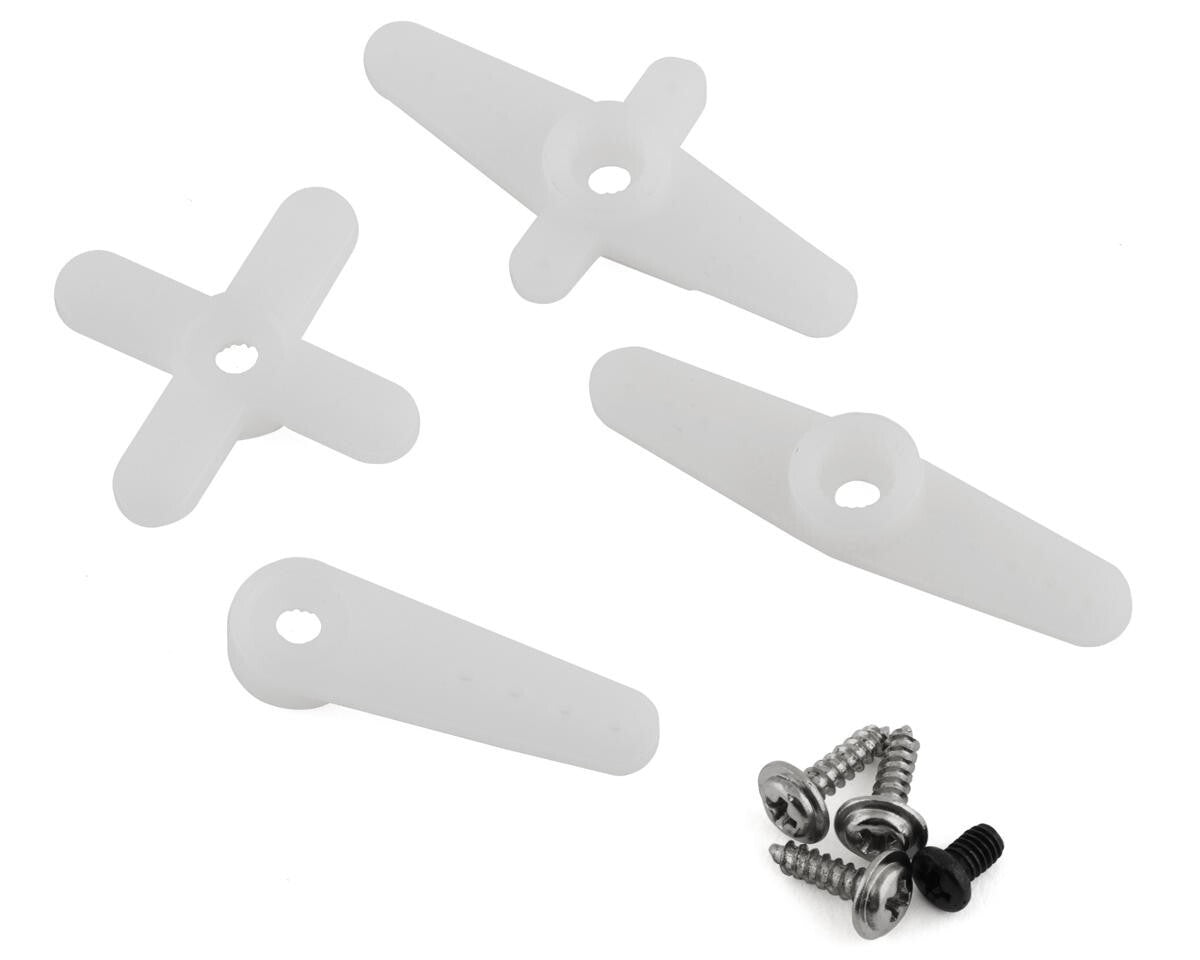

- Servo Horns and Mounting Hardware
