Description
Servo Overview:

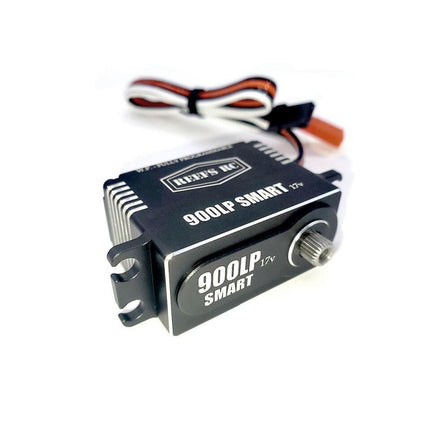

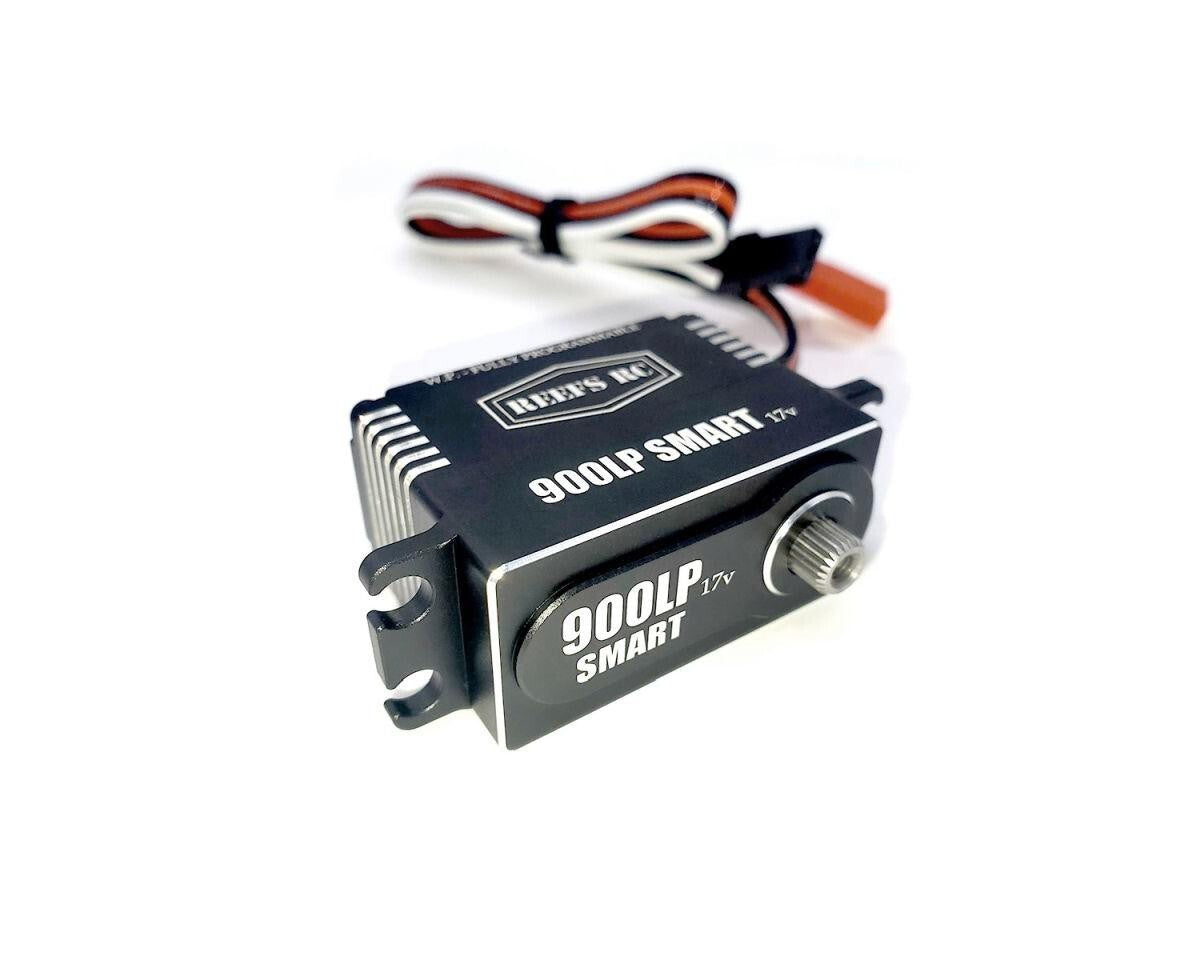

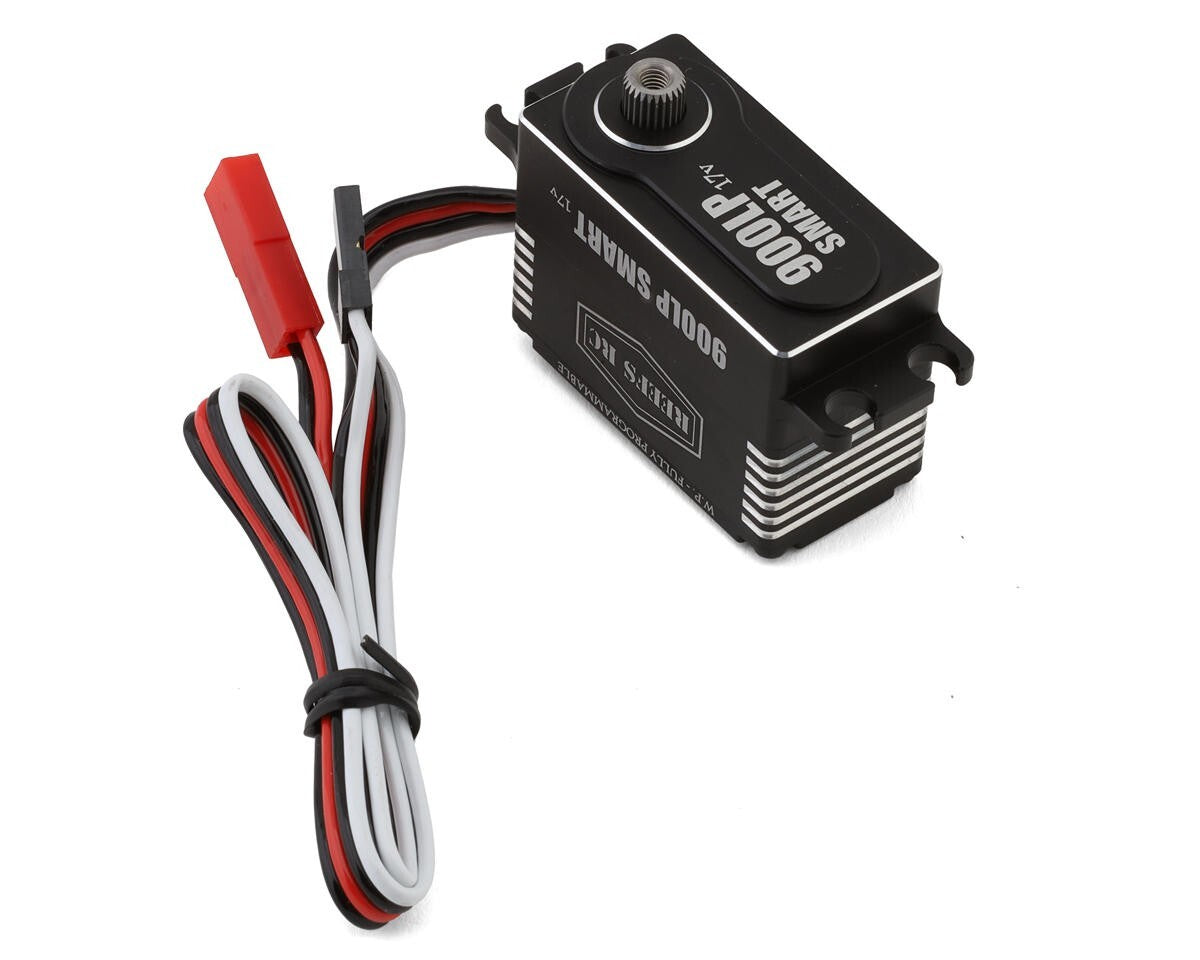

This is the Reefs RC 900LP High Torque and Speed Digital Brushless Low Profile Servo from Reefs RC. Designed for high-torque, high-speed performance in demanding RC applications and can be utilized as a steering servo or as a winch servo with a high torque output of 920oz-in (66.24kg-cm) at 16.8 Volts, lightning speed operation of 0.08sec/60° at 16.8 Volts, fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from rock crawlers to boats!
NOTE:
- WARNING!! Do not pair with Rhino ESC Systems Or ESCs with built-in BECs! Reefs RC recommends using Holmes or Vt3k ESCs and a 1000mah battery or more, unless you have a Shock Schottky diode.
- Comes as Steering Servo out of the Box
- This is a direct power servo and does not require a BEC
Features:
- Low-Profile and lightweight design
- Powerful 4-Pole brushless motor
- High voltage capable of up to 17V!
- Magnetic angle sensor
- Steel internal gears
- Built-in programmed winch controller
- Fully Programmable via REEFS Software
- Can be utilized as a steering servo or as a winch servo
- "Submarine Waterproof" with 7-point seals
- Heavy CNC Aluminum casing with "ULTRA" finish
Specifications:
- Speed:
-
@12.6V: 10sec/60°
-
@14.7V: .09sec/60°
-
@16.8V: .08sec/60°
- Torque:
-
@12.6V: 710oz-in (51.12kg-cm)
-
@14.7V: 810oz-in (58.32kg-cm)
-
@16.8V: 920oz-in (66.24kg-cm)
-
Motor: Brushless
-
Operating Voltage: 10V-17V
-
Dimensions(LxWxH): 1.6x.79x1.16in (48x20.2x29.5mm)
-
Weight: 2.3oz (66g)
-
Operating Spline: 25T
Includes:

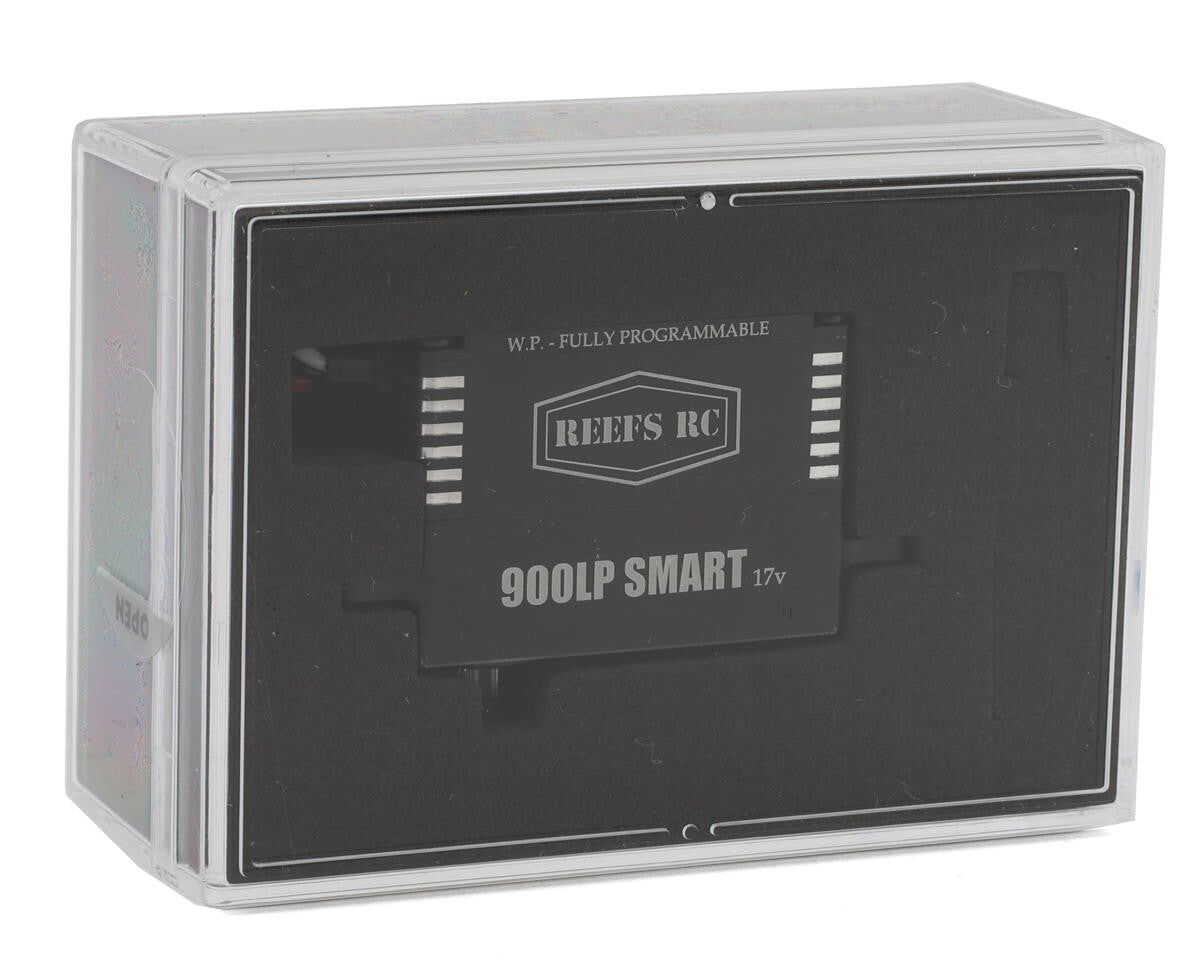

- (1) 900LP Waterproof Brushless Low Profile Servo

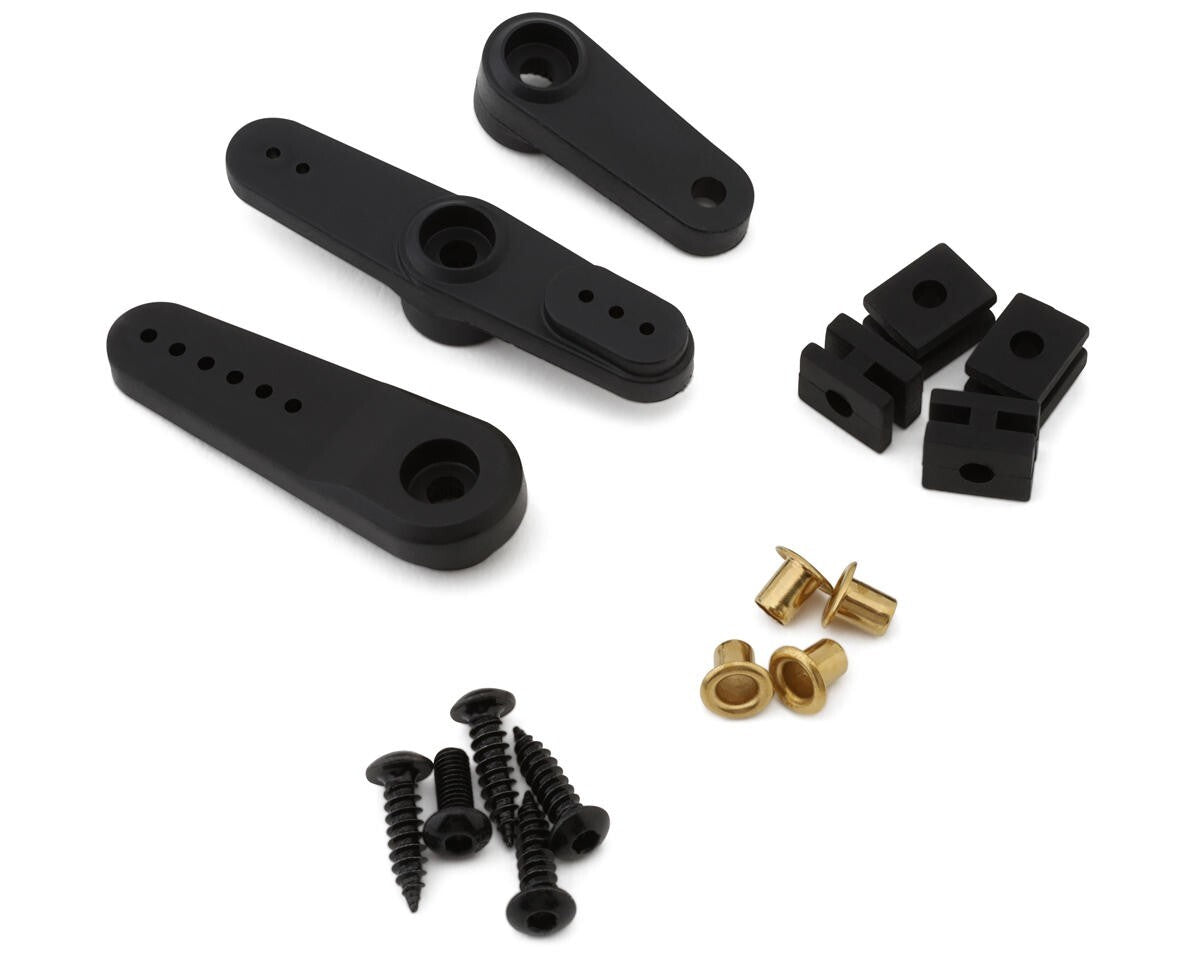

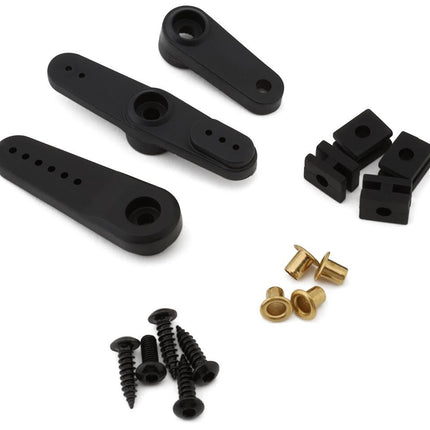

- Assorted Servo Horns and Mounting Hardware
