Description

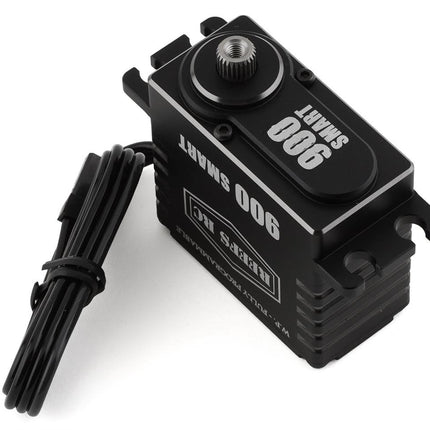

Reefs 900 Smart Servo & Winch.
Features:
- High Torque High Speed Brushless SERVO or WINCH
- Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK and Software.
- BUILT IN PREPROGRAMMED WINCH CONTROLLER
-
Internal Steel Gears / All CNC Aluminum Casing
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- 4 Pole Brushless Motor
- REEFS LINK required for Programming
- BEC Not Req. Recommended for max performance
Specifications:
SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK
Voltage: 4.8V 8.4V
Bearing Type: 4 Ball Bearings / Weight: 2.99oz
Dimension: 1.57 x .79 x 1.5 (LWH)
Torque: 720oz @ 6v/ 830oz @7.4v/ 940oz @8.4v
Speed: .13sec @6v/.12sec @7.4v/.10sec @8.4v
Spline: 25T / Dead Band Width: 2¦Ìs
Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V
Load Current: 5000mA @ 4.8V / 5800mA @ 6.0V / 6800mA @ 7.4V / 7400mA @ 8.4V
