Servo Overview:

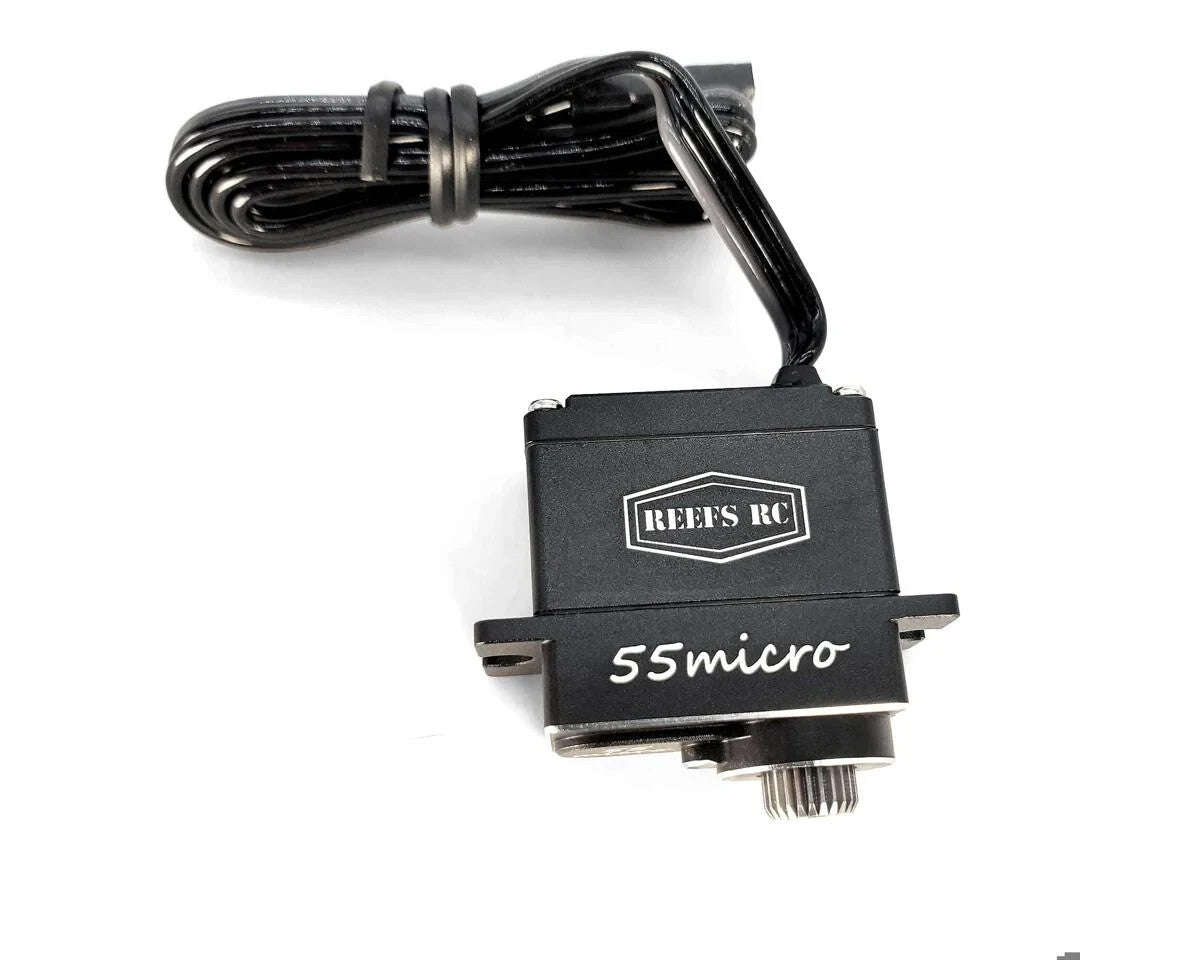

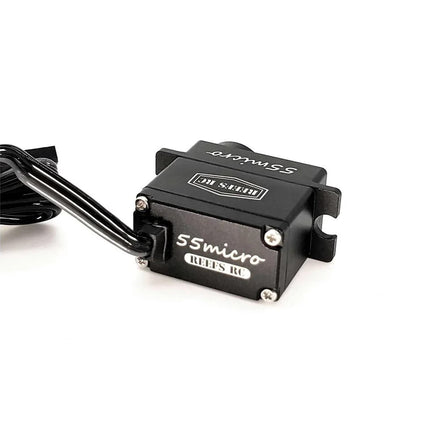

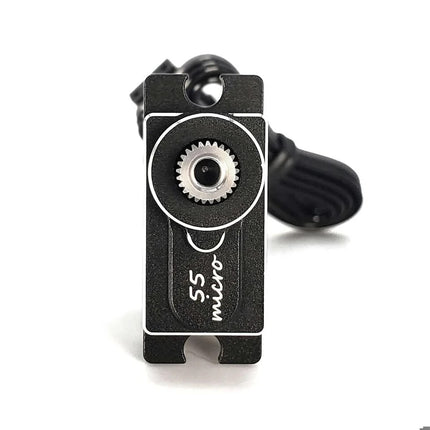

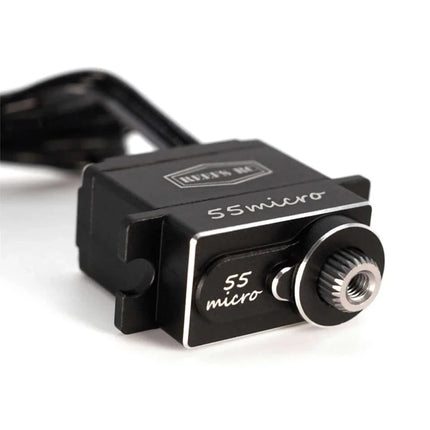

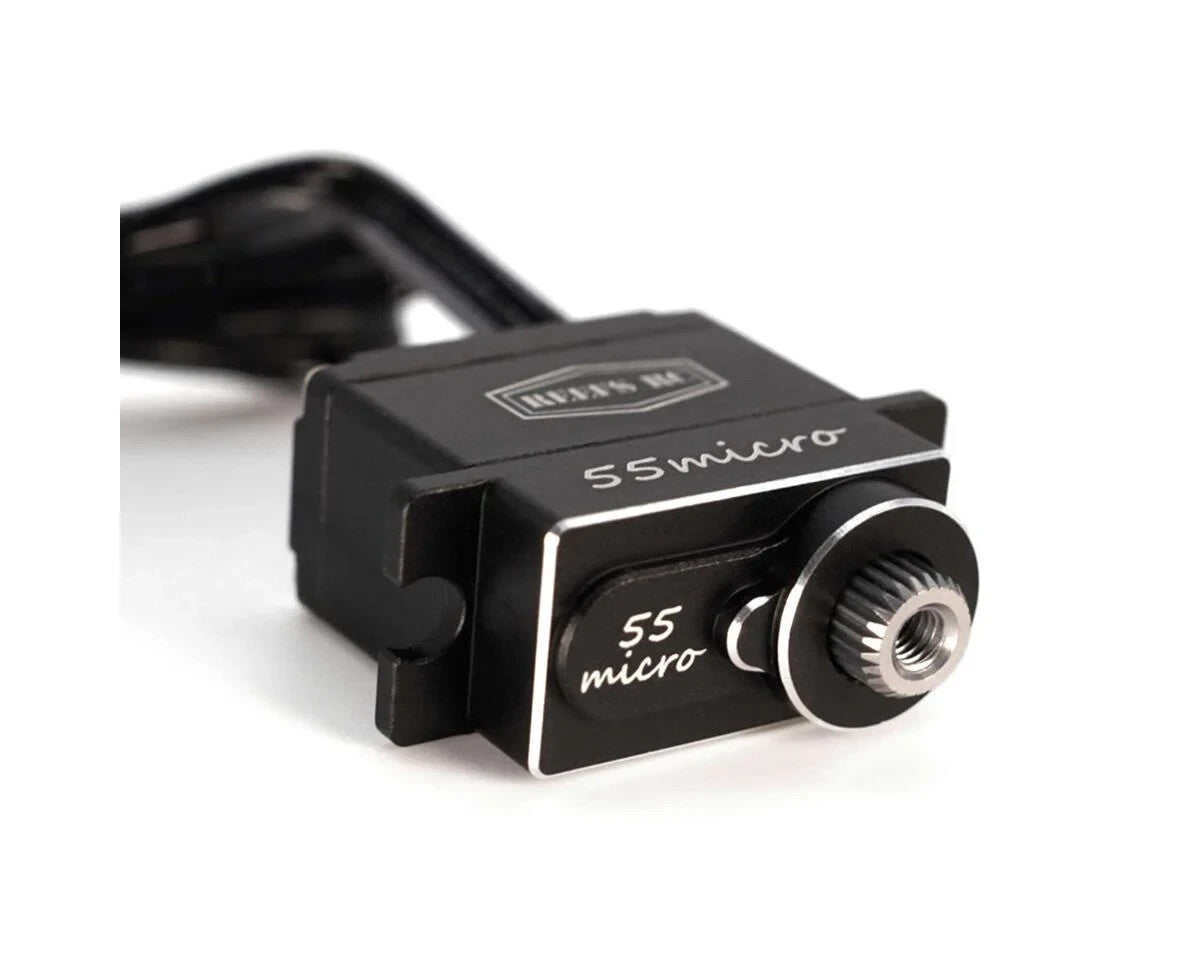

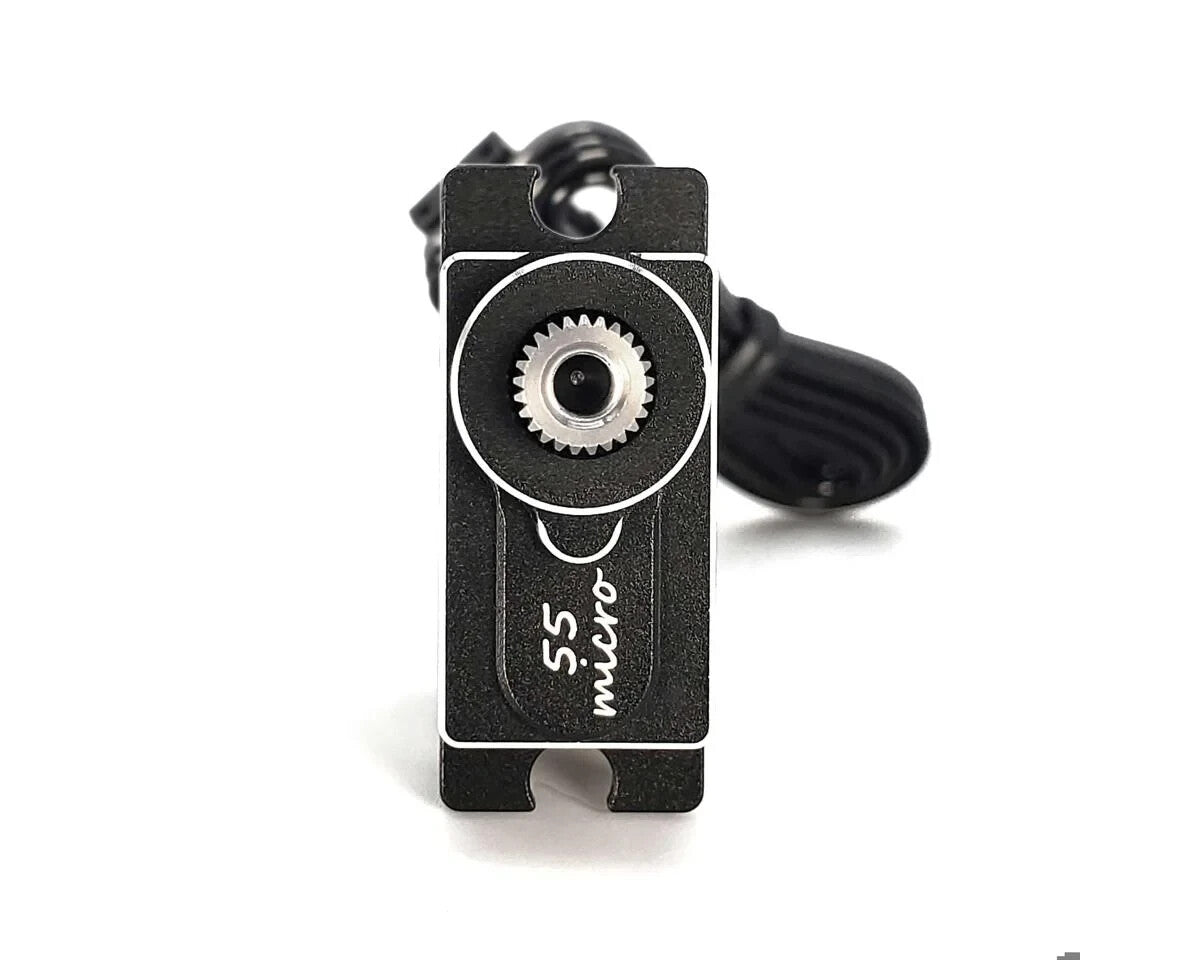

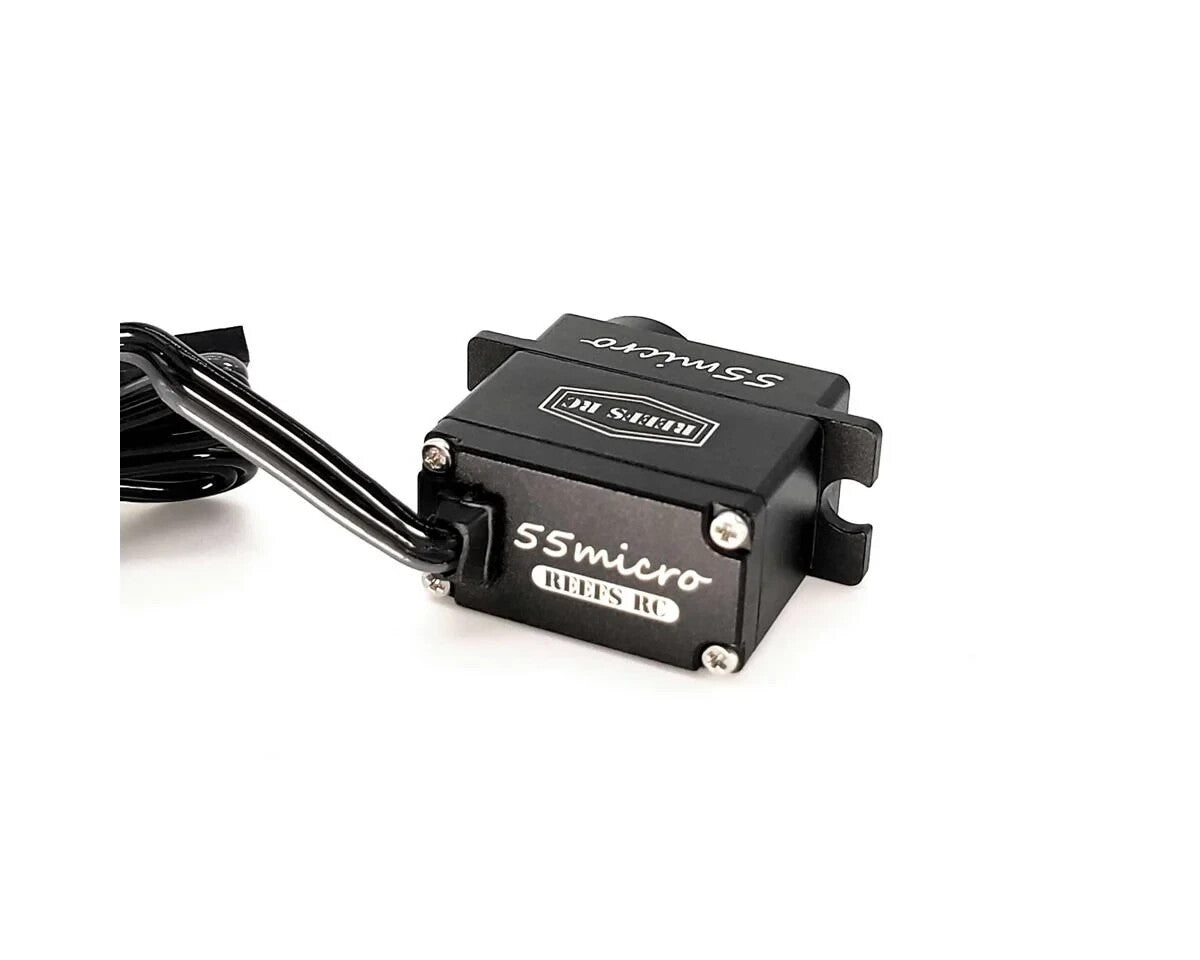

This is the 55Micro Waterproof Metal Gear Digital High Voltage Micro Servo. Designed specially to be a direct drop-in fit for the Traxxas TRX-4 with shifting servos and TRX-4M platforms, this small but mighty servo is high voltage capable with no need for BEC or to be bypassed! Additionally, the inclusion of the robust steel gears and the all CNC-machined aluminum case provide unparalleled durability and heat dissipation to ensure reliability under harsh conditions!
NOTE: Not recommended for Heavy modified TRX-4M.Features:
- The ultimate upgrade for TRX-4 and TR-6 with shifting servos
- A great option for stock lightweight TRX-4M
- High voltage capable
- Waterproof design
- Durable all steel gears
- Fully Programmable with Reefs USB Link adaptor (SEHREEFS64 - Sold Separately)
- CNC-machined aluminum case
Specifications:
- Speed:
-
@6.0V: 0.11sec/60°
-
@7.4V: 0.09sec/60°
-
@8.4V: 0.08sec/60°
- Torque:
-
@6.0V: 41oz-in (2.95kg-cm)
-
@7.4V: 48oz-in (3.45kg-cm)
-
@8.4V: 55oz-in (3.96kg-cm)
-
Motor: Digital Coreless
-
Operating Voltage: 4.8-8.4V
-
Dimensions(LxWxH): 0.90x0.50x0.86in (22.9x12.8x22mm)
-
Weight: 0.67oz (19g)
-
Operating Spline: 25T
Includes:

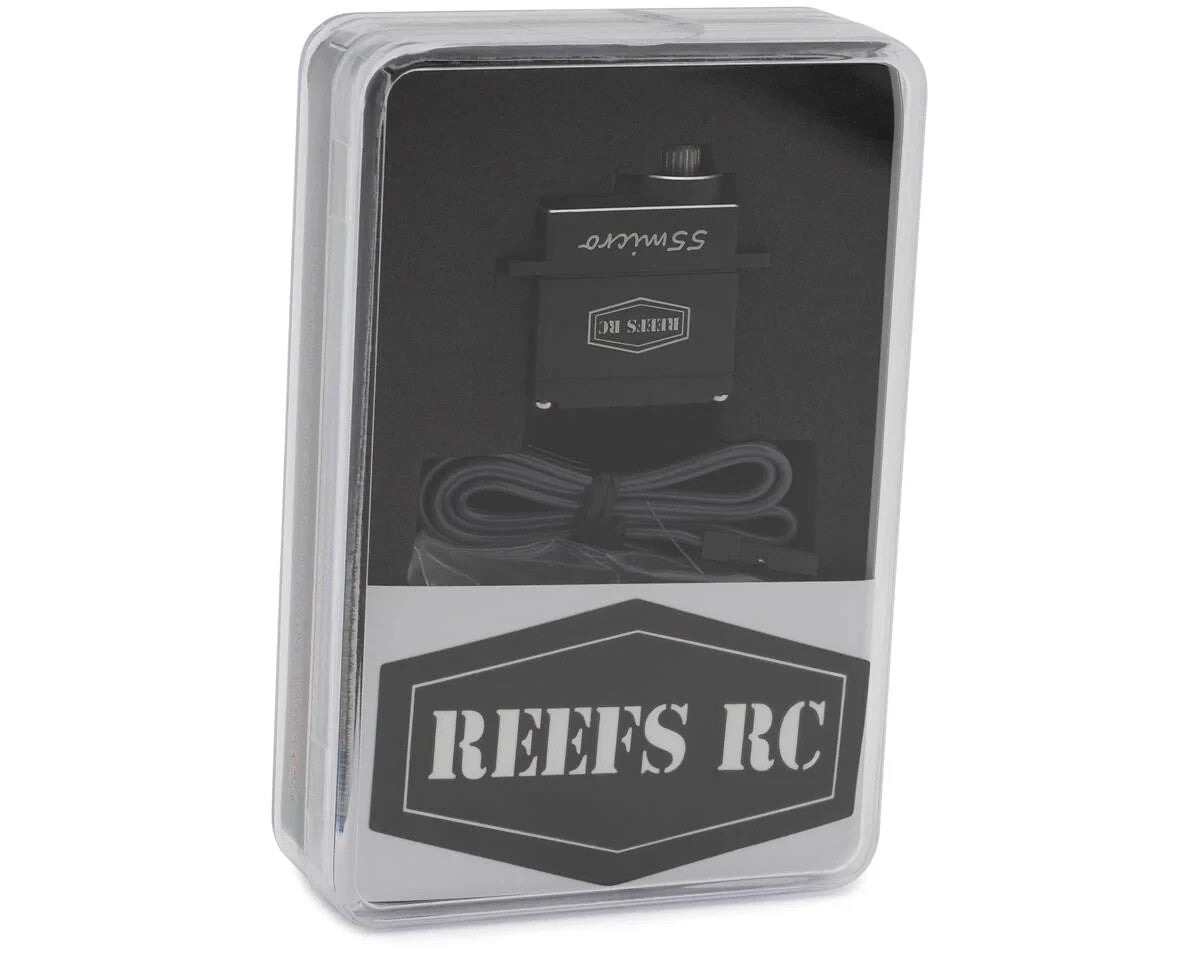

- (1) 55Micro Waterproof Metal Gear Digital Micro Servo

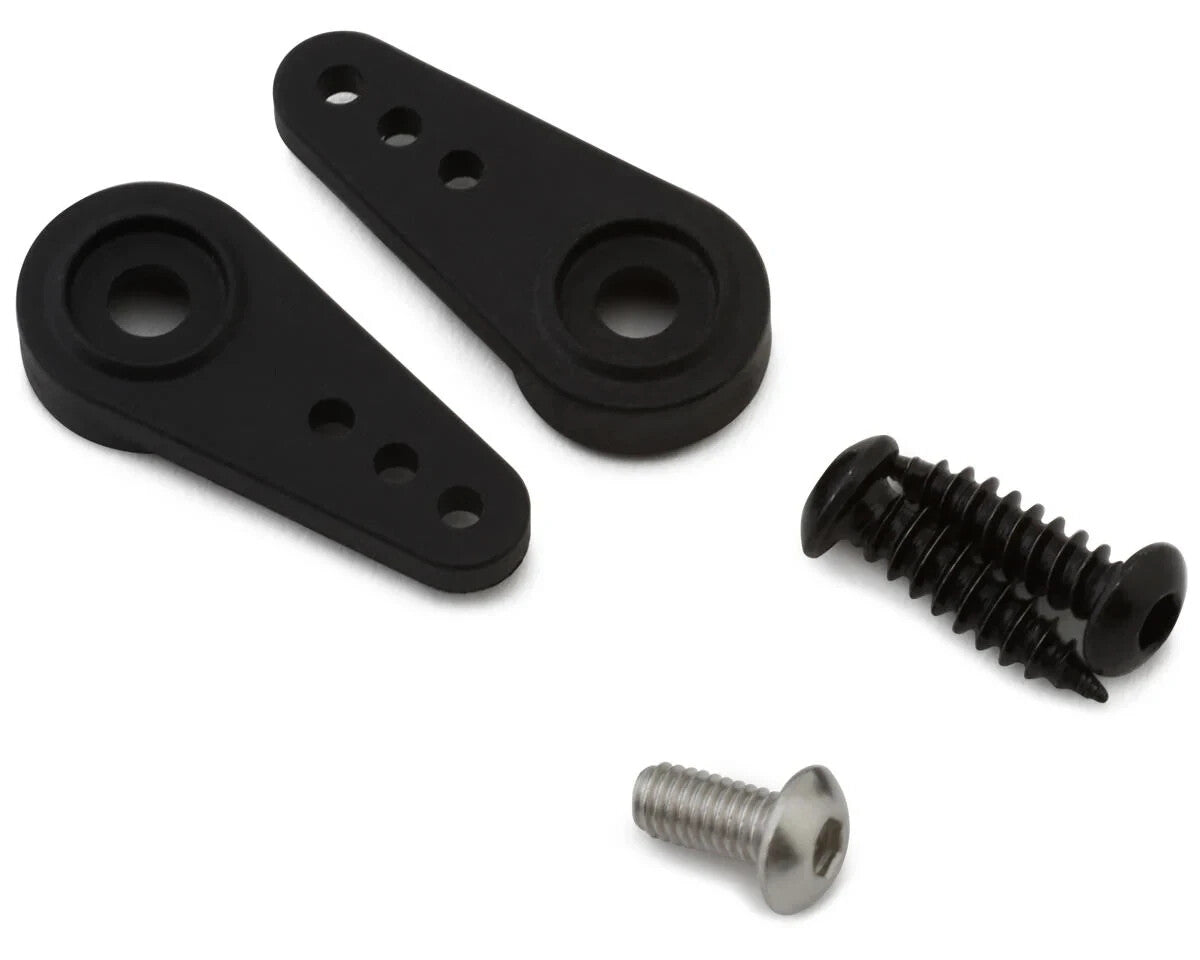

- Assorted Servo Horns and Mounting Hardware
