Description

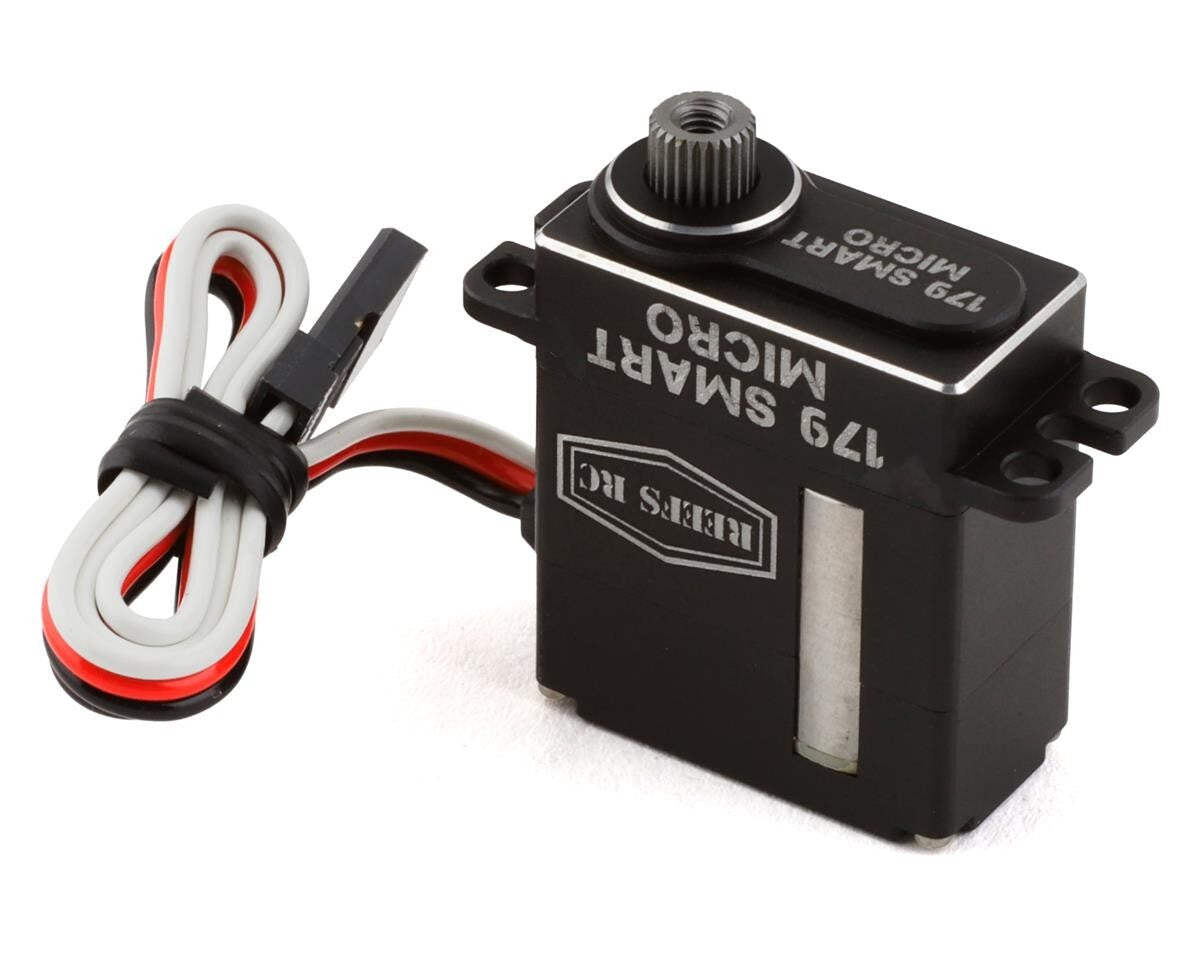

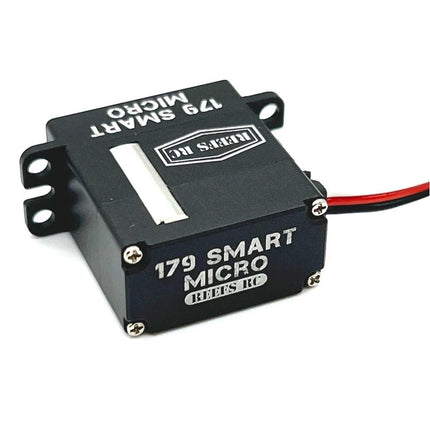

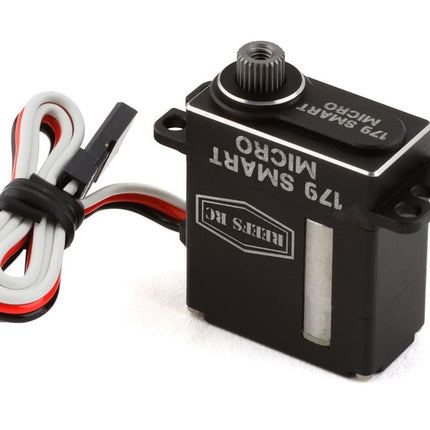

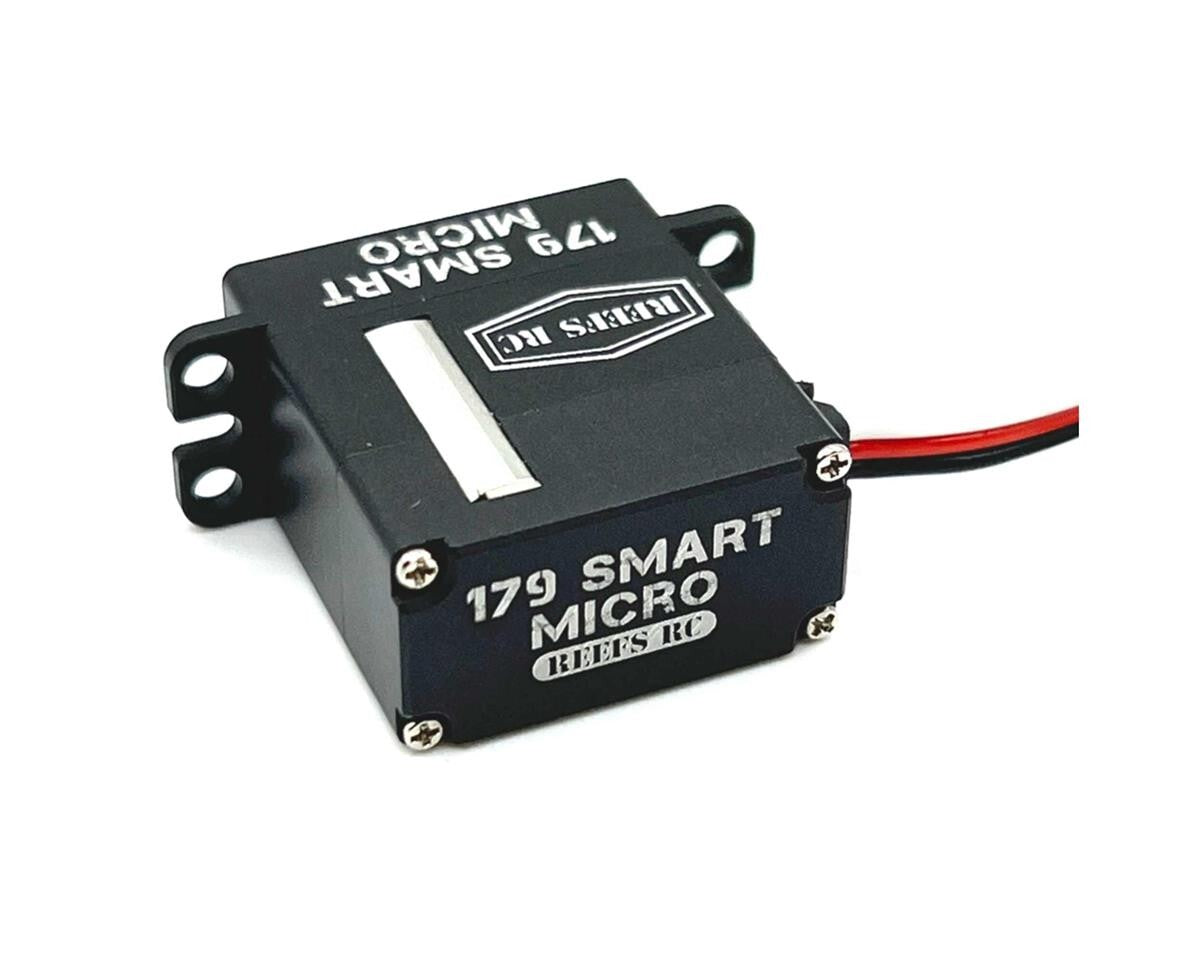

The Reefs RC 179 Smart Micro Servo/Winch packs big power into this micro size. Using a brushless motor and programmable electronics this servo is able to produce up to 179oz-in at 8.4v! The Reefs RC 179 can be programmed to either act as a traditional servo or set up for continuous rotation in winch mode. If your looking for a powerful servo/winch option but space is tight this Reefs RC 179 Smart Micro servo may be your solution.
Features:
- Fully Programmable w/ REEFS Software (REEFS LINK required for Programming)
- Built in preprogrammed winch controller
- Pulse Width Modulation Control
- High Torque digital brushless servo

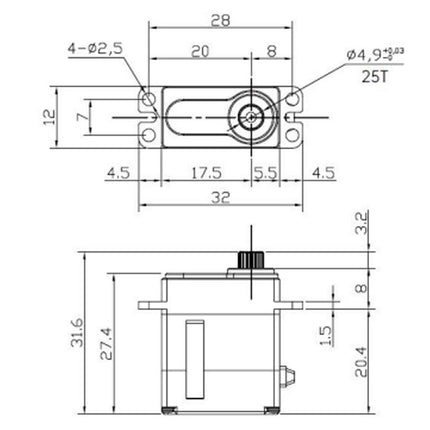

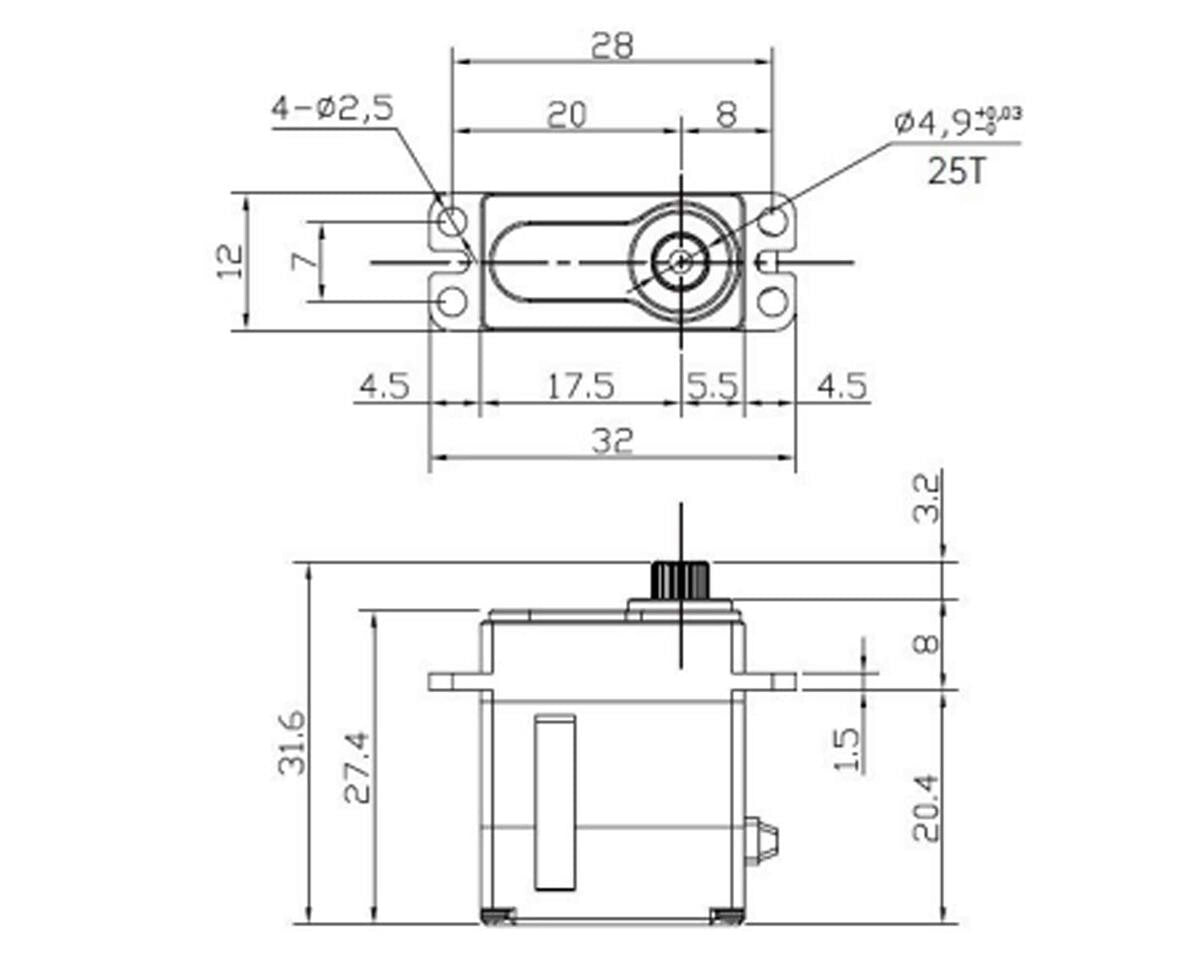

Specifications:
-
Length: 1.08" (27mm)
-
Width: 0.9" (23mm)
-
Height: 0.47" (12mm)
-
Weight: .74oz / 21g
-
Torque:
-
6.0V: 135oz
-
7.4V: 159oz
-
8.4V: 179oz
-
Speed:
-
6.0V: .09sec
-
7.4V: .07sec
-
8.4V: .06sec
-
Servo Type: Digital
-
Servo Size Category: Micro
-
Programmable: Yes (via optional programmer)
-
Servo Operating Voltage 6.0 - 8.4V (HV)
-
Spline Count: 25
-
Bearing: 2BB
-
Deadband: 2uS
Includes:
- (1) Reefs RC 179 Smart Micro Servo/Winch
- Servo Horn Assortment
- Hardware
