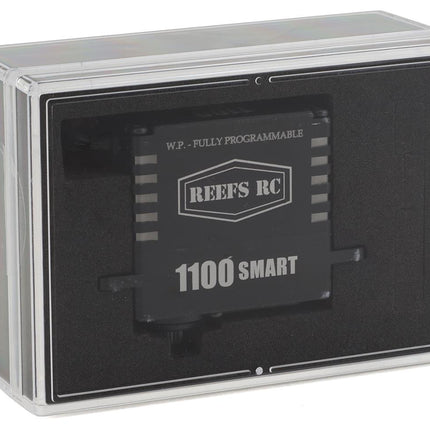

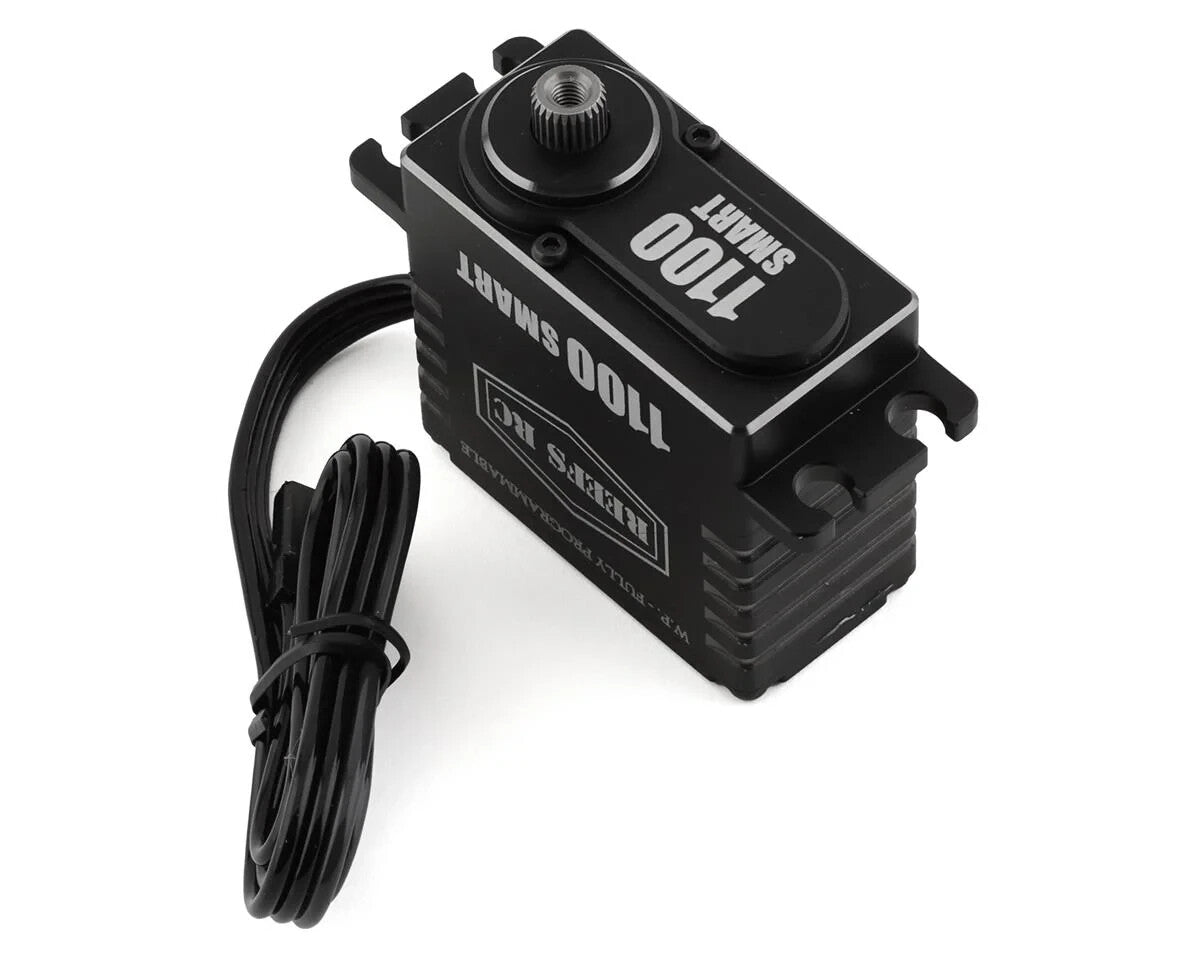

Reefs RC 1100 Smart Servo & Winch REEFS119

    Description

    Reefs 1100 Smart Servo & Winch.

    Features:

    • High Torque High Speed Brushless SERVO or WINCH
    • Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK and Software.
    • BUILT IN PREPROGRAMMED WINCH CONTROLLER
    • Magnetic Angle Sensor
    • Pulse Width Modulation Control
    • 4 Pole Brushless Motor
    • REEFS LINK required for Programming
    • BEC Not Req. Recommended for max performance
    Specifications:
    SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK
    Voltage: 4.8V - 8.4V
    Internal: Steel Gears / All CNC Aluminum Casing
    Bearing Type: 4 Ball Bearings / Weight: 2.99oz
    Dimension: 1.57 x .79 x 1.5 (LWH)
    Torque: 760oz @ 6v/ 930oz @7.4v/ 1100oz @8.4v
    Speed: .16sec @6v/.13sec @7.4v/.12sec @8.4v
    Spline: 25T / Dead Band Width: 2¦Ìs
    Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V
    Load Current: 5400mA @ 4.8V / 6000mA @ 6.0V / 6800mA @ 7.4V / 7500mA @ 8.4V
    Product form

    SKU: REEFS119
    Barcode: 602024523413

    Free pickup in our shop(s)

    Be quick! Only 2 products left in stock!

    2 in stock Ships within 24hr of Purchase

    $189.00
