Servo Overview:

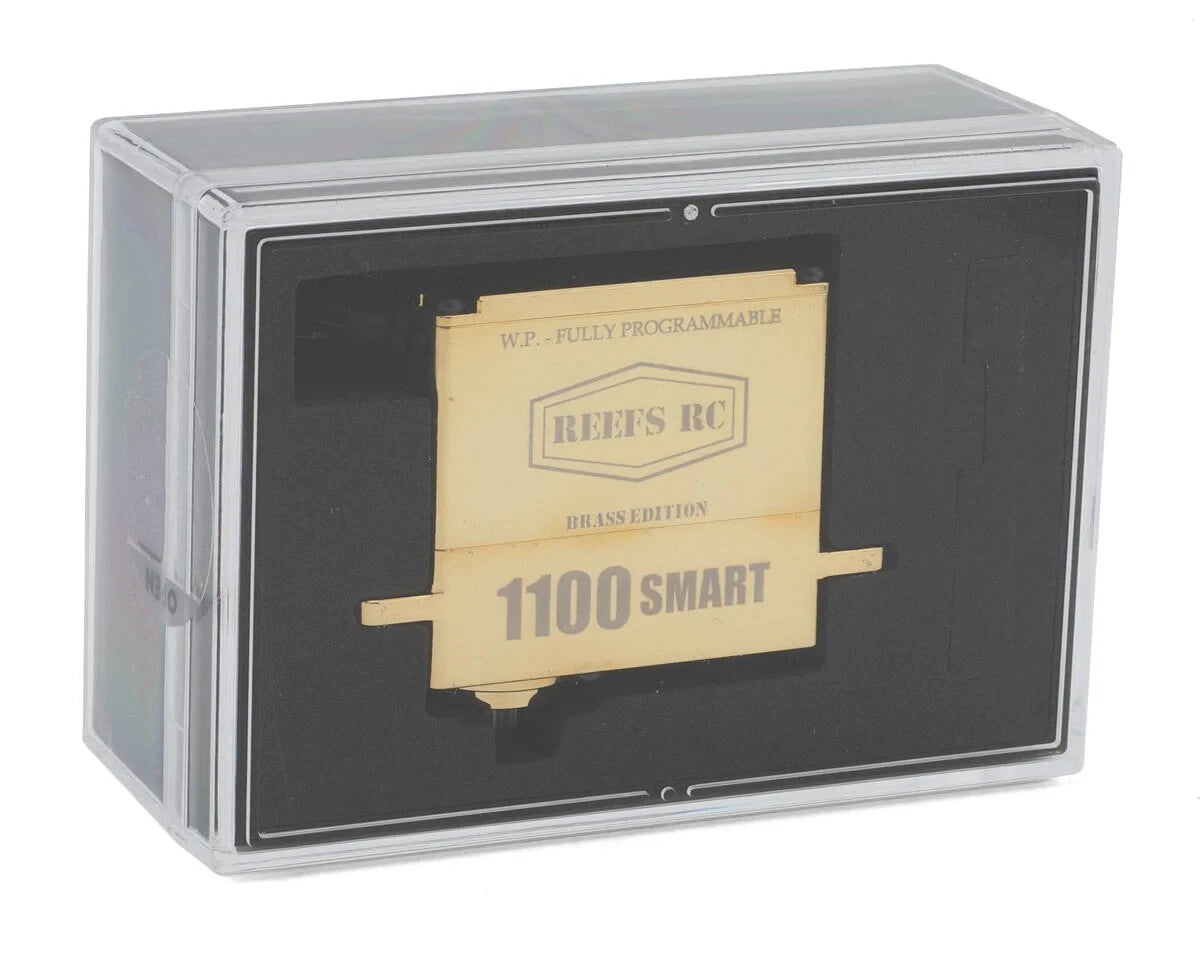

This is the Reefs RC 1100 Smart Brass High Torque and Speed Digital Brushless Steering and Winch Servo from Reefs RC, designed for high-torque, high-speed performance in demanding RC applications. With its monster torque output of 1100oz-in (79.2kg-cm) at 8.4 Volts, lightning speed operation of 0.12sec/60° at 8.4 Volts, fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from crawlers to boats! Additionally, the brass outer case construction provides a significant increase in weight, ideal for rock crawler applications.
Features:
- Powerful 4-Pole brushless motor
- Operates as a steering or winch servo (Default is Steering)
- Built-in preprogrammed winch controller
- "Submarine Waterproof" with 7-point seals
- High voltage capable
- Magnetic angle sensor
- Internal steel gears
- Heavy CNC Brass casing with "ULTRA" finish
- Fully Programmable with REEFS Software
Specifications:
-
Suggested Application: 1/10, 1/8, 1/7 & 1/6 surface and boats
-
Input Voltage: 4.8V-8.4V
- Speed:
-
@6.0V: 0.16sec/60°
-
@7.4V: 0.13sec/60°
-
@8.4V: 0.12sec/60°
- Torque:
-
@6.0V: 760oz-in (54.7kg-cm)
-
@7.4V: 930oz-in (66.9kg-cm)
-
@8.4V: 1100oz-in (79.2kg-cm)
-
Motor: Brushless
-
Dimensions(LxWxH): 1.57x.79x1.5in (39.87x20.06x38.1mm)
-
Weight: 5.29oz (150g)
-
Operating Spline: 25T
Includes:
- (1) 1100 Smart Brass High Torque and Speed Digital Brushless Steering and Winch Servo
- Assorted Servo Horns and Mounting Hardware
