Supreme Off-road Performance & Control
Unleash pro-level performance with the Reedy Blackbox 880R — an elite competition ESC built to dominate 1/8 and 1:10 racing. Engineered for power, precision, and full customization, it’s the edge serious racers demand.

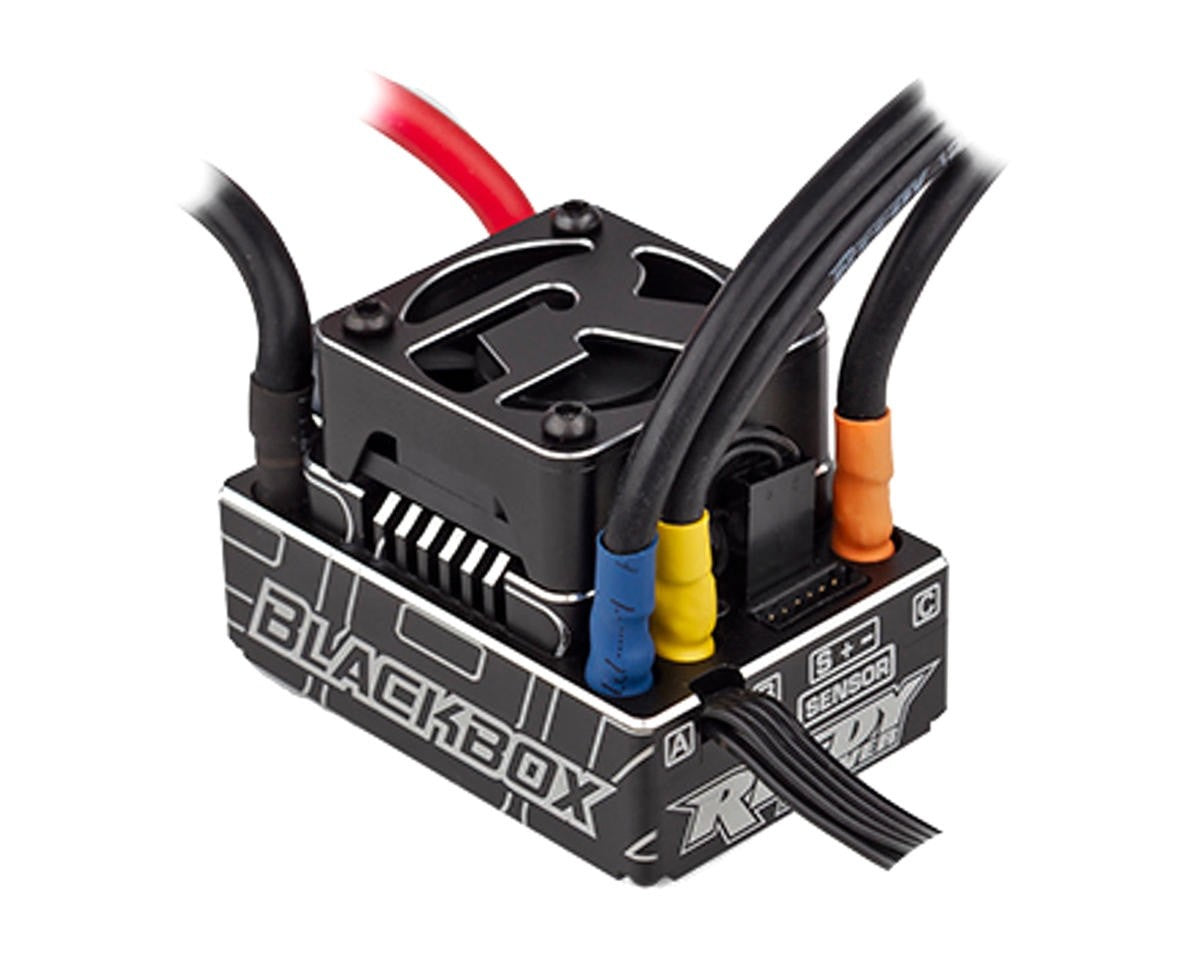

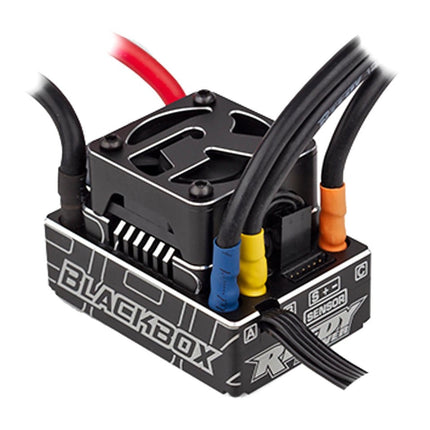

About the Blackbox 880R ESC
Built for Competition
The Reedy Blackbox 880R ESC is engineered for 1/8 E-Buggy, E-Truggy, and 1/10 4WD Short Course dominance. Delivering 180A continuous and 700A peak current, it handles high-demand applications with ease. The CNC-machined aluminum case, integrated heatsink, and 30mm fan with machined shroud ensure thermal stability during extended race sessions.
Precision Tuning Control
Whether you're a weekend racer or a seasoned pro, the 880R offers unmatched adjustability. With the optional Blackbox Programmer2, you can dial in brake strength, throttle response, current limits, motor timing, and more — using either Standard or Expert tuning modes. This allows racers to fine-tune for any track surface, vehicle, or motor setup.
Smart Features
Integrated power capacitors, heavy-duty solder tabs, and an ultra-low resistance FET board deliver efficiency and reliability. Adjustable BEC voltage (6.0–7.4V) lets you tune servo performance, while motor reverse, thermal protection, and data logging provide advanced safety and diagnostics. Plus, firmware updates ensure long-term performance evolution.
Features:
- Delivers 180A continuous and 700A peak power
- 32-bit microcontroller unit (MCU)
- CNC aluminum case with built-in heatsink
- Includes 30mm cooling fan with shroud
- Fully adjustable brake and throttle settings
- Works with optional Blackbox Programmer2
- Offers Standard and Expert tuning modes
- Adjustable BEC voltage from 6.0V to 7.4V
- Built-in power capacitors and heavy-duty wires
- Supports firmware updates and data logging
Includes:
- (1) Reedy Blackbox 880R Competition 1/8 Sensored Brushless ESC
- (1) Manual
Specifications:
| Suggested Application |
1/8 Buggies, Truggies & 1/10 Short Course |
| Motor Type |
Brushless - Sensored/Sensorless |
| Input Voltage |
2-4S LiPo (7.4-14.8V) |
| Continuous Current |
180A |
| Peak Current |
700A |
| Dimensions (LxWxH) |
2.12x1.45x0.9in (54x37x23mm) |
| Weight |
1.58oz (45g) |
| Motor Limits |
2400kV with 4S Lipo |
| BEC Voltage |
6.0/7.4V |
| BEC Continuous Current |
5A |
| BEC Peak Current |
- |
| Motor Connector |
Solder |
| Battery Connector |
Solder |
| Programmable |
Yes, with Blackbox Programmer2 |
*Tech Note: To program the Blackbox 880R, Programmer2 (#27027) with firmware EE460145 must be used. This version is already installed when purchasing the 880R/Programmer2 combo. Firmware updates and Blackbox Link version 2.7 can be found on the 880R product page at www.reedypower.com
