Description
Advanced Micro Crawler with High-Performance Features

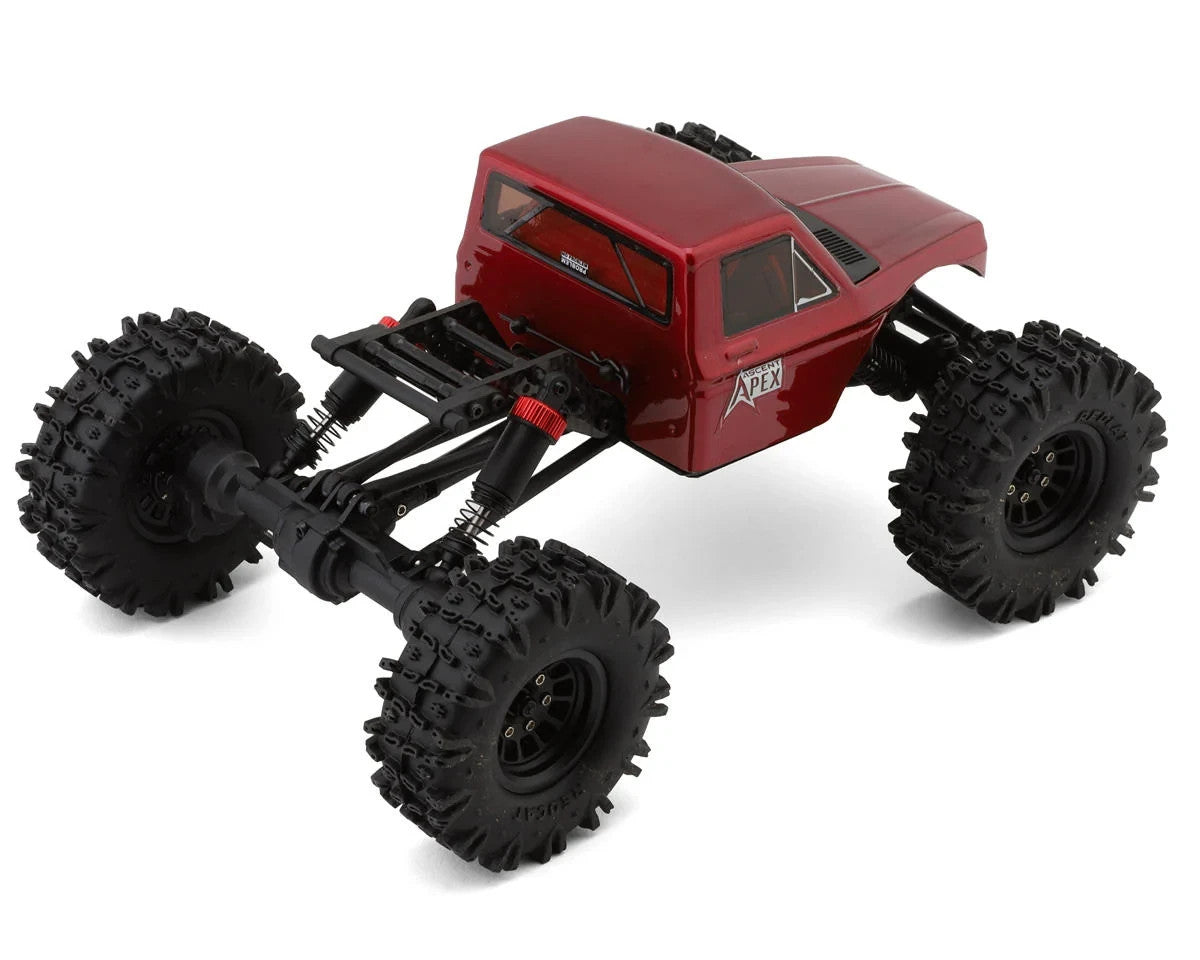

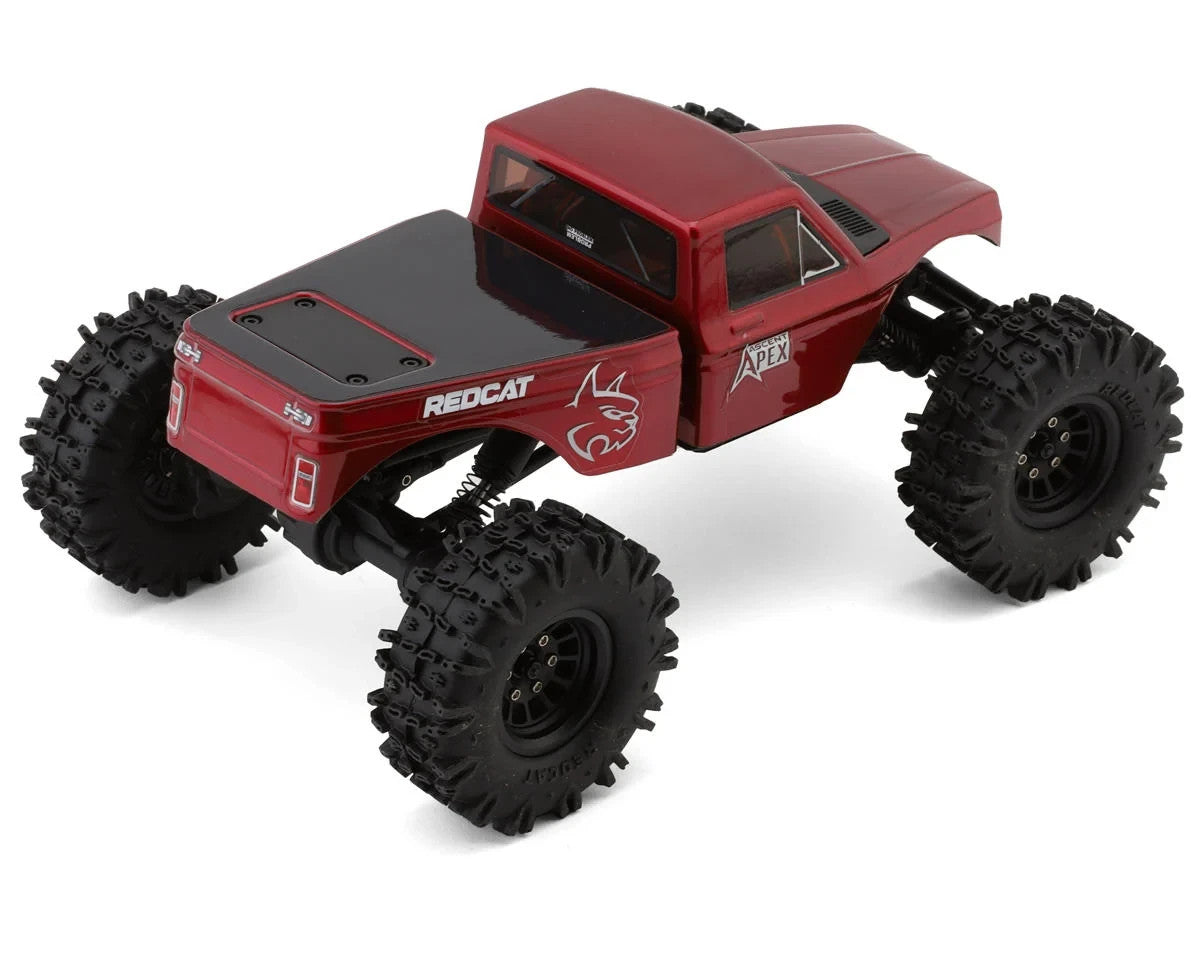

The Redcat Ascent-18 Apex 1/18 4WD RTR Brushless Rock Crawler is engineered for serious off-road enthusiasts who demand performance and durability. With over 80% of the platform redesigned from the original Ascent-18, this crawler is built to tackle challenging terrain with ease. Its lightweight carbon fiber chassis, high-steer portal axles, and upgraded drivetrain make it a standout choice for precision crawling.
About the Ascent-18 Apex Brushless Rock Crawler
Performance-Driven Chassis
The Ascent-18 Apex features a carbon fiber low center of gravity chassis with aluminum bracing for balanced weight distribution. This lightweight yet durable frame enhances stability on rocky trails and steep inclines. Ball bearings throughout the drivetrain ensure smooth operation, reducing friction and improving overall responsiveness.
High Clearance Portal Axles

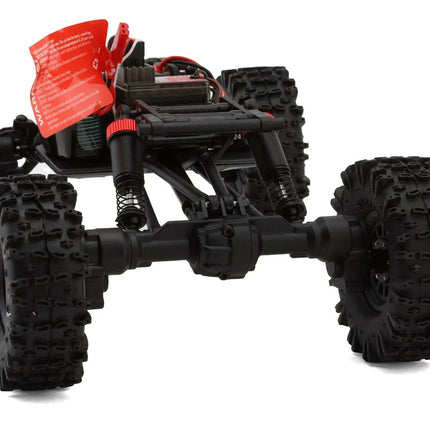

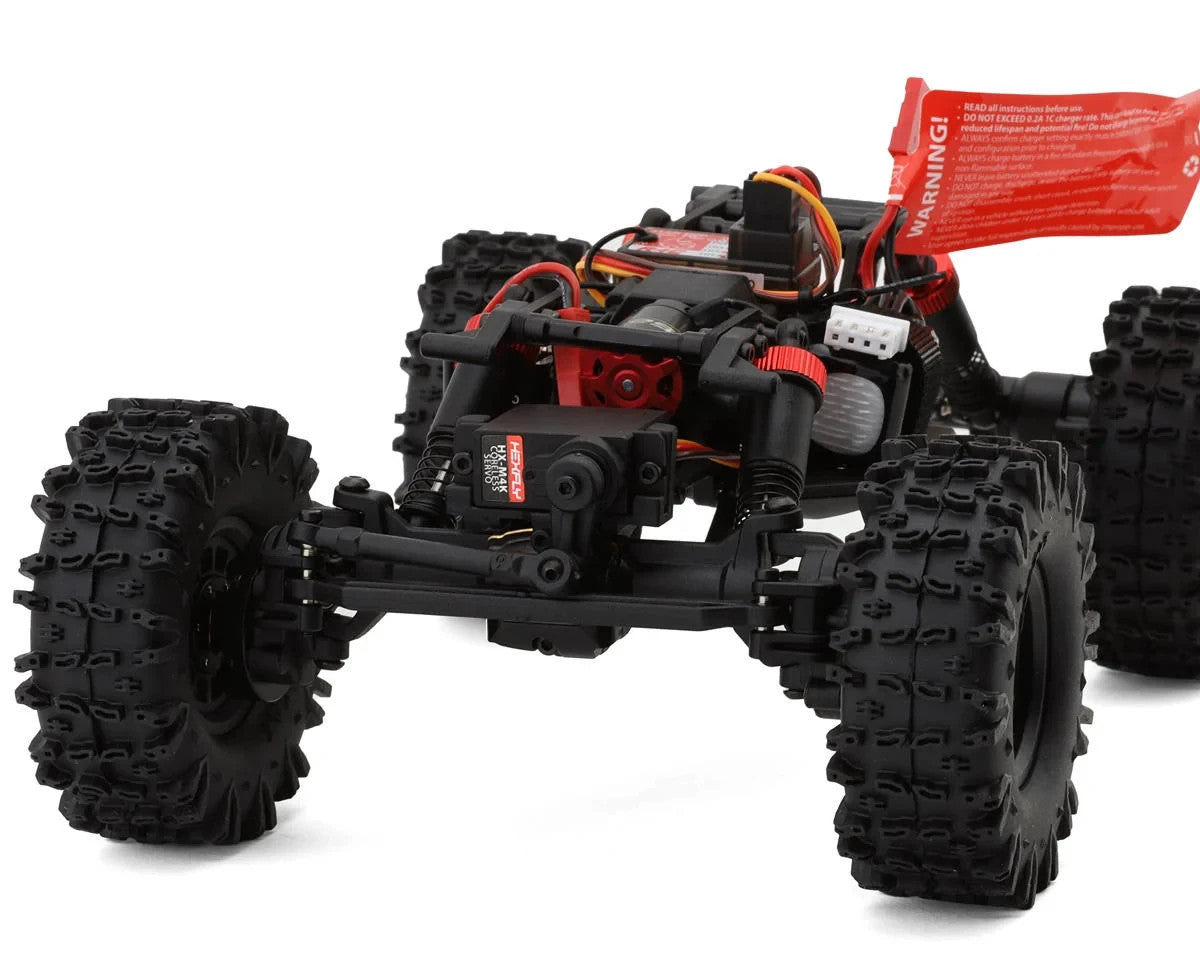

Equipped with high-steer portal axles, the Ascent-18 Apex gains improved ground clearance and a tighter turning radius. The front axles include upgraded brass outer portal boxes and differential covers, while overdrive gears and an enhanced ring and pinion gear provide better climbing power. These features allow the crawler to navigate obstacles with increased stability and control.
Ready-to-Run Setup
This crawler comes with a Hobbywing brushless motor and ESC, a metal gear micro servo, and beadlock wheels with aggressive 1.3-inch soft compound tires. The RTX-4C 4-Channel 2.4GHz Transmitter allows full control with adjustable trims and endpoints, while the 3S LiPo battery and USB charger make it ready to run right out of the box. Additionally, an optional two-piece body lets you run it as a cab only or add the included bed for extra customization.
Features:
- Carbon fiber low center of gravity chassis
- High-steer portal axles for improved steering radius
- Upgraded brass outer portal box and front differential cover
- Overdrive gears with enhanced ring and pinion ratio
- Ball bearings throughout for smoother performance
- Aluminum-capped oil-filled shocks for better traction
- Hobbywing brushless motor and ESC for 3S LiPo power
- Metal gear micro servo for precise control
- Soft compound aggressive 1.3-inch crawler tires on beadlock wheels
- Optional two-piece body with forward-tilt bed mounting system
Includes:
- (1) Ascent-18 Apex 1/18 4WD RTR Brushless Rock Crawler

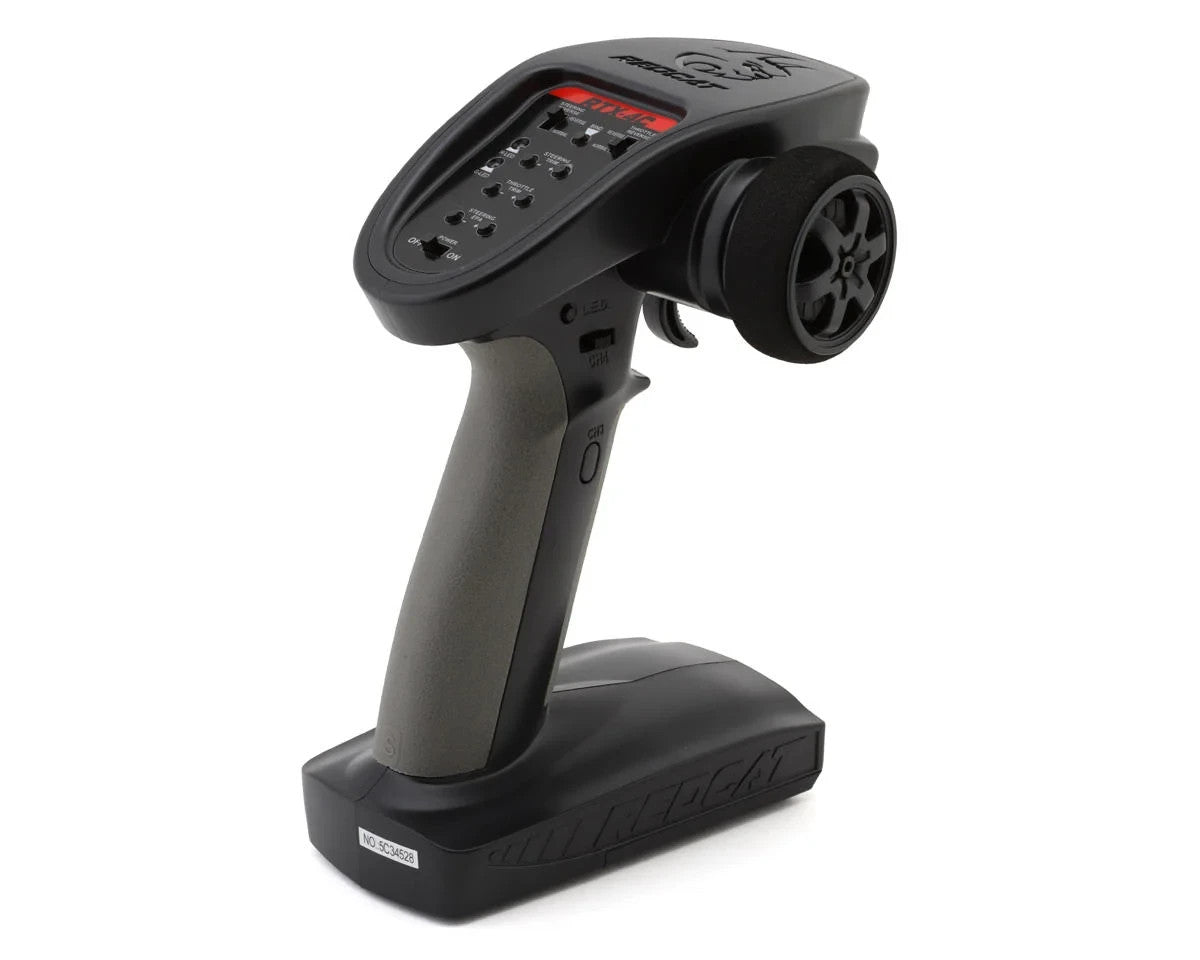

- (1) RTX-4C 4-Channel 2.4GHz Radio System
- (1) Coreless 4kg Metal Gear Micro Steering Servo
- (1) Optional Truck Bed
- (1) 3S 200mAh LiPo Battery (11.1V) w/JST Connector
- (1) Hobbywing Brushless Motor
- (1) Hobbywing Brushless ESC
- (1) USB Battery Charger
- Product Manual
Needed To Complete:
- (4) AA Batteries for Transmitter
Specifications:
| Scale |
1:18 |
| Drive |
4WD |
| Power Source |
3S LiPo |
| Length |
- |
| Wheelbase |
- |
| Width |
- |
| Height |
- |
| Weight |
- |
Electronics
| Motor: |
Brushless |
| ESC |
Brushless |
| Connector |
JST |
| Servo |
HX-M4K 4kg Metal Gear |
|
Wheels
| Front |
1.3in |
| Rear |
1.3in |
| Hex |
7mm |
|
Tires
| Front |
Apex-Soft Compound |
| Rear |
Apex-Soft Compound |
|
| Assembly Level |
RTR |
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
