Description
Winch Overview:

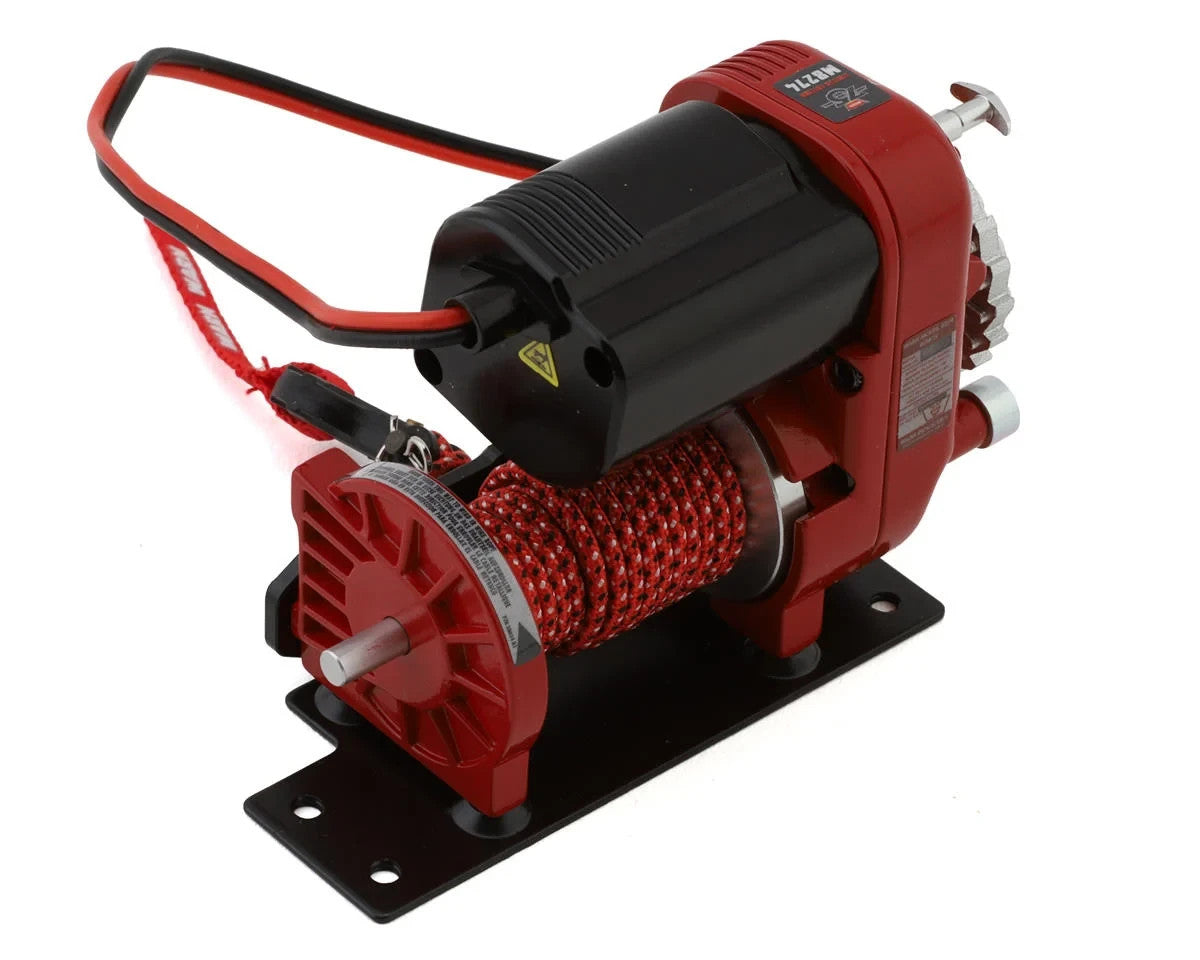

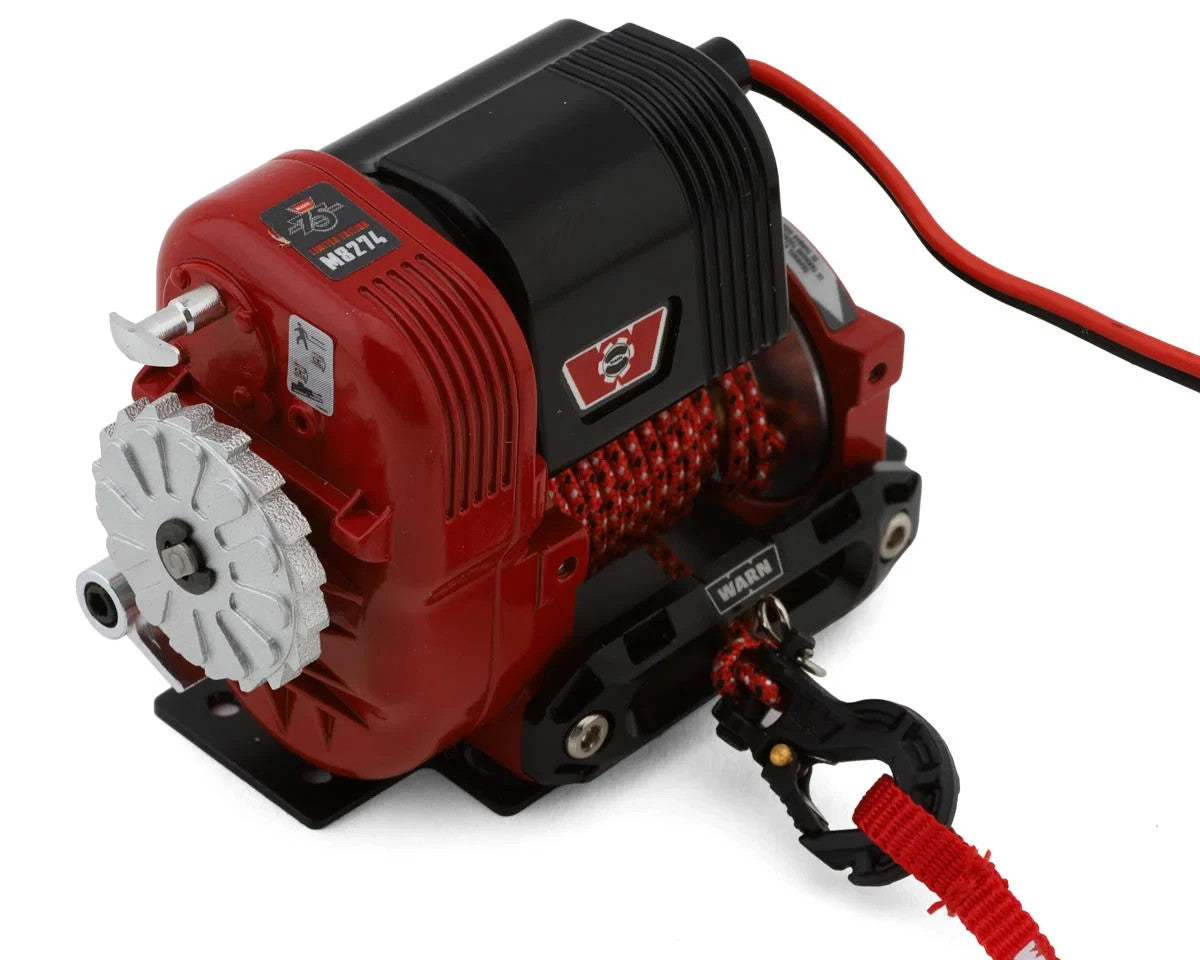

The RC4WD 1/10 Warn 8274 Winch (75th Anniversary Edition) is the ultimate in scale realism and performance. Officially licensed by Warn, this winch brings a realistic, licensed 1/10 version of the custom-configured M8274 Warn Winch. Made from quality materials and craftsmanship, this winch is packed with features including heavy-duty pulling strength, a free spool, and ultra-realism. It is the perfect addition to your RC setup, providing both functionality and aesthetic appeal.
This winch is designed with CNC machined billet and cast aluminum, a working spring-loaded Warn hook, synthetic winch rope, and highly detailed features. It is built to operate on a 6V to 12.4V range and can handle impressive load limits, making it an essential component for serious RC enthusiasts.
Features:
- CNC machined billet and cast aluminum
- Working spring-loaded Warn hook
- Synthetic winch rope
- Highly detailed
- Free spool
- Full Warn decals installed
Specifications:
-
Operating Voltage: 6-12.4V
-
Rope Length: 3.28ft (1m)
-
Dead Lift Load Limit: 50lbs (22.6kgs)
-
Rolling Drag Load Limit: 70lbs (31.7kgs)
-
Winch Rope Dead Lift Load Limit: 25lbs (11.3kgs)
-
Winch Rope Rolling Drag Load Limit: 37lbs (16.8kgs)
-
Length: 2.56in (65.0mm)
-
Width: 1.06in (27.0mm)
-
Height: 1.77in (45.0mm)
-
Weight: 4.23oz (120g)
Includes:

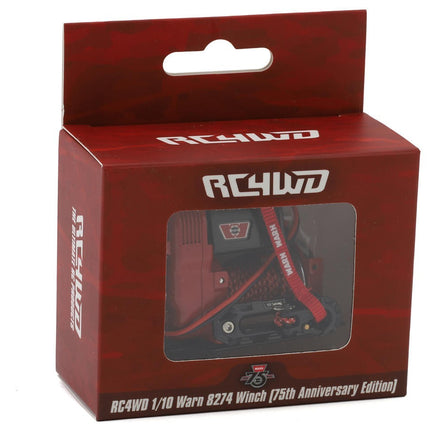

- (1) RC4WD 1/10 Warn 8274 Winch (75th Anniversary Edition)

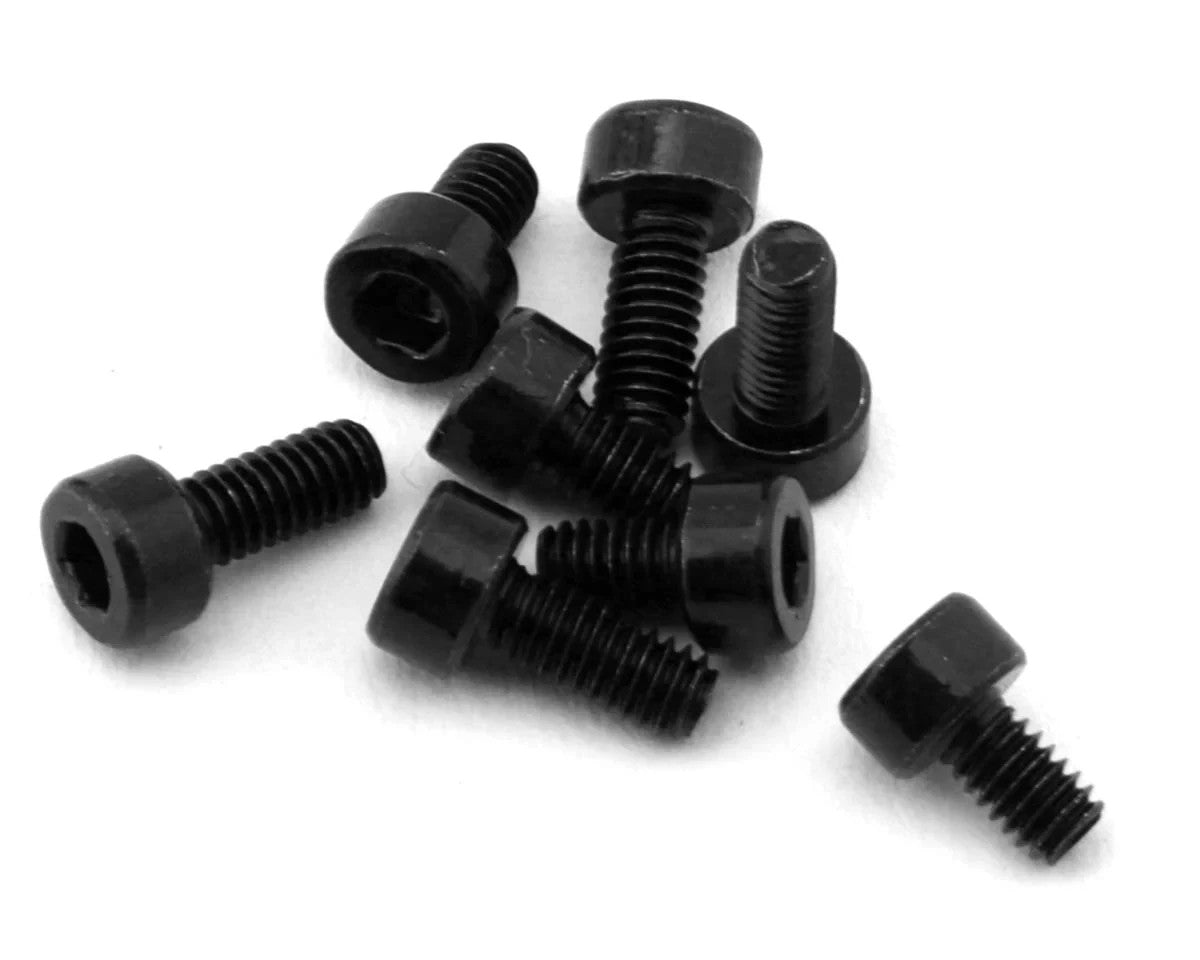

- (4) M2.5 x 4mm SHCS (Black)
- (4) M2.5 x 6mm SHCS (Black) (Z-S0855)
- (1) RC4WD Warn Winch Pull Tags (Z-S1660)
- (1) Warn Decal Sheet Set
Needed to Complete:
- Warn 1/10 Advanced Wireless Remote/Receiver Winch Controller Set (Z-E0130)
- Wired Winch Control Unit (Z-S1089)
