Description
The Protoform Arrma Felony & Infraction Corvette C8 Body is an officially licensed body option that offers the ultimate aerodynamic upgrade to the popular Felony platform. All the exceptional details of its 1:1 counterpart including aggressive cab-forward design, sculpted side doors, and vents are captured using the latest in 3D CAD and 5-axis milling technology. The extensive decal sheet lets you deck out your C8 with Corvette™ badges, windshield headers, "Jake" skulls, and USA flags. Also included are a custom add-on front splitter and rear wing to complete the super-scale look.
The C8 is formed from durable 1.5mm thick high-quality polycarbonate with paint-then-peel overspray film. This body was designed with wider rear fenders as a direct fit for the Felony™ to clear the 53/107 tires. It will work with Infraction™ rear tires, but to get the optimal look and fit, you can optionally choose to either widen the rear of your Infraction™ chassis with stock rear tires or use Felony™ rear tires with modifications to the rear gear ratio. See the "Fits" list below for the list of parts needed for these modifications.

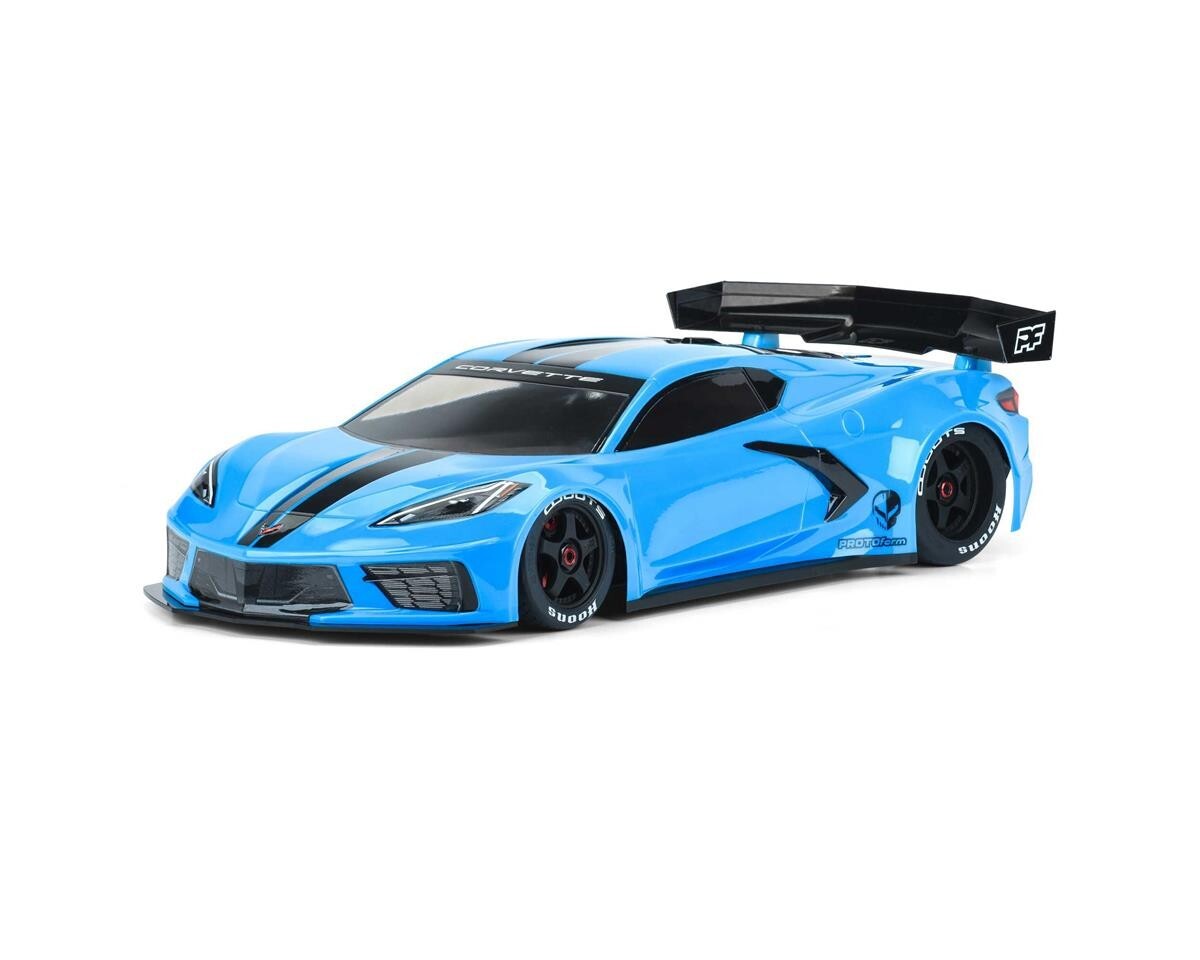

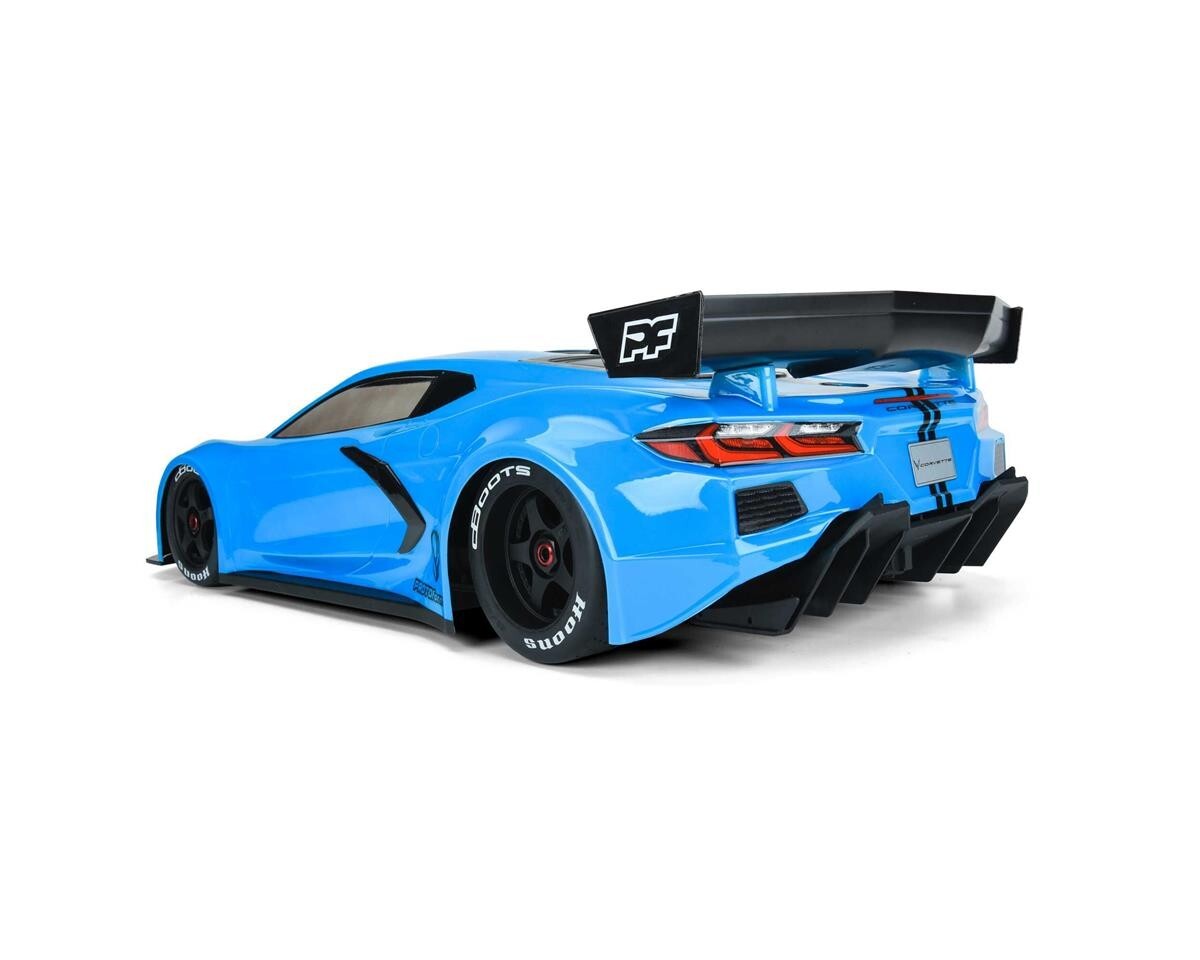

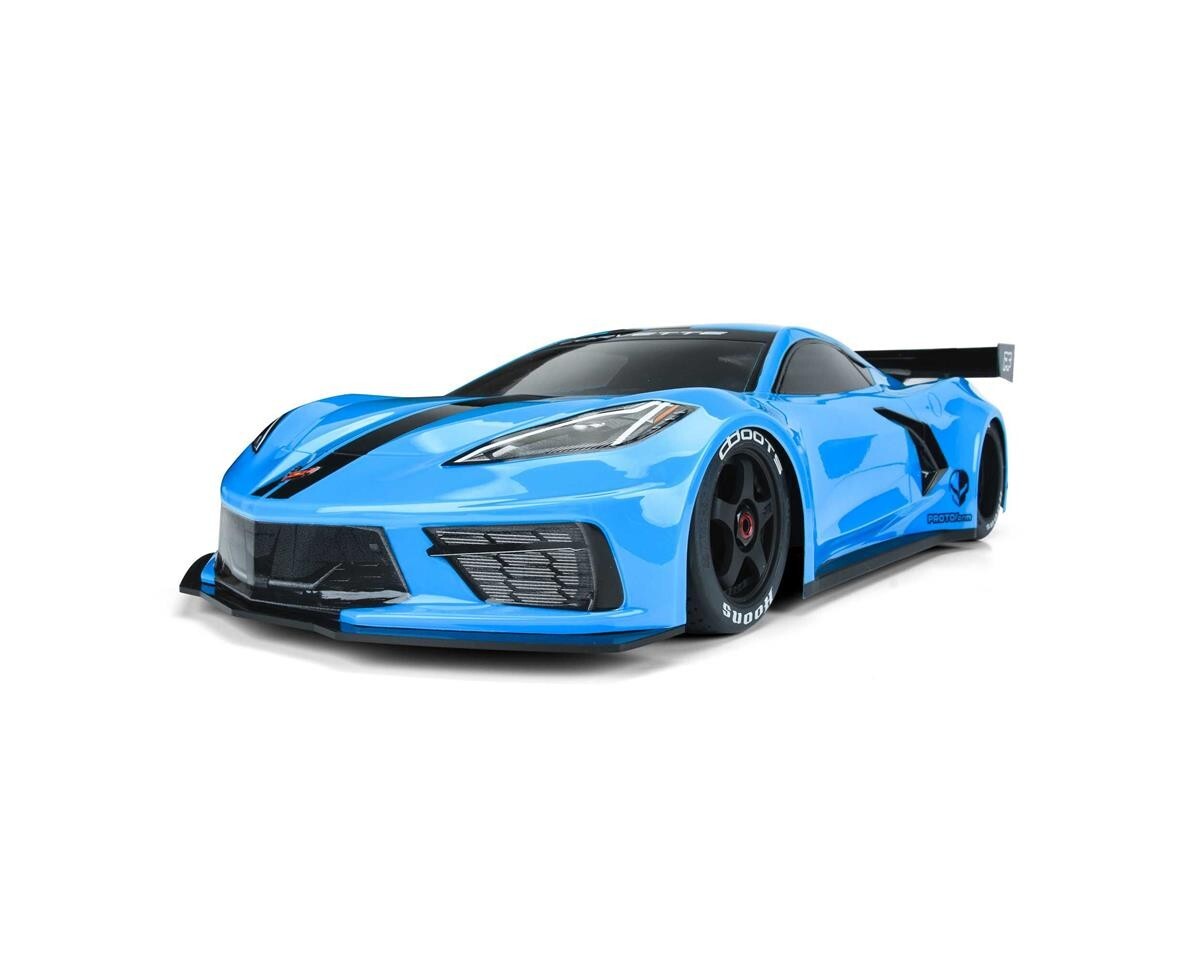

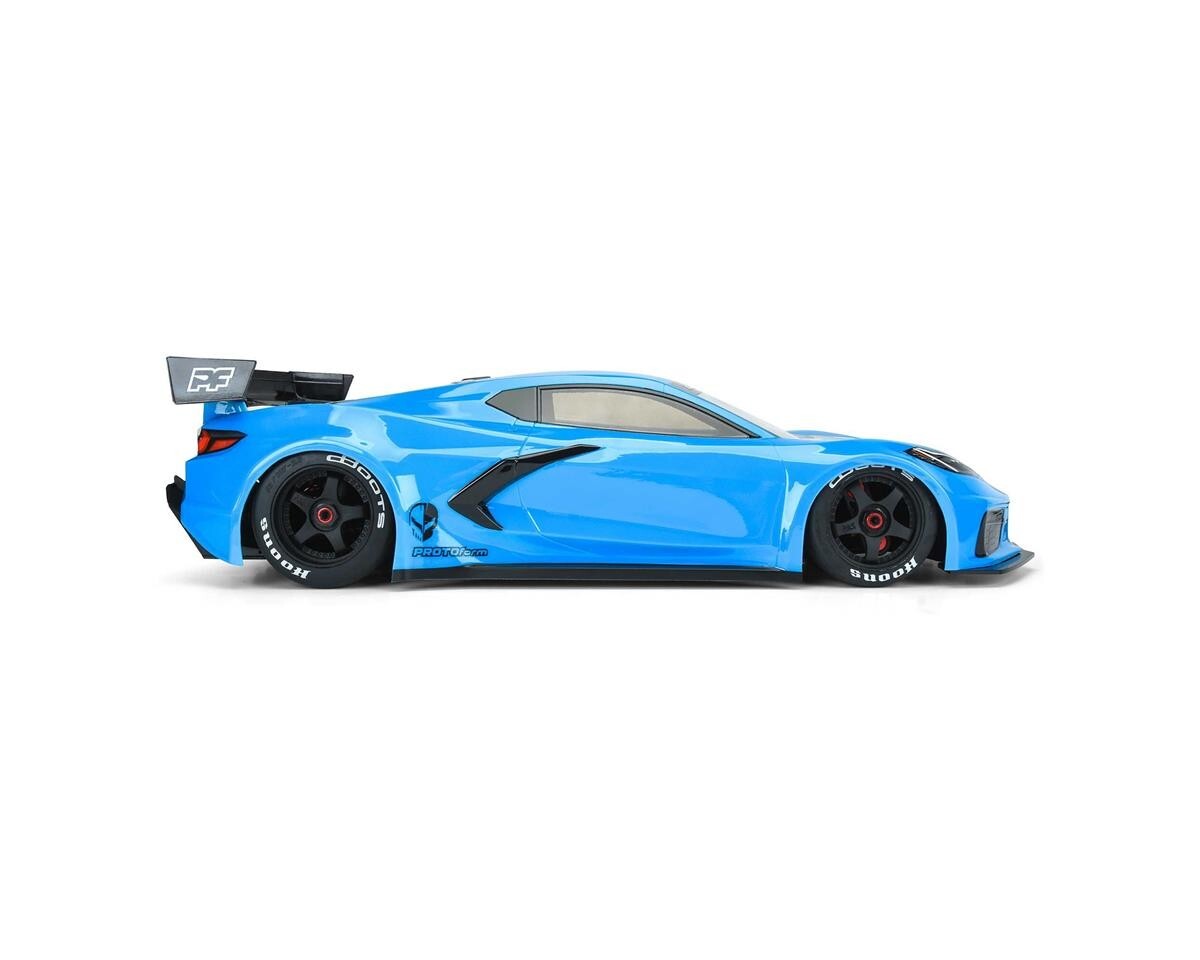

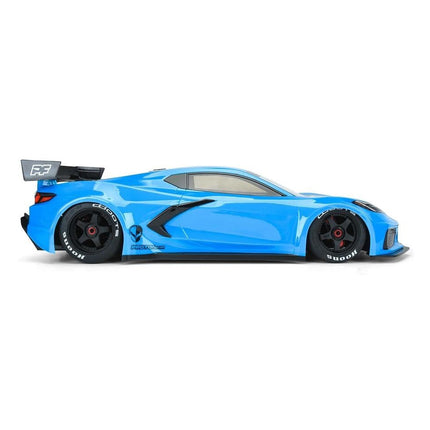

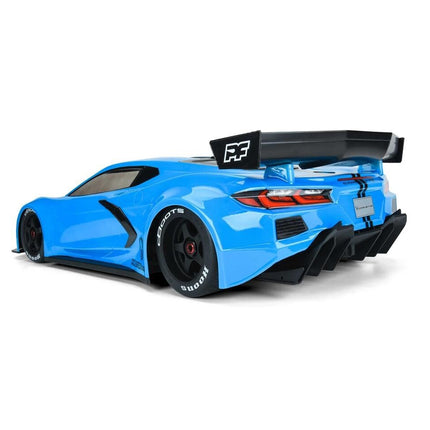

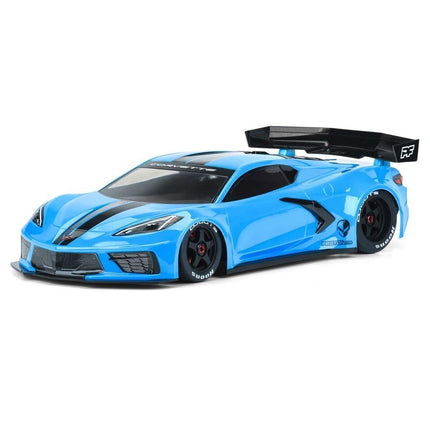

NOTE: Painted body shown in photos is for illustrative purposes only and is not included. The body you will receive is clear and unpainted.
Features:
- Incredible Scale Details
- Officially Licensed by General Motors
- Custom Front Splitter & Wing Designs
- Made in the USA
Fits:
- ARRMA® Felony™
- ARRMA® Infraction™ with:
- STOCK REAR TIRES - PARTS LIST
- Rear Hubs (2pcs): AR330404
- Axles (8x45mm) (2pcs): AR310591
- Hexes (16.5mm) (2pcs): AR310484
- FELONY™ REAR TIRES - PARTS LIST (V1 INFRACTION™)
- 53/107 2.9 Tires (Pair): ARA550073
- Front Input Shaft Cup (Safe-D): ARA310977
- Front Input Shaft Cup Sleeve (4pcs): ARA310976
- Front Main Input Gear 15T GP5: ARA311016
- Front Main Diff Gear 42T GP5: ARA311017
- Rear Input Shaft Cup (SAFE-D): ARA310977
- Rear Input Shaft Cup Sleeve (4pcs): ARA310976
- Rear Main Input Gear 14T GP6: ARA311018
- Rear Main Diff Gear 45T GP6: ARA311019
- FELONY™ REAR TIRES - PARTS LIST (V2 INFRACTION™)
- 53/107 2.9 Tires (Pair): ARA550073
- Rear Main Input Gear 14T GP6: ARA311018
- Rear Main Diff Gear 45T GP6: ARA311019
Specifications:
Length: 27.25" (892mm)
Width Front: 12.3" (312mm)
Width Rear: 13.2" (335mm)
Height: 10.1" (257mm)
Wheelbase: 7.75" (196mm)
Includes:

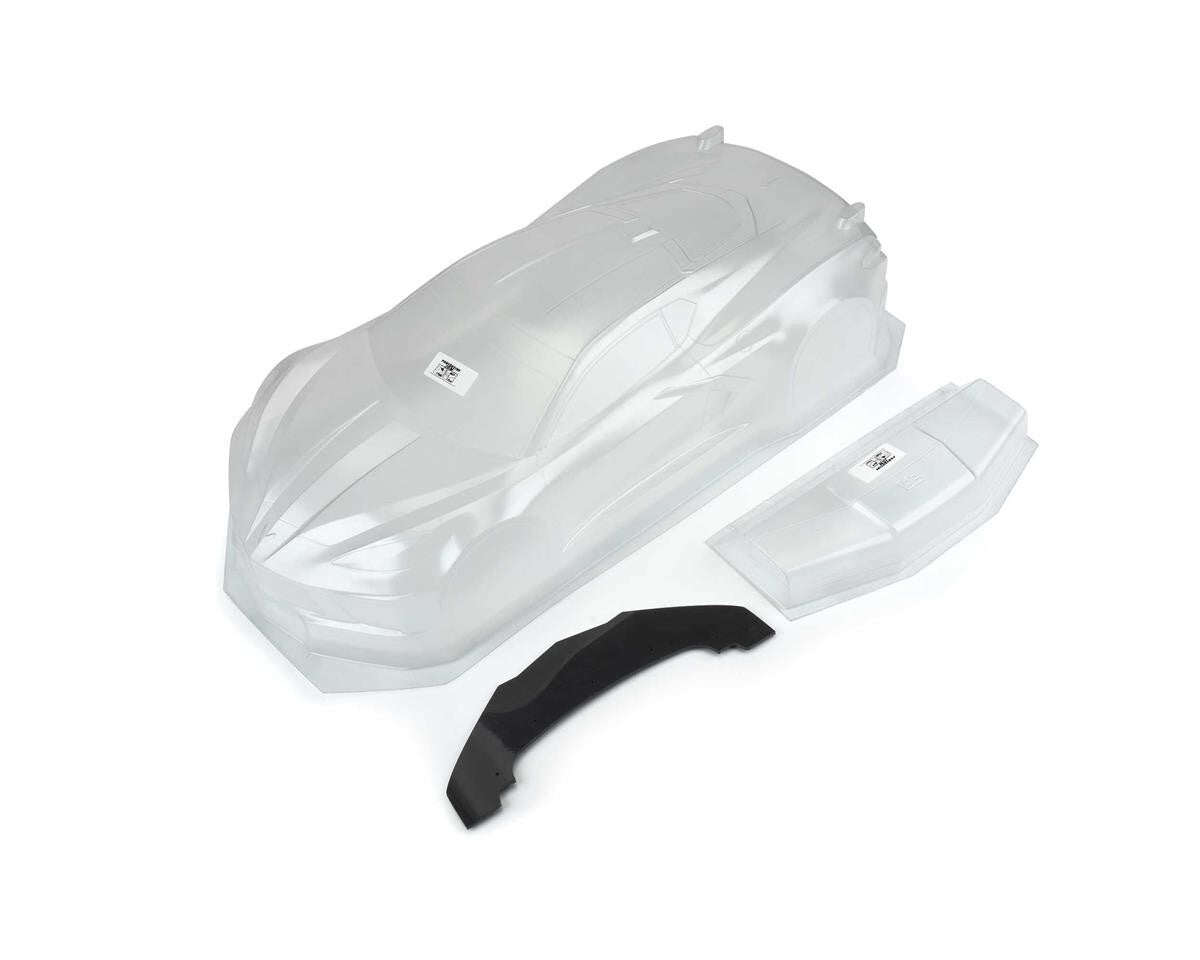

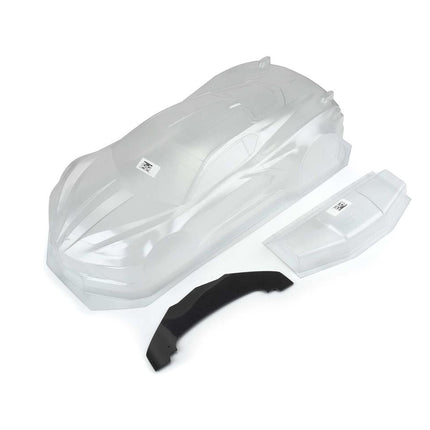

- Clear Corvette™ C8 Body
- Front Splitter
- Rear Wing
- Wing Mounting Hardware
- Extensive Decal Sheet
- Instruction Sheet
- Paint-then-peel Over Spray Film and Window Masks
