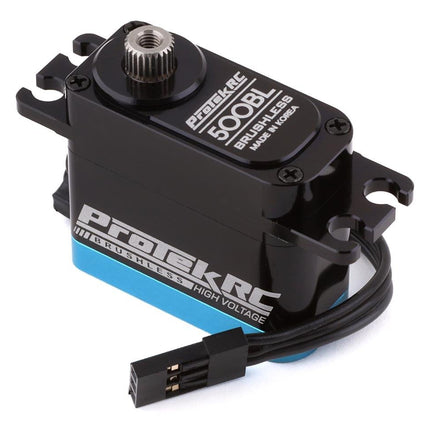

ProTek RC 500BL Black Label High Torque Brushless Mini Servo
The ProTek 500BL Mini is the next step in mini servo performance. Developed for 1/12 and 1/10 pan car, as well as 1/10 Pro Class drag racing pan car style chassis that use a mini size servo, this brushless option produces 186oz of torque and .06 transit speed at 7.4 volts - with superior efficiency and lifespan.
A black anodized aluminum case with a blue anodized bottom cover provides a stealthy and clean look. The aluminum case allows for extreme durability and a precision fit for the servo gears to provide the precise control necessary for demanding enthusiasts. Metal gears and brushless circuitry round out the package to create a robust option that will go the distance in high demand applications.
NOTE:
- If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
- Modification may be required for drag applications.
Features:
- Ideal for any 1/12 & 1/10 Pan Cars and Pro Class Drag Racing applications
- Full aluminum black anodized case
- High voltage circuitry
- 0.08 transit speed, and 161 oz-in of torque @ 6.0V
- 0.06 transit speed, and 186 oz-in of torque @ 7.4V
- Full metal gears
- Brushless motor
Servo Model
|
500BL
|
| Recommended Application |
1/12 & 1/10 Pan Car or Pro Class Drag Racing
|
| Operating Voltage |
4.8V - 7.4V
|
| Operating Temperature |
14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V |
0.08/60° sec
|
Operating Speed @ 7.4V
|
0.06/60° sec
|
Dynamic Torque @ 6.0V
|
161 oz-in (43.2 kg-cm)
|
Dynamic Torque @ 7.4V
|
186 oz-in (46.8 kg-cm)
|
Motor Type
|
Brushless Digital
|
| Output Shaft |
25 Tooth
|
| Gears |
Metal |
| Weight |
42g |
Pulse/Frequency
|
1520Us / 333hz |
| Dimensions |
34x30.80x15.50mm |
Length (Bottom to Mount)
|
21.30mm |
