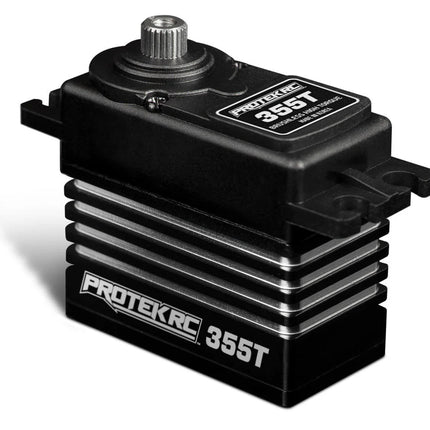

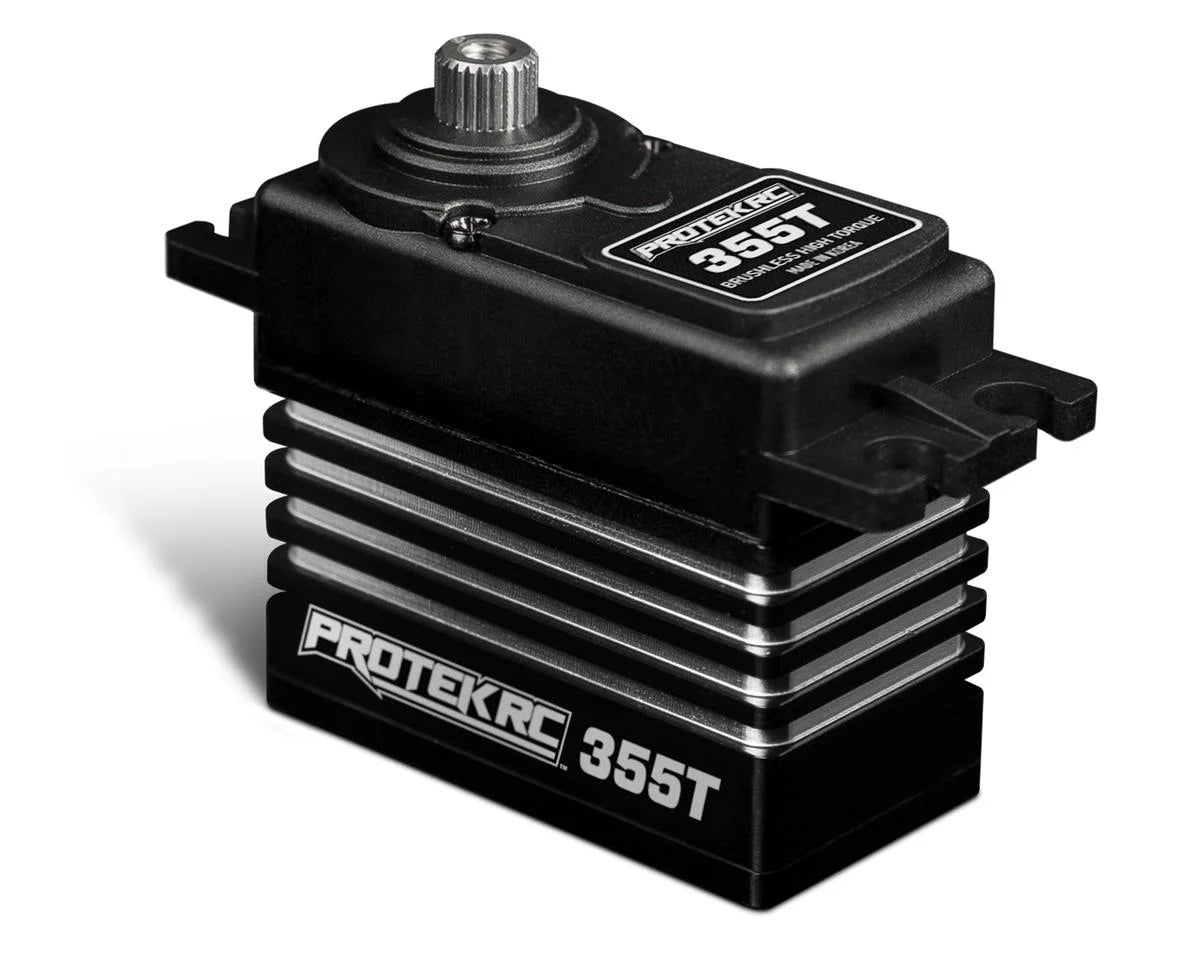

ProTek RC 355T Brushless Racing Servo
Unleash serious steering power with the ProTek R/C 355T Digital Hi-Torque Brushless Servo — a refined evolution of the trusted 130T, delivering massive torque, lightning-fast response, and race-ready durability. Featuring advanced brushless motor technology, a full metal gear train, aluminum case, and up to 502.7 oz-in of torque, it’s built to dominate demanding 1/10 and 1/8 scale applications! Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 355T Servo
Built For Performance
The ProTek R/C 355T Digital Hi-Torque Brushless Servo delivers serious strength, speed, and precision with up to 502.7 oz-in of torque at 7.4V and a lightning-fast 0.10-second transit time. Designed for 1/10 and 1/8 off-road vehicles, its brushless motor technology provides smooth operation, improved efficiency, and the reliability needed for racing, bashing, and demanding driving conditions.
Refined Proven Performance
Building on the trusted performance of the ProTek R/C 130T Standard Digital "High Torque" Servo, the 355T is a refined upgrade featuring increased torque output, advanced brushless technology, improved efficiency, and enhanced durability. Its brushless motor, full metal gear train, dual ball bearings, and aluminum middle case deliver exceptional control and long-lasting performance.
Premium Value
The 355T combines competition-level brushless servo performance with exceptional value, making it an excellent choice for racers and enthusiasts who demand dependable power without premium pricing. With a high-voltage design, included aluminum servo horn, gold-plated connectors, and Lifetime Gear Warranty backed by AMain Hobbies, this servo is built to handle the abuse and keep performing.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Brushless motor technology delivers powerful and efficient performance
- 502.7 oz-in of torque at 7.4V for extreme steering authority
- Fast 0.10-second transit speed for quick response
- Designed for 1/10 and 1/8 scale off-road vehicles
- Full metal gear train delivers maximum durability
- Dual ball bearings provide smooth and precise operation
- Aluminum middle case improves heat dissipation
- High-voltage circuitry supports increased performance output
- Includes a durable aluminum single-arm servo horn
Includes:
- (1) Lifetime Gear Warranty
- (1) 355T Standard Digital "High Torque" Brushless Metal Gear Servo
- (1) Aluminum Clamping Servo Horn
- Servo Hardware and Grommets
Specifications:
| Application |
1:10 & 1:8 Off-Road |
| Operating Voltage |
6.0V - 7.4V |
| Operating Temperature |
14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V |
0.13/60° sec |
| Operating Speed @ 7.4V |
0.10/60° sec |
| Dynamic Torque @ 6.0V |
393oz-in (28.3 kg-cm) |
| Dynamic Torque @ 7.4V |
502.7oz-in (36.2 kg-cm) |
| Motor Type |
Brushless |
| Output Shaft |
25T |
| Gears |
Metal w/Lifetime Gear Warranty
|
| Weight |
2.15oz (61g) |
| Pulse/Frequency |
1520s / 333hz |
| Dimensions |
1.55x1.51x0.78in (39.50x38.60x20mm) |
| Length (Bottom to Mount) |
1.04in (26.60mm) |
*Tech Note: This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.
