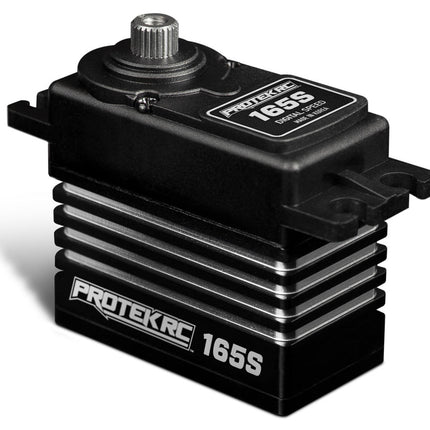

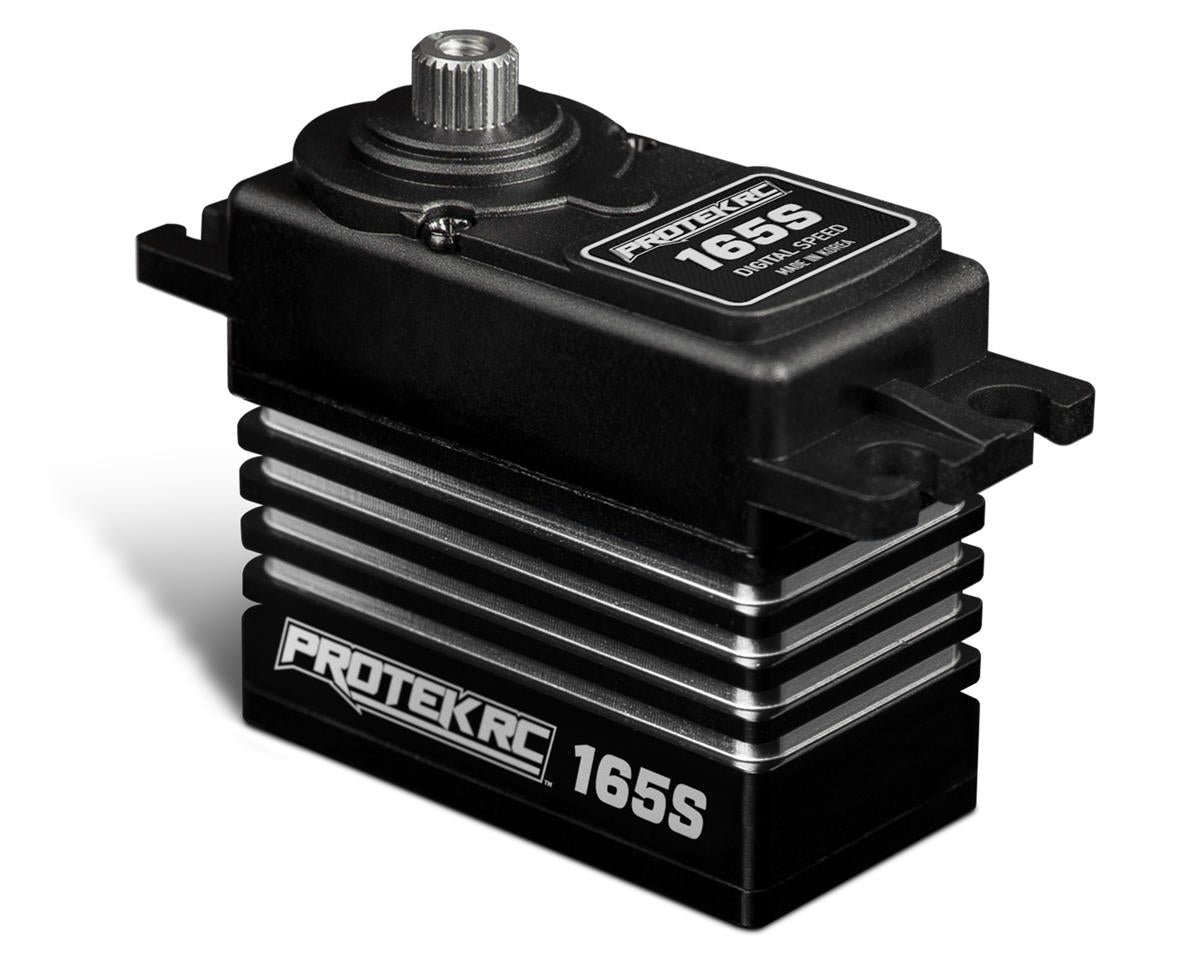

ProTek RC 165S Standard Racing Servo
Need blazing-fast steering response in a dependable, budget-friendly package? The ProTek R/C 100SS Digital Super Speed Servo delivers quick, precise control, metal-gear durability, and proven ProTek performance for 1/10 scale on-road and off-road vehicles. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 165S Standard Servo
Lightning Speed Response
The ProTek R/C 100SS Digital Super Speed Metal Gear Servo delivers quick steering performance with a 0.09-second transit speed and 168 oz-in of torque at 6.0V. Designed for 1/10 scale on-road and off-road vehicles, it provides fast, precise control for racers and enthusiasts.
Refined Proven Performance
Building on the trusted ProTek R/C PTK-100SS Digital "High Torque" Servo, the 100SS is a refined upgrade focused on speed, durability, and value. Its full metal gear train, dual ball bearings, cored motor, and aluminum middle case deliver smooth operation and dependable performance.
Affordable Speed Advantage
The 100SS combines ProTek quality with an accessible price point, making it an excellent choice for drivers seeking fast response without overspending. With gold-plated connectors, a 200mm 22awg wire, and Lifetime Gear Warranty backed by AMain Hobbies, it is built for reliable performance run after run.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Ultra-fast 0.09-second transit speed for quick steering response
- A refined version of the trusted and proven 100SS servo
- 168 oz-in of torque at 6.0V for reliable power
- Designed for 1/10 scale on-road and off-road vehicles
- Full metal gear train provides excellent durability
- Dual ball bearings deliver smooth and precise operation
- Aluminum middle case helps dissipate heat
- Cored motor provides dependable performance and efficiency
- Gold-plated connectors improve signal reliability
Includes:
- (1) Lifetime Gear Warranty
- (1) 165S Standard Metal Gear Servo
- (1) Aluminum Clamping Servo Horn
- Servo Hardware and Grommets
Specifications:
| Application |
1:10 On-Road & Off-Road |
| Operating Voltage |
4.8V - 6.0V |
| Operating Temperature |
14° to 140° F (-10 to +60° C) |
| Operating Speed @ 4.8V |
0.11/60° sec |
| Operating Speed @ 6.0V |
0.09/60° sec |
| Dynamic Torque @ 4.8V |
134 oz-in (9.6 kg-cm) |
| Dynamic Torque @ 6.0V |
168oz-in (12.1 kg-cm) |
| Motor Type |
Cored DC |
| Output Shaft |
25T |
| Gears |
Metal w/Lifetime Gear Warranty
|
| Weight |
1.93oz (54.9g) |
| Pulse/Frequency |
1520s / 333hz |
| Dimensions |
1.55x1.51x0.78in (39.50x38.6x20mm) |
| Length (Bottom to Mount) |
1.04in (26.6mm) |
*Tech Note: This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.
