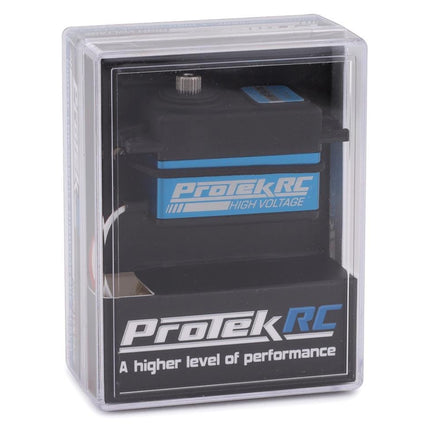

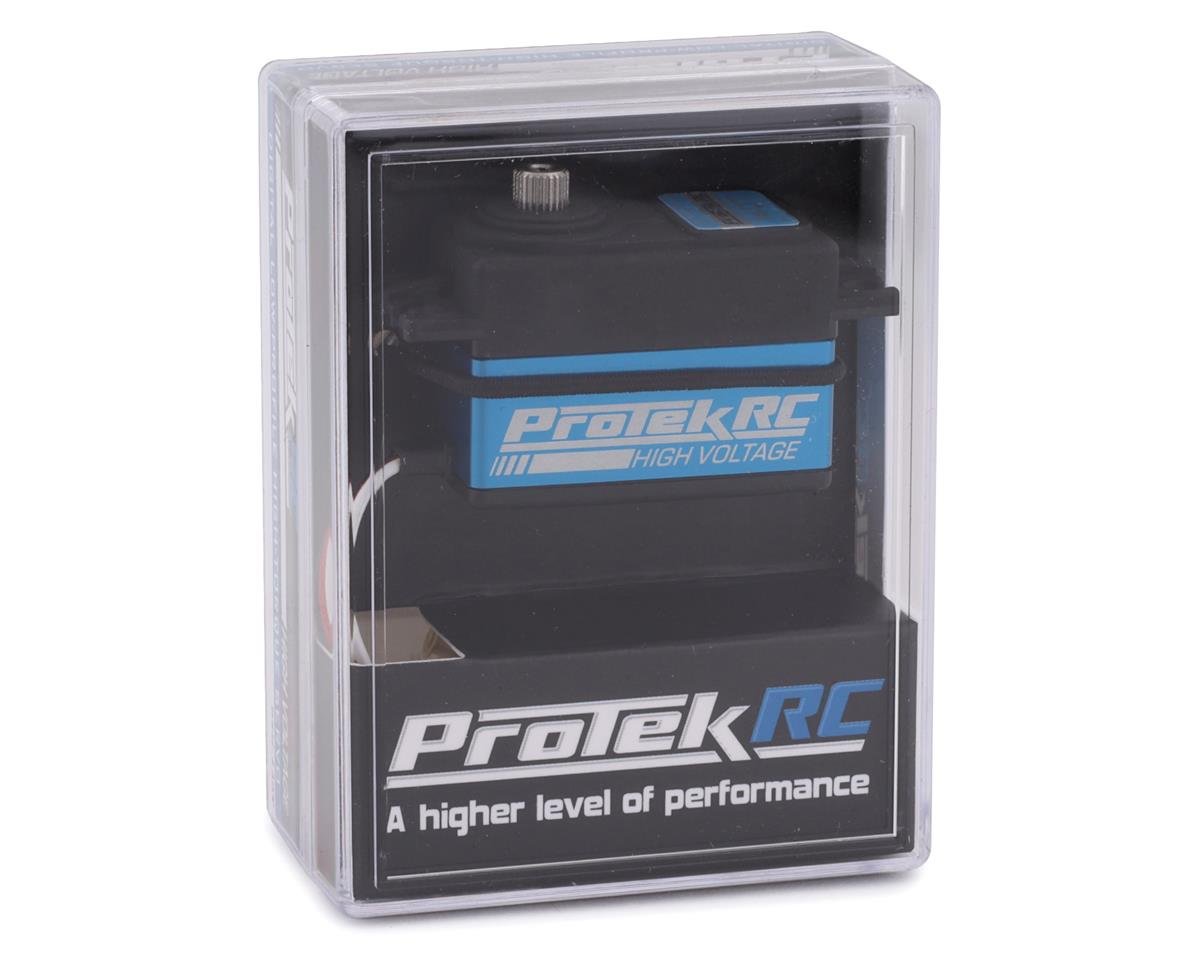

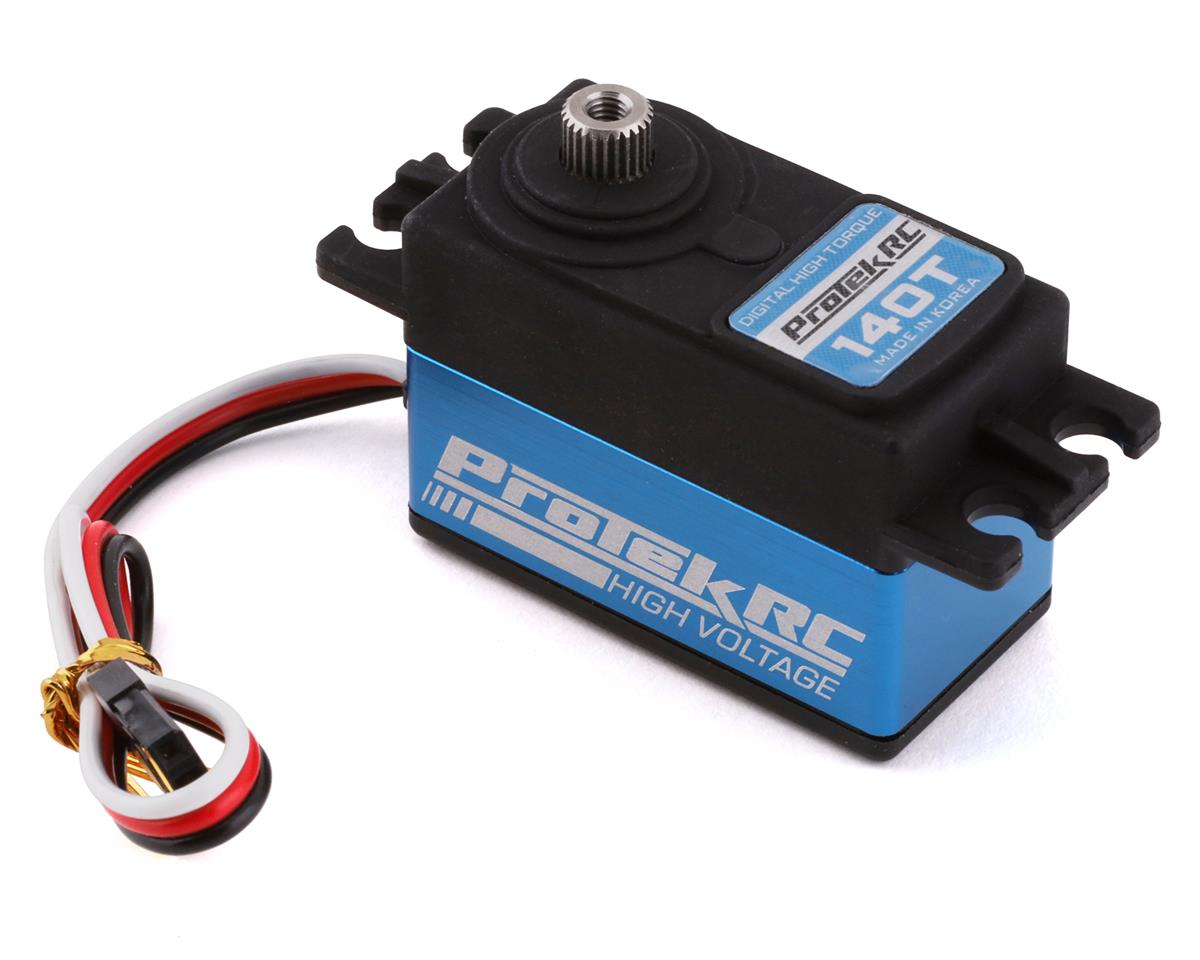

ProTek RC 140T Low Profile High Torque Metal Gear Servo HV Brand PTK-140T

    Description

    This is the ProTek R/C 140T Low Profile Digital "High Torque" Metal Gear High Voltage Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what our competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.

    The ProTek R/C 140T High Voltage Low Profile servo delivers an impressive 185 oz-in of torque and 0.10 transit speed at 6.0V, and when you bump the voltage to 7.4V the spec's increase to 215 oz-in and 0.08 transit speed! This servo does not stop there, when cranked up to 8.4V you can see 230 oz-in and 0.07 transit speed. These specs make for an excellent choice for 1/12 or 1/10 scale RC vehicles. Other features include a plastic case with an aluminum center band for heat dissipation, a metal gear train with dual ball bearings, 160mm long 22awg connector wire and a coreless motor.

    As most 1/12 or 1/10 scale vehicles come with, or require, a specific servo horn, this servo comes ready to be equipped with a servo horn of your needing (Not included). Stop wasting your money on budget servos that look good in the spec list, but fall short when its time to perform. Get ProTek and don't look back.

    Features:

    • Low-Profile case saves space and weight
    • Ideal for any 1/12 to 1/10 scale vehicle application
    • Plastic case with aluminum center band
    • High voltage circuitry
    • 0.10 transit speed, and 185 oz-in of torque @ 6.0V
    • 0.08 transit speed, and 215 oz-in of torque @ 7.4V
    • 0.07 transit speed, and 230 oz-in of torque @ 8.4V
    • Full metal gears and dual ball bearings
    • 160mm long 22awg connector wire
    • Coreless motor

    Servo Model
    		 140T
    Recommended Application 1/12 to 1/10 scale Surface
    Operating Voltage 4.8V - 8.4V
    Operating Temperature 14° to 140° F (-10 to +60° C)
    Operating Speed @ 6.0V 0.10/60° sec
    Operating Speed @ 7.4V
         		0.08/60° sec
    Operating Speed @ 8.4V
         		0.07/60° sec
    Dynamic Torque @ 6.0V
    		 185 oz-in (13.3 kg-cm)
    Dynamic Torque @ 7.4V
         		215 oz-in (15.5 kg-cm)
    Dynamic Torque @ 8.4V
         		230 oz-in (16.6 kg-cm)
    Motor Type
    		 Coreless Motor
    Output Shaft 25 Tooth
    Gears Metal
    Weight 49.8g
    Pulse/Frequency
    		 1520Us / 333hz
    Dimensions 39.5x30.5x20mm
    Product form

    SKU: PTK140T
    Barcode: 707470760327

    Free pickup in our shop(s)

    11 in stock Ships within 24hr of Purchase

    $79.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on orders over $150
      Pay whenever you want

      Easily pay within 30 days after you have received your package.
      Read more

      Description

      This is the ProTek R/C 140T Low Profile Digital "High Torque" Metal Gear High Voltage Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what our competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.

      The ProTek R/C 140T High Voltage Low Profile servo delivers an impressive 185 oz-in of torque and 0.10 transit speed at 6.0V, and when you bump the voltage to 7.4V the spec's increase to 215 oz-in and 0.08 transit speed! This servo does not stop there, when cranked up to 8.4V you can see 230 oz-in and 0.07 transit speed. These specs make for an excellent choice for 1/12 or 1/10 scale RC vehicles. Other features include a plastic case with an aluminum center band for heat dissipation, a metal gear train with dual ball bearings, 160mm long 22awg connector wire and a coreless motor.

      As most 1/12 or 1/10 scale vehicles come with, or require, a specific servo horn, this servo comes ready to be equipped with a servo horn of your needing (Not included). Stop wasting your money on budget servos that look good in the spec list, but fall short when its time to perform. Get ProTek and don't look back.

      Features:

      • Low-Profile case saves space and weight
      • Ideal for any 1/12 to 1/10 scale vehicle application
      • Plastic case with aluminum center band
      • High voltage circuitry
      • 0.10 transit speed, and 185 oz-in of torque @ 6.0V
      • 0.08 transit speed, and 215 oz-in of torque @ 7.4V
      • 0.07 transit speed, and 230 oz-in of torque @ 8.4V
      • Full metal gears and dual ball bearings
      • 160mm long 22awg connector wire
      • Coreless motor

      Servo Model
      		 140T
      Recommended Application 1/12 to 1/10 scale Surface
      Operating Voltage 4.8V - 8.4V
      Operating Temperature 14° to 140° F (-10 to +60° C)
      Operating Speed @ 6.0V 0.10/60° sec
      Operating Speed @ 7.4V
             		0.08/60° sec
      Operating Speed @ 8.4V
             		0.07/60° sec
      Dynamic Torque @ 6.0V
      		 185 oz-in (13.3 kg-cm)
      Dynamic Torque @ 7.4V
             		215 oz-in (15.5 kg-cm)
      Dynamic Torque @ 8.4V
             		230 oz-in (16.6 kg-cm)
      Motor Type
      		 Coreless Motor
      Output Shaft 25 Tooth
      Gears Metal
      Weight 49.8g
      Pulse/Frequency
      		 1520Us / 333hz
      Dimensions 39.5x30.5x20mm
