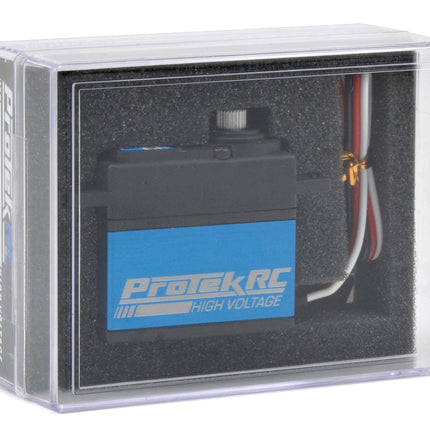

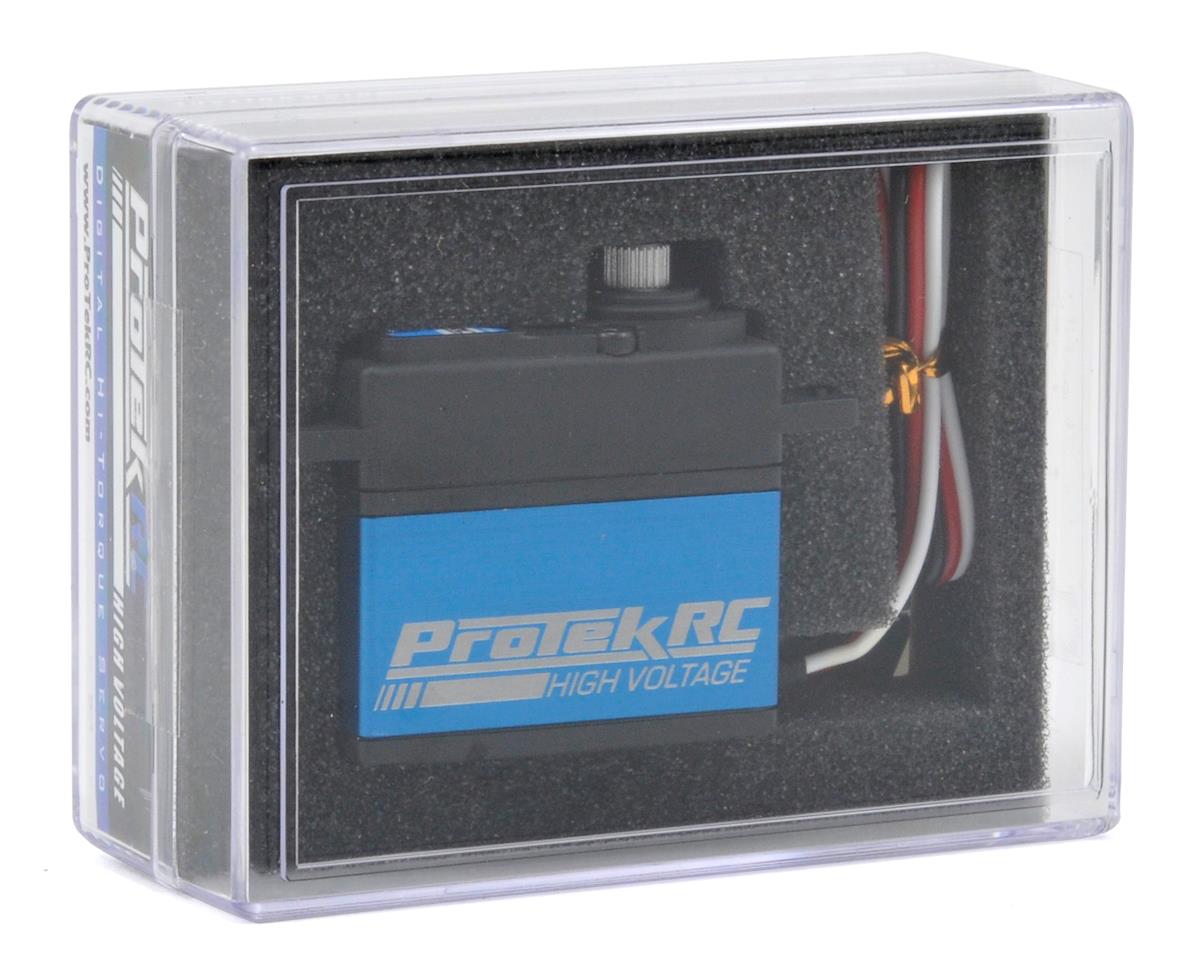

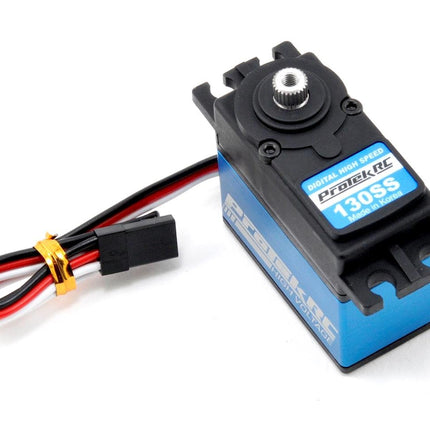

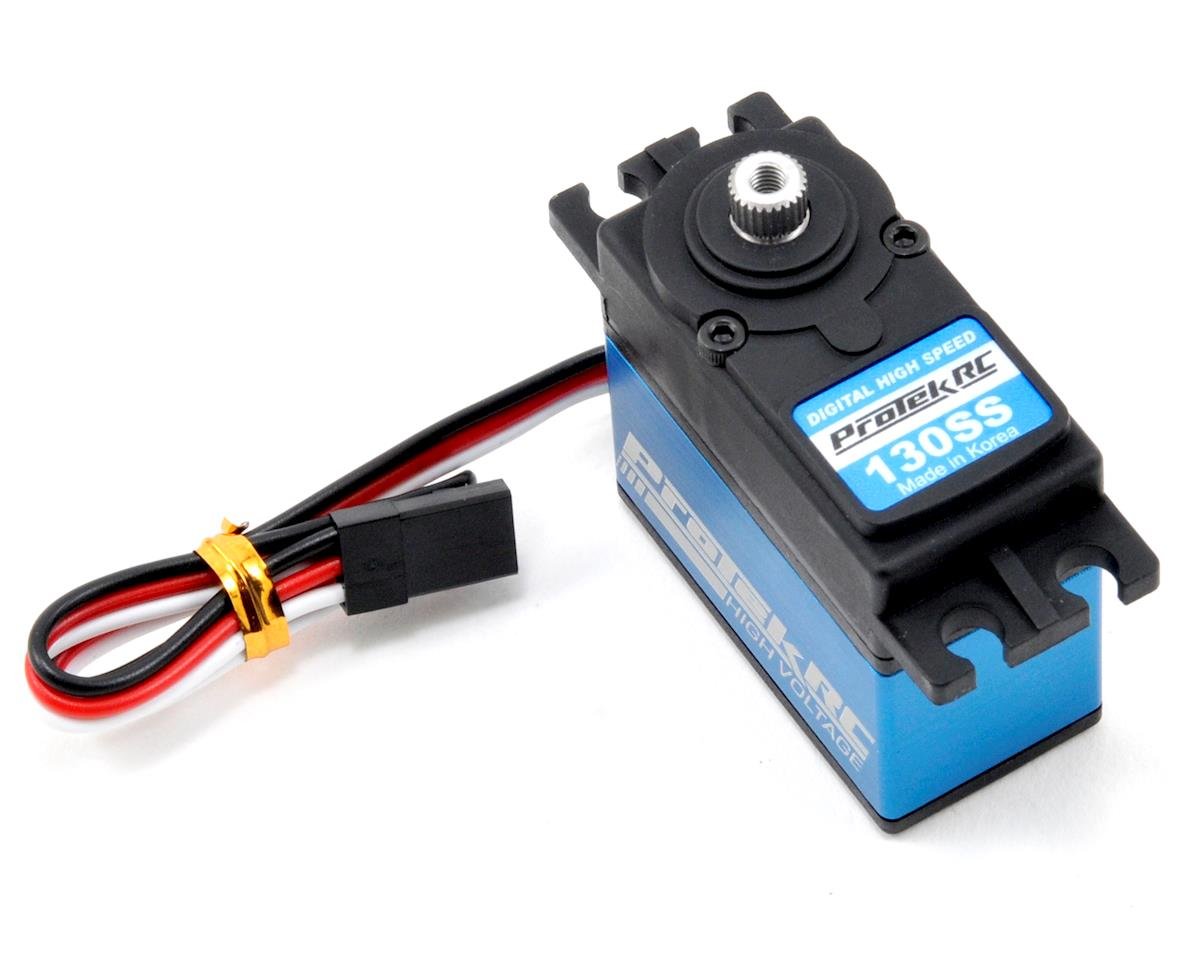

This is the ProTek R/C 130SS Digital Super Speed Metal Gear High Voltage Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what our competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.
The ProTek R/C 130SS High Voltage Super Speed servo delivers lighting fast 0.06 transit speed and 211 oz-in of torque at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 0.05 and 260 oz-in! Spec's like these make this servo an excellent choice for any 1/10 to 1/8 scale vehicle application. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a coreless motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.

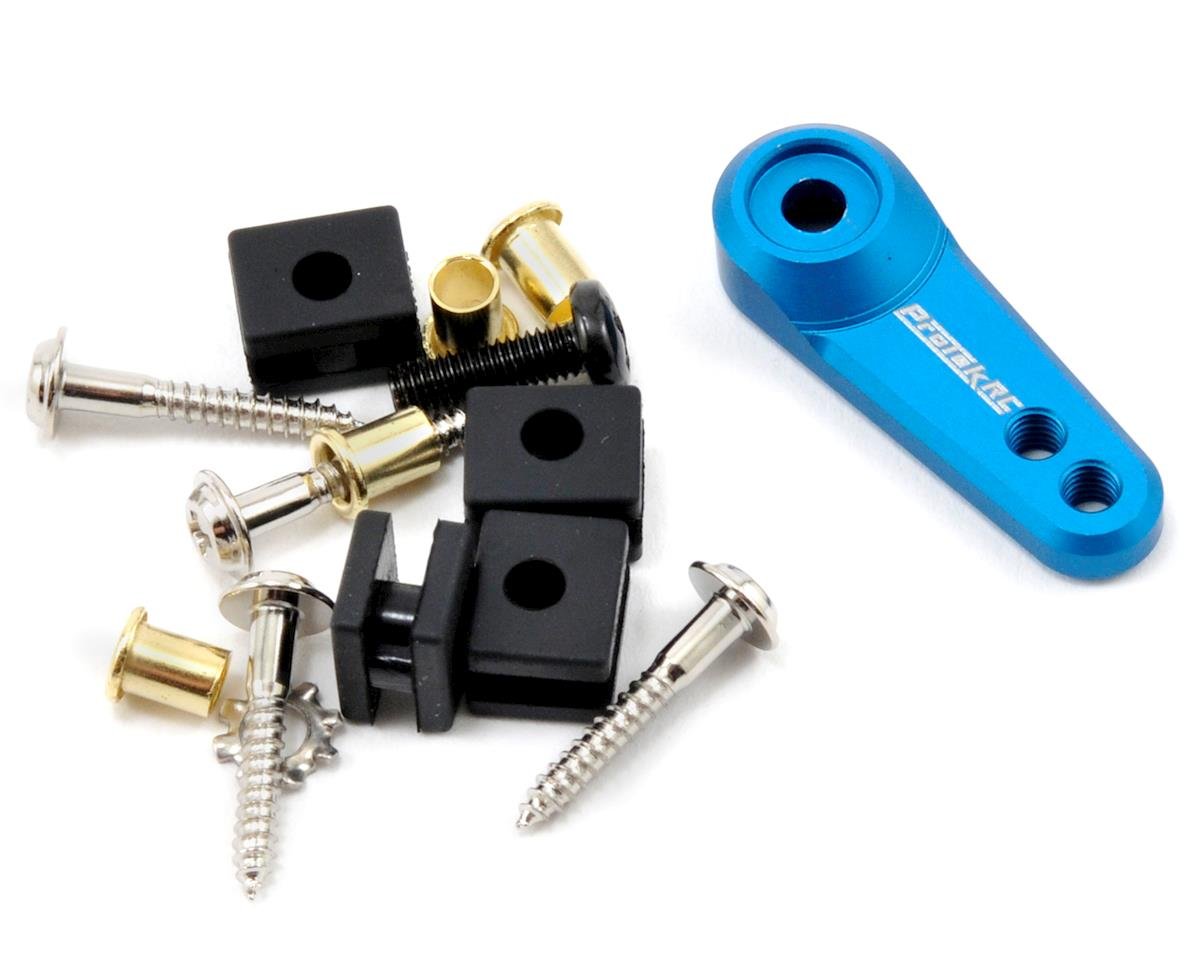

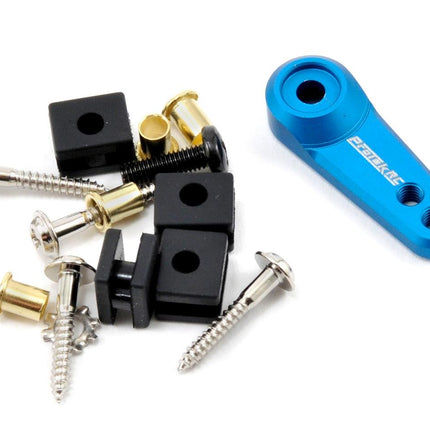

Plus, instead of a cheap plastic servo horn, ProTek R/C goes the extra mile with an included aluminum single arm servo horn that will stand up to a majority of the punishment you can throw at it. Stop wasting your money on budget servos that look good in the spec list, but fall short when its time to perform. Get ProTek and don't look back.
Warning! This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.
Features:
- Ideal for any 1/10 to 1/8 scale vehicle application
- Aluminum middle case
- High voltage circuitry
- 0.06 transit speed, and 211 oz-in of torque @ 6.0V
- 0.05 transit speed, and 260 oz-in of torque @ 7.4V
- Aluminum single arm servo horn

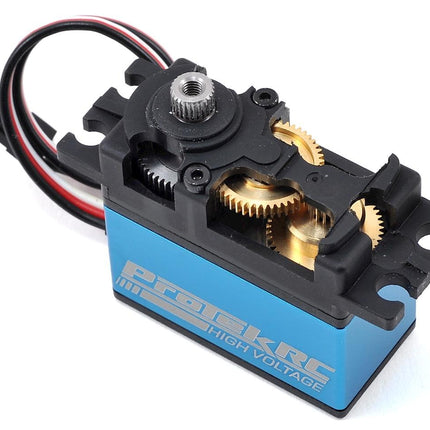

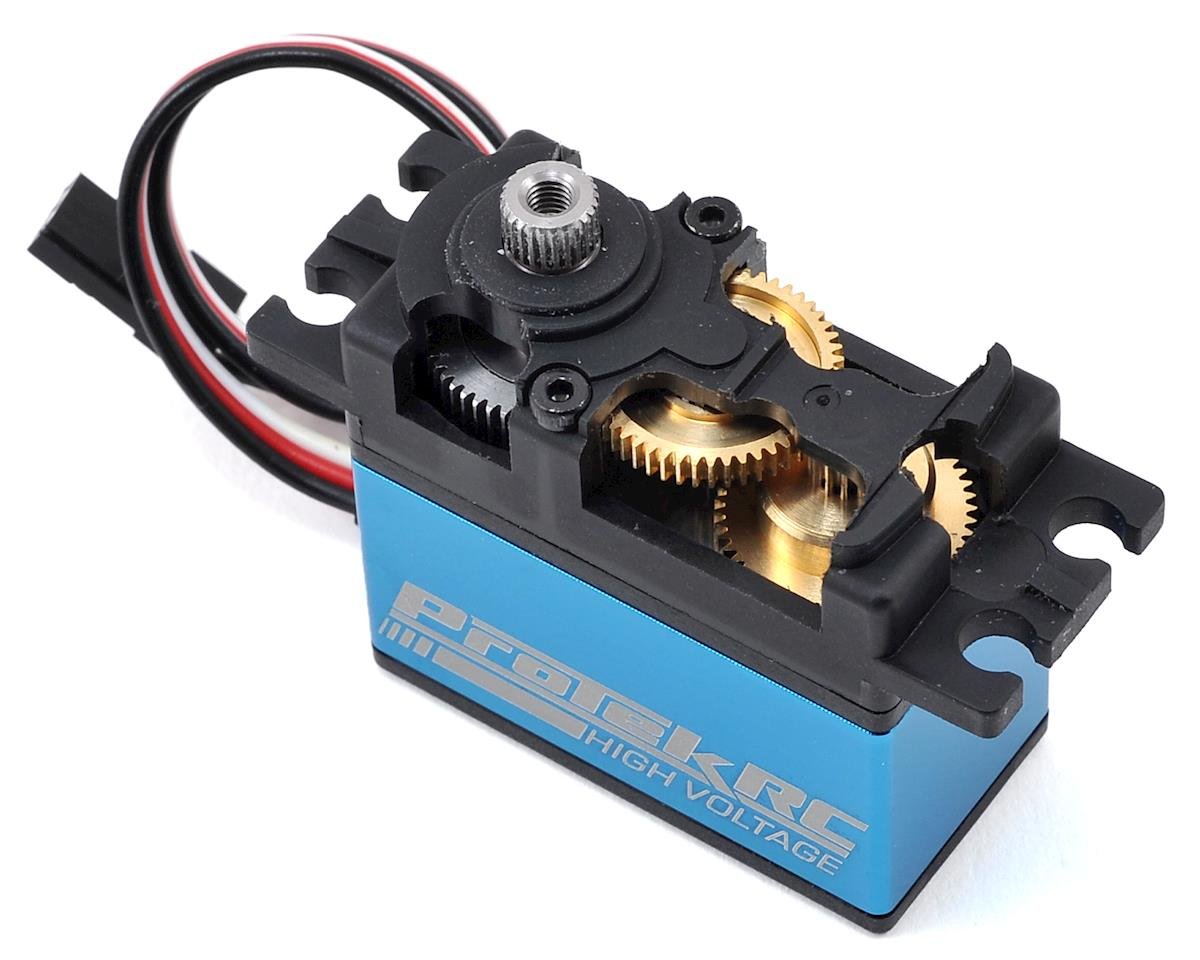

- Full metal gears and dual ball bearings
- 200mm long 22awg connector wire w/gold plated connectors
- Coreless motor
Servo Model
|
130SS
|
| Recommended Application |
1/10 to 1/8 scale surface
|
| Operating Voltage |
4.8V - 7.4V
|
| Operating Temperature |
14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V |
0.06/60° sec
|
Operating Speed @ 7.4V
|
0.05/60° sec
|
Dynamic Torque @ 6.0V
|
211 oz-in (15.2 kg-cm)
|
Dynamic Torque @ 7.4V
|
260 oz-in (18.7 kg-cm)
|
Motor Type
|
High Efficiency Coreless Motor
|
| Output Shaft |
25 Tooth
|
| Gears |
Metal |
| Weight |
63.8g |
Pulse/Frequency
|
1520μs / 333hz |
