Description
Servo Overview:

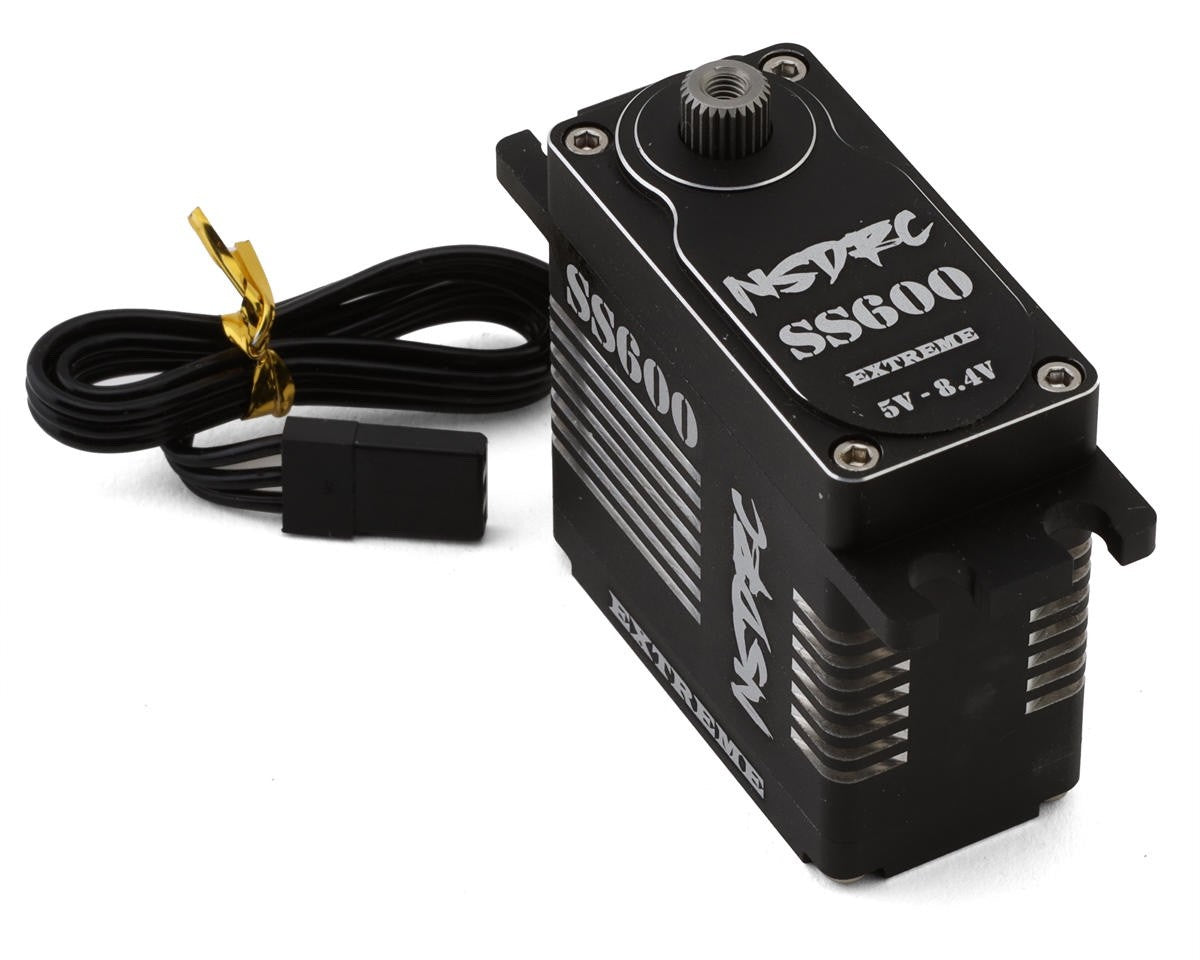

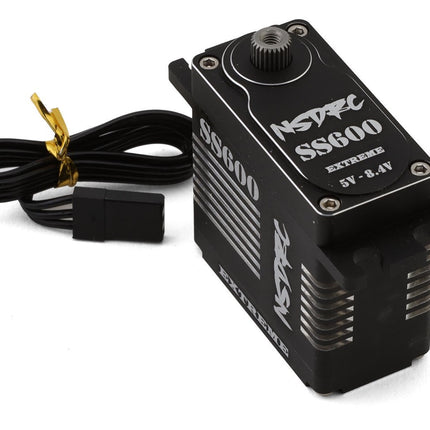

This is the SS600 Extreme Performance High Torque and Speed Brushless Servo from No Superior Designs RC, designed to redefine speed, power, and precision in RC applications. With an astonishing 687oz-in of torque and lightning-fast 0.04 transit speed at 8.4V, the SS600 is the top contender for 1/12 to 1/8 scale on/off-road racing, large scale planes, helicopters, low riders, robotics, and any other application requiring extreme speed, power, and precision!
Features:
-
Extreme Performance: Delivers 687oz-in of torque and 0.04 transit speed at 8.4V
-
Durable Construction: Full CNC aluminum case for enhanced heat dissipation and durability
-
Robust Gear Train: 5-gear stainless steel gear train ensures smooth and reliable operation under demanding conditions
-
Waterproof Design: Perfect for outdoor tracks and trails!
-
High-Efficiency Motor: Powered by a high-quality brushless 4-pole motor for next-level precision and performance
Specifications:
- Speed:
-
@6.0V: 0.06sec/60°
-
@7.4V: 0.05sec/60°
-
@8.4V: 0.04sec/60°
- Torque:
-
@6.0V: 512oz-in (37kg-cm)
-
@7.4V: 600oz-in (43kg-cm)
-
@8.4V: 687oz-in (49.5kg-cm)
-
Motor: Brushless
-
Operating Voltage: 5.0V-8.4V
-
Operating Temp.: 14F-122F (-10C/50C)
-
Dimensions(LxWxH): 1.57"x0.78"x1.52" (40x20x38.7mm)
-
Weight: 3.22oz (91.5g)
-
Operating Spline: 25T
Includes:
- (1) SS600 Extreme Performance Brushless Servo

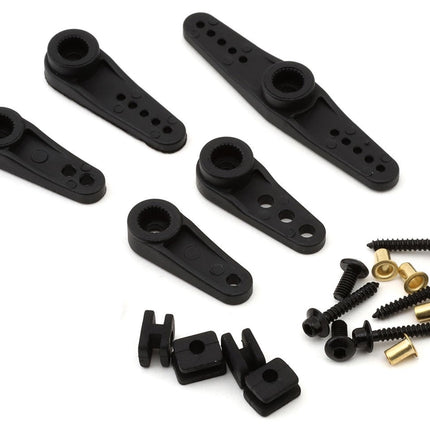

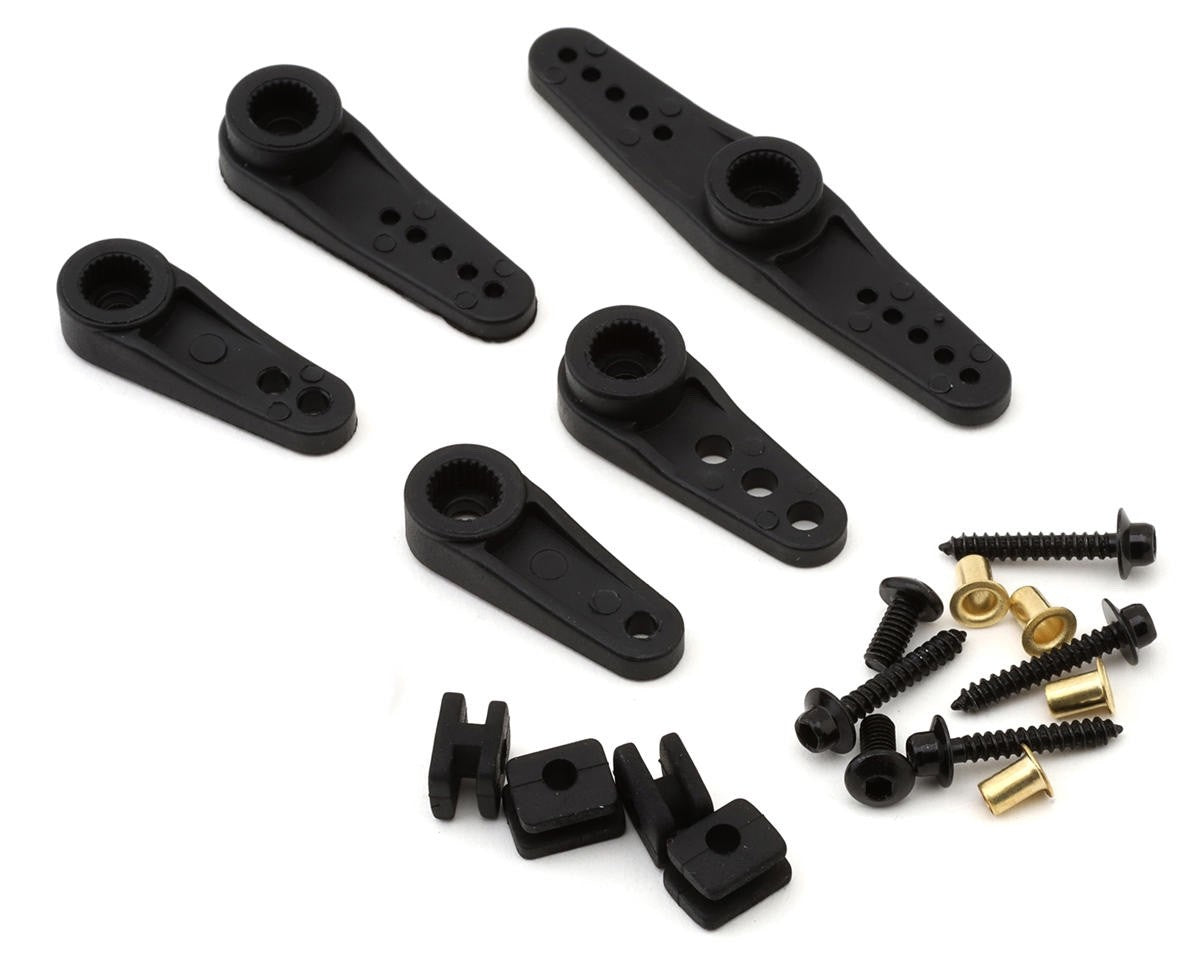

- Servo Horns and Mounting Hardware
