Description

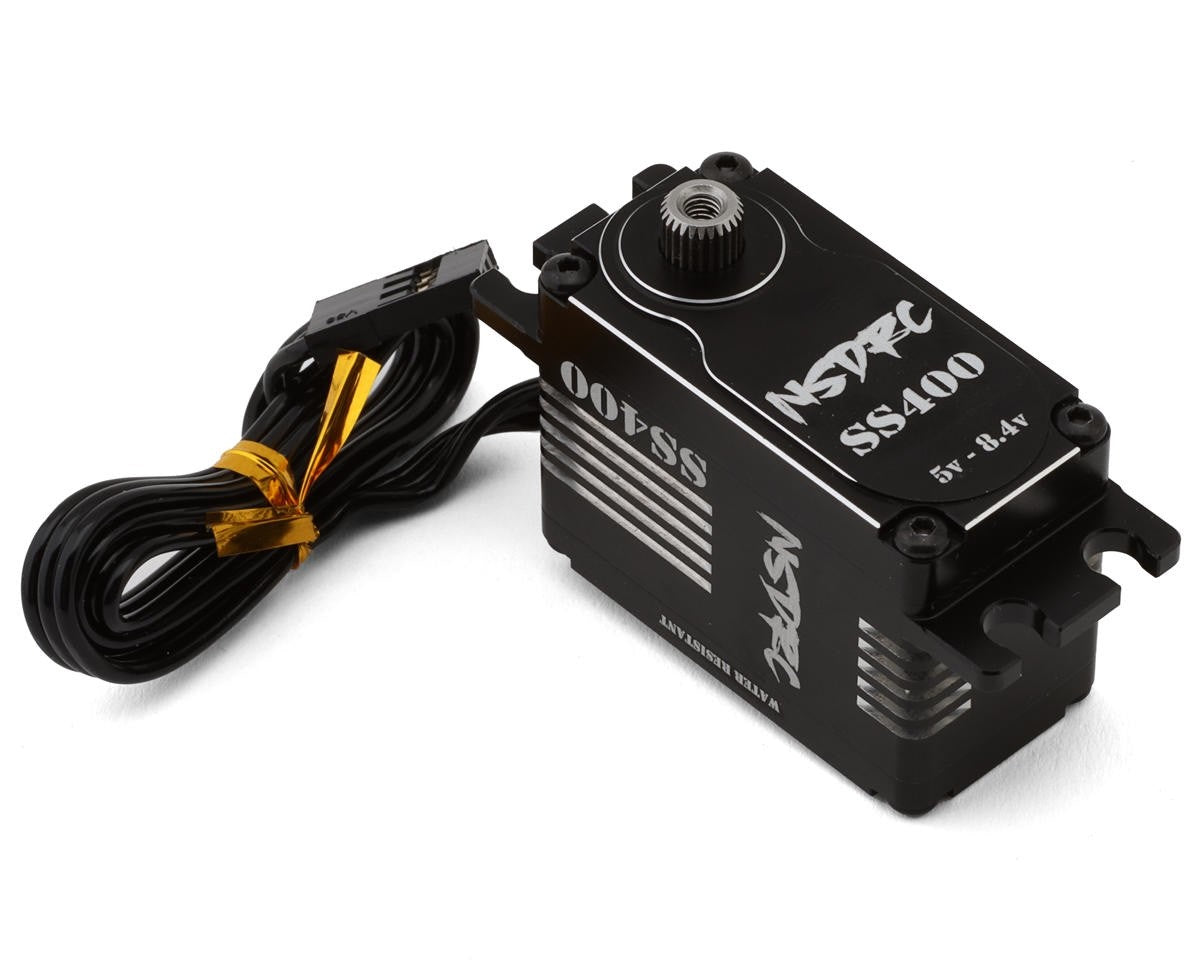

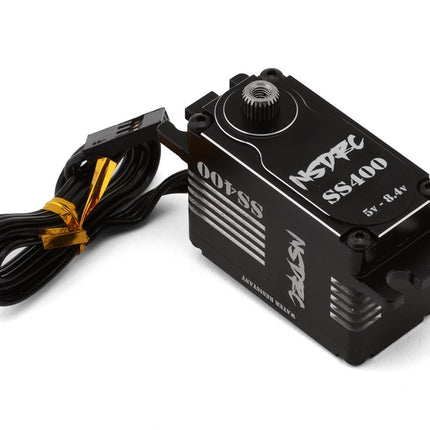

No Superior Designs RC SS400 Low Profile High Voltage Racing Servo. Designed with speed and precision in mind to deliver an incredible 400oz-in of torque and 0.05 transit speed at 8.4V! Making this servo a top contender for many 1/18 to 1/8 scale on-road and off-road vehicles used for racing, drifting, and anything else requiring lighting fast speed, awesome responsiveness, and great power! Other features include a full CNC-machined aluminum case that provides high durability and improved heat dissipation, an industry leading 5 gear stainless steel gear train that is supported by dual ball bearings, and a high efficiency coreless motor. In addition, using the industry leading 5-gear stainless steel gear-train alongside a high quality magnetic angle sensor that gives the SS400 a superior centering with extreme precision, smooth actuation and unrivaled durability!
NOTE: The power connection plug, or power switch on your ESC, must be disconnected and turned off when not in use to prevent damage to the servo and/or battery! Not recommended to power using a balance plug.Features:
- Low-Profile case design that saves space and weight
- 5-gear stainless steel design
- Black anodized all CNC-machined aluminum case provides high durability and improved heat dissipation
- Hardened stainless steel gears
- High Efficiency Coreless Motor
- Water Resistant (Not Recommended to submerged)
- 11 Point O-ring seal
- Dual Ball Bearings
- High quality magnetic angle sensor
- High voltage (HV) 8.4V capable!
Specifications:
-
Type: Low Profile High Speed Racing Servo
-
Motor Type: Coreless
-
Operating Voltage: 5V - 8.4V
-
Gears: Hardened Stainless Steel
-
Spline: 25T
-
Dimension (LxWxH): 40x27x20mm
-
Weight: 64g
-
Case: CNC-Machined Aluminum
- Torque:
-
6V: 290oz-in (21kg-cm)
-
7.4V: 345oz-in (25kg-cm)
-
8.4V: 400oz-in (29kg-cm)
- Speed:
-
8.4V: 0.07 sec/60°
-
12.6V: 0.06 sec/60°
-
16.8V: 0.05 sec/60°
Includes:

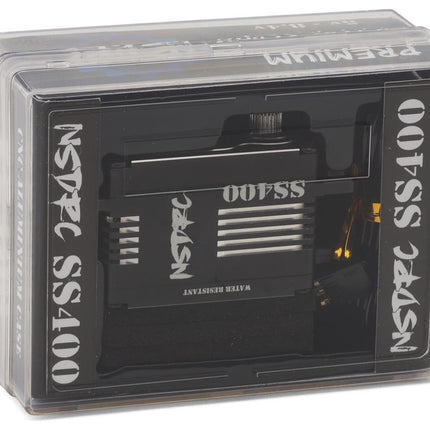

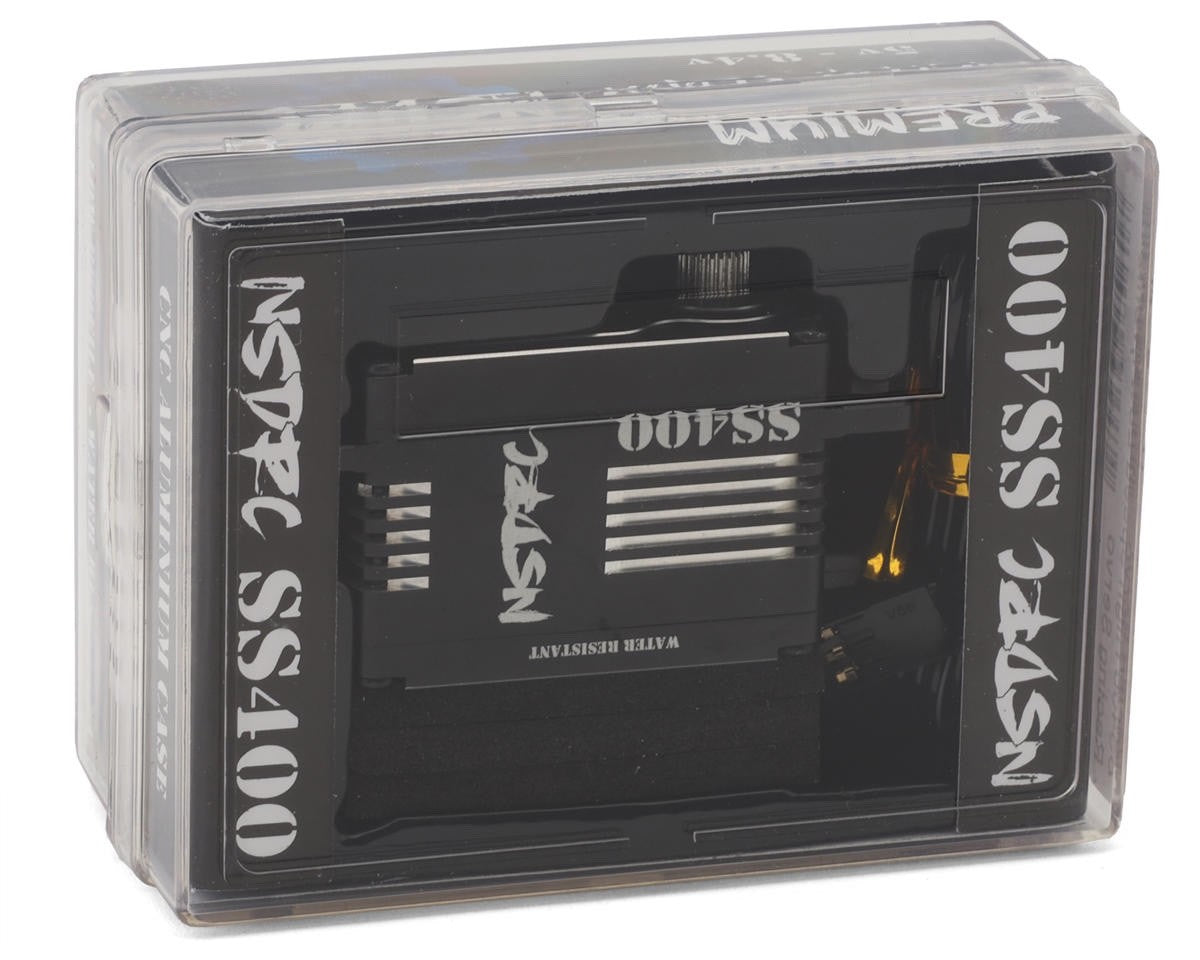

- (1) SS400 Low Profile Racing Servo

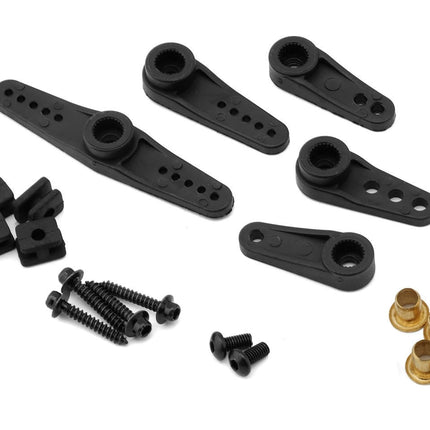

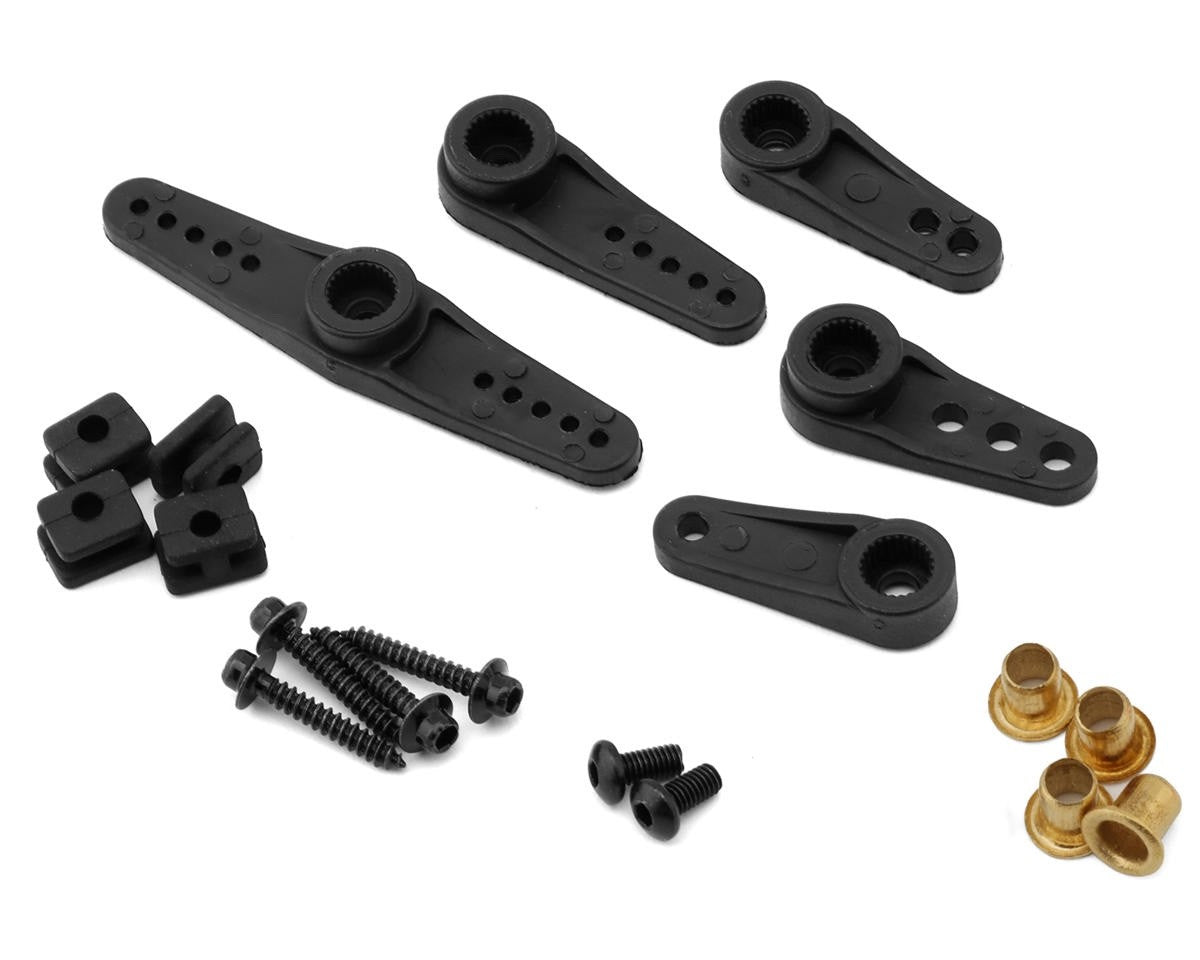

- Multiple composite horns
- Mounting screws, bushing and rubber grommets
