Servo Overview:
Experience the ultimate speed, power, and precision with the No Superior Designs RC SS200 Extreme Performance Low Pro Servo!
About the SS200 Extreme
Construction & Performance

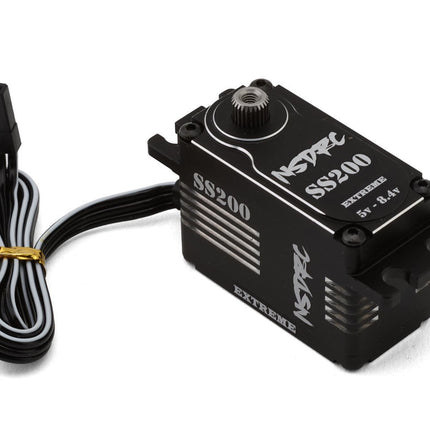

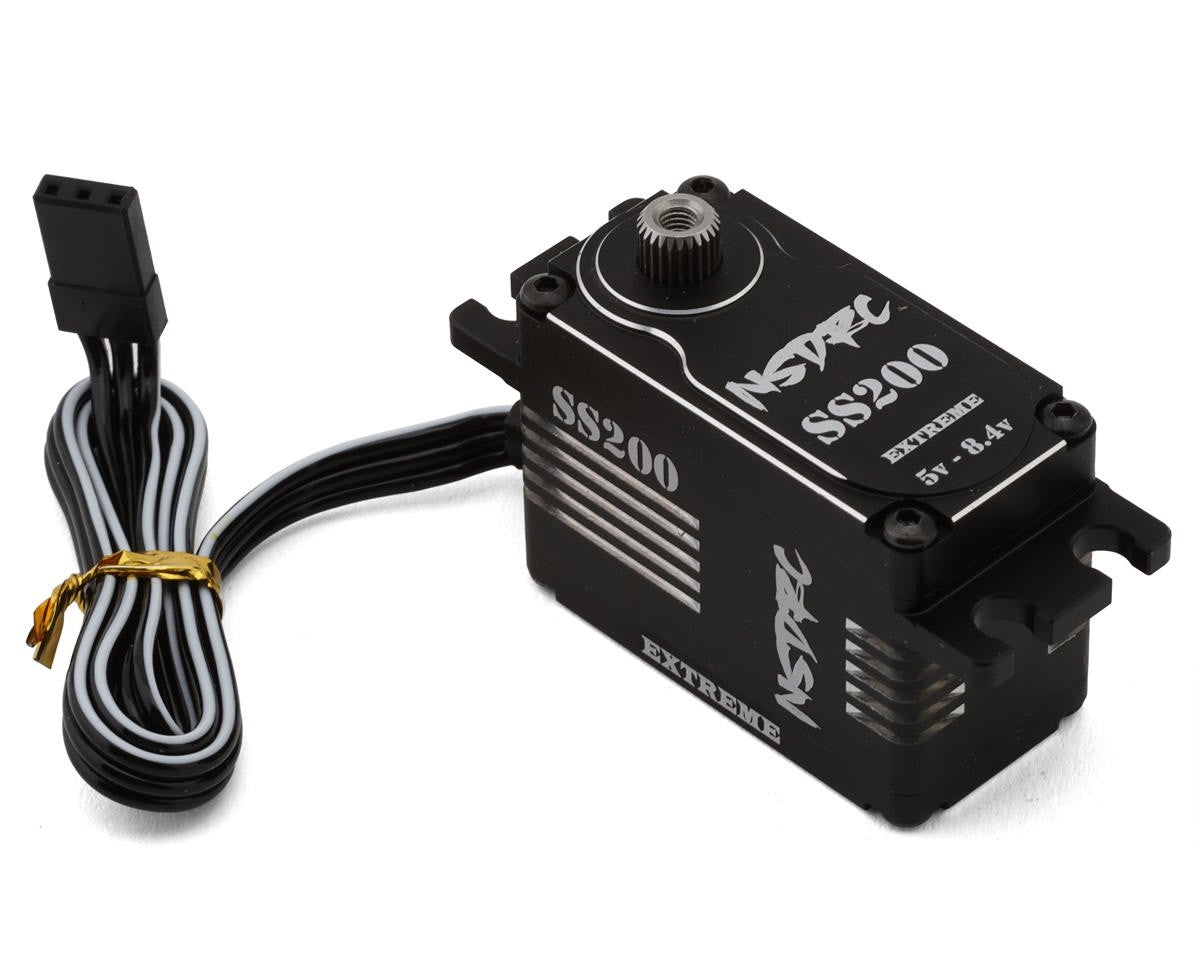

The No Superior Designs RC SS200 Extreme Performance Low Pro Servo is engineered for the ultimate speed, power, and precision, making it a top choice for high-performance RC applications. Delivering an impressive 244 oz-in of torque and a blazing-fast 0.033s transit speed at 8.4V, this servo is built for demanding applications requiring extreme power and responsiveness. Its robust full CNC aluminum case enhances heat dissipation and durability, ensuring peak performance even under the most intense conditions. The industry-leading 5-gear stainless steel gear train provides exceptional strength and reliability, delivering ultra-smooth operation with superior precision!
Capability
Powered by a high-efficiency brushless motor and high-resolution digital circuitry, the SS200 offers next-level control, accuracy, and efficiency. Featuring dual ball bearings, a 25T spline, a waterproof-resistant aluminum case, and a potent hardened steel gear system, this servo is built to withstand rigorous use while maintaining flawless operation. With a wide operating voltage range (5.0V-8.4V) and high-speed digital signal processing (1500us/330Hz), it ensures ultra-responsive and precise movements in any high-speed or high-torque application. For enthusiasts looking for a high-end, performance-driven servo that excels in extreme conditions, the SS200 is the ultimate choice—delivering unparalleled speed, power, and reliability to push your RC experience to the next level.
Features:
- Blazing fast 0.033s transit speed at 8.4V
- Powerful 244 oz-in torque for extreme performance
- Strong CNC aluminum case for heat dissipation and durability
- Reliable 5-gear stainless steel gear train for smooth operation
- Efficient brushless motor for precision and longevity
- Responsive digital circuitry for ultra-fast signal processing
- Dual ball bearings for smooth and stable movement
- Water-resistant aluminum case for supreme protection
Includes:

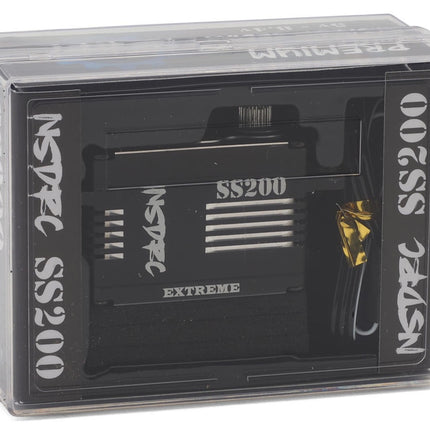

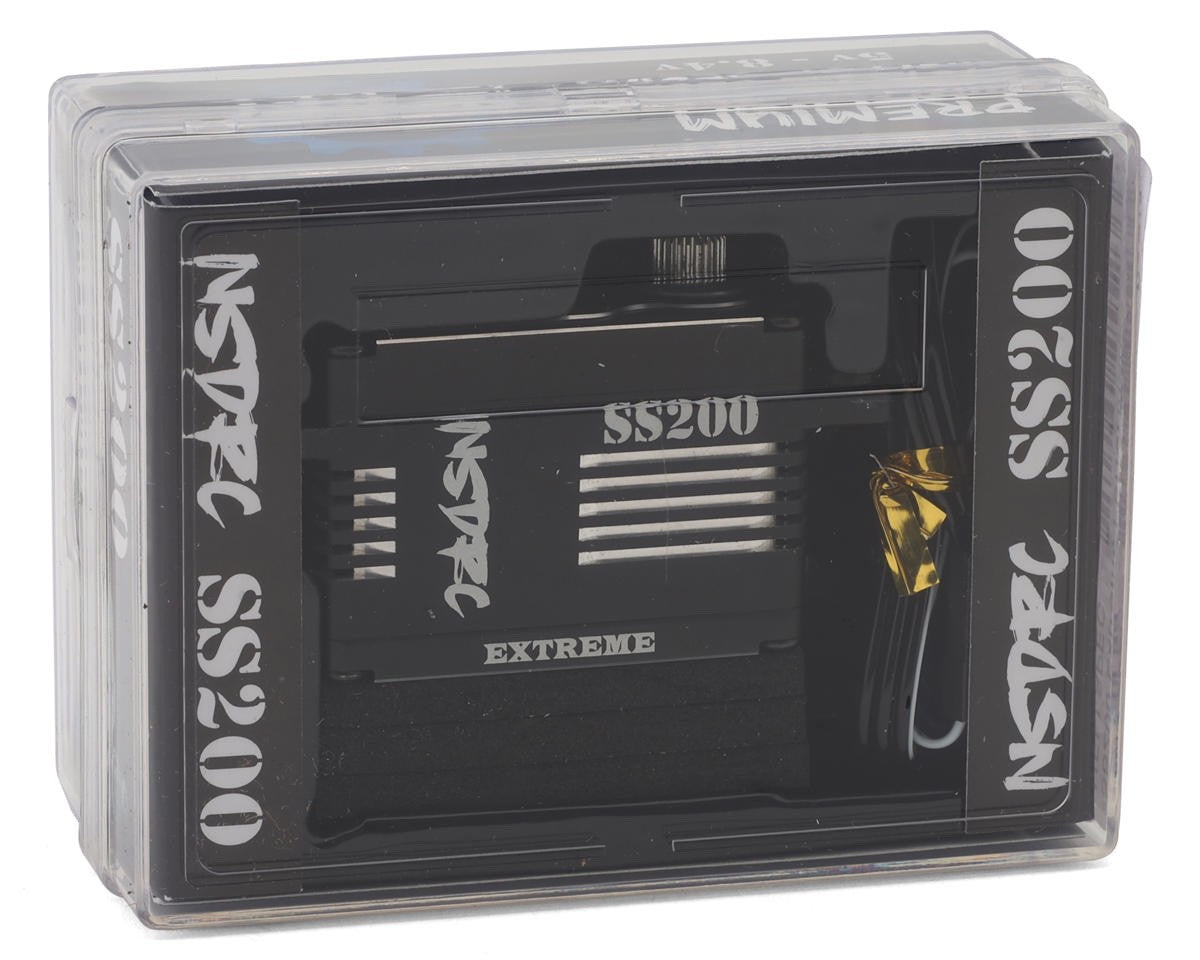

- (1) SS200 Extreme Performance Low Pro Servo (HV) (Heli Spec)
Specifications:
| Application |
RC Helicopters |
| Input Voltage |
5-8.4V |
| Operating Speed @ 6.0V |
0.045 sec/60° |
| Operating Speed @ 7.4V |
0.037 sec/60° |
| Operating Speed @ 8.4V |
0.033 sec/60° |
| Dynamic Torque @ 6.0V |
177 oz-in (12.8 Kg-cm) |
| Dynamic Torque @ 7.4V |
215 oz-in (15.5 Kg-cm) |
| Dynamic Torque @ 8.4V |
245 oz-in (17.6 Kg-cm) |
| Water-Resistant Rating |
IP66 |
| Gear Material |
Steel |
| Motor Type |
Brushless |
| Output Shaft Spline |
25T |
| Dimensions |
1.57x0.78x1.06in (40x20x27mm) |
| Weight |
2.29oz (65g) |
*Tech Note: Not recommended for use in Rock Crawlers
*Tech Note: A BEC with 8amp or higher output is highly recommended to get the full potential out of the SS200
