Description
Servo Overview:

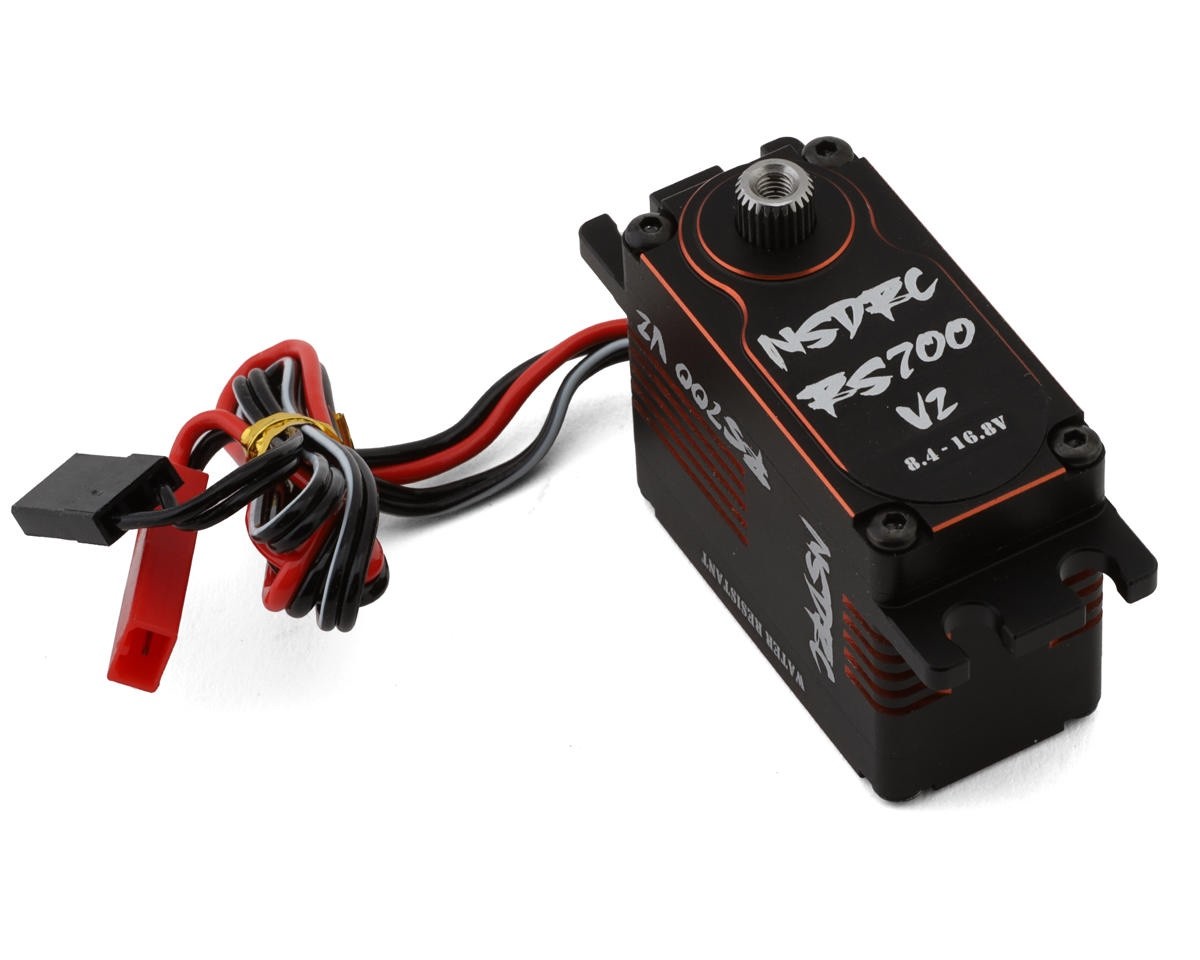

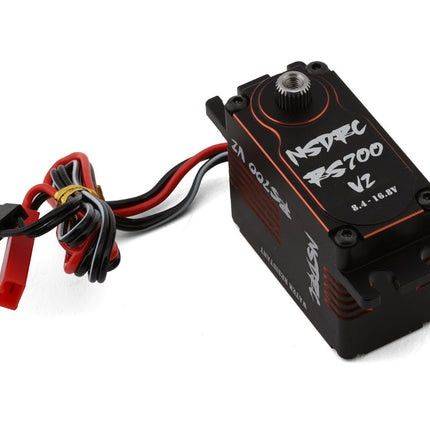

This is the RS700 V2 Special Edition Low-Profile Servo from No Superior Designs RC, designed with hardened 416 stainless steel gears, and a powerful 4-pole brushless motor to redefine speed, power, and precision in RC applications. With an astonishing 1115oz-in of torque and fast 0.09 transit speed at 16.8V, the RS700 V2 is the top contender for application requiring extreme torque and durability in a low-profile servo!
NOTE:
- Not recommended for rock bouncers & bashers
- Not recommended to power using balance plug
- Power switch on your esc, MUST be disconnected/ turned off when not in use to prevent damage to the servo and/or battery.
Features:
-
Extreme Performance: Delivers 1115oz-in of torque and 0.09 transit speed at 16.8V
-
Durable Construction: Full CNC aluminum case for enhanced heat dissipation and durability
-
Robust Gear Train: 5-gear stainless steel gear train ensures smooth and reliable operation under demanding conditions
-
Waterproof Design: Perfect for outdoor tracks and trails!
-
High-Efficiency Motor: Powered by a high-quality brushless 4-pole motor for next-level precision and performance
Specifications:
- Speed:
-
@8.4V: 0.15sec/60°
-
@12.6V: 0.11sec/60°
-
@16.8V: 0.09sec/60°
- Torque:
-
@8.4V: 634oz-in (46kg-cm)
-
@12.6V: 912oz-in (66kg-cm)
-
@16.8V: 1115oz-in (80kg-cm)
-
Motor: Brushless
-
Operating Voltage: 8.4V-16.8V
-
Operating Temp.: 14F-122F (-10C/50C)
-
Dimensions(LxWxH): 1.57"x0.78"x1.18" (40x20x30mm)
-
Weight: 2.46oz (70g)
-
Operating Spline: 25T

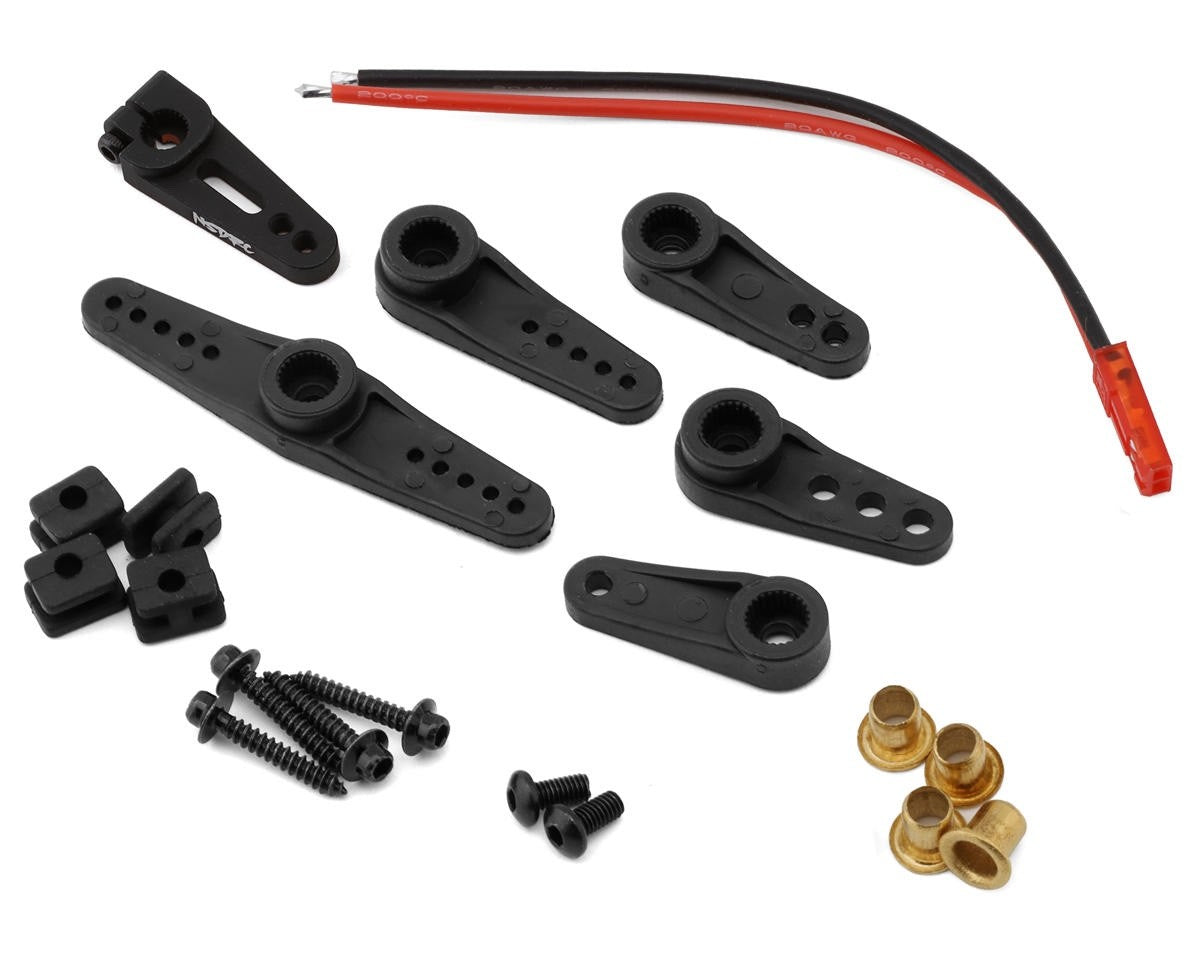

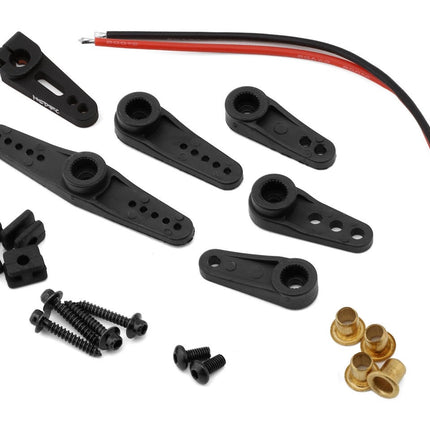

Includes:
- (1) RS700 V2 Special Edition Low-Profile Servo (High Voltage)
- (1) Aluminum Servo Horn
- Servo Horns and Mounting Hardware
