Description
Servo Overview:

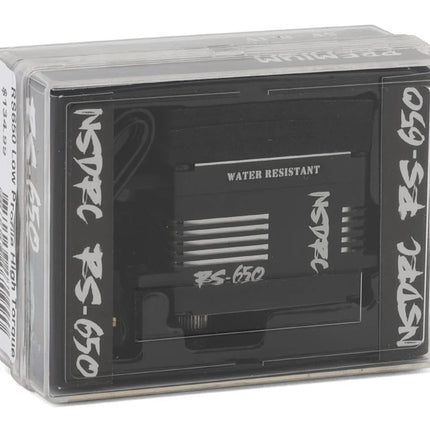

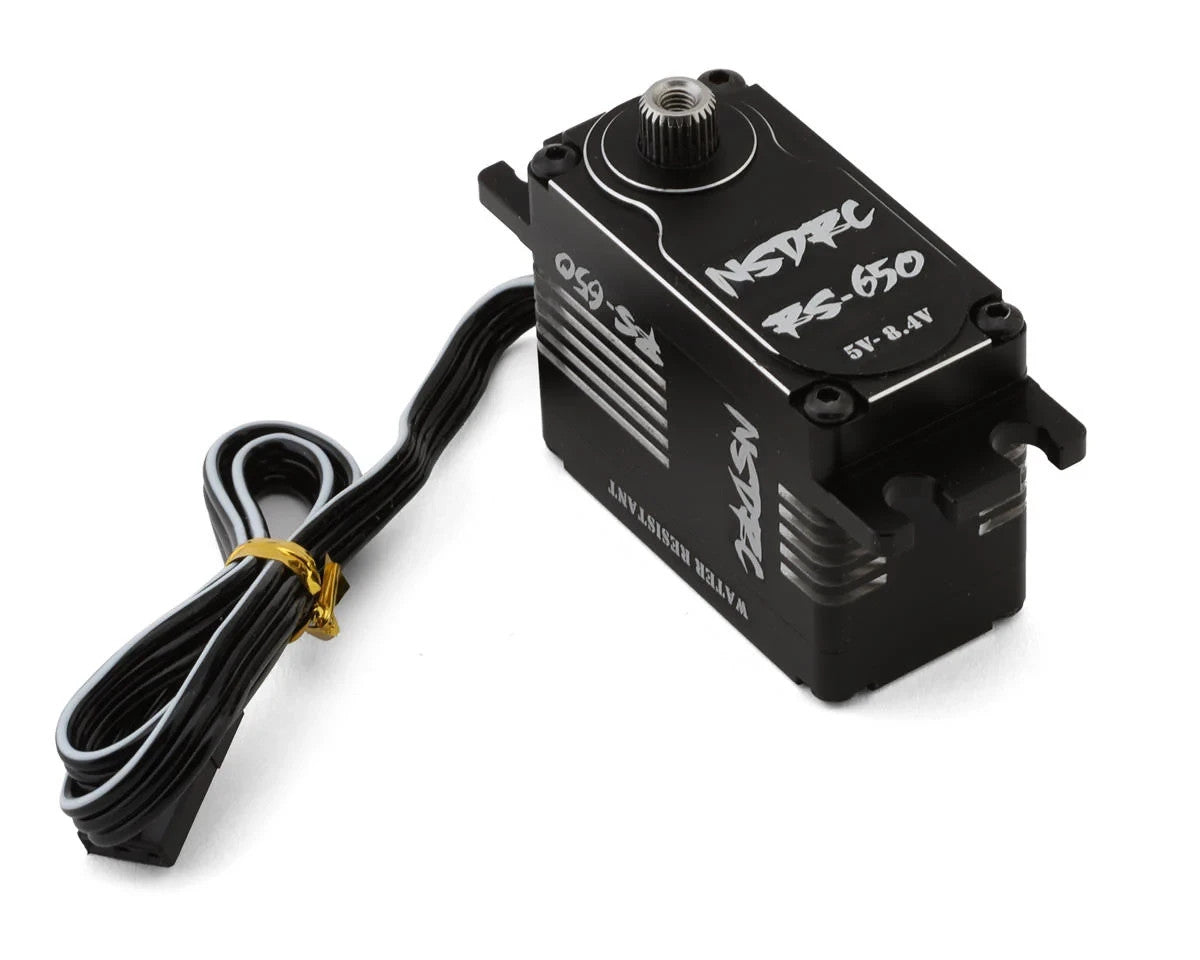

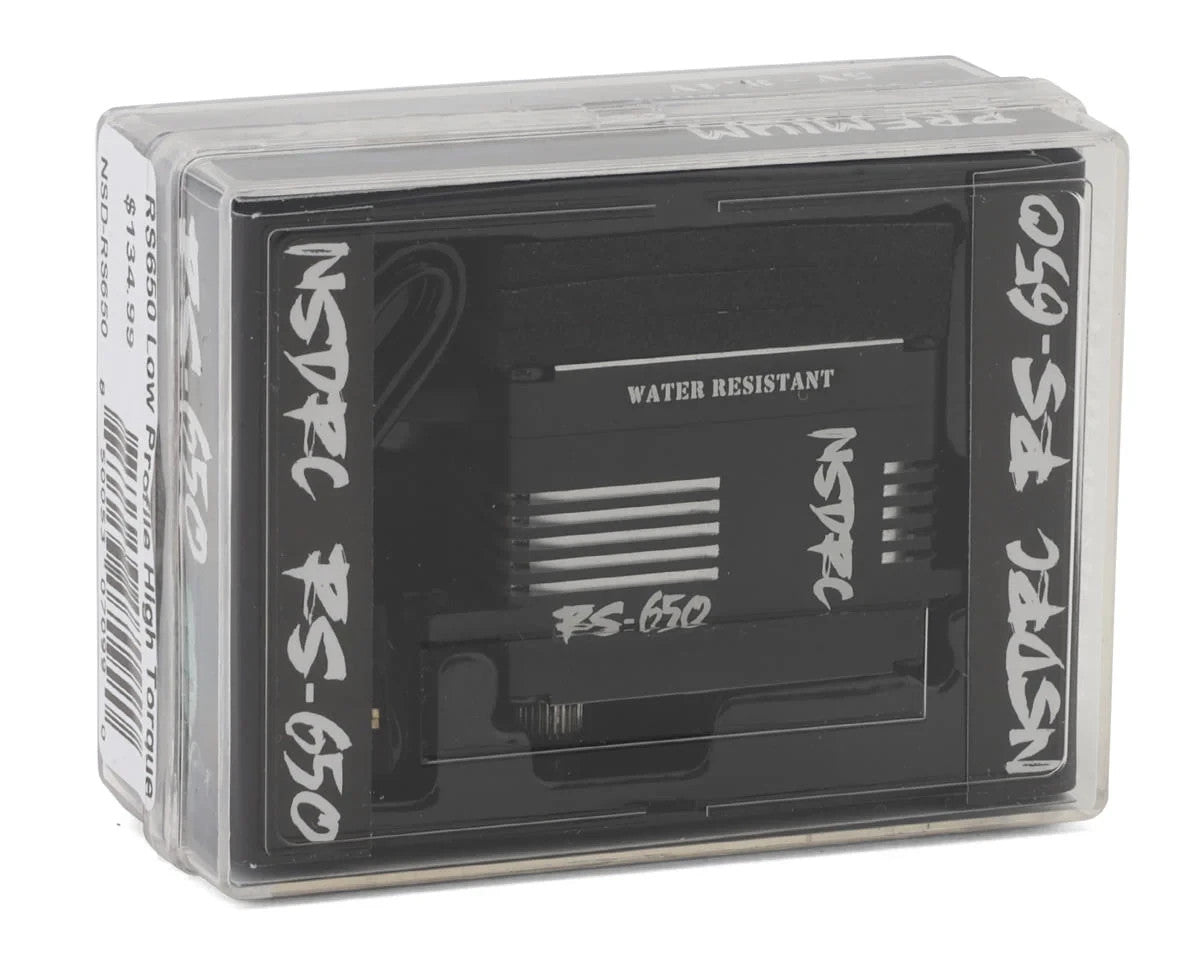

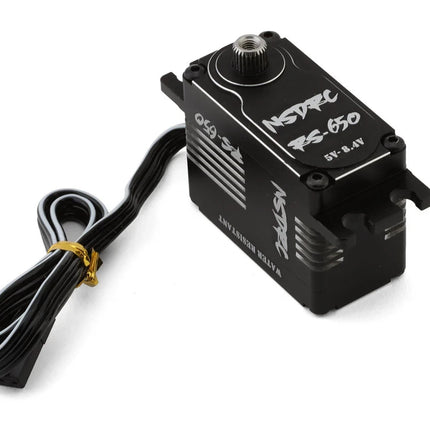

This is the RS650 High Torque Low Profile Brushless Servo from No Superior Designs RC. The RS650 servo is engineered with hardened 416 stainless steel gears and features a custom 4-pole brushless motor, making it one of the top-performing low-profile high-voltage servos on the market. It is meticulously crafted with premium components to meet the demanding performance requirements of competition-level RC enthusiasts. The servo's standout feature is its industry-leading 5-gear 4-pole gear train design, which enhances durability and precision over traditional 4-gear designs while maintaining a compact and lightweight profile, ideal for high-performance RC applications.
NOTE:
- Not recommended for rock bouncers
- 10 Amp BEC is recommended to provide sufficient power
Features:
- Hardened 416 stainless steel gears
- Custom 4-pole brushless motor
- High voltage capable
- 5-gear 4-pole gear train for enhanced durability and precision
- Compact and low-profile design
- High torque performance
- Competitive-level RC servo
- Optimized for weight and space savings
- Industry-leading gear train design
- Designed for performance RC applications
- Water resistant casing
Specifications:
-
Suggested Application: 1/10-1/8 Surface
-
Input Voltage: 5.0V-8.4V
- Speed:
-
6.0V: 0.14 sec/60°
-
7.4V: 0.12 sec/60°
-
8.4V: 0.10 sec/60°
- Torque:
-
6.0V: 705oz-in (50.7kg-cm)
-
7.4V: 812oz-in (58.5kg-cm)
-
8.4V: 940oz-in (67.7kg-cm)
-
Pulse/Frequency: 1520us
-
Motor Type: Brushless
-
Output Shaft: 25T
-
Gear Material: Hardened Steel
-
Dimensions: 1.58x0.79x1.21in. (40x20x30.7mm)
-
Weight: 2.51oz (71g)
Includes:
- (1) RS650 High Torque Low Profile Brushless Servo

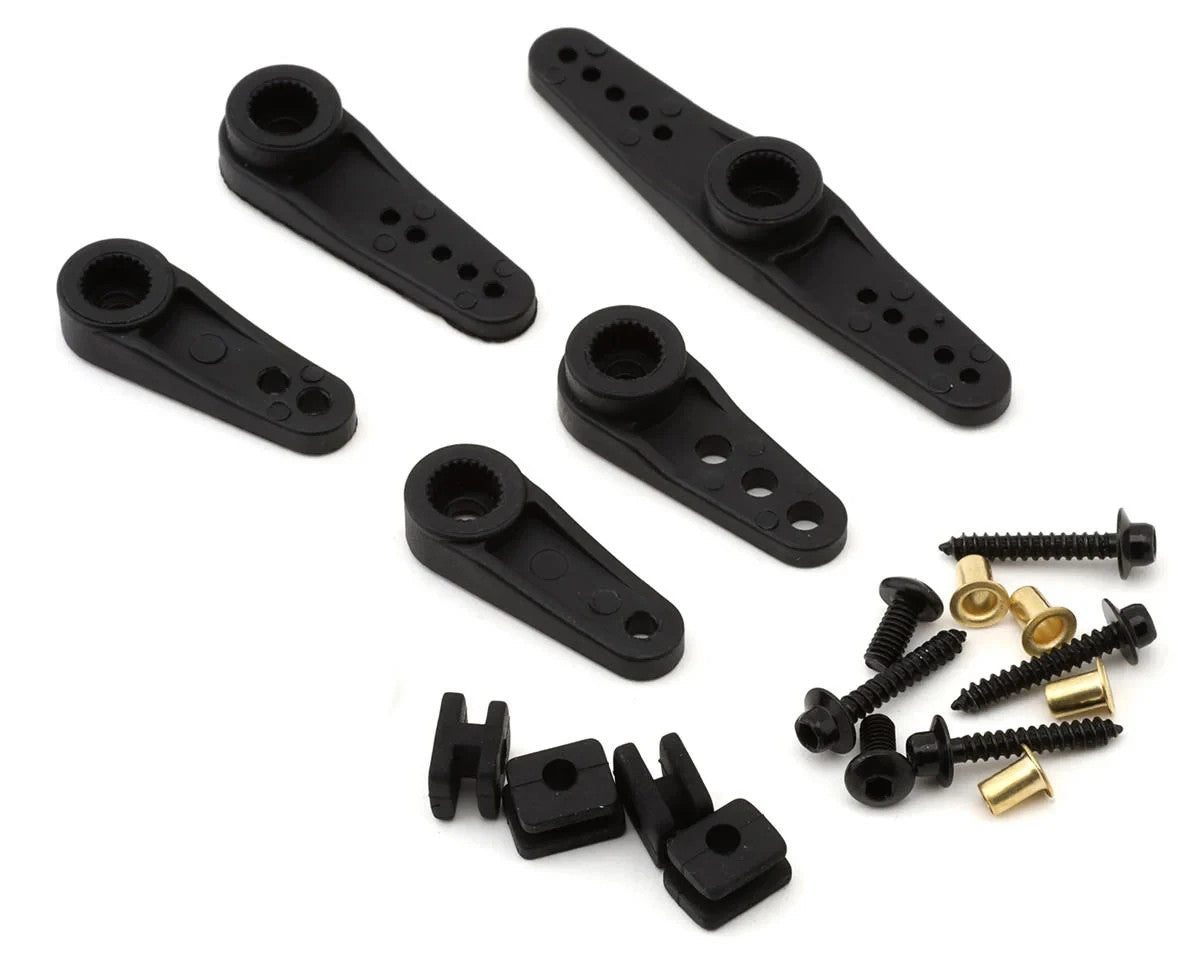

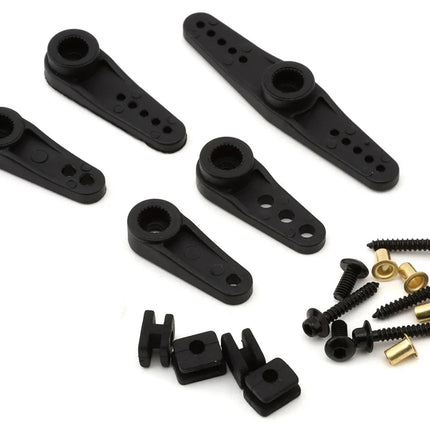

- Multiple composite horns
- Mounting screws, bushing and rubber grommets
-
