Description

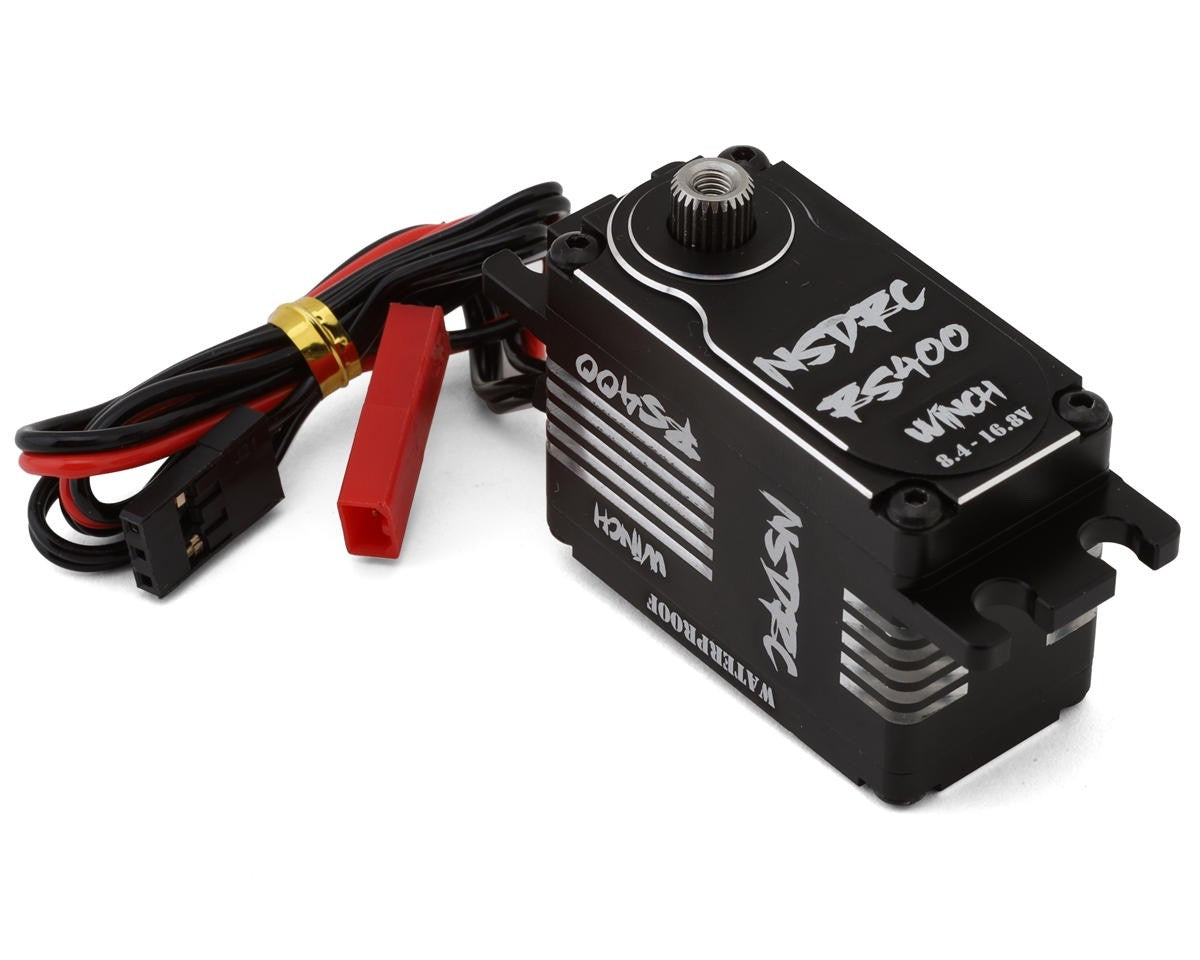

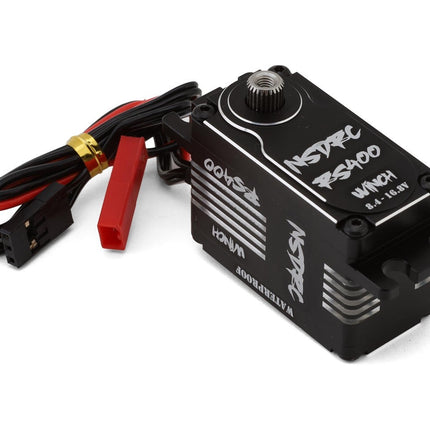

No Superior Designs RS400 Low Profile Servo Winch. Featuring killer speed, power, and precision brake hold this RS400 is one of the fastest and strongest low profile winches on the market with up to 450oz-in of pure torque and 0.05sec/60° of speed at 16.8V! Built-in winch controller and direct power so you no longer need to spend the extra money and effort on a controller or BEC to get the full performance out of the winch! Using the industry leading 5-gear design and magnetic angle sensor, the RS400 will provide you with an incredible brake hold, durability, and reliability that you can always count on!
NOTE:
- Does not work as steering servo
- Winch Line, Hook, and Mounts sold separately
Features:
- Hardened stainless steel gears
- CNC-machined aluminum Nano spool capable of holding 3 ft of line
- Full CNC-machined Aluminum Case
- Water resistant (Not Submersible)
- High voltage (HV) capable
- Built-in Winch controller (Requires remote and receiver with 3rd channel momentary or 3 position switch )
Specifications:
-
Type: Micro Winch
-
Motor Type: Coreless
-
Operating Voltage: 6V-8.4V
-
Gears: Hardened Stainless Steel
-
Spline: 15T 3.8mm Nano
-
Dimension (LxWxH): 20x17x10mm
-
Weight: 10g
-
Case: CNC-Machined Aluminum
- Torque:
-
8.4V: 215oz
-
12.6V: 330oz
-
16.8V: 450oz
- Speed:
-
8.4V: 0.09 sec/60°
-
12.6V: 0.06 sec/60°
-
16.8V: 0.05 sec/60°

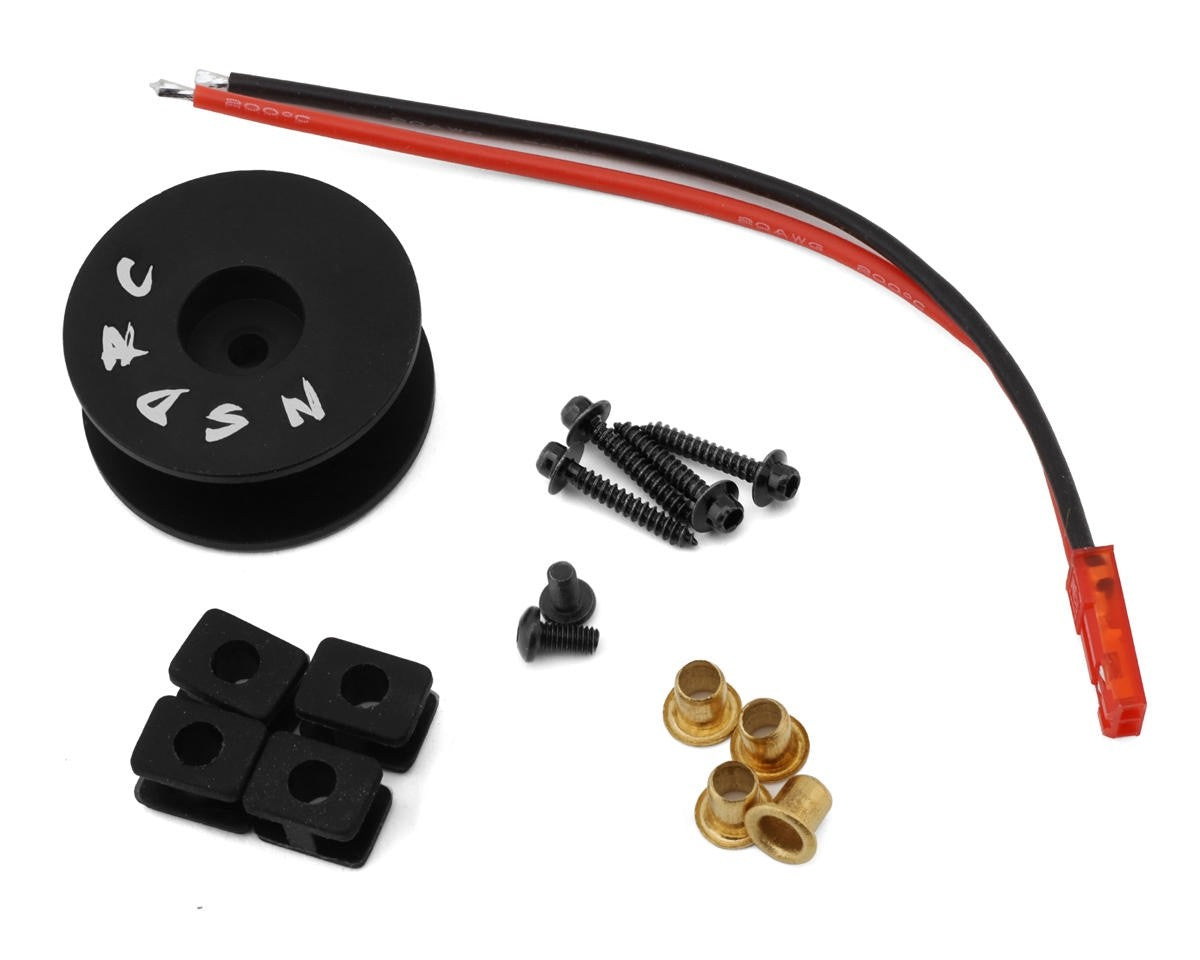

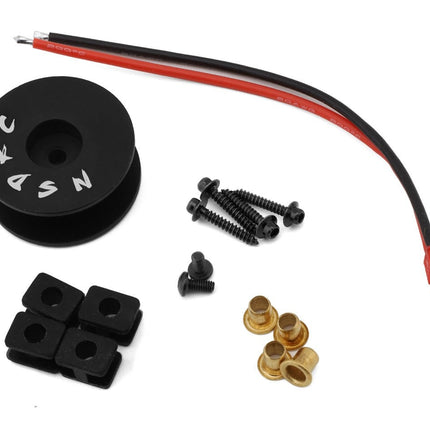

Includes:
- (1) RS400 Low Profile Servo Winch
- (1) CNC-machined Aluminum Spool
- Mounting screws
