Description

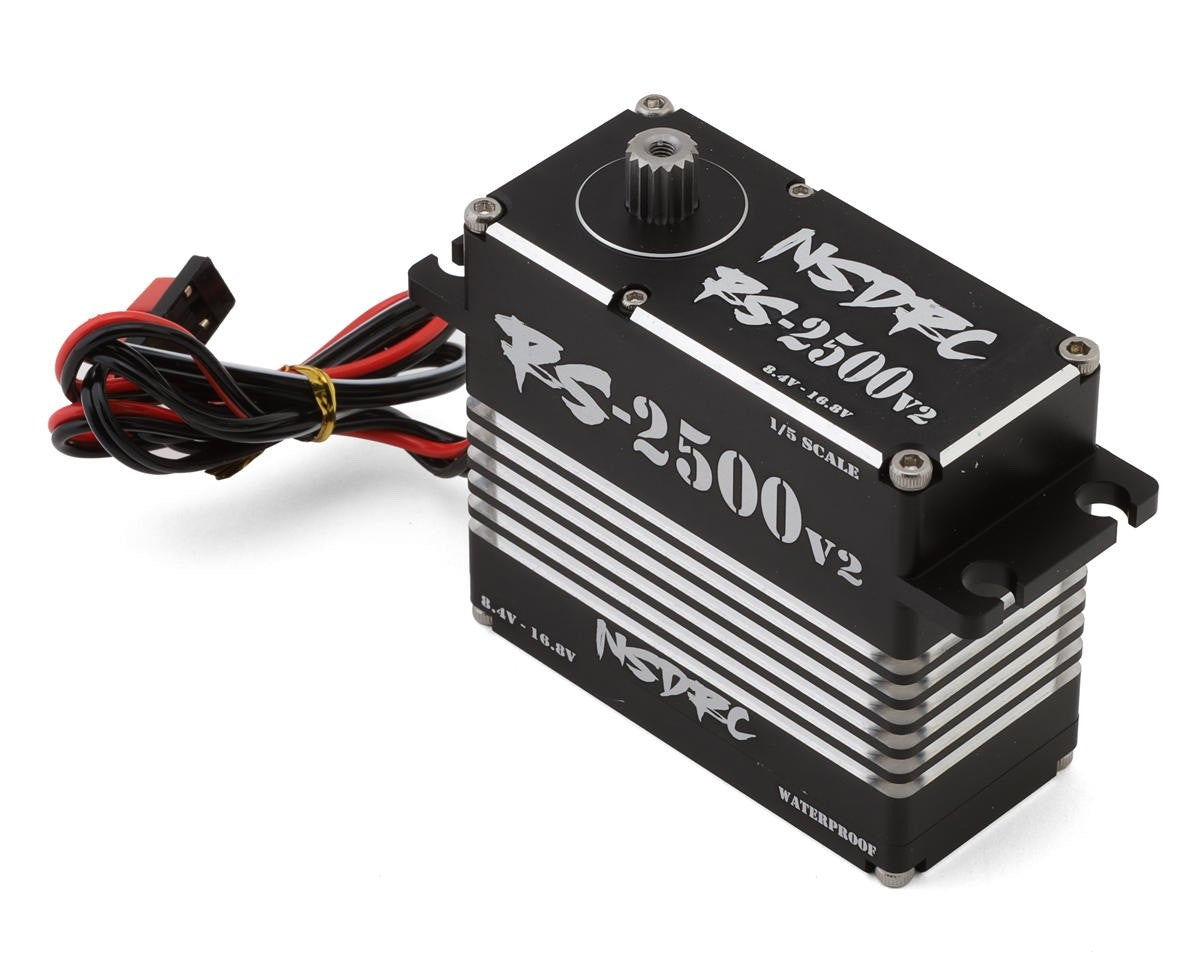

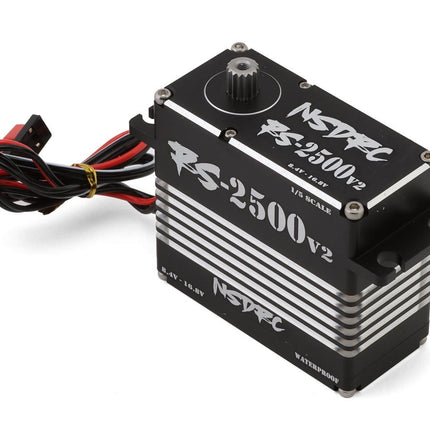

No Superior Designs RC RS2500 V2 1/5 Insane Torque Servo. This absolute beast is a game changer, the RS2500 V2 is one of the strongest, fastest, and most affordable premium 1/5 servo available on the market! Features a black anodized all CNC-machined aluminum case, 10-point O-ring seal, hardened stainless steel gears, high quality brushless motor, digital high accuracy encoder and it is a high voltage (HV) 16.8V capable! Making this servo an excellent option for large scale applications in need of high torque and speed with supreme durability and reliability such as the Axial SCX6 platform.
NOTE:
- Make sure the horn you use has a deep enough spline to fully seat on the RS2500 spline shaft. If the horn you use does not fully seat, it can cause the spline shaft to twist under heavy impact.
- The power connection plug, or power switch on your ESC, must be disconnected and turned off when not in use to prevent damage to the servo and/or battery! Not recommended to power using balance plug
Features:

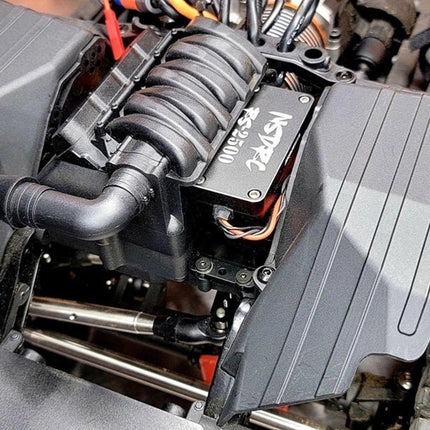

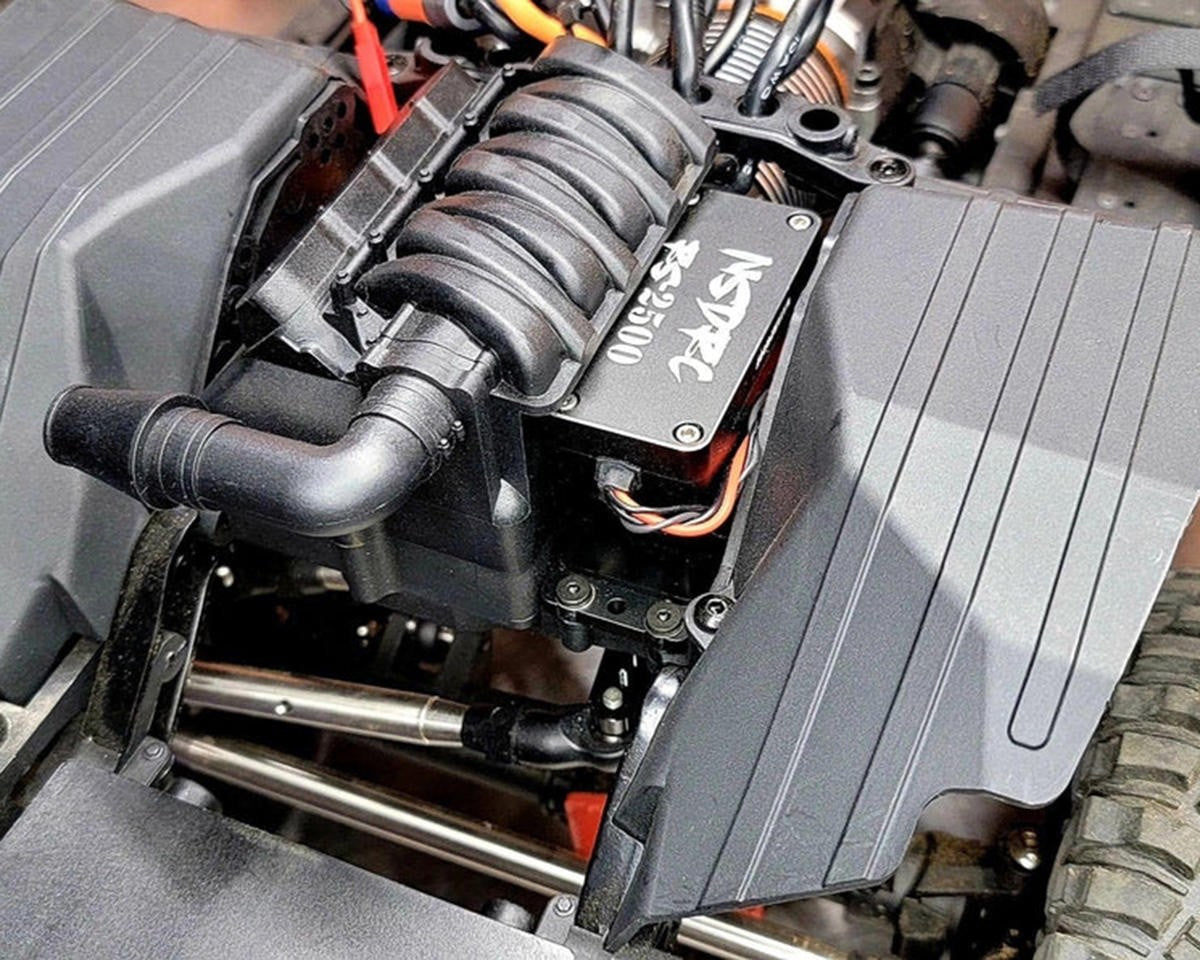

- Great fit and upgrade for the SCX6 platforms
- Black anodized all CNC-machined aluminum case
- Water Resistant (Not Recommended to submerged)
- 10 Point O-ring seal
- Hardened stainless steel qears
- High quality brushless motor
- Dual Ball Bearings
- Digital high accuracy encoder
- High voltage (HV) 16.8V capable!
Specifications:
-
Type: 1/5 Scale Insane Torque
-
Motor Type: Brushless Sensored
-
Operating Voltage: 8.4V - 16.8V
-
Gears: Hardened Stainless Steel
-
Spline: 15T
-
Dimension (LxWxH): 64x57.3x30mm
-
Weight: 248g
-
Case: CNC-Machined Aluminum
- Torque:
-
8.4V: 1520oz-in / 110kg-cm
-
12.6V: 2175oz-in / 157kg-cm
-
16.8V: 2650oz-in / 191kg-cm
- Speed:
-
8.4V: 0.15 sec/60°
-
12.6V: 0.097 sec/60°
-
16.8V: 0.075 sec/60°
Includes:

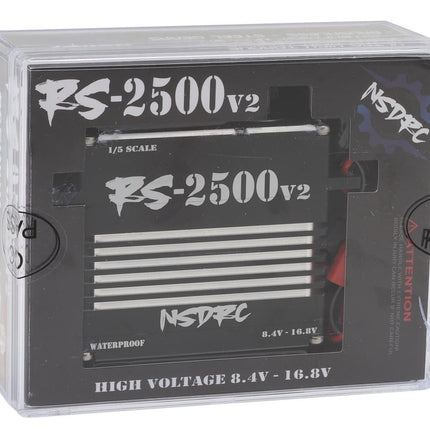

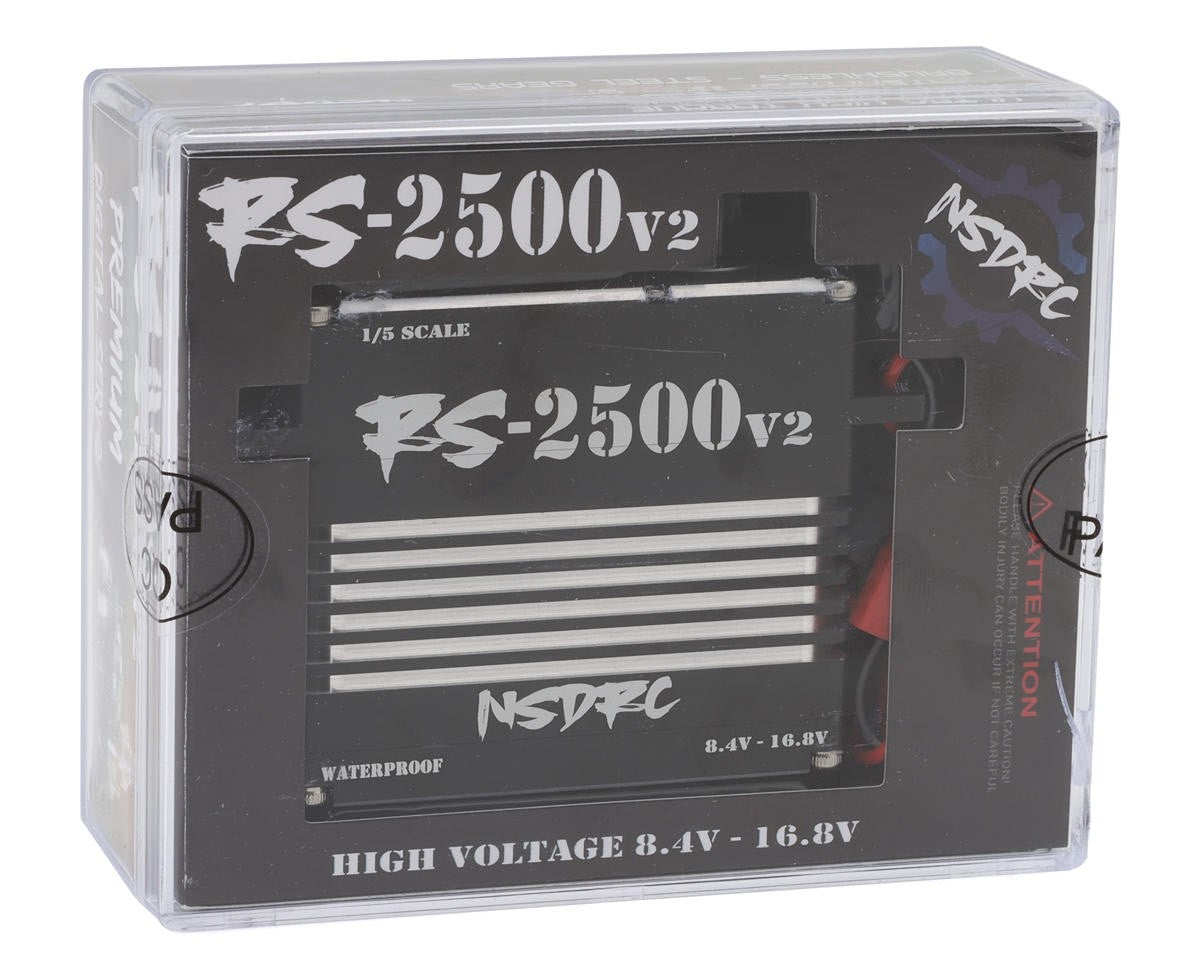

- (1) RS2500 V2 1/5 Insane Torque Servo
- Multiple composite horns

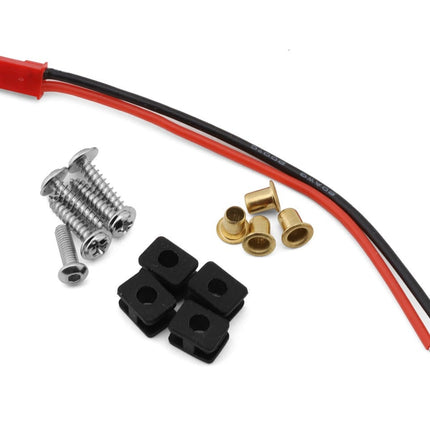

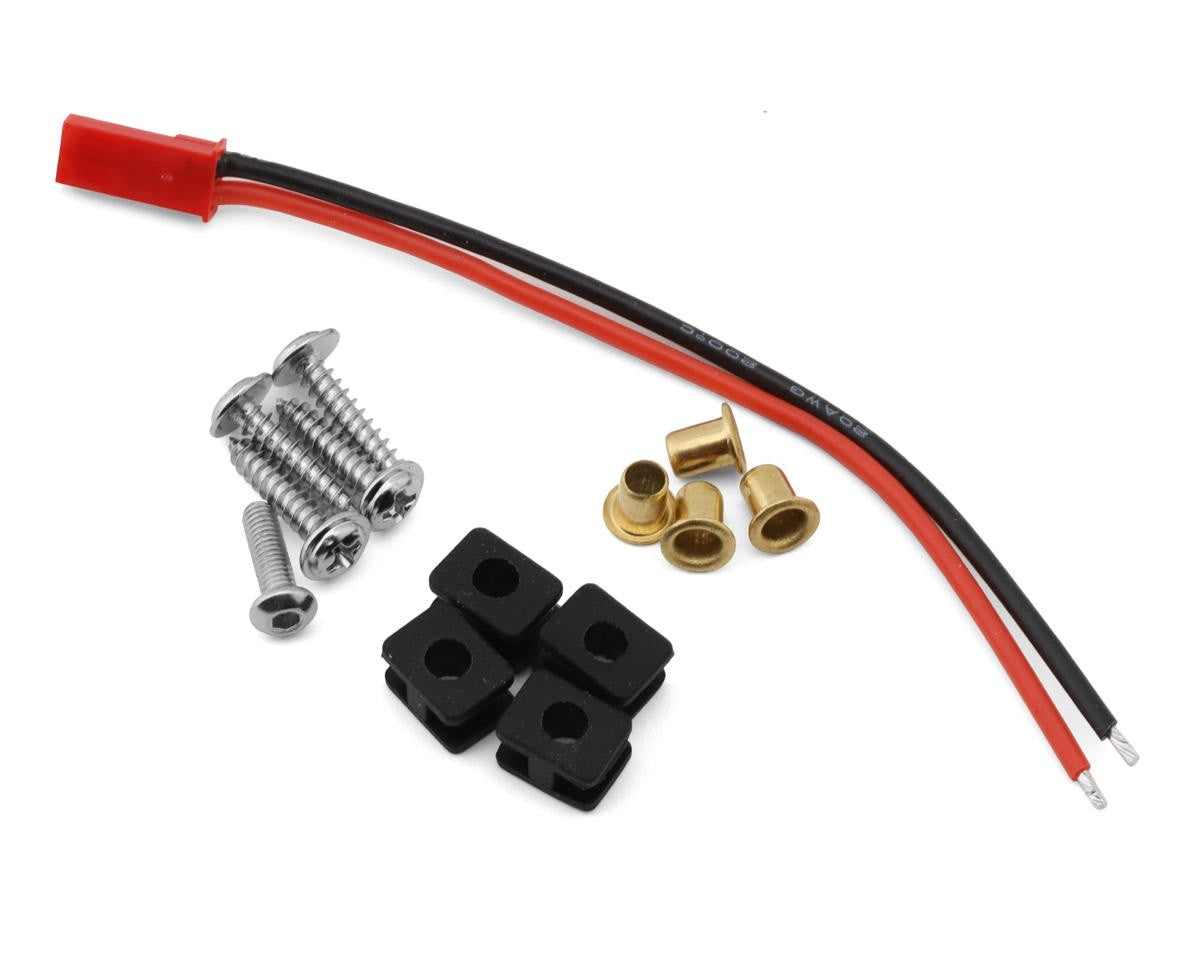

- Mounting screws, bushing and rubber grommets
