Description
Servo Overview:

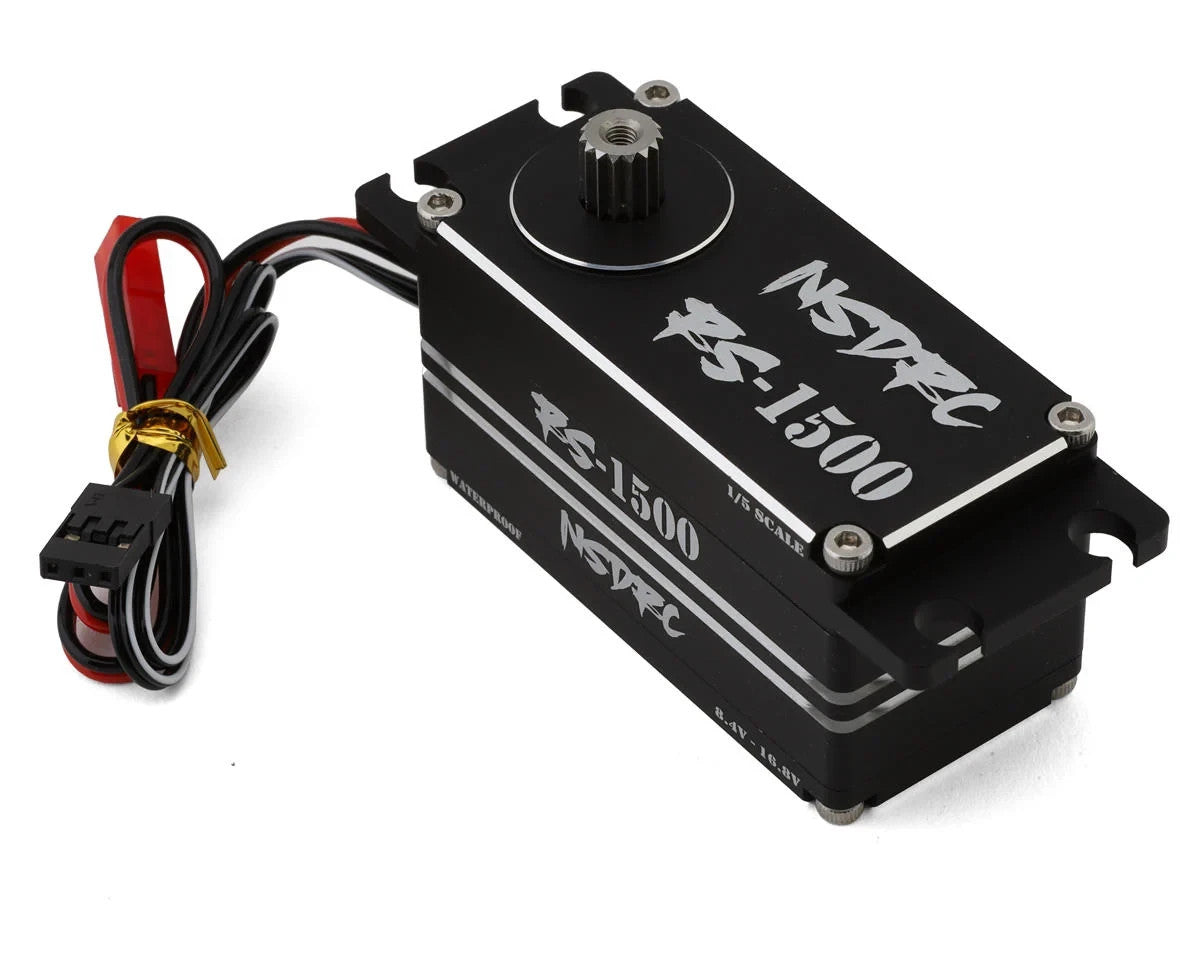

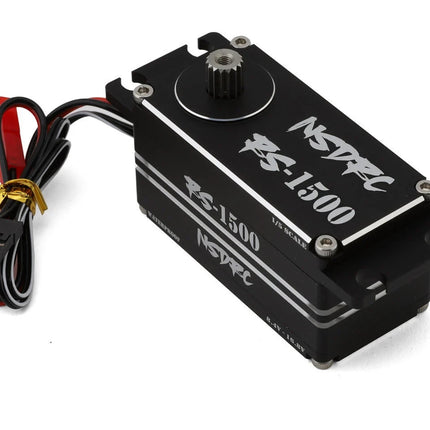

RS1500 1/5 Brushless High-Torque Low Profile Servo. Features an all-aluminum case that provides excellent heat dissipation, and a Powerful brushless motor with all metal gears that ensure supreme durability against the harshest conditions! Designed and specified to suit and feed the demand for 1/5 throttle, brake in gas setups, large scale planes, 1/6 crawlers, 1/5 on-road racing for steering and throttle/brake, and many other large scale applications needing great power and incredible speed! Get the RS1500 Low Profile 1/5 Servo to elevate your steering performance and precision to a higher level!
Features
- Ideal for large scale airplanes, on-road racing, crawlers and many other large scale applications needing great power and incredible speed!
- Low Profile waterproof design
- Powerful brushless motor
- Incredible speed and torque!
- 2-4S lipo capable, with direct power superior efficiency
- Capable of High Voltage (HV) operation
- Aluminum case provides cooler operating temperatures
- All stainless steel gears
Specifications:
- Speed:
-
@8.4V: 0.12sec/60°
-
@12.6V: 0.08sec/60°
-
@16.8V: 0.06sec/60°
- Torque:
-
@8.4V: 830oz-in (60kg-cm)
-
@12.6V: 1165oz-in (84kg-cm)
-
@16.8V: 1500oz-in (108kg-cm)
-
Motor: Brushless
-
Operating Voltage: 8.4V-16.8V
-
Rotation: 180 Degrees
-
Dimensions: 62.5x33x30mm
-
Weight:-
-
Operating Spline: 15T
Includes:
- (1) RS1500 1/5 Low Profile Servo

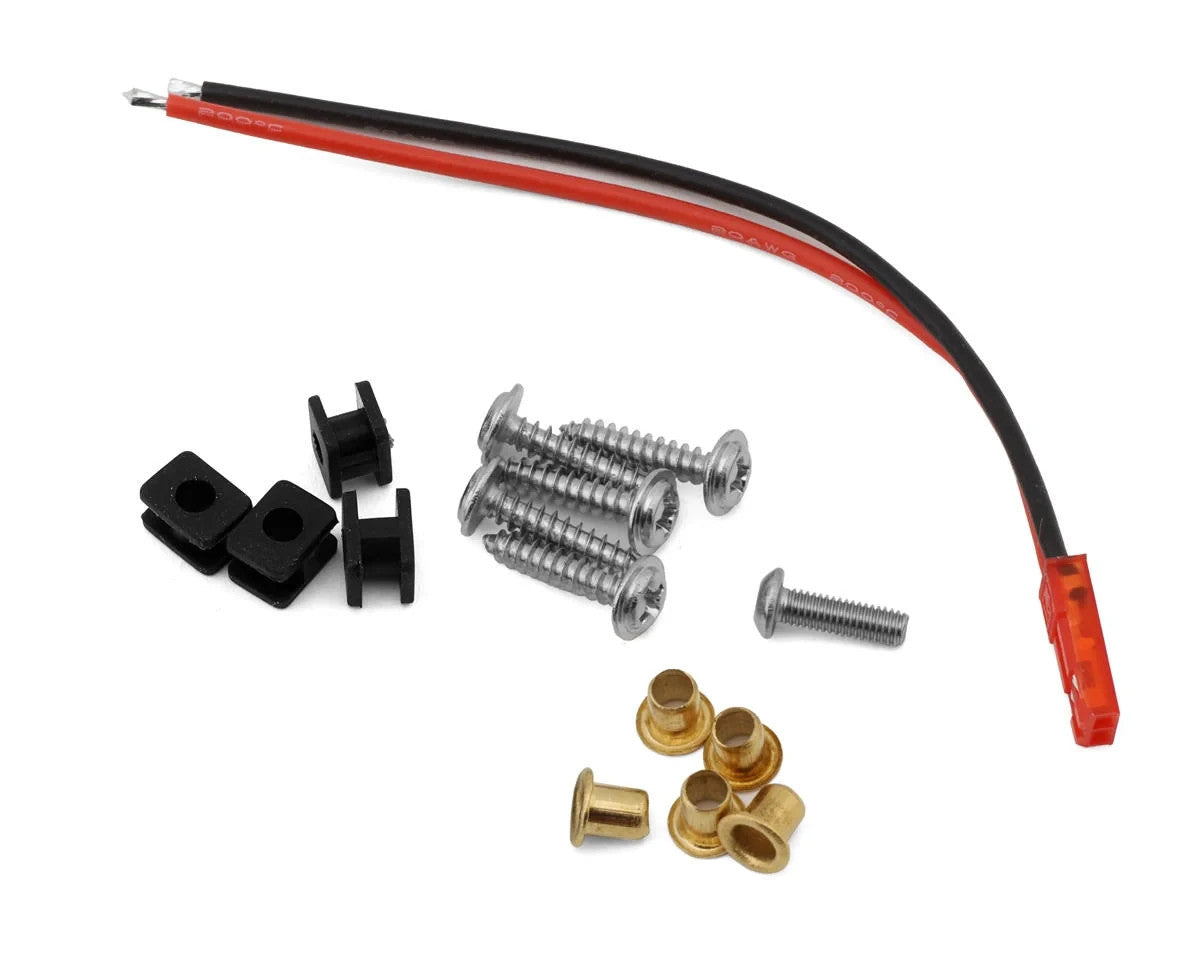

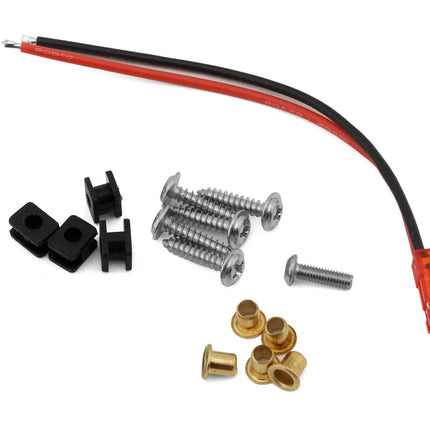

- Mounting Hardware
