ESC Overview:
Small in size but huge on performance, the Axial SCX30 MBL32-Nano Brushless ESC delivers whisper-quiet power, ultra-smooth crawler control, and ready-to-run simplicity — all packed into a waterproof, programmable design built to dominate the trail.
About the MBL32-Nano Brushless ESC
Compact Brushless Control Power

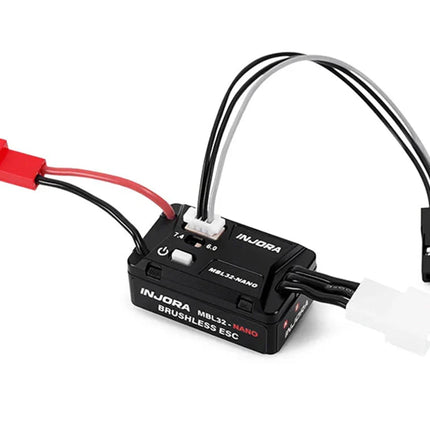

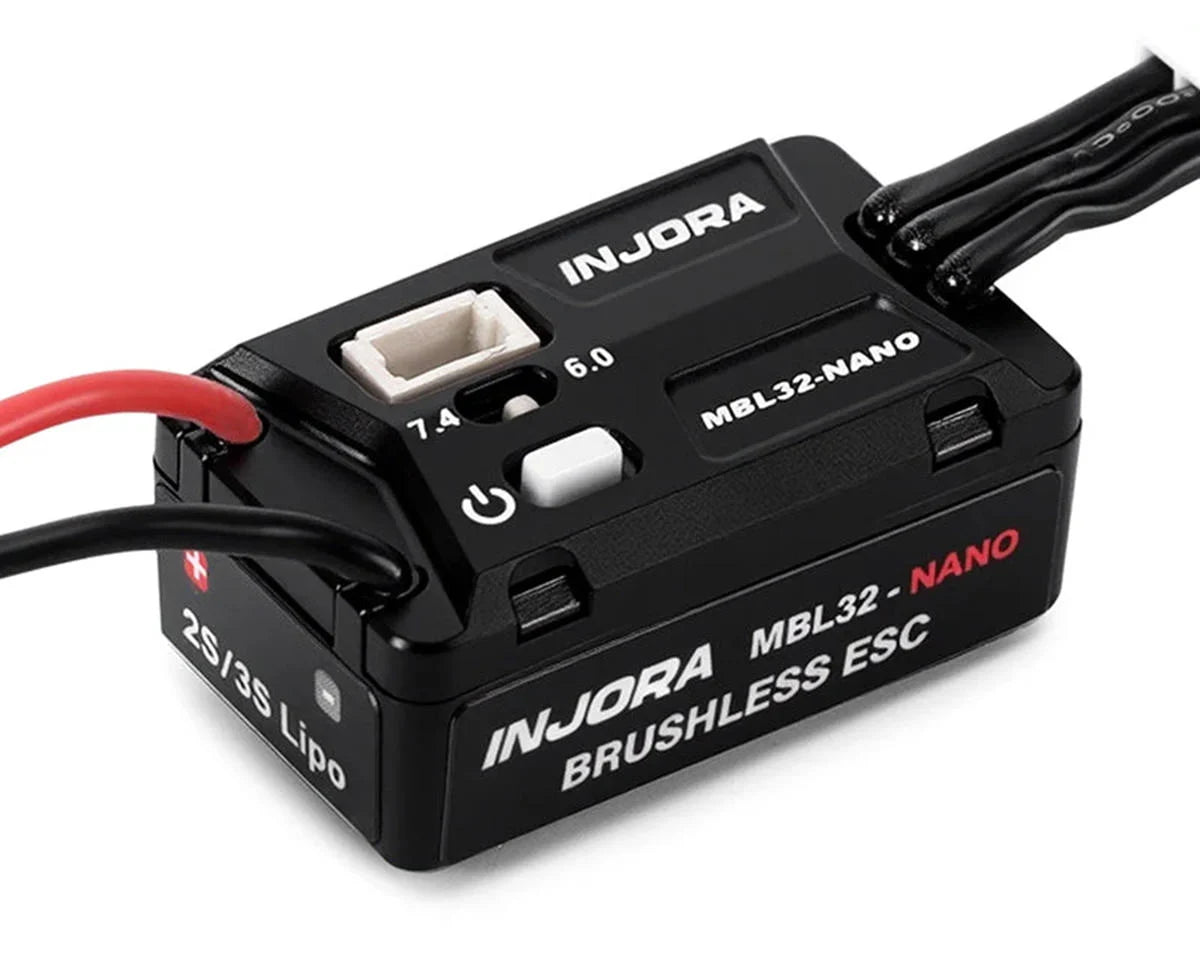

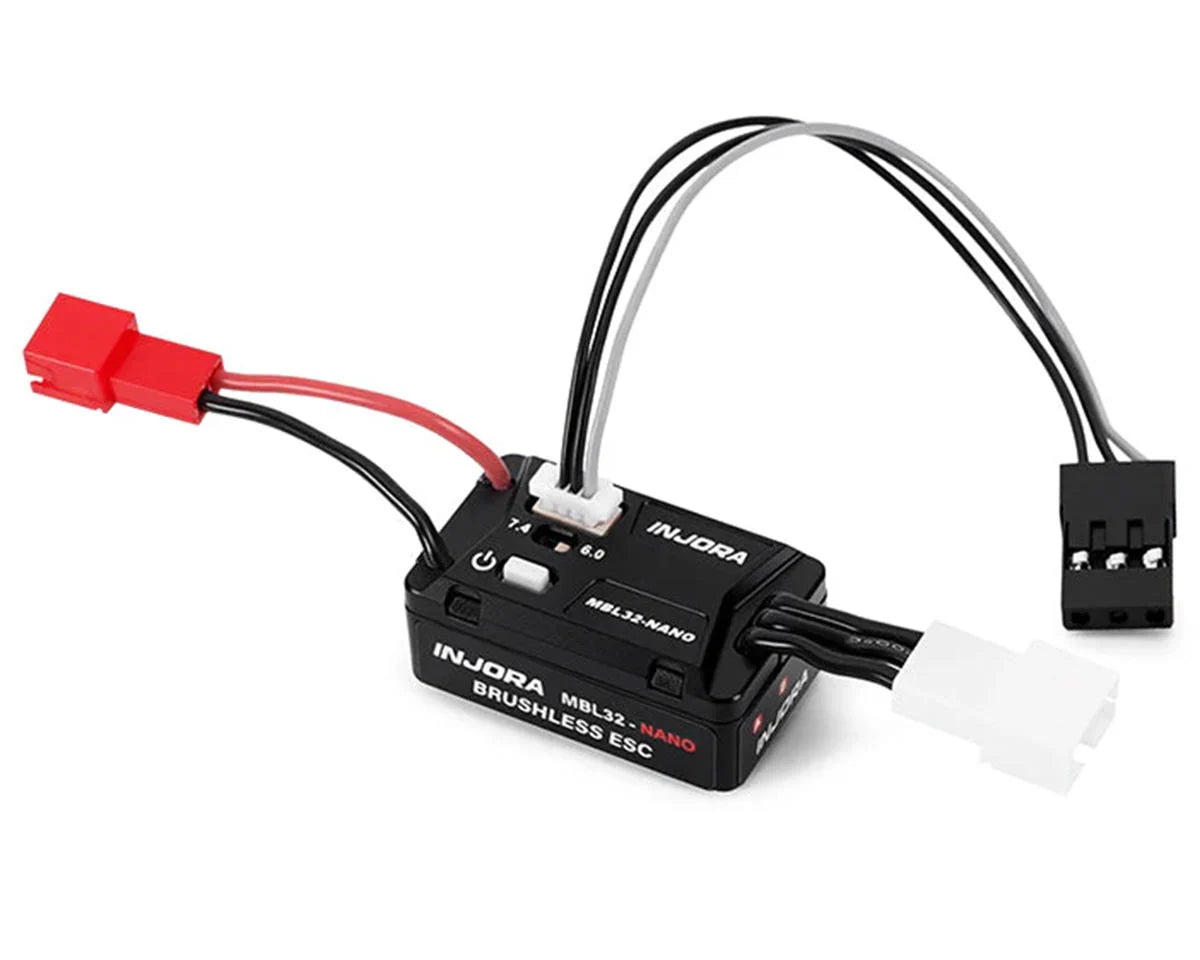

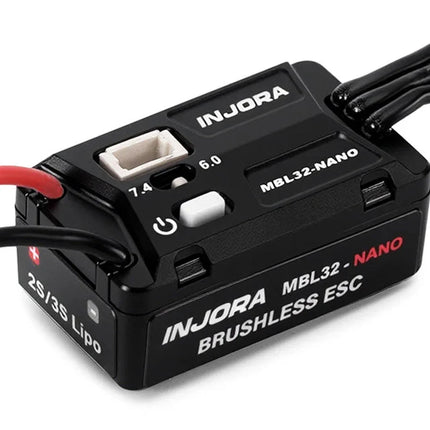

The Axial SCX30 MBL32-Nano Brushless ESC is a pre-configured, ready-to-run solution that delivers ultra-smooth low-speed control with aggressive high-RPM punch, making it ideal for precision crawling. Its compact yet powerful design runs quietly, features a waterproof case for all-weather driving, and includes an adjustable 6V or 7.4V high-output BEC. With 25A continuous and 45A peak current, PC programmability via USB, and built-in protections for low voltage, fail-safe, and rotor lock, it offers big performance in a nano-sized package.
Features:
- Pre-configured and ready to run with no programming required
- Programmable via PC using a USB programmer card
- Smooth and linear control at low speeds
- Powerful and aggressive performance at high speeds
- Quiet brushless operation with minimal noise
- Compact size with big power output
- Waterproof design for all-weather driving
- Adjustable 6V or 7.4V BEC with 3A current and built-in protections
Includes:
- (1) MBL32-Nano Brushless ESC
Specifications:
| Suggested Application |
1/30 Rock Crawler |
| Motor Type |
Brushless Sensorless |
| Input Voltage |
2S (7.4V) LiPo |
| Continuous Current |
25A |
| Burst Current |
45A |
| BEC Voltage |
5.5V/7.4V |
| BEC Continuous Current |
3A |
| Battery Connector |
Ph2 |
*Tech Note: Due to the kV rating of the motor, this ESC should only be used with 2S LiPo batteries!
*Tech Note: For use with Injora brushless motors only.
