Powerful & Smooth SCX30 Brushless Electronics
Unlock next-level micro crawling with the Injora MBL32-NANO ESC and Green Viper 1621 motor combo — whisper-quiet brushless power, ultra-smooth low-speed control, and compact performance built to make your SCX30 feel unstoppable on the rocks.

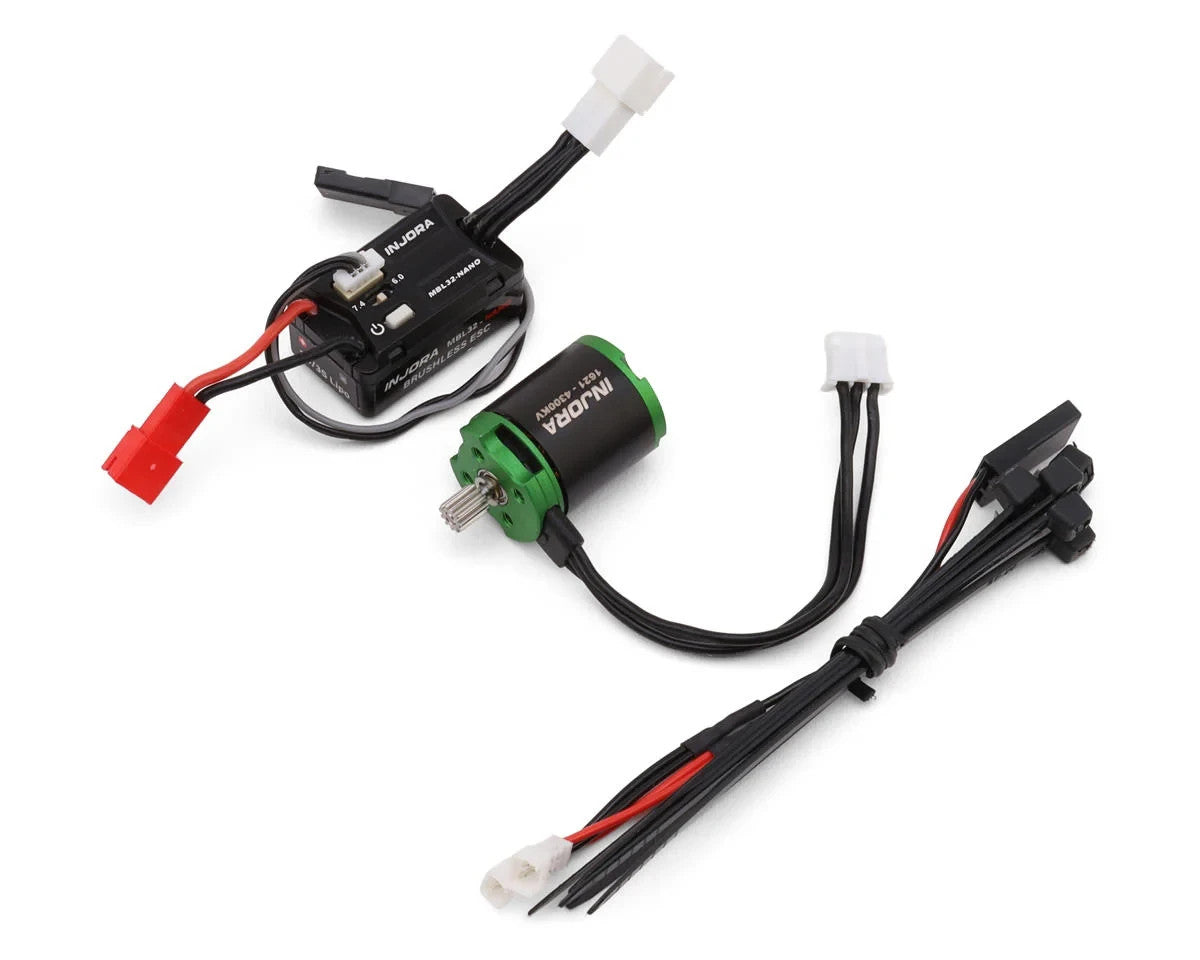

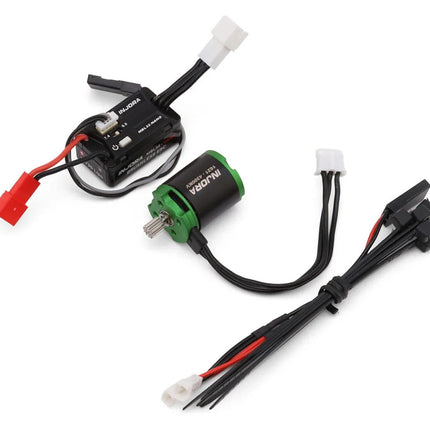

About the MBL32-NANO & 1621 Green Viper Brushless Combo
Purpose-Built Brushless Power
The Injora MBL32-NANO Brushless ESC and 1621 Green Viper Motor Combo is meticulously tuned for the Axial SCX30, delivering whisper-quiet operation, ultra-smooth low-speed control, and aggressive power on demand. This combo transforms micro crawling with precision throttle response and consistent, reliable performance on technical terrain.
Compact Power, Big Control
Featuring a nano-sized, waterproof ESC with 25A continuous and 45A burst current, adjustable 6V or 7.4V BEC, and PC programmability, the MBL32-NANO provides refined control in a tiny footprint. Paired with the high-torque 12-pole, 3600KV Green Viper 1621 motor, it offers buttery-smooth low RPM performance with strong punch when climbing or accelerating.
Ultra-Smooth Crawling
Designed exclusively for Injora brushless systems, this combo runs quieter than brushed setups, improves durability with reinforced wiring, and delivers unmatched low-speed precision for slow crawl maneuvering. It’s a drop-in, high-performance upgrade for SCX30 drivers who demand smooth control, efficiency, and trail-dominating capability.
Features:
- Designed specifically for the Axial SCX30 micro crawler
- Whisper-quiet brushless operation with reduced drivetrain noise
- Ultra-smooth and linear low-speed throttle control
- Powerful and aggressive performance at higher RPM
- Compact, lightweight design with high power output
- Waterproof ESC for reliable all-weather use
- High-torque 12-pole 3600KV brushless outrunner motor
- Adjustable 6V or 7.4V BEC with 3A continuous current
- 25A continuous and 45A burst ESC current capability
- Reinforced motor wiring with protective sleeve for durability
Includes:
- (1) MBL32-Nano Brushless ESC
- (1) Green Viper 1621 Brushless Outrunner Motor
Needed To Complete:
Specifications:
ESC
| Suggested Application |
1/30 Rock Crawler |
| Motor Type |
Brushless Sensorless |
| Input Voltage |
2-3S (7.4-11.1V) LiPo |
| Continuous Current |
25A |
| Burst Current |
45A |
| BEC Voltage |
5.5V/7.4V |
| BEC Continuous Current |
3A |
| Battery Connector |
Ph2 |
| Programming |
PC Programming via USB |
|
Motor
| Suggested Application |
1/30 Rock Crawler |
| Motor Type |
Brushless Sensorless |
| Input Voltage |
2S (7.4V) LiPo |
| kV Rating |
3600kV |
| Slots |
9 |
| Poles |
12 |
| BEC Continuous Current |
3A |
| Battery Connector |
Ph2 3-pin |
| Output Shaft |
0.066in (1.7mm) |
| Dimensions |
0.61x0.84in (15.5x21.5mm) |
| Weight |
0.52oz (14.9g) |
|
*Tech Note: Due to the kV rating of the motor, this ESC should only be used with 2S LiPo batteries!
**Tech Note: Pre-configured and ready to run with no programming needed; however, this setup requires the use of a standalone receiver.
