Description

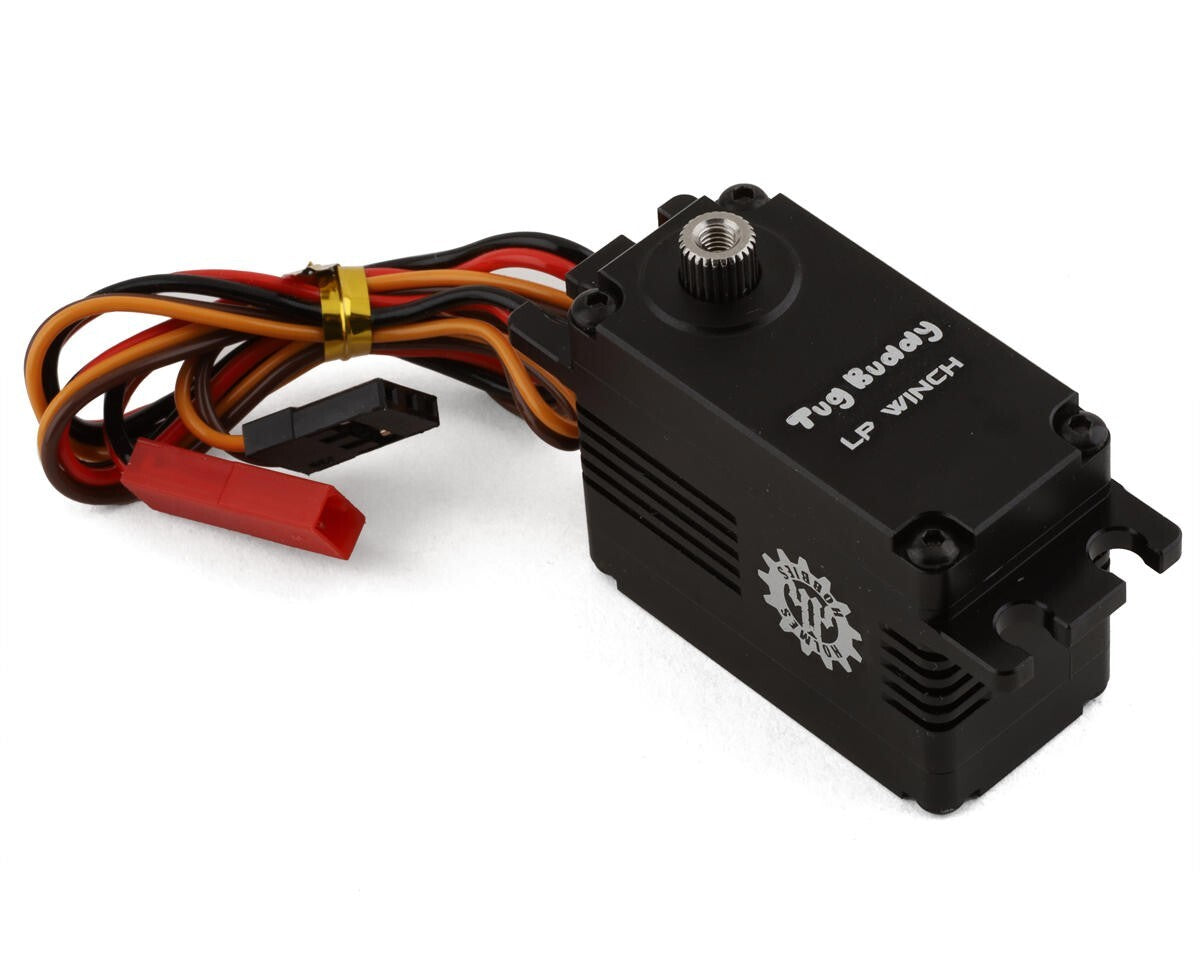

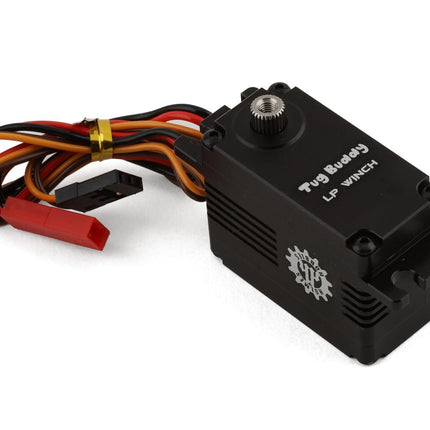

Holmes Hobbies Tug Buddy LP Brushless Servo Winch. Designed with performance in mind this powerful servo winch offers incredible peformance in a compact package. Using a brushless motor capable of handling up to 14 volts this winch can output up to 666 oz/inches of torque! Powered directly by a 2S to 4S LiPo battery via JST connection on your ESC's battery plug, eliminates the need for an external BEC. The Tug Buddy LP uses an ultra efficient and power dense brushless motor for remarkable pulling power, but is still very controllable and smooth giving you finesse when needed. The added "hold brake" feature ensures that you don't slip, no matter the angle or weight of vehicle.
Features:
- Includes Winch Spool 21mm diameter x 12.5mm thin
- Includes JST power tap
- Hold brake function
- Water resistant Alloy Case with O-Ring Seals
- Waterproofed internals
- All steel machined 5 gear layout with industry leading strength
- Ultra fast Brushless motor
- 30cm radio signal lead
- 2s to 4s LiPo battery compatible, 6 volt to 16.8 volt range
- 1 Year Warranty
Specifications:
-
Dimensions: 40x20x30mm
-
Weight: 69g
-
Spline: 25 Tooth with 3mm Thread
- Spooling Speed:
-
@11.1V: 3.3 seconds per foot (10 sec/ meter)
-
@14.0V: 2.8 seconds per foot (8.5 sec/ meter)
- Torque:
-
@11.1V: 555 oz/inch (40 kg/cm)
-
@14.0V: 666 oz/inch (48 kg/cm)

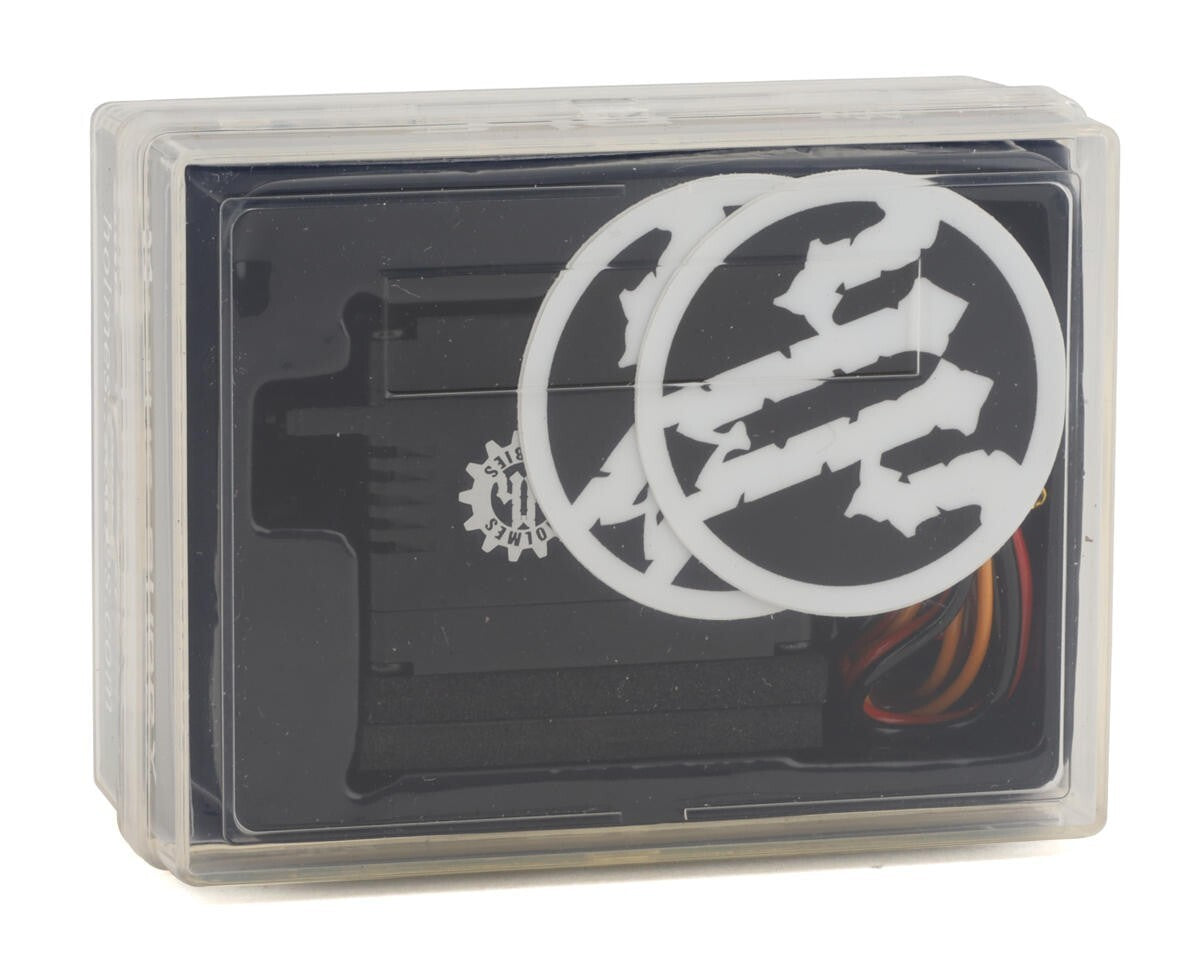

Includes:
- (1) Tug Buddy LP Brushless Servo Winch (16V)
- (1) Winch Spool
- (1) JST Power Tap
- Mounting Hardware
- Decals
