Description
Motor Overview:

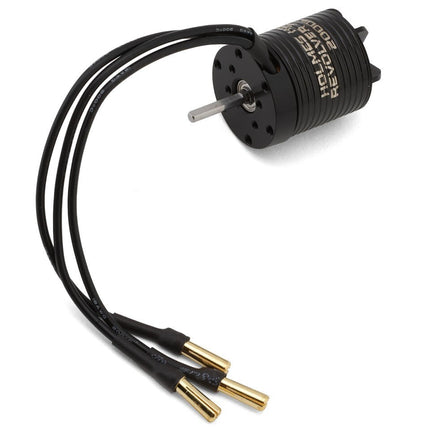

The Holmes Hobbies Revolver V2 380 Sensorless Brushless Motor (2000kV) is engineered for rock crawlers who demand the highest level of performance from their rigs. With extraordinary rpm lock and anti-stall characteristics, this motor offers unmatched torque-dense driving sensation. Whether you're scaling the steepest terrains or tackling technical courses, the buttery smooth startup and exceptional drag brake of this motor will give you the control you need. Designed for Associated CR12, ECX Barrage 1/12 vehicles, and custom scale rigs that require a minimal motor size, the Revolver V2 380 fits most 1/18 to lightweight 1/10 RC rock crawlers. Its compact and lightweight design, combined with Holmes Hobbies' specially engineered magnetics and housing, ensures high torque and smooth operation without adding unnecessary weight.
Features:
- Great upgrade for 1/18 to lightweight 1/10 rock crawlers
- Extraordinary rpm lock and anti-stall characteristics
- Unmatched torque-dense driving sensation
- Buttery smooth startup
- Exceptional drag brake and static hold
- Compact and lightweight design
Specifications:
-
Type: Brushless DC Outrunner
-
Size: 380
-
kV Rating: 2000kV
-
Input Voltage: 2-4S (7.4-14.8V) LiPo
-
Pole: 14
-
Slot: 12
-
Diameter: 1.18in (30mm)
-
Length (Without shaft and collar): 1.53in (39mm)
-
Shaft Diameter: 0.125in (3.175mm)
-
Shaft Length: 0.66in (17mm)
-
Mounting Bolt Patterns: 540 standard (M3), 280 and 380 standard (M2.5)
-
Weight: 91g (3.2oz)
Includes:
- (1) Holmes Hobbies Revolver V2 380 Sensorless Brushless Motor (2000kV)
