Description
ESC Overview:
Holmes Hobbies CrawlMaster ESC (Electronic Speed Controller). The CrawlMaster Mini ESC is designed to fulfill the needs of comp RC Rock Crawlers looking for a small, yet powerful and versatile ESC! It harnesses the power of 32 bit technology to offer the smooth, quiet, and torque-dense driving you desire in an extra small package! The ESC comes pre-soldered and ready to plug and go! It is conformal coated for water resistance, but Holmes Hobbies recommends extra coating with CowRC's Cow-Formal coat (CPP-C46011344 - Sold Separately) if you plan to submerge the ESC.
Features:
- 32 bit technology
- Exclusive Sinewave Startup (like FOC) but open system and compatible with all motors
- Silent operation with most motors, inaudible switching frequency
- Intelligent RPM lock at low speed for unmatched control when it matters most
- Regular throttle above low speed operation for torque control and less broken parts at speed
- Overcurrent, temperature, stalled rotor, and throttle loss protection
- Automatic cell detection and low voltage protection for LiPo battery
- Ultra smooth throttle and strongest drag brake out of the box
Specifications:
-
Input Voltage: 2-4S lipo (20V max)
-
Internal BEC: 3A - 7.4V
-
Length: 39mm
-
Width: 26mm
-
Height: 11m
-
Weight: 39g
-
Connector Type: XT60
Includes:

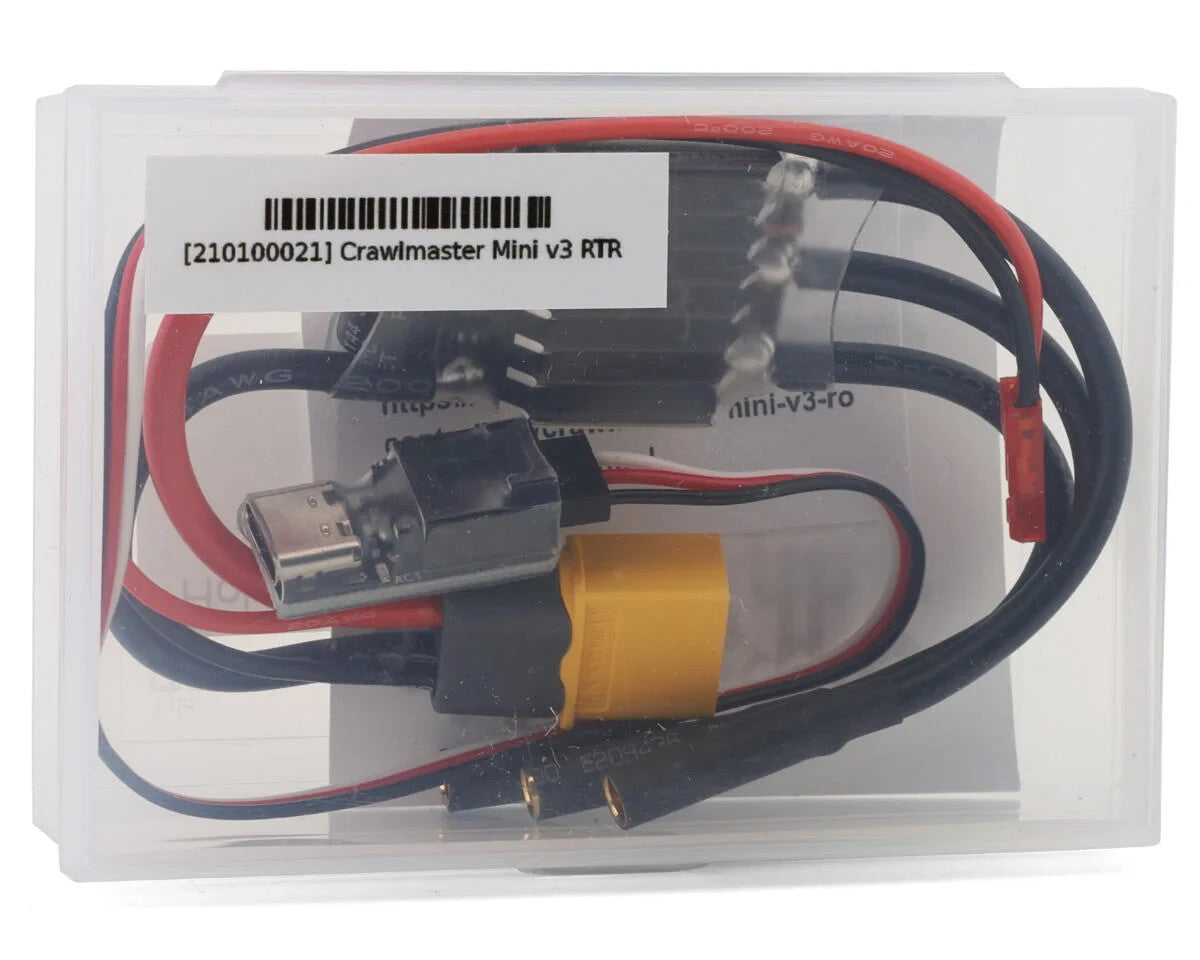

- (1) CrawlMaster Mini V3 Rock Crawler Brushless ESC
- (1) USB programmer
- (1) Manual
Recommended Use:
- 1/10th and smaller Single speed Trail, Scale, and Rock Crawlers such as TRX4 Sport, SCX10, Element Enduro, etc.
- 8lb limit, subject to gearing, driving style, terrain, etc.
- 1800kV motor limit for 4S use
- NOT recommended for two-speed vehicles, rock racers, tow rigs, and other high load installations
