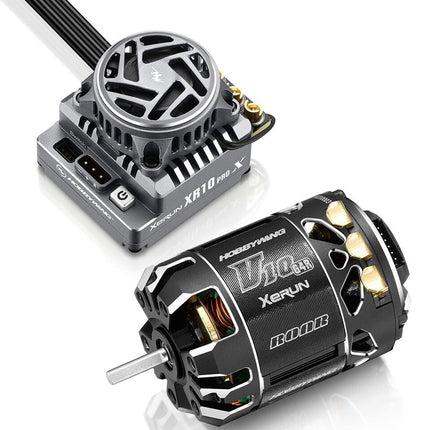

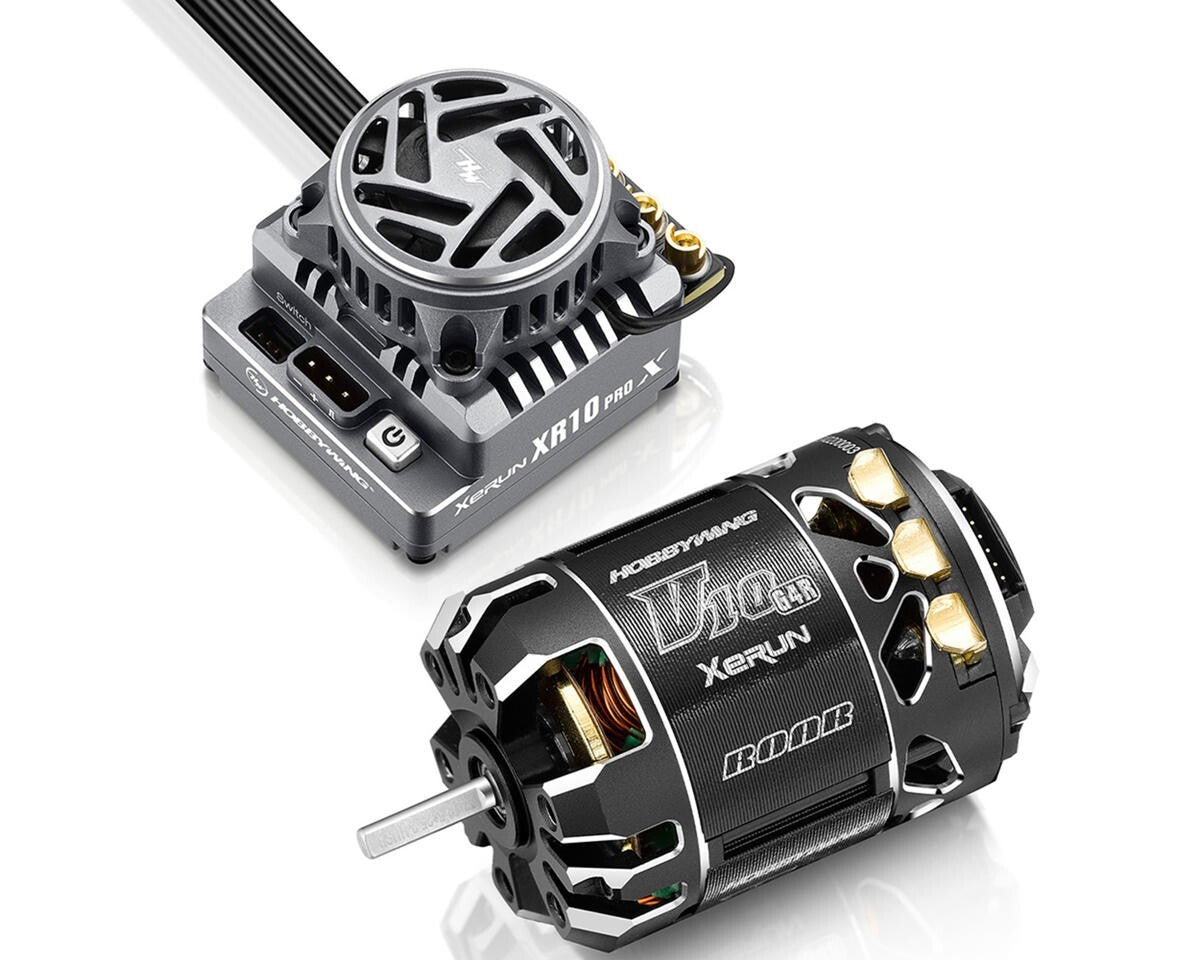

ESC
| Suggested Application |
1/10 Off-Road Stock, F1, Drifting, Rally |
| Motor Type |
Brushless - Sensored/Sensorless |
| Input Voltage |
2S LiPo (Only) |
| Continuous Current |
160A |
| Peak Current |
1200A |
| Dimensions (LxWxH) |
1.38x1.32x1.19in (35x33.6x30.3mm) |
| Weight |
3.58oz (101.5g) |
| Motor Limits |
540-Size 3650 Motor |
| BEC Voltage |
5-7.4V |
| BEC Continuous Current |
5A |
| BEC Peak Current |
- |
| Motor Connector |
Solder |
| Battery Connector |
Solder |
| Programmable |
Yes, with OTA or LCD Program Box Pro* |
|
Motor
| Suggested Application |
1/10 Stock Racing |
| Size |
4100kV |
| Type |
Brushless - Sensored |
| Input Voltage |
1-2S LiPo |
| No Load Current |
5.4A |
| Poles |
2 |
| Watts |
297W |
| Connector |
Solder |
| Length |
2.02in (51.3mm) |
| Diameter |
1.41in (35.8mm) |
| Shaft Length |
0.55in (13.9mm) |
| Shaft Diameter |
3.18in (0.13mm) |
| Weight |
5.57oz (158g) |
|
*Tech Note: The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.
**Tech Note: The G3X ESC is not equipped with Reverse Polarity Protection. Reverse connection of the battery will damage the capacitor and the ESC. Please refer to the owner's manual to ensure proper connections.
