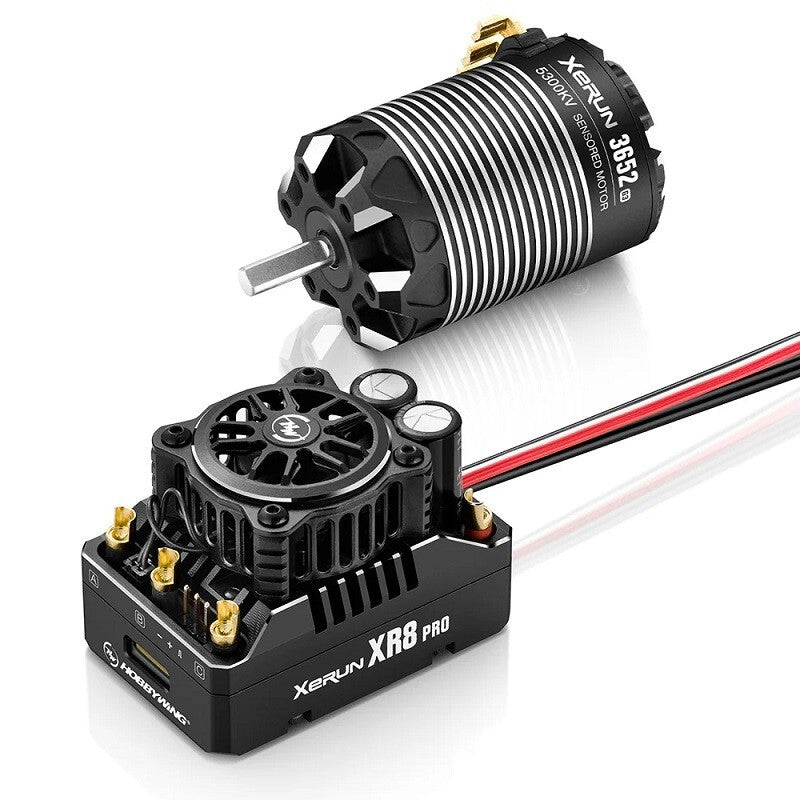

HOBBYWING 38020438 XeRun XR8 Pro G3 ESC and 3652 SD 5300KV G3Sensored Brushless Motor Combo
Get ready to dominate the track with the Hobbywing XeRun XR8 Pro G3 Brushless ESC & Motor Combo—engineered for ultimate power, precision, and durability, this cutting-edge system brings smart technology and unmatched performance to your 1/10 and 1/8 SCT racing experience.
FEATURES:
- Smart Freewheeling technology for higher efficiency and lower temperatures
- Supports up to 48 degrees of Boost and Turbo Timing for maximum performance
- Dual brake mode with disc brake-like control for precise braking
- 32 adjustable parameters for fine-tuning performance
- Three pre-configured racing profiles for quick setup
- Built-in reverse polarity protection for added safety
- Capacitor thermal protection prevents overload damage
- IP5X dustproof rating for durability in harsh environments
- Intelligent frameless fan with noise reduction and power-saving functions
- Supports firmware upgrades and real-time data logging via the HW LINK app
SPECIFICATIONS:
- ESC:
- Motor Type: Brushless - Sensored/Sensorless
- Input Voltage: 2-4S Lipo
- Continuous Current: 200A
- Peak Current: 1080A
- Dimensions (LxWxH): 2.15x1.44x1.52in (54.8x36.8x38.8mm)
- Weight: 3.62oz (102.8g)
- Recommended Motor Size: < 4000kV 3S Lipo / < 3000kV 4S Lipo
- BEC Voltage: 6-7.4V
- BEC Continuous Current: 6A
- Motor Connector: Solder
- Battery Connector: Solder
- Programmable: Yes, with OTA or LCD Program Box Pro*
- MOTOR:
- Size: (5300kV)
- Type: Brushless - Sensored
- Input Voltage: 2S
- No Load Current: 7.5A
- Poles: 4
- Connector: Solder
- Length: 2.049in (53mm)
- Diameter: 1.44in (36.6mm)
- Shaft Length: 0.196in (5mm)
- Shaft Diameter: 0.59in (15mm)
- Weight: 6.84oz (194g)
INCLUDES:
- (1) XR8 Pro G3 Brushless Sensored ESC
- (1) 3652SD Sensored Brushless Motor (5300kV)
- Product Manual
*Note: The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.
