Description
ESC Overview:

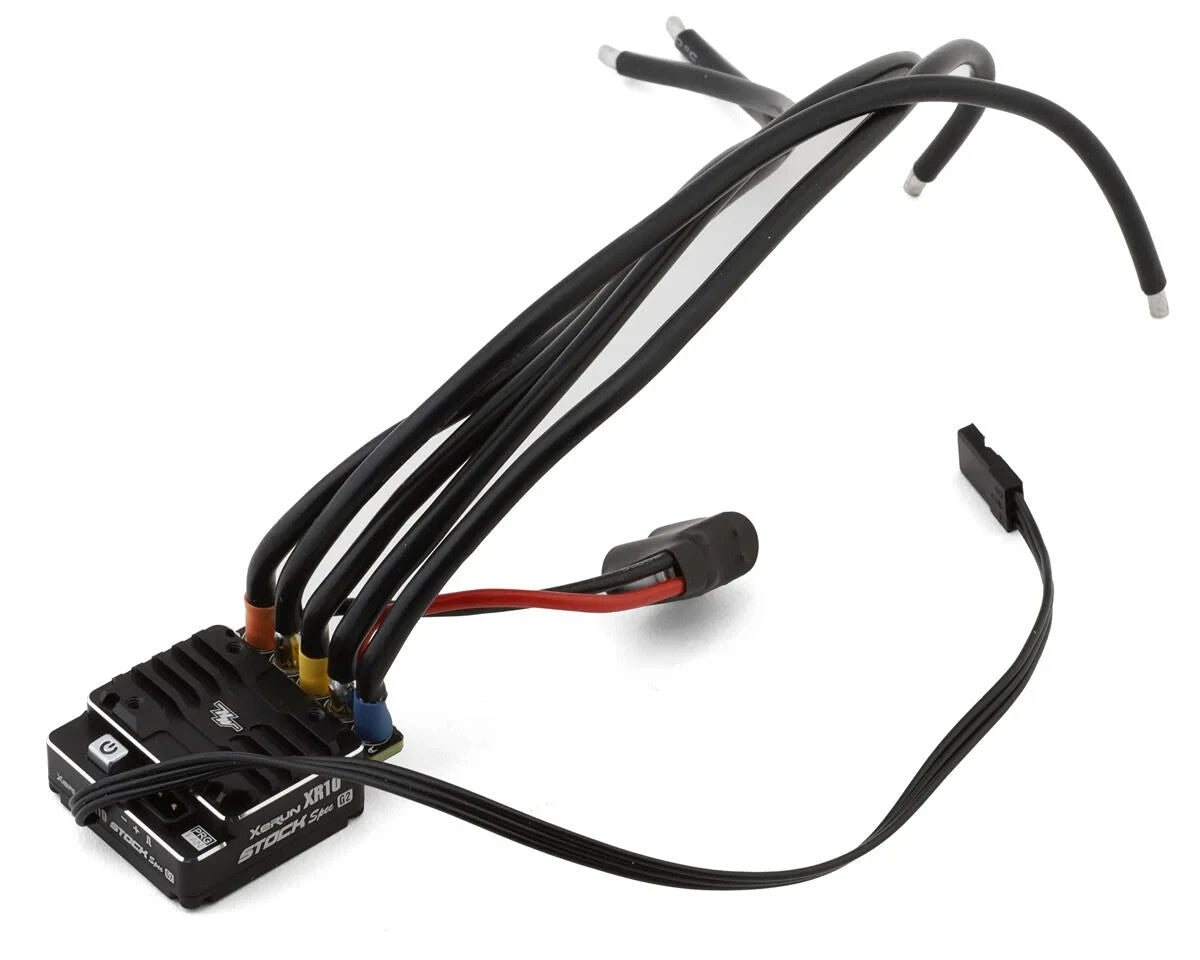

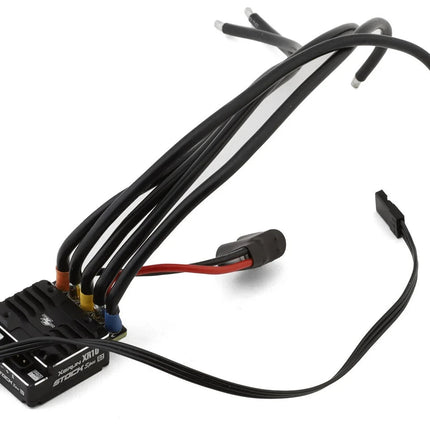

Hobbywing Xerun XR10 Stock Spec G2 1/10 Sensored Brushless ESC. Designed specially for 1/10 Touring Car and Buggy Stock Class Racing and 1/10 Drift cars, this Xerun XR10 Stock Spec G2 is loaded with updates and improvements to provide racers and drifters with the ultimate performance and reliability to achieve their full potential!
Features increased maximum current rating by 20 amps, significantly lower temps under the same load, a smaller footprint with a 14.3% Lower center of gravity design, adjustable multi-level throttle and brake curve, upgraded from 3A to 5A adjustable 6-7.4V built-in BEC and independently adjustable drag brake frequency! In addition, the Xerun XR10 Stock Spec G2 is equipped with Dual firmware blinky/stock and non-blinky/boost modes to suit different competition requirements! In terms of Data logging, this XR10 Stock Spec G2 is capable of recording the maximum ESC/motor temperature, motor RPM, and others all in real-time! Get the Xerun XR10 Stock Spec G2 ESC to maximize the performance and reliability of your kit!
Features:
- Increased maximum current rating by 20 amps
- Significantly lower temps under the same load
- Small footprint with 14.3% Lower center of gravity design
- Independently adjustable drag brake frequency
- Adjustable multi-level throttle and brake curve
- Dual firmware blinky/stock and non-blinky/boost to suit different competition requirements
- Variable frequency regulation of PWM & brake frequencies
- Built-in polarity protection
- Data logging for recording the maximum ESC/motor temperature, motor RPM, and others in real time
- Upgraded from 3A to 5A adjustable 6-7.4V built-in BEC
Specifications:
-
Type: Sensored Brushless
-
Applications: 1/10 TC and Buggy Stock Class Racing and 1/10 Drift cars
-
Cont./Peak Current: 100A/500A
-
Input Voltage: 2S LiPo (Only)
-
BEC Output: (6-7.4V) 5A Adjustable
-
Motor Limit: (>10.5T) With 2S LiPo
-
Dimensions: 34.8x30x13.8mm
-
Weight: 63g

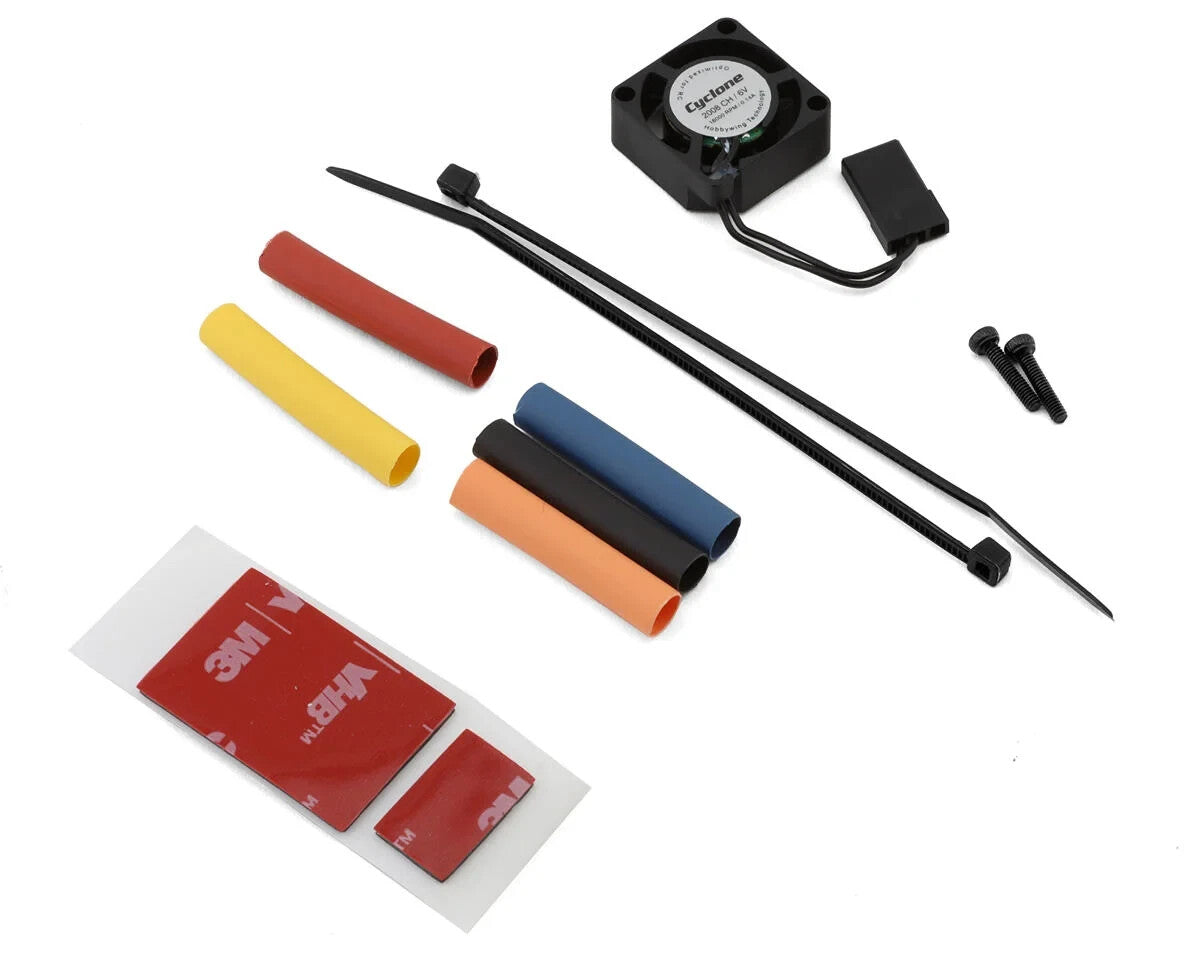

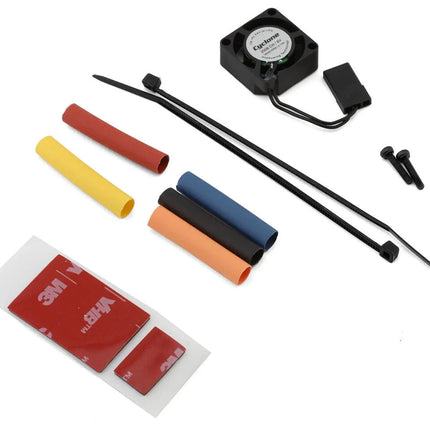

Includes:
- (1) Xerun XR10 Stock Spec G2 Sensored Brushless ESC
- (1) Cooling Fan
- Heat Shrink Tubes, zip-ties and double-sided tape
- Manual
