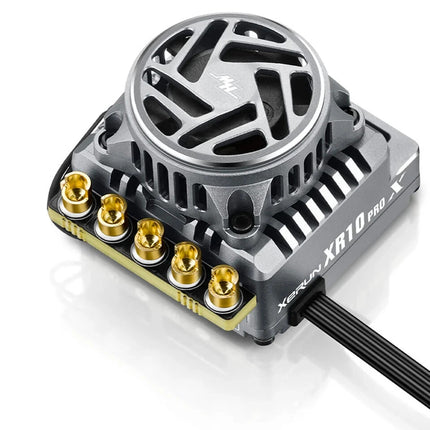

High-Performance Stock Racing Electronic Speed Controller
The Hobbywing Xerun XR10 Pro G3X Stock Spec 1/10 160A Sensored Brushless ESC is engineered specifically for 1/10th Stock class racing, providing racers with precise control and optimized performance. Designed with a unique Hobbywing trade secret, the ESC handles aggressive current while minimizing heat generation, ensuring maximum efficiency and power delivery. With advanced customization features, built-in protections, and data recording**, it offers racers the reliability and competitive edge needed to perform at their best.
About the XR10 Pro G3X
Hobbywing's Trade Secret Technology
The XR10 Pro G3X features Hobbywing's trade secret technology, which is designed to handle aggressive current without generating excess heat. This key innovation reduces electrical resistance, allowing the ESC to maximize power output and efficiency, making it ideal for stock class racing where every bit of performance matters.
Customizable Racing Profiles
The ESC includes three selectable profiles tailored to different racing conditions, allowing users to fine-tune settings for optimal control. These profiles can be easily renamed and customized based on track and motor setups. The ability to save and modify profiles ensures racers can adapt to any situation quickly.
Advanced Power Control & Protections
With variable frequency regulation of both PWM and brake frequencies, the XR10 Pro G3X allows for precise control over driving and braking forces. The ESC also includes multiple protection systems, such as low-voltage cutoff, thermal protection for both the motor and ESC, and fail-safe measures in case of throttle signal loss, ensuring durability and safety on the track.
Features:
- 160A continuous current
- Hobbywing's trade secret technology for reduced heat generation
- Three customizable racing profiles
- Variable frequency PWM and brake control
- Built-in data recording module
- Internal and external switch options
- Softening function for smoother power delivery
- Disc Brake mode for enhanced braking
- Low-voltage cutoff protection
- ESC and motor thermal protection
Includes:
- (1) Xerun XR10 Pro G3X Stock Spec 1/10 160A Sensored Brushless ESC
- (1) Cooling Fan
- Factory Decals & Accessories
- Product Manual
Specifications:
| Suggested Application |
1/10 Off-Road Stock, F1, Drifting, Rally |
| Motor Type |
Brushless - Sensored/Sensorless |
| Input Voltage |
2S LiPo (Only) |
| Continuous Current |
160A |
| Peak Current |
1200A |
| Dimensions (LxWxH) |
1.38x1.32x1.19in (35x33.6x30.3mm) |
| Weight |
3.58oz (101.5g) |
| Motor Limits |
540-Size 3650 Motor |
| BEC Voltage |
5-7.4V |
| BEC Continuous Current |
5A |
| BEC Peak Current |
- |
| Motor Connector |
Solder |
| Battery Connector |
Solder |
| Programmable |
Yes, with OTA or LCD Program Box Pro* |
*Tech Note: The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.
**Tech Note: The G3X ESC is not equipped with Reverse Polarity Protection. Reverse connection of the battery will damage the capacitor and the ESC. Please refer to the owner's manual to ensure proper connections.
