Advanced Modified Racing Electronic Speed Controller

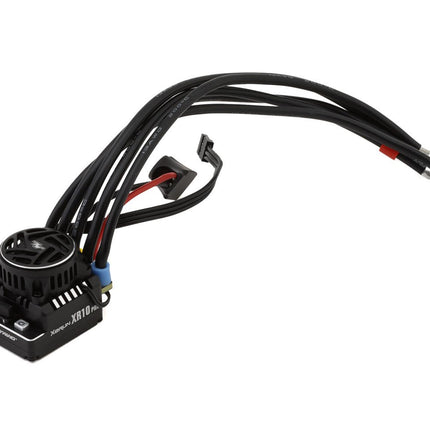

The Hobbywing Xerun XR10 Pro G3 1/10 160A Sensored Brushless ESC is tailored for competitive 1/10 modified class racing. This ESC provides optimal performance, offering racers precise control, improved power delivery, and advanced customization options to adapt to various track conditions. With features like Reverse Polarity Protection*, customizable profiles, and built-in data logging, this ESC gives racers a competitive edge while ensuring long-term reliability and efficiency.
About the XR10 Pro G3
Customizable Racing Profiles
The Xerun XR10 Pro G3 features three selectable profiles, allowing users to tailor their ESC settings to suit different racing conditions. These profiles can be renamed and saved, offering flexibility for on-road or off-road tracks. Racers can personalize these settings to match motor specifications, improving adaptability on the track.
Advanced Power Delivery & Control
Equipped with variable frequency regulation for both PWM and braking, this ESC provides unparalleled control over motor power and braking force. Additionally, the patented softening function improves power delivery tuning, offering smoother and more efficient driving. The innovative Disc Brake mode ensures stronger, smoother braking performance, giving drivers a crucial advantage.
Durable Frameless Fan
The Xerun XR10 Pro G3 comes equipped with a durable frameless fan, designed with specialized materials that increase the rigidity of the blades. This design helps the fan resist damage from small debris like stones and sand, which often affect traditional fans, ensuring greater durability and reliability for the ESC. Additionally, the fan features a smart start-stop function, allowing it to remain off when cooling is unnecessary and automatically activate when the ESC's temperature rises. This intelligent system keeps the ESC within its optimal operating temperature range, reducing both power consumption and noise when cooling is not needed. The smart start-stop function can be disabled through the parameter settings.
Features:
- 160A continuous current
- Patented Reverse Polarity Protection
- Three customizable racing profiles
- Variable frequency PWM and brake control
- Built-in data logging
- Internal and external switch options
- Softening power delivery function
- Disc Brake mode for enhanced braking
- ESC and motor thermal protection
- Designed for long-term durability and reliability
Includes:
- (1) Xerun XR10 Pro G3 1/10 160A Sensored Brushless ESC
- (1) Cooling Fan
- Factory Decals & Accessories
- Product Manual
Specifications:
| Suggested Application |
1/10 Touring Cars & Buggies |
| Motor Type |
Brushless - Sensored/Sensorless |
| Input Voltage |
2S LiPo (Only) |
| Continuous Current |
160A |
| Peak Current |
1200A |
| Dimensions (LxWxH) |
1.38x1.32x1.19in (35x33.6x30.3mm) |
| Weight |
3.28oz (93g) |
| Motor Limits |
|
| Touring Car |
>4.5T |
| Buggy |
>5.5T |
| BEC Voltage |
5-7.4V |
| BEC Continuous Current |
5A |
| BEC Peak Current |
- |
| Motor Connector |
Solder |
| Battery Connector |
Solder |
| Programmable |
Yes, with OTA or LCD Program Box Pro** |
*Tech Note: While the ESC provides Reverse Polarity Protection, the standard capacitor in the ESC does not offer reverse connection protection. Reverse connection of the battery will damage the capacitor.
**Tech Note: The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.
