Description
TECH NOTE: The outer sleeve of the product box may not accurately reflect the product within.

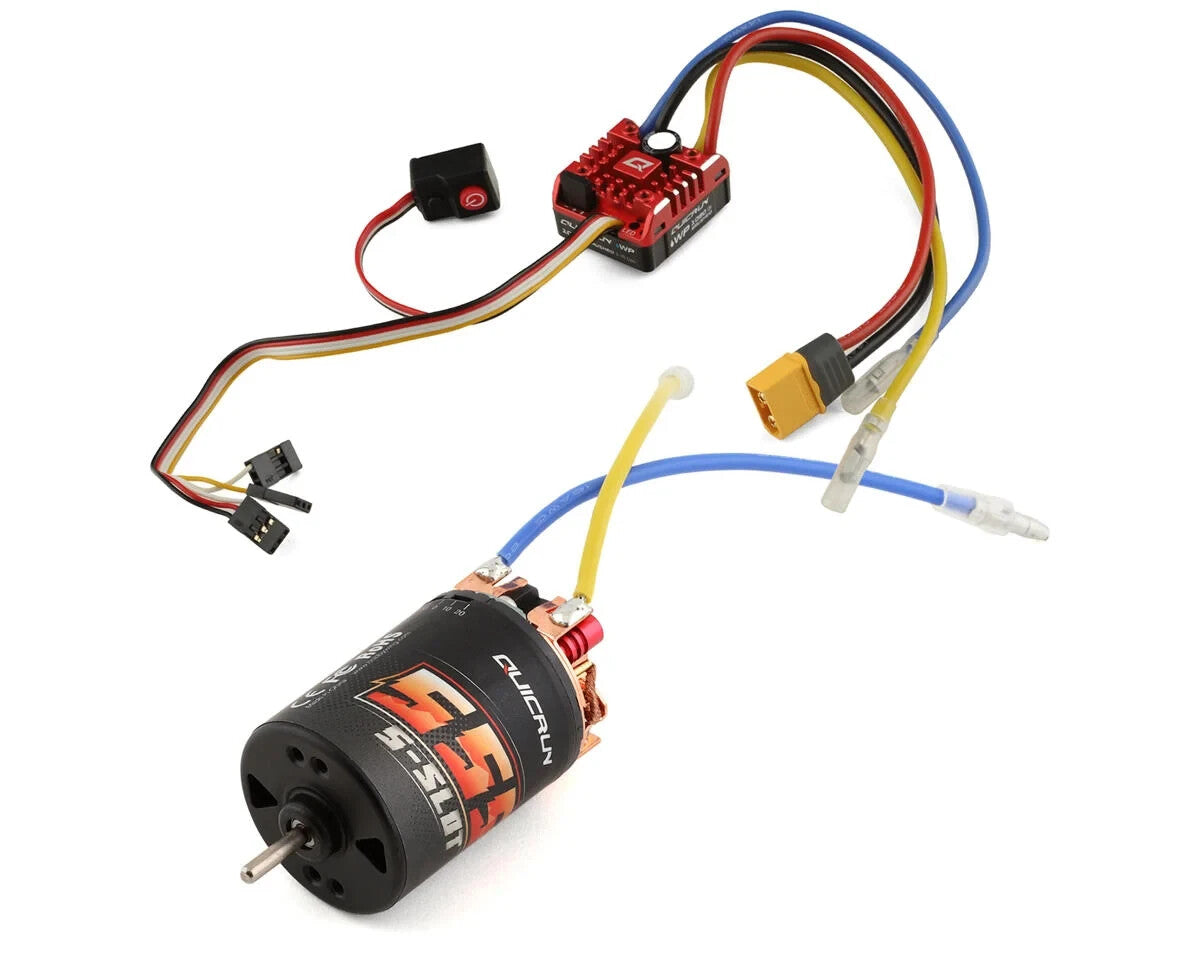

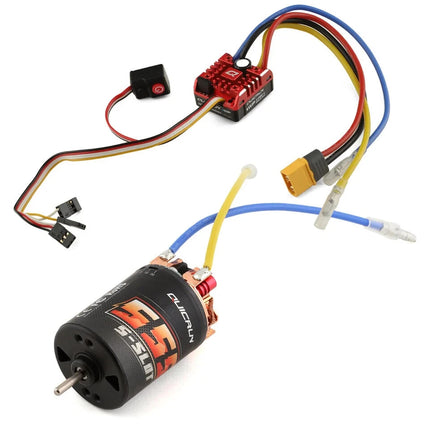

The Hobbywing QuicRun Waterproof 1080 G2 Brushed Crawling ESC is designed to bring top levels of performance to the Crawler ESC category. This ESC is extremely compact and features many updates! The most impressive is the "Real Car Mode". Using an idle channel on your transmitter allows you to pull the throttle and switch between forward or reverse with pushing the throttle applying brake. This will bring an added level of realism to your RC adventure. This epic combo includes the Hobbywing QuicRun 555 Brushed Motor for out of the box performance and efficiency.
Features:
- Water-proof and dust-proof, suitable for all weather races.
- Small size, with built-in capacitor module.
- 100% Waterproof
- Adjust drag brake in real time
- Optimized software allows for cooler operating temperature when compared to prior 1080 ESCs
- Aluminum case for great heat dissipation
- Enhanced BEC to meet the needs of more modern servos
- 15 Adjustable parameter items to suite your driving needs
Specifications:
- ESC
-
Suggested Application: 1/10 Rock Crawlers
-
Motor Type: Brushed
-
Input Voltage: 2-3S LiPo
- Current:
-
Continuous: 80A
-
Burst Current: 400A
- BEC Output:
-
Voltage: 6/7.4/8.4V
-
Continuous Current: 4A
-
Peak Current: 6A
- Connectors:
-
Motor: 4.0mm Bullets
-
Battery: XT60
- Wire Dimensions:
-
Motor: 14AWG (200mm long)
-
Battery: 14AWG (200mm long)
-
Dimensions (LxWxH): 1.46x1.25x0.72" (37.2x31.9x18.4mm)
-
Weight: 2.47oz (70.2g)
-
Programming: Onboard USB / Remote Programmer

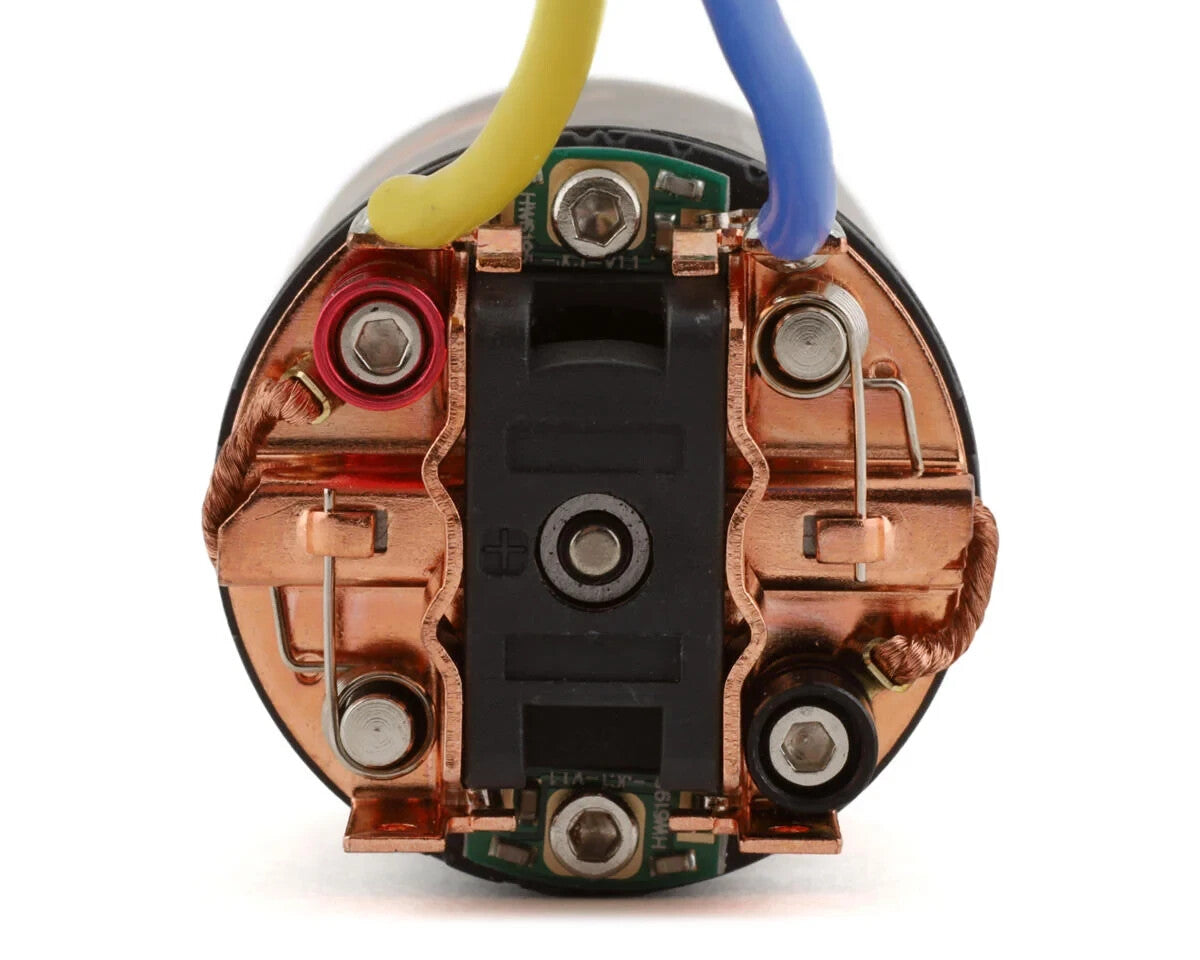

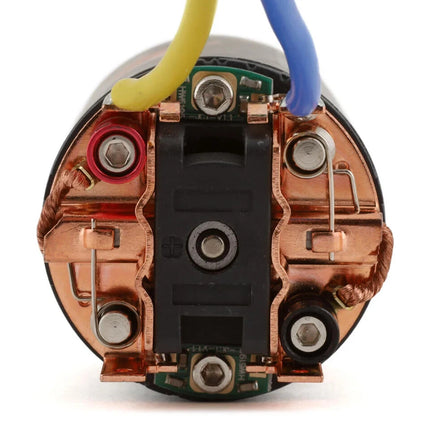

- Motor
-
Turn: 13.0T
-
Input Voltage: 2S LiPo
-
Brushed/Brushless: Brushed
-
Length: 2.30in (58.5mm)
-
Diameter: 1.41in (36mm)
-
Shaft Diameter: 0.125in (3.175mm)
-
Weight: 6.80oz (193g)
Includes:
- (1) 1080 G2 ESC
- (1) QuicRun 555 Brushed Motor
- (1) Manual
