- The integrated design of the ESC and the motor greatly reduces the overall volume and weight, and makes the layout and wiring of car frame simpler and more convenient.
- The FOC driving mode provides excellent low speed torque and smooth running at extreme low speed, which makes this superior to the common sensored brushless power systems.
- Thanks to the sine wave driving mode, the whole system has high efficiency, low heat, and effectively extends the runtime. Additionally the motor runs more quietly and smoother.
- IP67 waterproofing gives this system excellent waterproof and dustproof performance. Under various weather conditions, the whole system can easily deal with environments containing silt, ice, snow, and water.
- Intelligent torque output and speed closed-loop control, experience the cruise control and steep slope slow descent function.
- Active drag brake force adjustment, providing super strong parking capacity on slope.
- Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.
- Supports LED program box to set ESC parameters (sold separately).
NOTE: To access ESC adjustments the Hobbywing LED programming card (HWA30501003) is required (sold separately).
Specifications:
Application: 1/10 Rock Crawler/Trail Truck
Waterproof: Yes (IP67)
Cont./Peak Current: 40A
Voltage Input: 2-3S Lipo/6-9 Cell NiMH
Motor KV: 1200KV
Diameter: 36mm
Length: 58.1mm
Shaft Diameter: 3.175mm
Shaft Length: 16.5mm
Motor Poles: 4
Input Wires: 14AWG (200mm)
Input Connectors: XT60
ESC Programing: LED Program Box
Program Port: Independent programming interface(switch position)
Size: 36X58.1mm
Weight: 201g (including wires & connectors)
Includes:

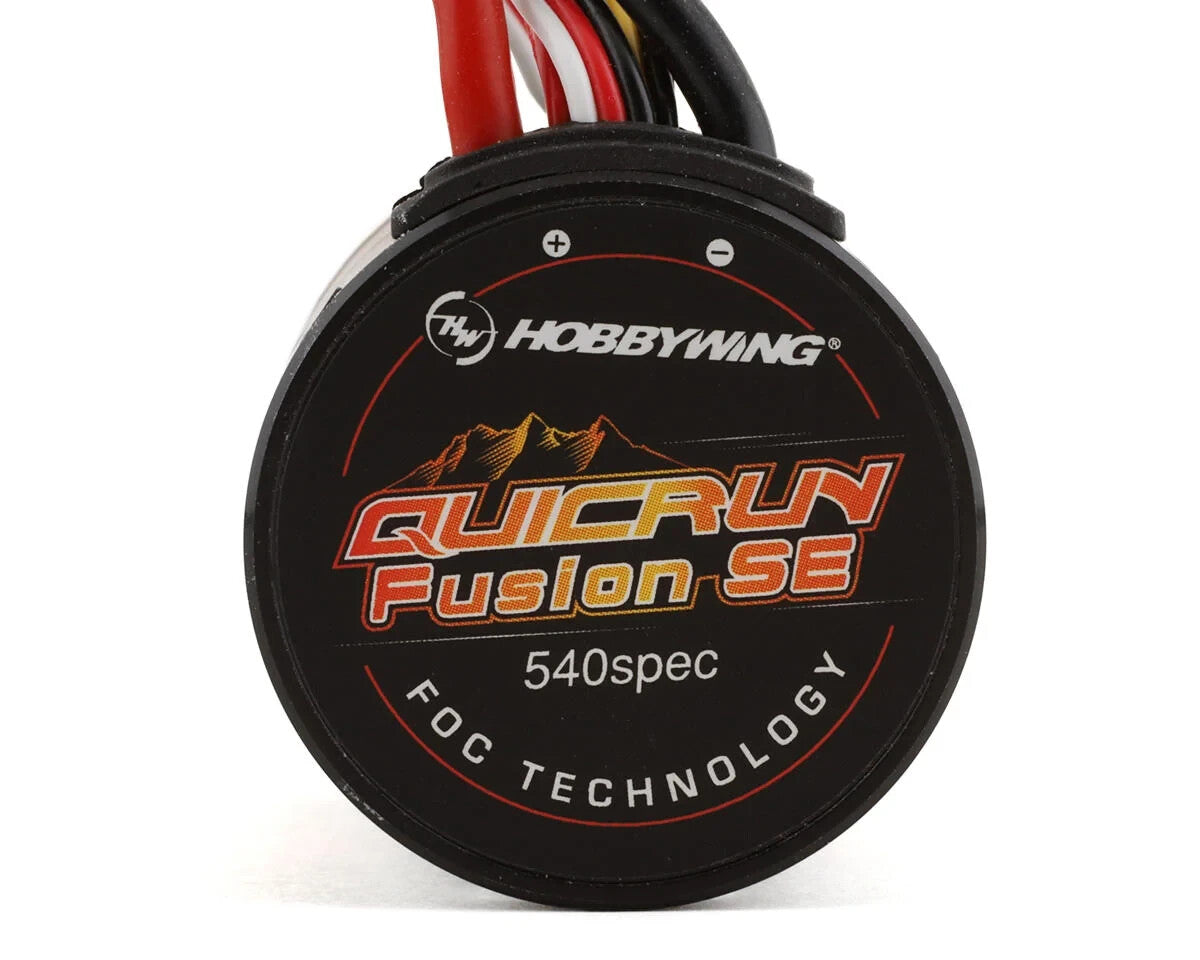

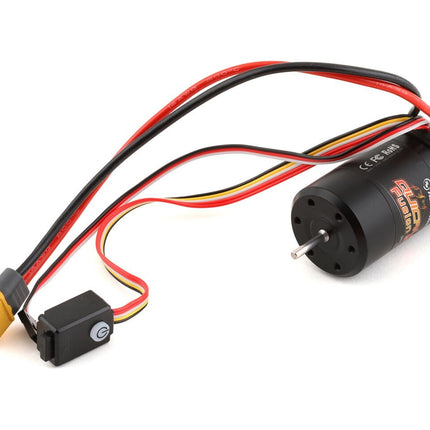

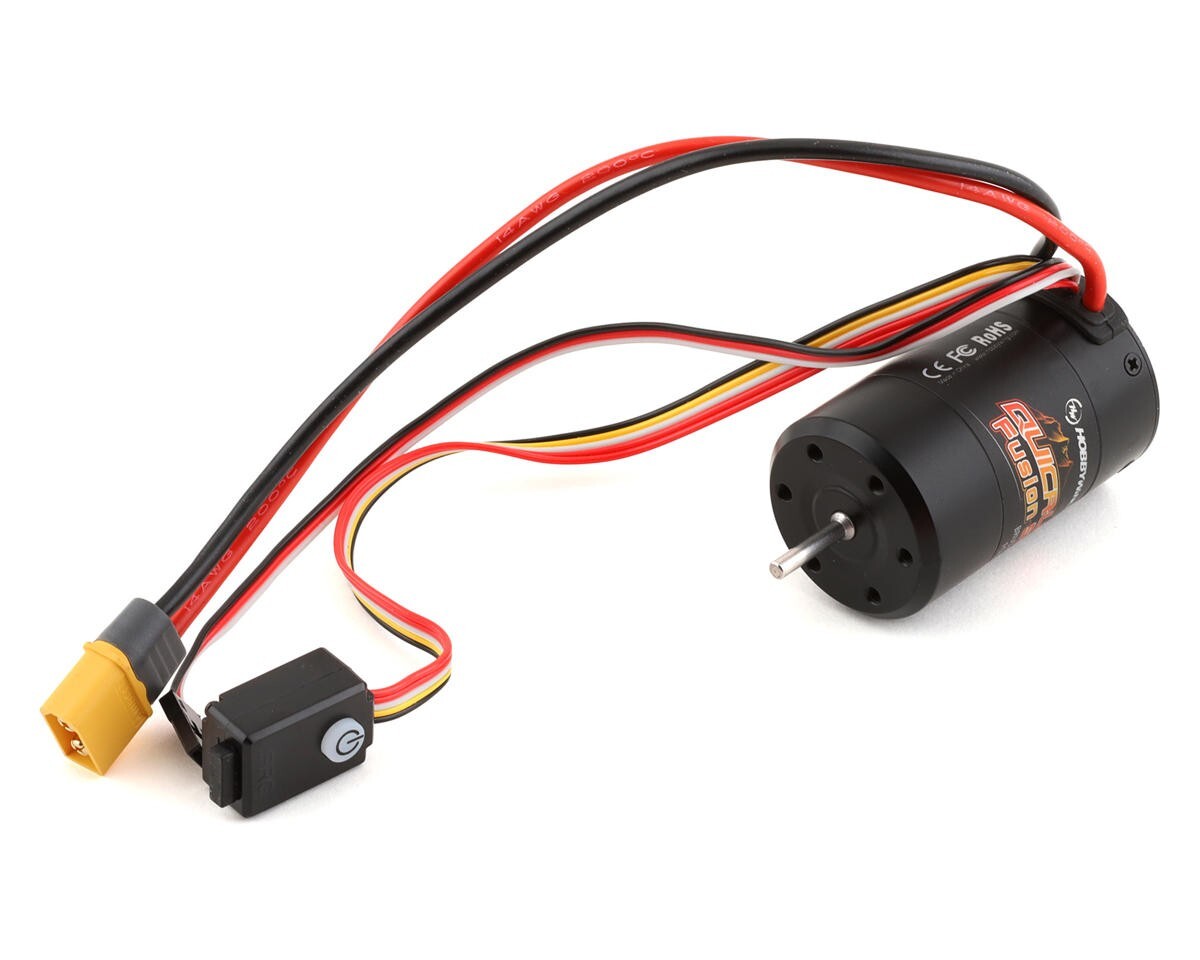

- (1) QuicRun Fusion SE FOC 2-in-1 Crawler Brushless ESC & Motor System (1200Kv) (540 Spec)
