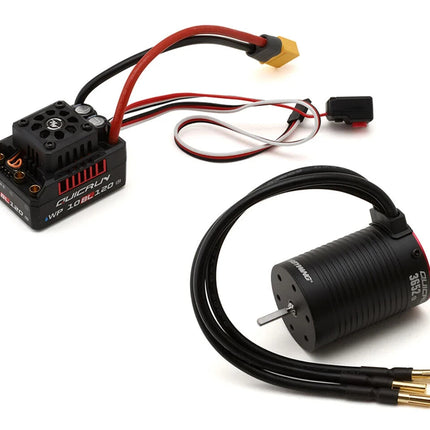

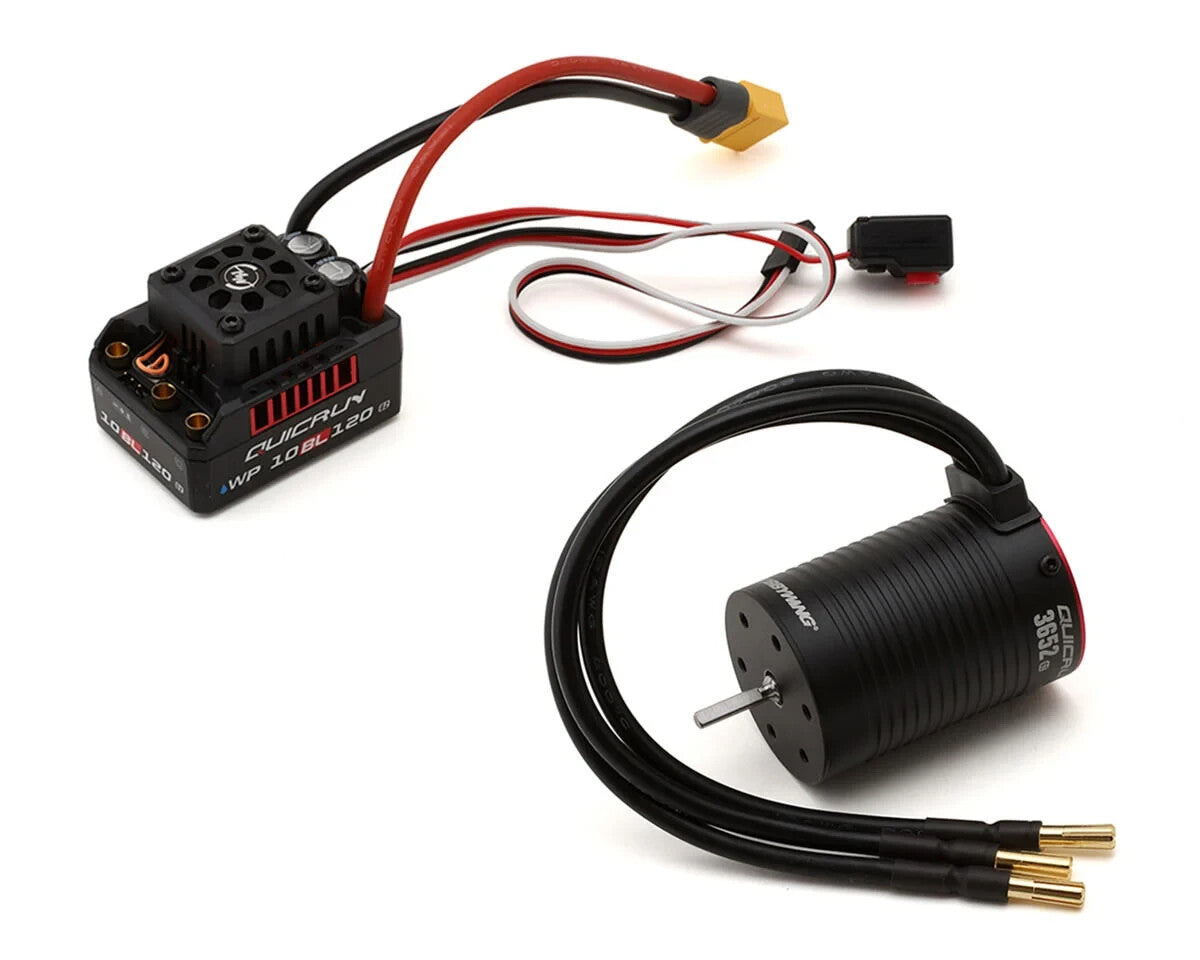

Hobbywing Quicrun 10BL 120A ESC & Motor Combo
The Quicrun 10BL120 G2 Sensorless Brushless ESC and Motor Combo have been designed to deliver extreme power and reliability with a more efficient dust-proof motor and IP-67 waterproof rated ESC. The 10BL's built in capacitor improves on the brownout protection, efficiency, and thermal protection. This combo will be a great option for a wide range of RC models.
Features:
- G2 QuicRun 10BL120
- Intelligent freewheeling technology
- Extreme performance
- Powerful built-in BEC
- Efficient cooling system
- Capacitor Thermal Protection
- Built-in capacitor
- IP-67 waterproof Rating
G2 QuicRun 3660SL
- High efficiency for more power with lower temperatures!
- 4-pole rotor design for more torque with strong explosive force.
- Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.
- 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.
Specifications:
- ESC:
-
Scale: 1/10th
-
Brushed/Brushless: Brushless
-
Sensored/Sensorless: Sensorless
-
Waterproof: IP-67
- Current:
-
Continuous: 120A
-
Peak: 760A
-
Input Voltage: 2-4S LiPo
-
BEC Output: 6V/7.4V @ 5A
-
Output Connectors: 4.0mm Bullets
-
Dimensions: 2.07x1.56x1.50" (52.8x39.8x38.2mm)
-
Weight: 4.19oz (119g)
- Motor:
-
Input Voltage: 2S LiPo
-
KV: 5400kV
-
Pole: 4
-
Motor Diameter: 1.42" (36mm)
-
Motor Length: 2.05" (52mm)
-
Shaft Diameter: 0.13." (3.175mm)
-
Shaft Length: 0.59" (15mm)
-
Front Bearing size: D13*D5*T5
-
Rear Bearing size: D13*D5*T4
-
Weight: 224g
Includes:
- (1) QuicRun 10BL120 G2 1/10 Sensorless Brushless ESC
- (1) QuicRun 3652SL G2 Sensorless Brushless Motor (5400kV)
