Description
ESC Overview:

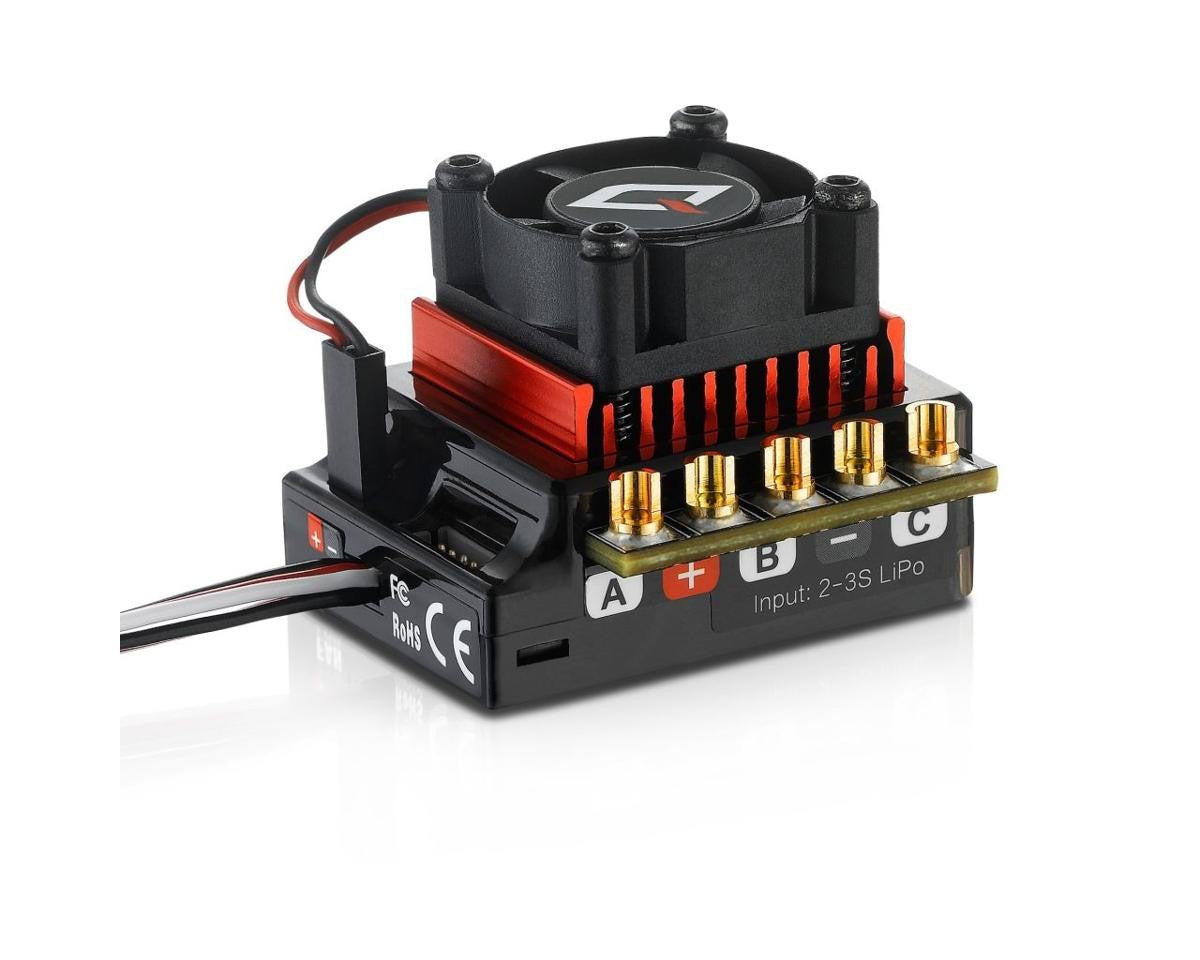

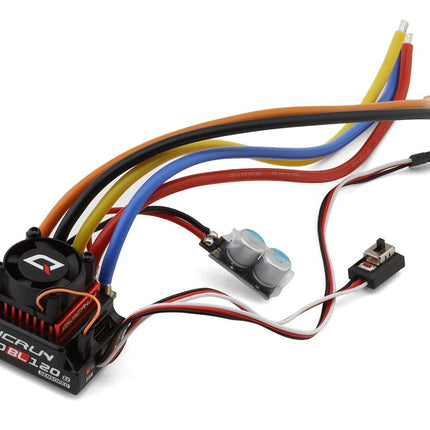

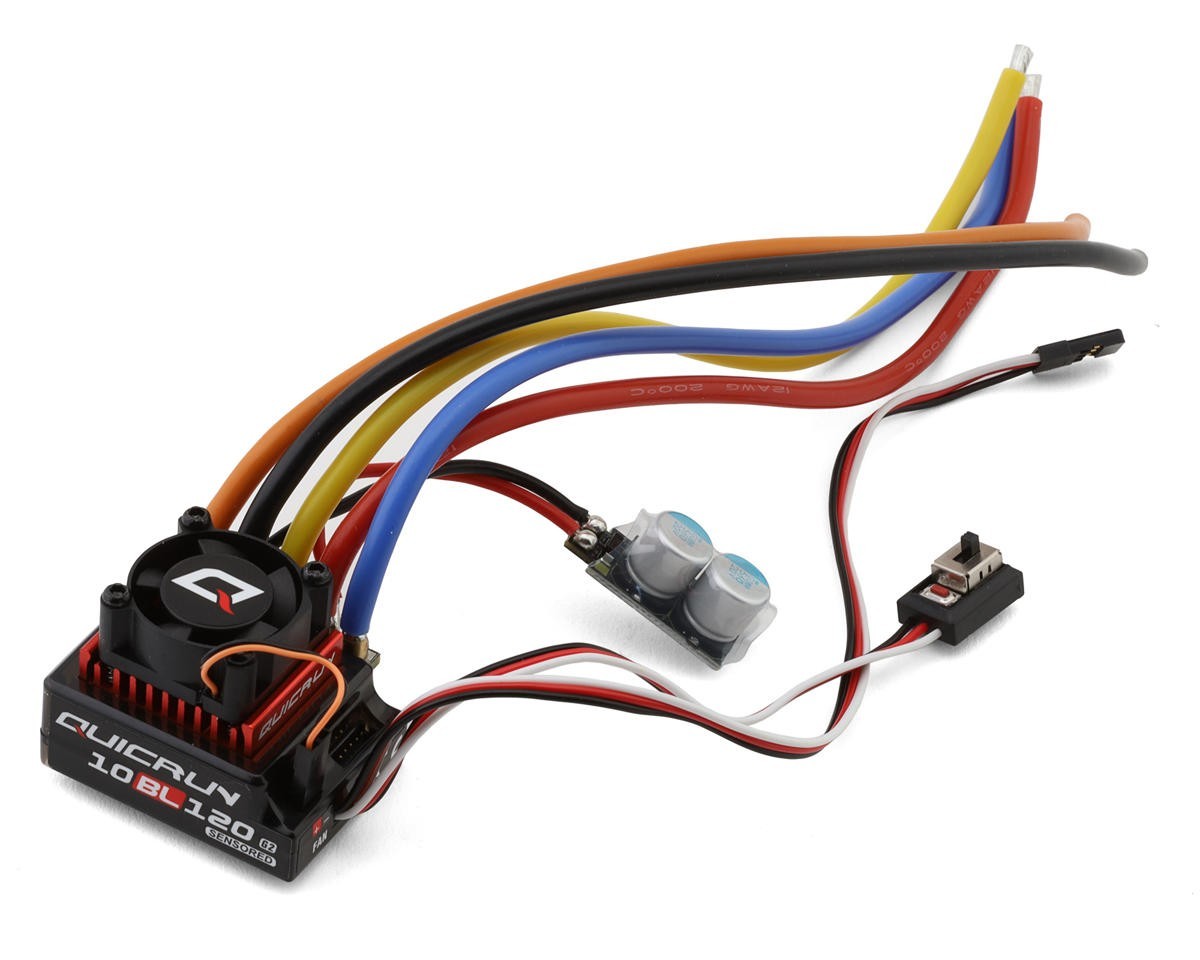

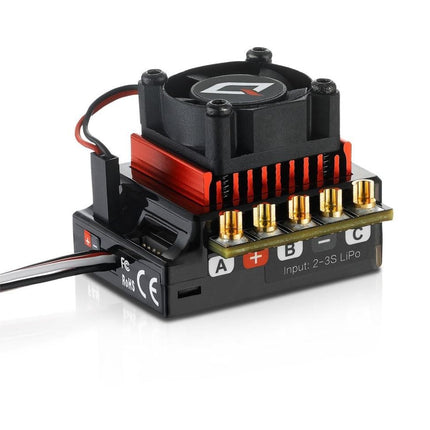

Hobbywing QuicRun 10BL120 G2 120A 1/10 Sensored Brushless ESC. Designed specially for 1/10 TC, Buggy and Drift cars, this High-performance QuicRun 10BL120 G2 ESC at a budget price is loaded with updates and improvements to provide you with the ultimate performance, durability and reliability!
Features a built-in polarity, overheat, throttle loss and overload protection, dual high capacity capacitors, up to 32 degrees adjustable Boost and Turbo timing, an adjustable CW/CCW motor rotation function and an upgraded from 3A to 5A switchable 6-7.4V built-in BEC! In addition, the QuicRun 10BL120 G2 120A can operate with sensored or Sensorless motors and is equipped with an aluminum heat sink to maximize heat dissipation and prevent the ESC from overheating! This updated QuicRun 10BL120 G2 120A ESC is the ultimate upgrade for your 1/10 TC, Buggy and Drift cars!
NOTE:
- This ESC is NOT designed for a racing applications.
- Boost & Turbo timing cannot be used with 3S LiPo batteries to prevent damage to the ESC.
Features:
- High performance at a budget price
- The perfect ESC for 1/10 TC, Buggy and Drift applications
- Built-in polarity, overheat, throttle loss and overload protection
- Up to 32 degrees adjustable Boost and Turbo timing
- Adjustable CW/CCW motor rotation
- Upgraded from 3A to 5A adjustable 6-7.4V built-in BEC
- Dual high capacity capacitors
- Can operate with sensored or Sensorless motors
- Aluminum heat sink to maximize heat dissipation
- Programmable with LCD box, LED box (purchase separately) and SET key
Specifications:
-
Type: Sensored Brushless
-
Applications: 1/10 TC, Buggy and Drift cars
-
Cont./Peak Current: 20A-760A
-
Input Voltage: 2-3S LiPo
-
BEC Output: (6-7.4V) 4A Adjustable
-
Motor Limit: 2S LiPo >4.5T / 3S LiPo >10.5T Motor
-
Dimensions(LxWxH): 44x36.8x32.3mm
-
Weight: 101.5g
Includes:
- (1) QuicRun 10BL120 G2 120A 1/10 Sensored Brushless ESC
- (1) Cooling Fan
- Heat Shrink Tubes, zip-ties and double-sided tape
- Manual
