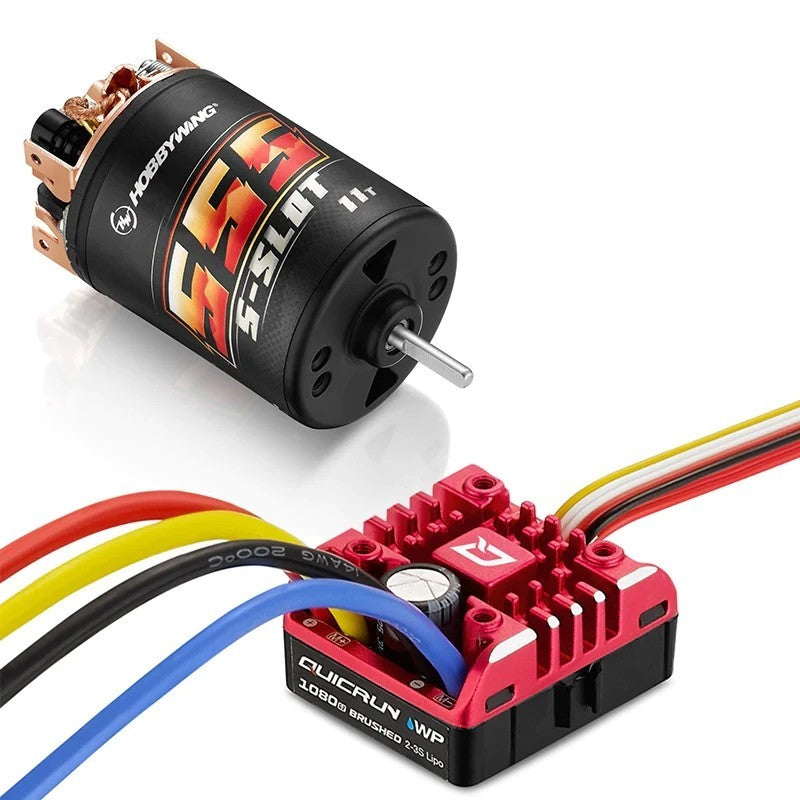

Hobbywing 38020351 QuicRun 1080 G2 ESC with Brushed 555, 11T Motor Combo HWI38020351

    Description

    Features:

    • Fully Water-proof and dust-proof, suitable for all-weather races.
    • Small in size, with a built-in capacitor module.
    • Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
    • In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
    • Real-Time Adjustment of Drag Braking Force.
    • 15 programmable parameter items
    • PWM Frequency: 1K/2K/4K/8K/16K Adjustable
    • Freewheeling (DEO) capability
    • Drag brake rate in 9 levels (adjustable)
    • Electronic switch
    • Aluminum case for great heat dissipation
    • Great current endurance capability.
    • Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
    • Automatic throttle range calibration, easy to use.
    • Multiple protections:
    • Over Voltage Protection
    • Low voltage cut-off protection for battery
    • Over-heating protection
    • Throttle signal loss protection, and much more

    ESC Specifications:

    • Brushed ESC: WP 1080 G2
    • p/n: 30120202
    • Waterproof: Yes
    • Dual Mode: No
    • Fwd Cont. / Peak Rev Cont. / Peak: 80A / 400A
    • Car Applicable: 1/10 Rock Crawler
    • Motor Limit: Brushed Motors 540/550 Series 2S LiPo or 5S NiMH, =10T or\RPM<3000@7.4V; 3S LiPo or 9S NiMH, =16T or RPM<2000@7.4V
    • Battery: 2-3S LiPo or 5-9S NiMH
    • BEC Output: 6V/7.4V/8.4V @ 4A (switch-mode)
    • PWM Frequency: Adjustable 1K/2K/4K/8K/16K
    • Wires: 14AWG-200mm w/ XT60 Connector
    • Size/ Weight: 37.2(L)* 31.9(W)*18.4(H) (without fan)
    • External Program Port: Separate Port Available
    • Programming: LED Program card
    • Weight*: 70.2g w/ wire and connectors

    Motor Specifications:

    • Model: QUICRUN Brushed 540
    • PN: 30404315
    • Slot: 5
    • Turns: 11T
    • (RPM@7.4V): 17000
    • Input Voltage: 10V
    • Diameter/ Length(mm): ɸ=36mm(1.42in) L=58.5mm(2.30in)
    • Shaft Diameter/ Length (mm): ɸ=3.175mm(0.125in) L=16.5mm(0.65in)
    • Applications: 1/10 Crawler / Short course truck / Monster truck
    • Weight: 193g
    Product form

    SKU: HWI38020351
    Barcode: 088718520133

    Free pickup in our shop(s)

    Be quick! Only 2 products left in stock!

    2 in stock Ships within 24hr of Purchase

    $59.99
