Description
What's in the box?

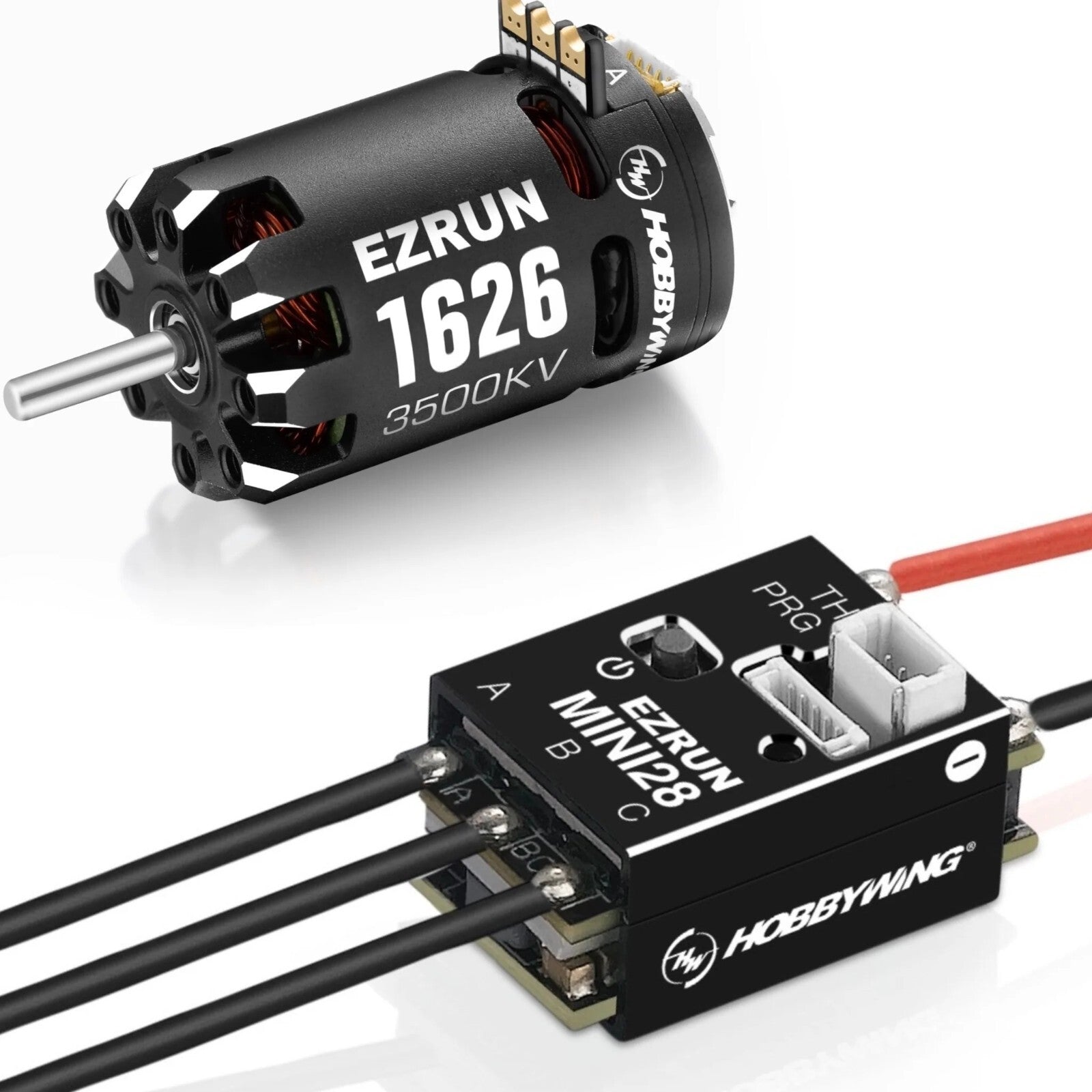

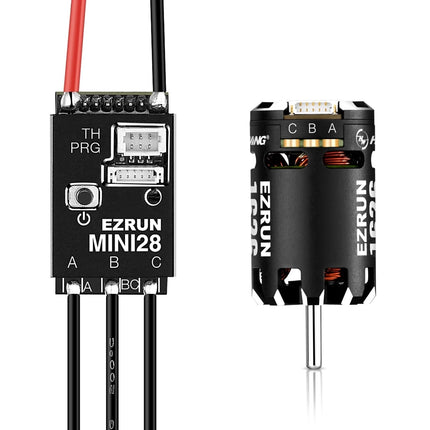

(1) EZRUN Mini28 ESC
(1) EZRUN 1626 Sensored Motor
(1) Supportive accessories (double side tape, etc)
Features:
- Improved top speed / Precision response / High efficiency with the cool operation
- When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
- Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and driveability
- Modular detachable structure, convenient for daily cleaning and maintenance.
ESC Specifications:
- Part number: 30101300
- Technology: Brushless Sensored
- Waterproof: No
- Cont./Peak Current: 30A/80A
- Input Voltage: 2S Lipo
- BEC Output: 6V/7.4V @Max 3.5A
- Wires & Connectors: Input Wires: 20AWG-55mm *
- Output Wires: 22AWG-80mm *
- Size & Weight: 22.7x14.2x11.8mm | 5g (without wires)
- Applications: Motor: 1626 Size Motors; Vehicle: 1/28th and 1/27th
- ESC Programming: LCD G2 Program Box, OTA Programmer, Throttle Wire
- Firmware Upgrade: Supported

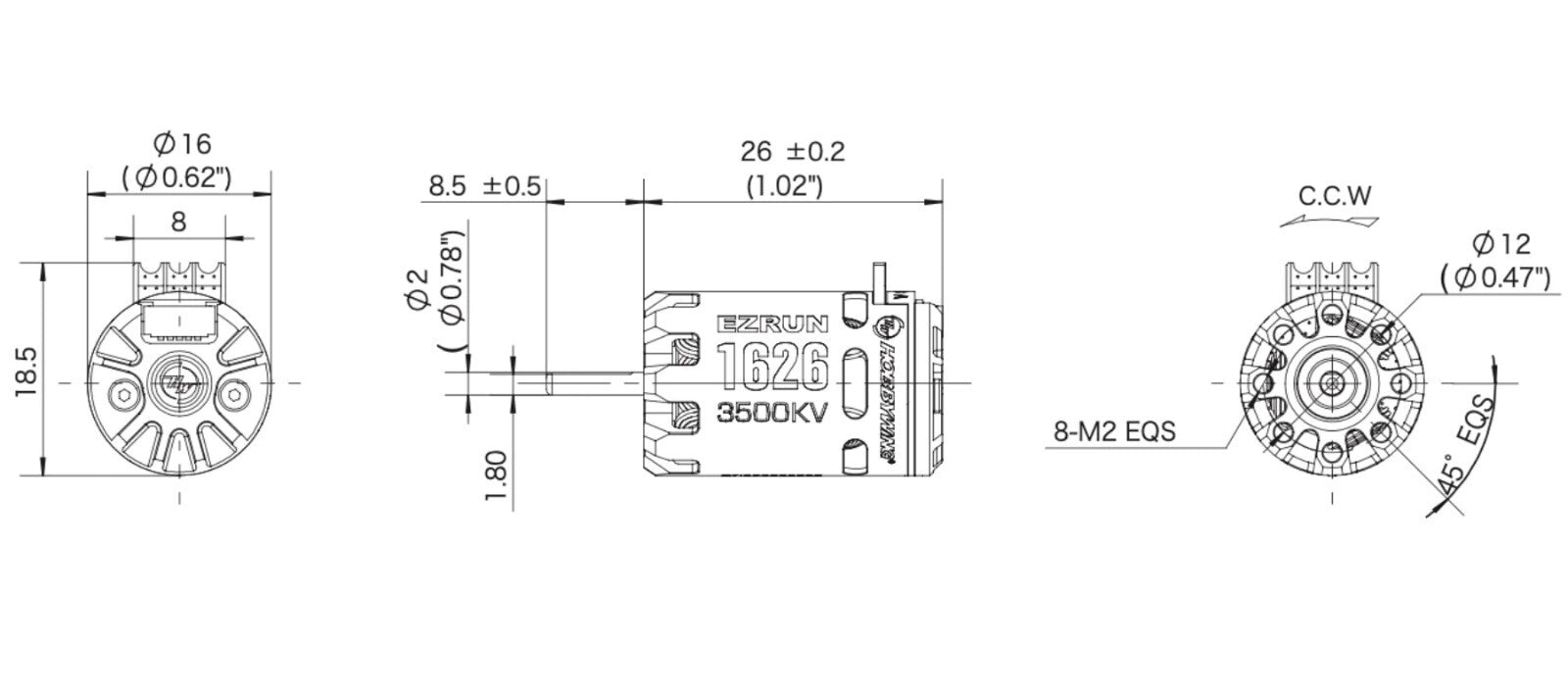

Motor Specifications:
- Model: Ezrun 1626-3500KV
- PN: 30402653
- Pole: 2
- KV: 3500KV
- No-load Current(A): 0.4A
- Input Voltage: 2S
- Diameter/ Length(mm): 16
- Shaft Diameter/ Length (mm): 26
- Applications: 1/28th Mini
- Weight: 18g
